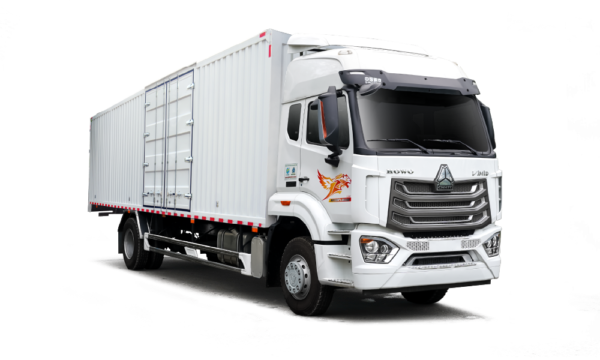

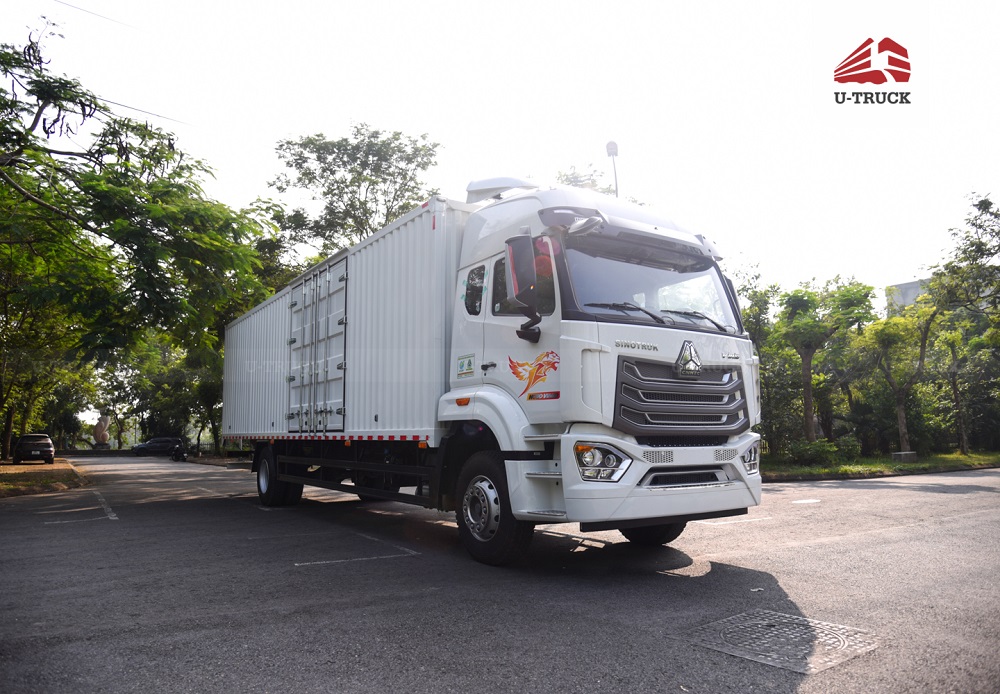

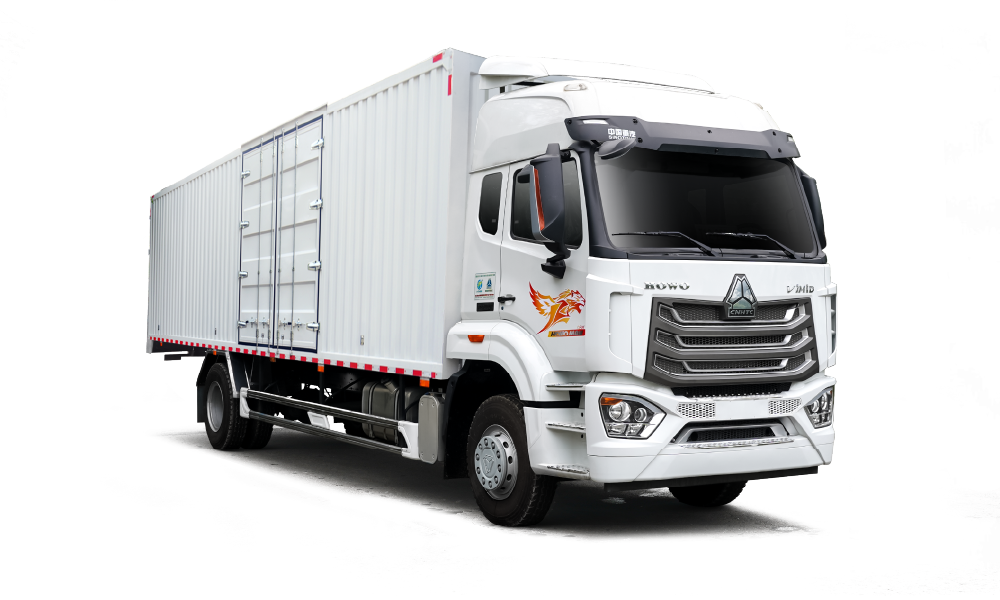

Howo NX 4×2 Cargo Truck – Container With 1 Side Door 9.9M

The NX 4×2 Cargo Truck – Container With 1 Side Door 9.9M side-door cargo truck is a HOWO model developed by SINOTRUK. It belongs to the HOWO N Series, an upgraded generation based on the previous VX model.

The NX 4×2 Cargo Truck – Container With 1 Side Door 9.9M serves the 6–9 ton payload segment, designed for interprovincial freight transport, goods transfer between industrial zones and clusters, and long-haul or mixed-road logistics operations — ideal for logistics, express delivery, postal services, and general cargo such as agricultural products, confectionery, electronics, and garments.

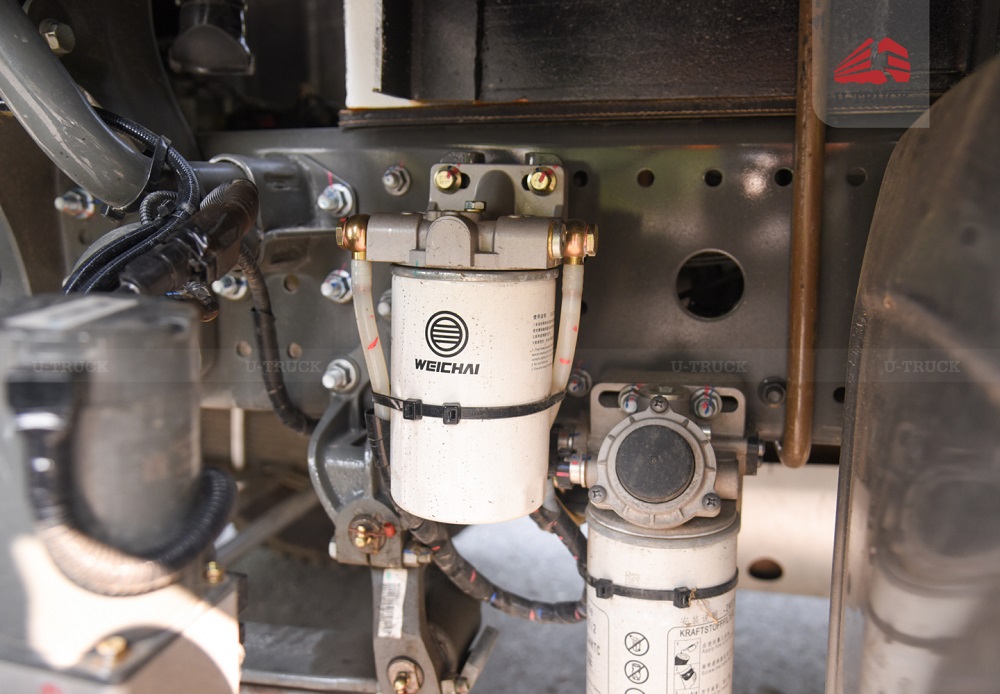

This high-quality product features a reliable configuration with minimal breakdowns, powered by a Weichai engine with a lifespan of up to 1.5 million km, a durable HW95508STCL gearbox, and a MAN-technology MCJ12BGY rear axle for superior durability.

The reinforced chassis and leaf spring system ensure high load capacity, safety, and optimal investment efficiency.

EXTERIOR DESIGN

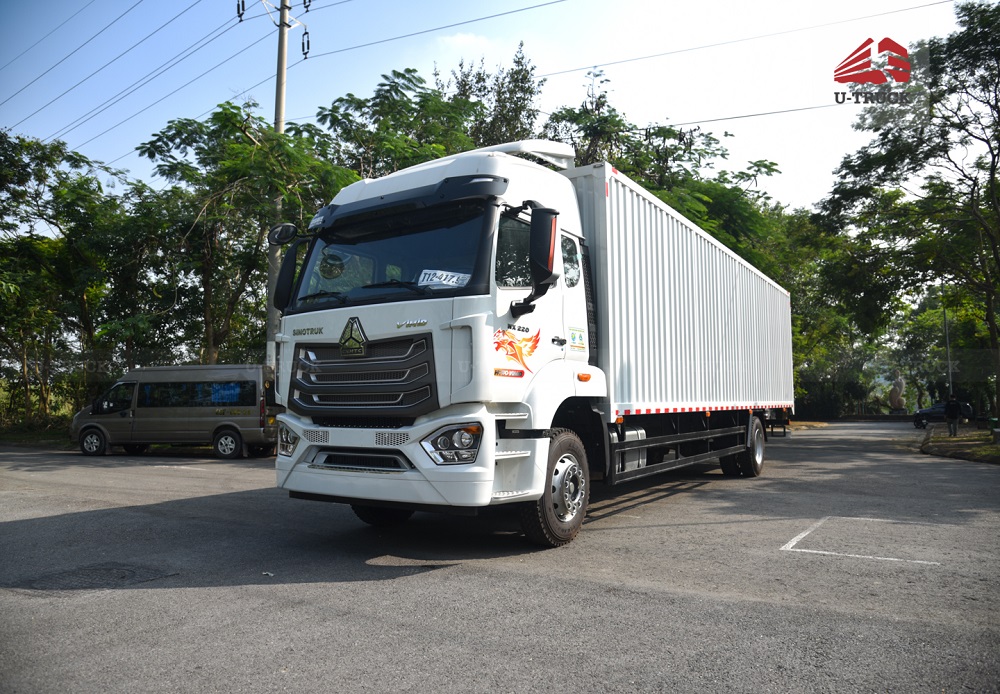

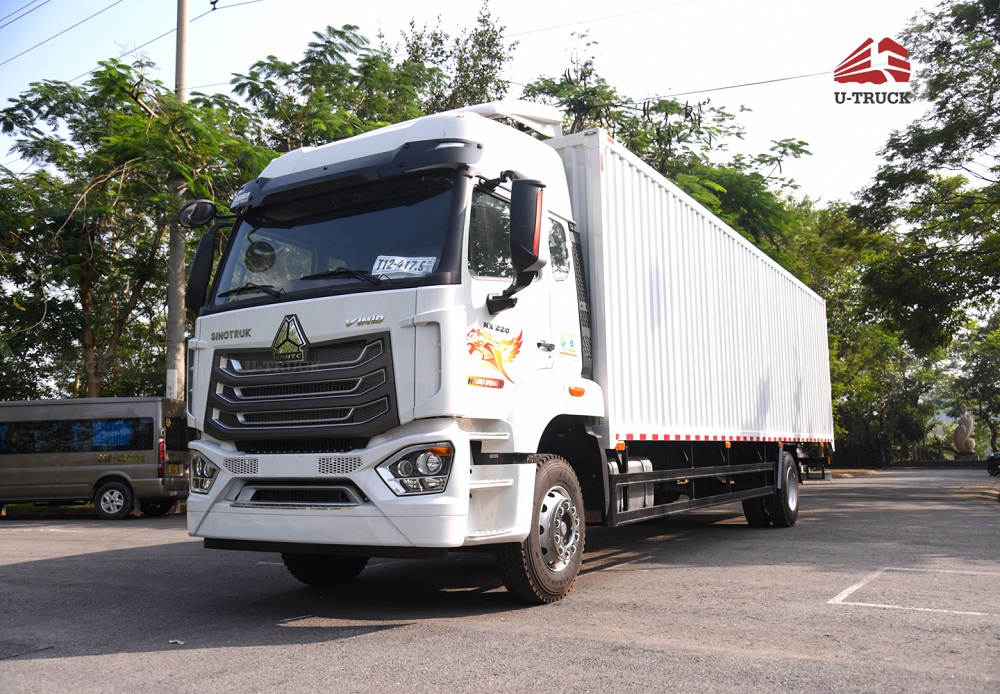

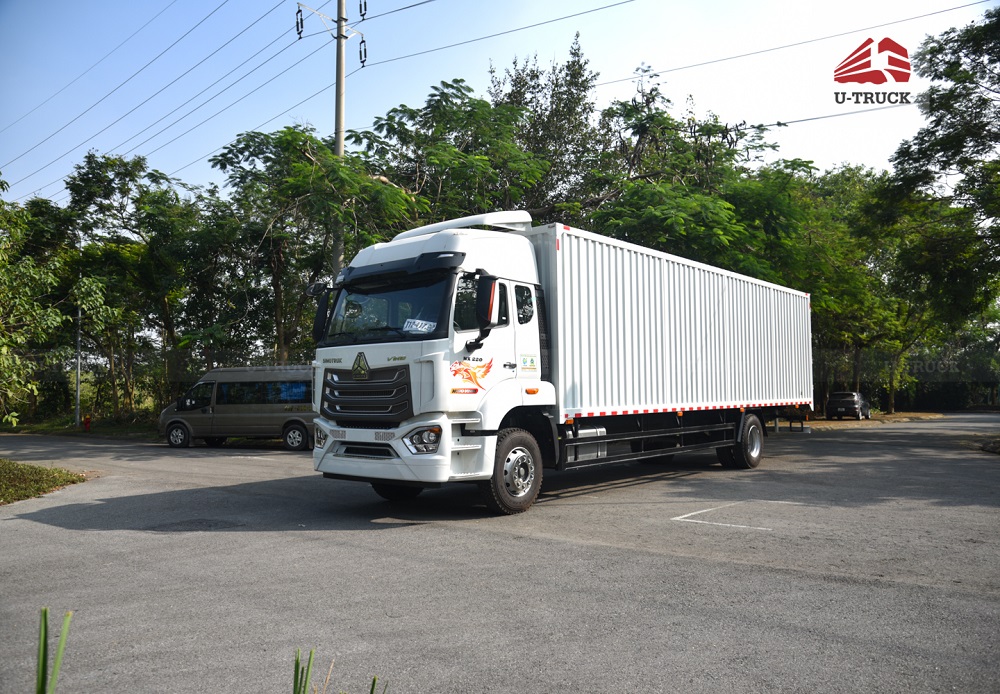

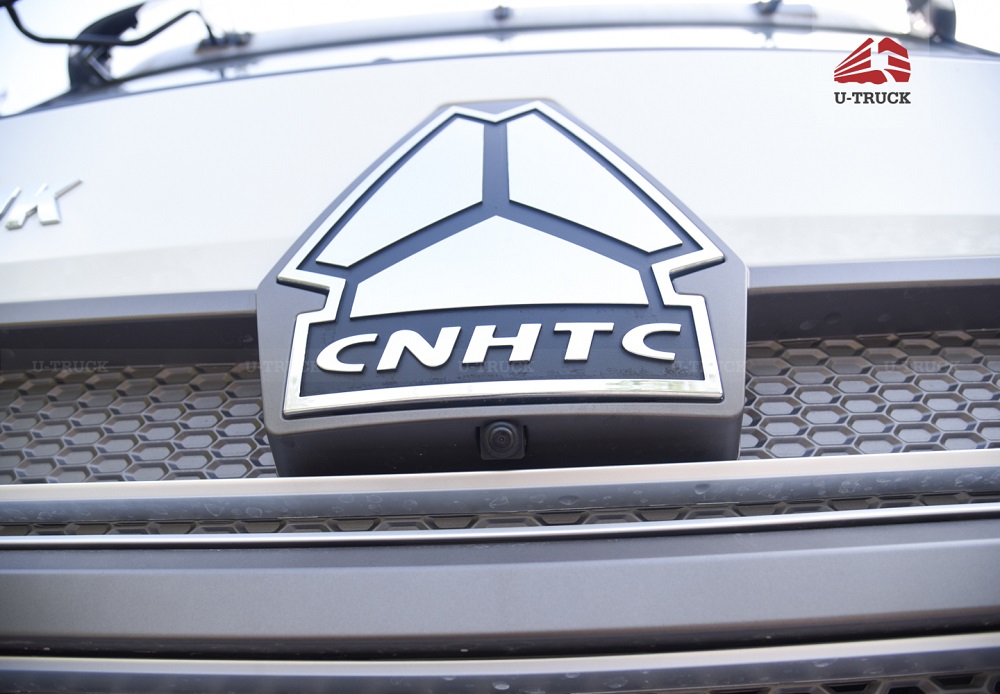

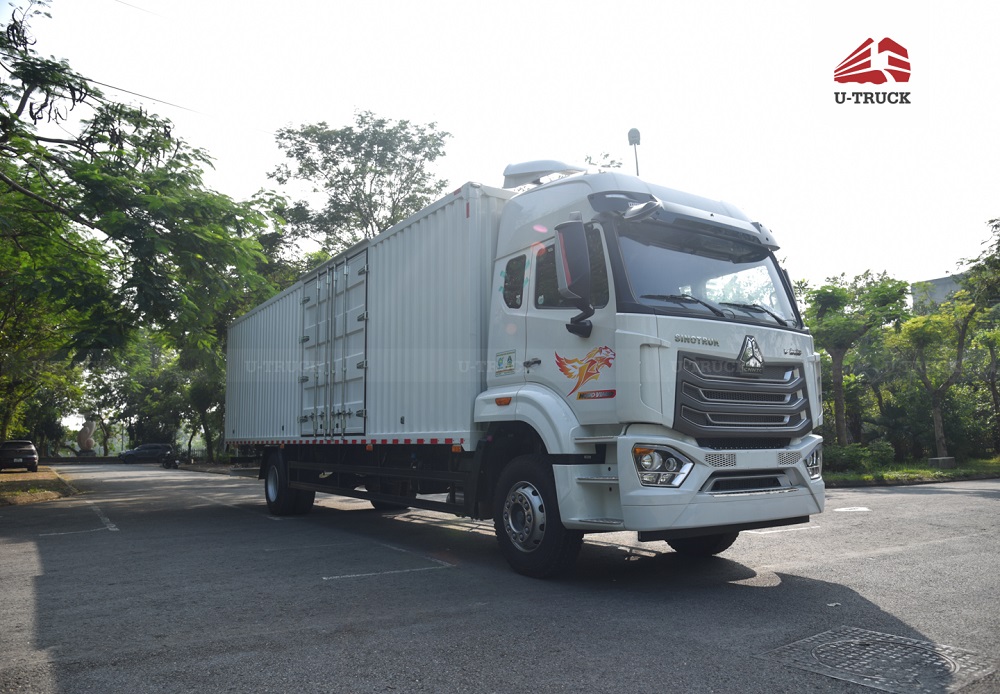

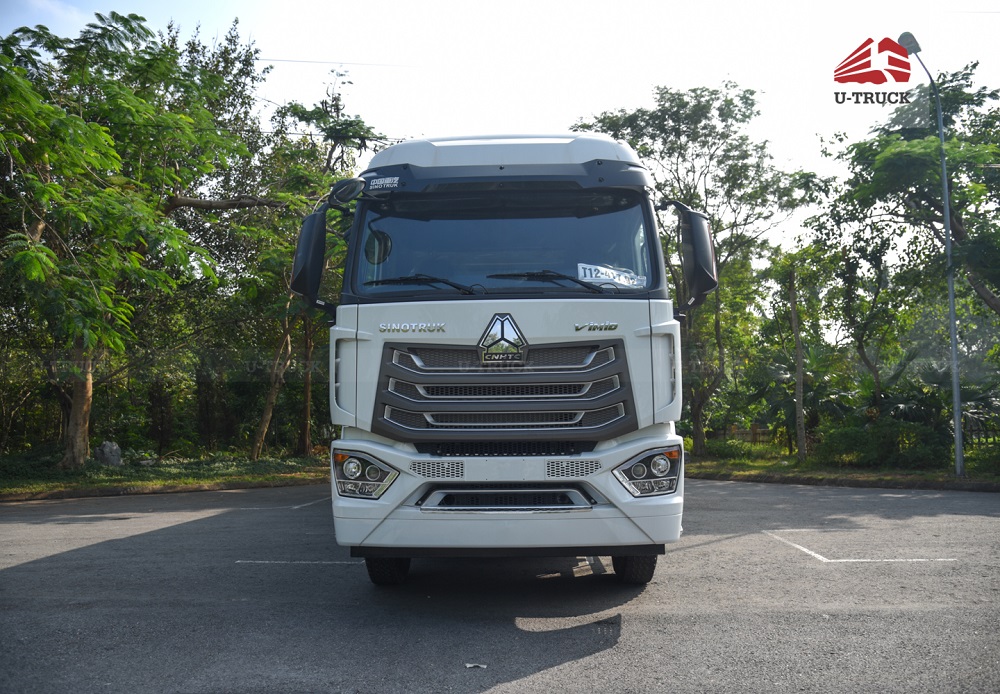

The Howo NX 4×2 cargo truck features a completely new exterior design, with a more harmonious, dynamic, and robust front grille.

The high-roof NX cabin includes two sleeper bunks, designed with solid, precise craftsmanship that enhances safety and reduces noise by up to 20% compared to other cabins in the same segment.

• Headlamp cluster: Combines HALOGEN, Bi-XENON, and LED lights, providing longer lifespan, better illumination, and improved energy efficiency.
• Front bumper: Balanced design, harmonizing the cabin’s overall look.

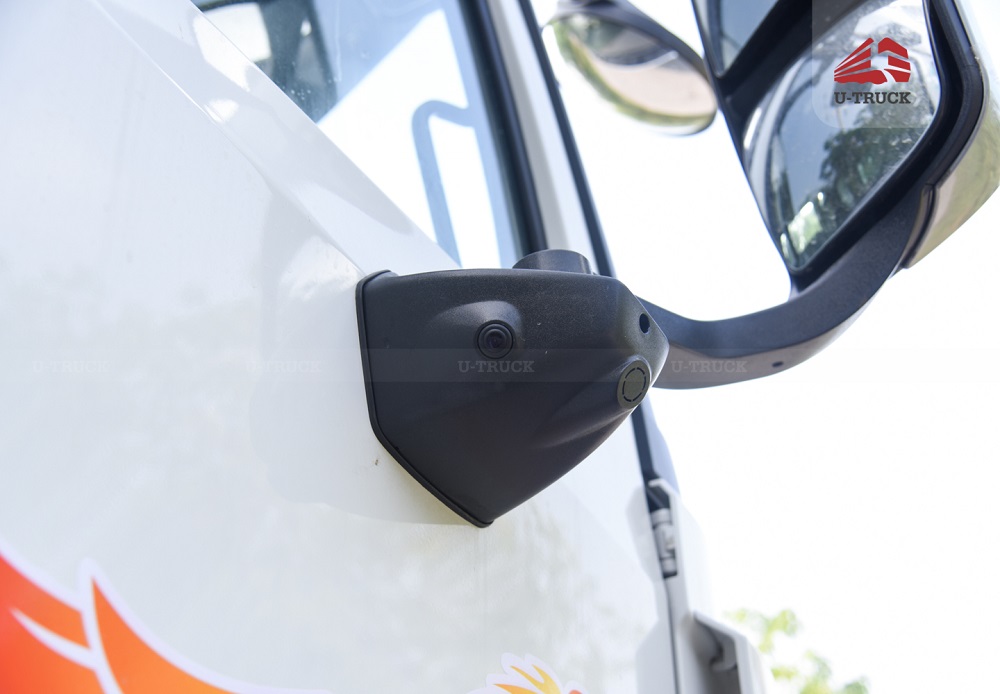

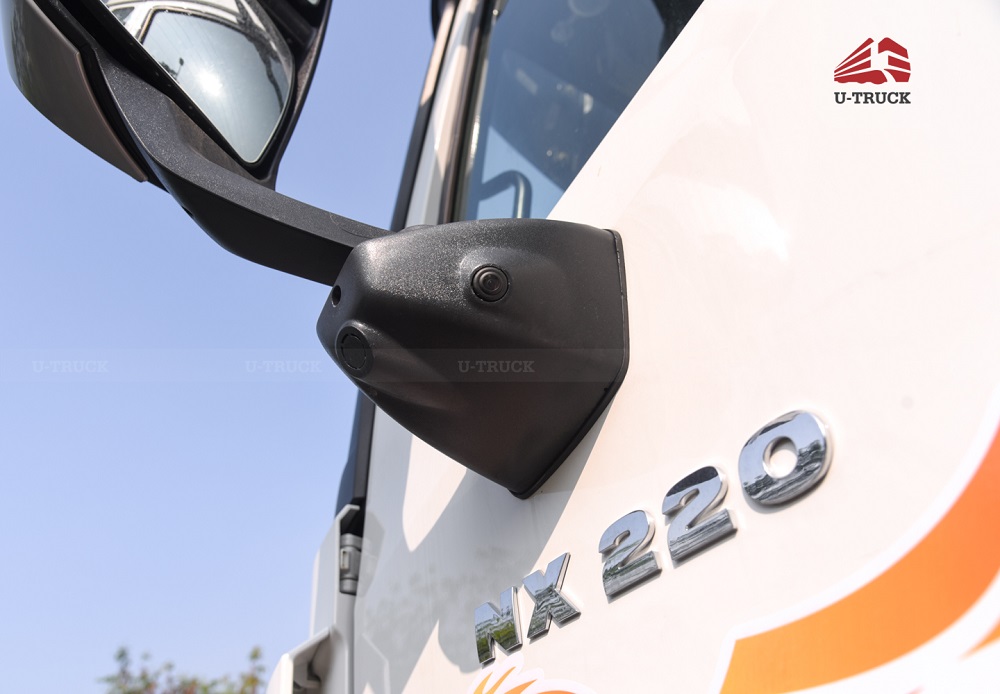

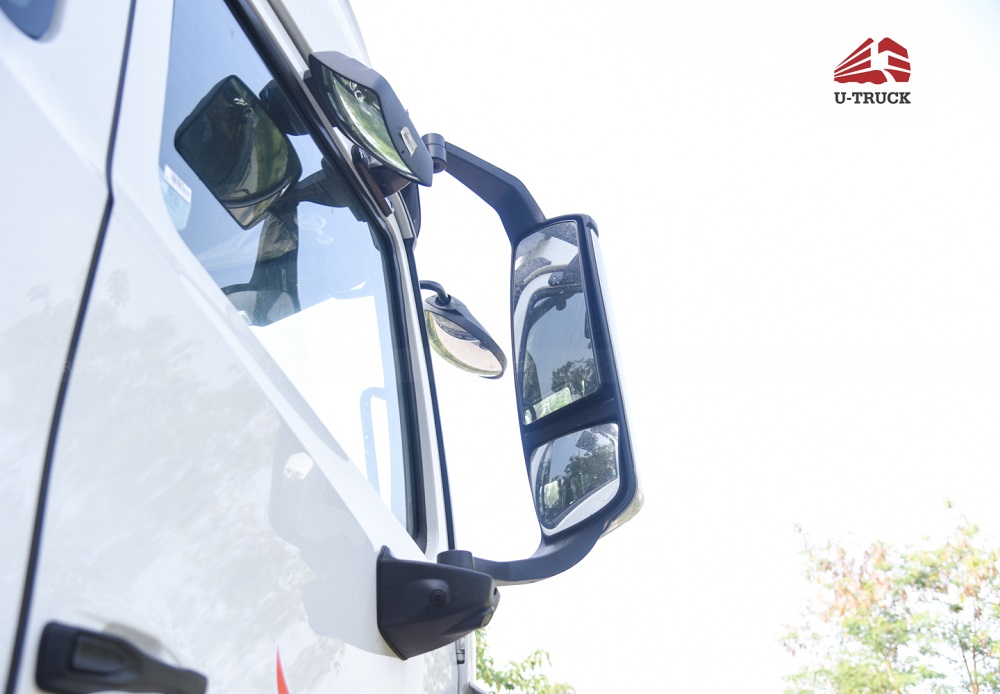

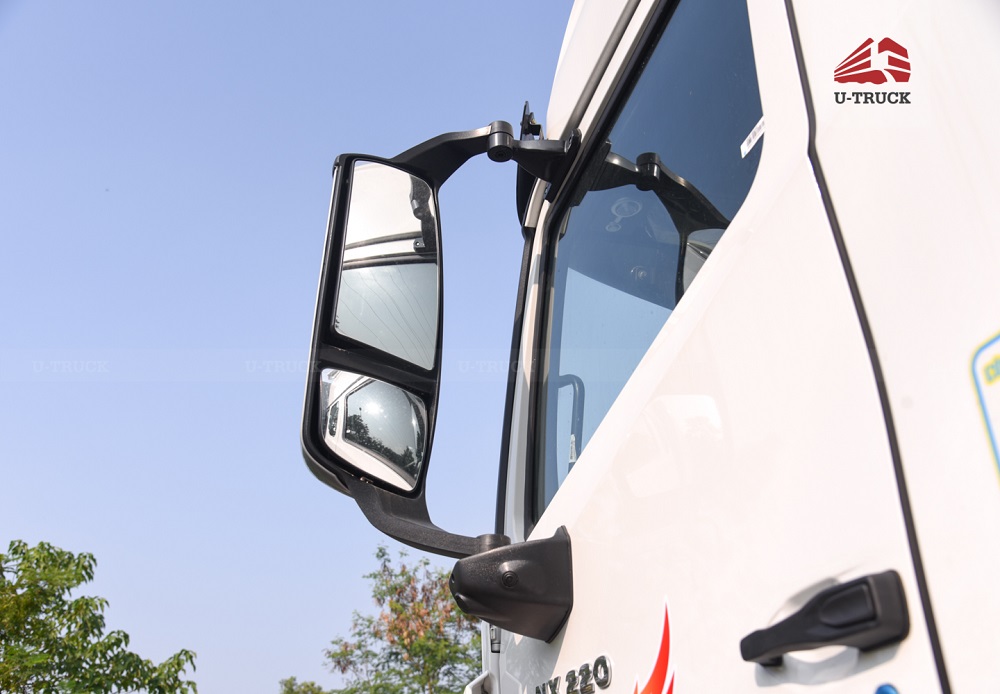

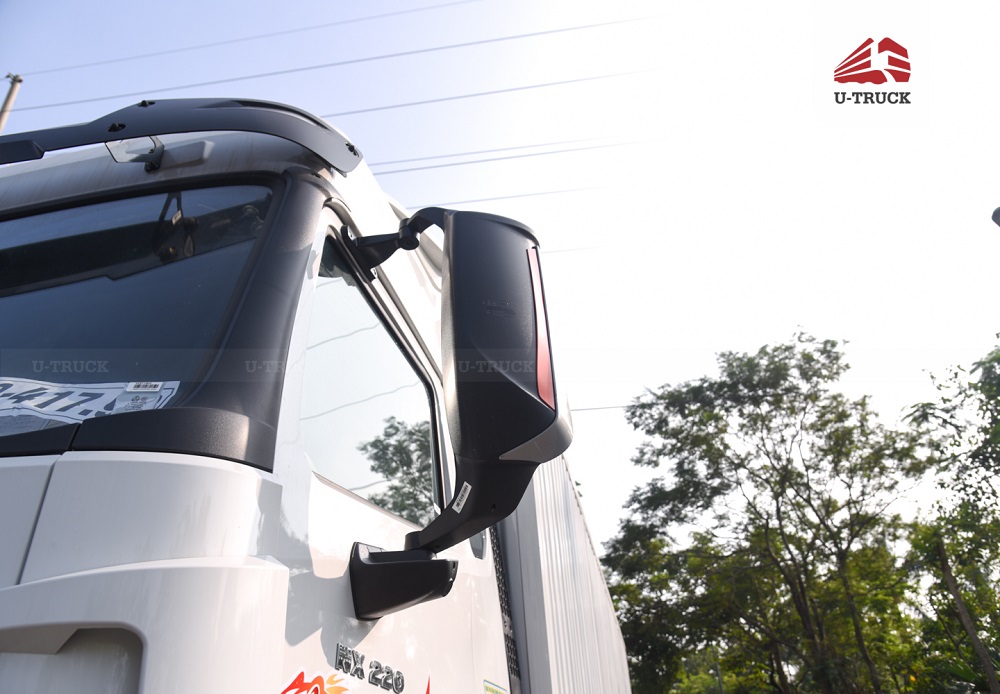

• Wide rearview mirrors: Offer excellent visibility under various conditions; 4-way electric adjustment and heated mirror function included.
• Three-step entry system: Equipped with anti-slip stainless steel treads for safer, more convenient access.

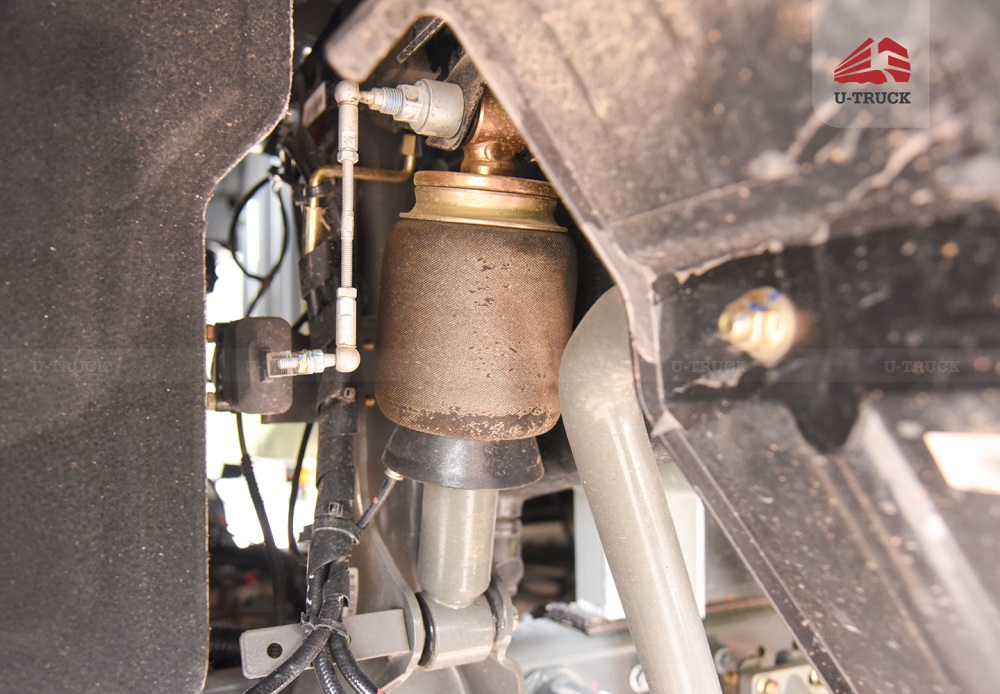

• Air suspension system: Features four large air bags suspension for a smoother and more comfortable driving experience.
• Electric tilting cabin: A new feature compared to previous dump truck models, making maintenance and inspection easier..

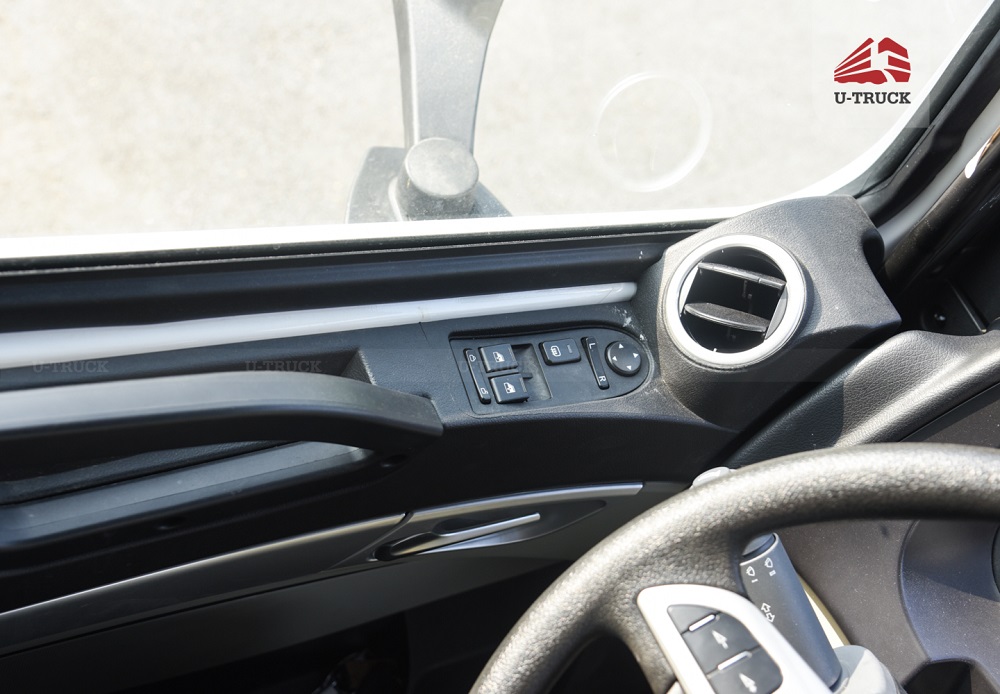

INTERIOR DESIGN

Developed by European TGA engineers using MAN-Germany standards and technology, shared with HOWO MAN VX/T5G/TX models.

Spacious cabin with elegant grey-gold tones and upgraded seat, bunk, and dashboard materials for a refined appearance.

Fully equipped with exhaust brake, cruise control, smart key, USB ports, electric cabin lift, auto air-conditioning, auto headlight switch, air suspension driver’s seat with multiple adjustment modes, and more.

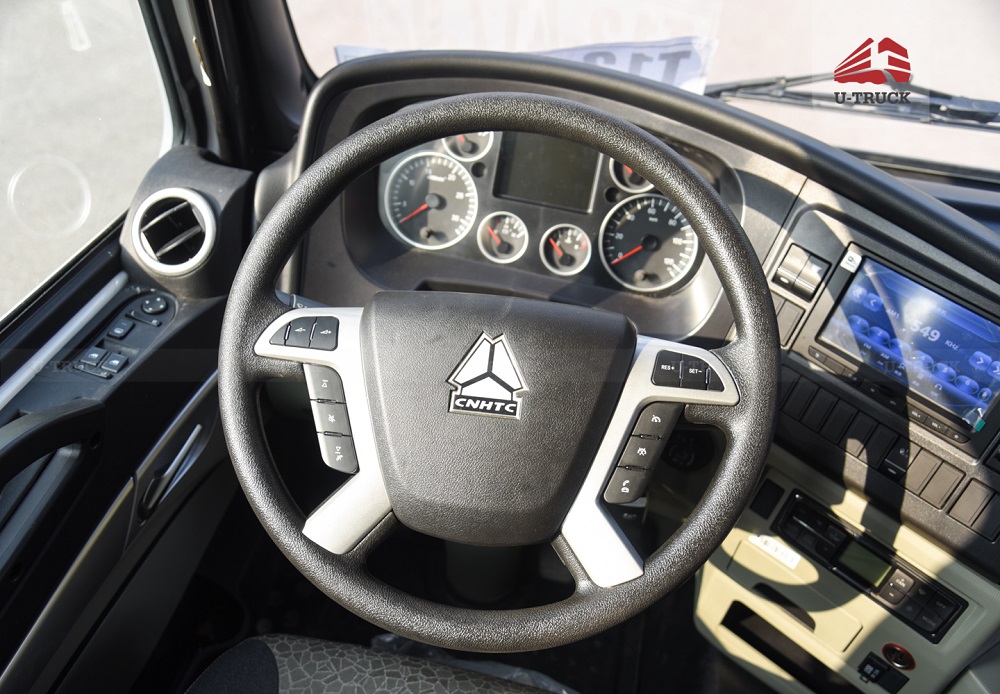

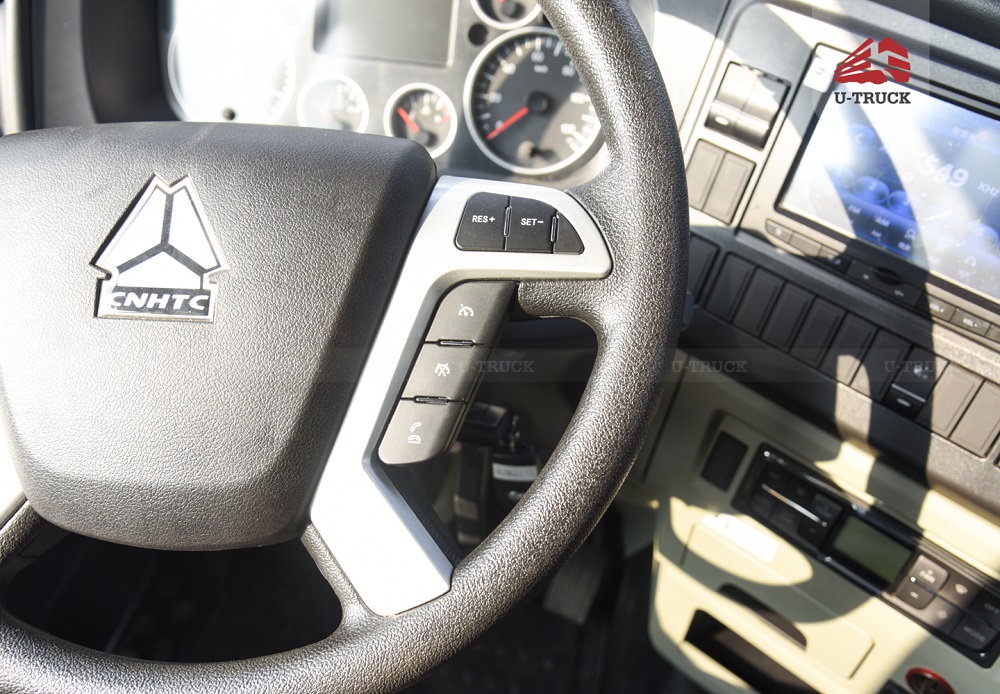

• 4-spoke steering wheel with a modern design and the bright CNHTC triangular logo.
• Central control panel: Smart two-tier layout made of durable hard plastic.

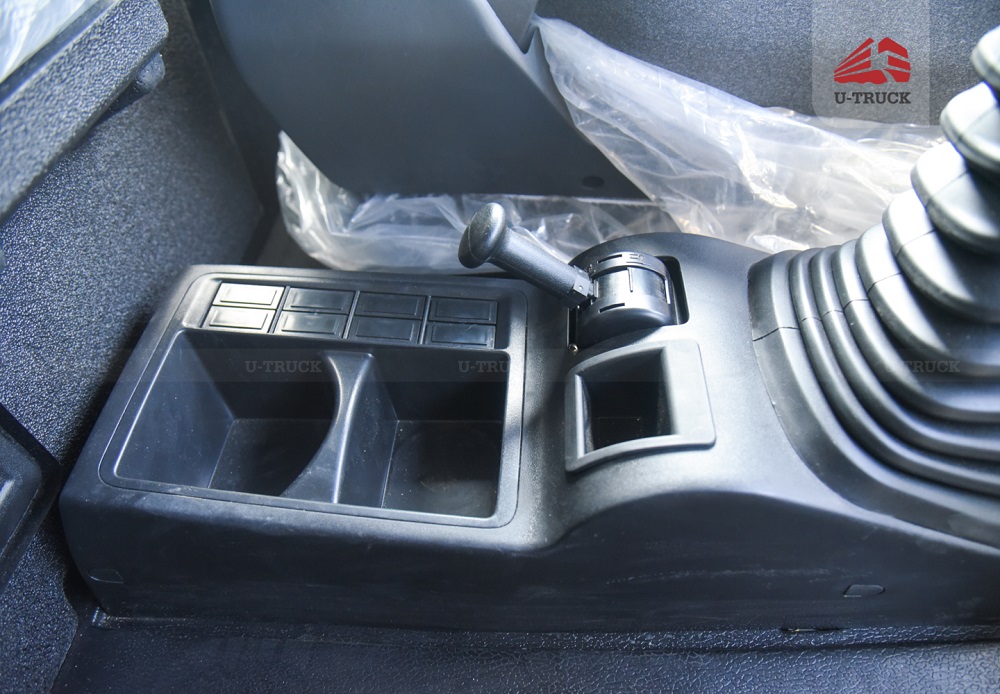

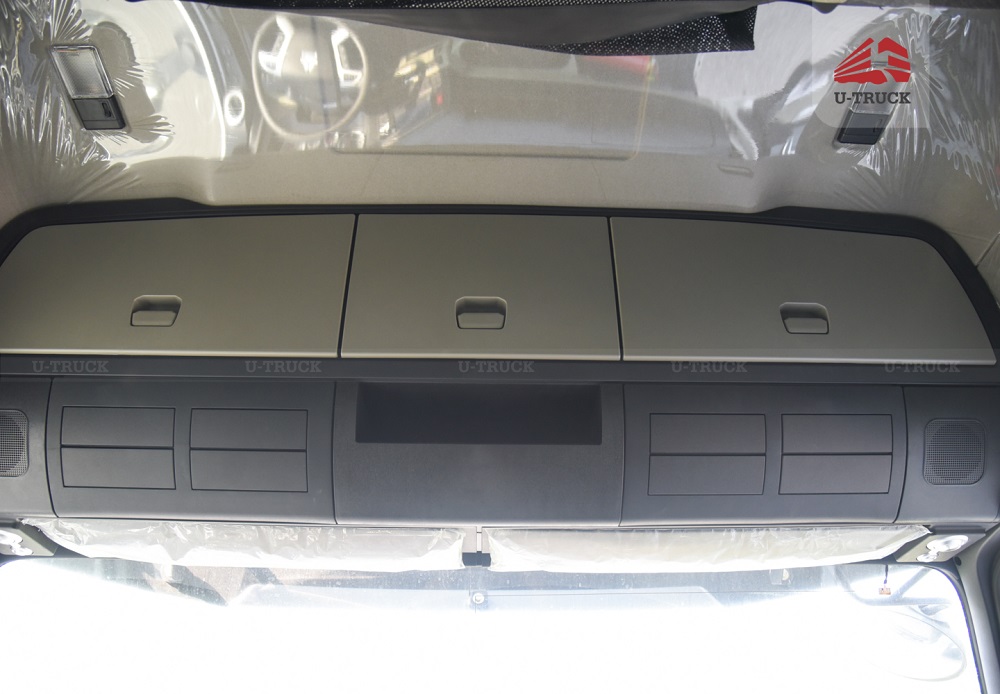

• Multiple storage compartments for convenience.

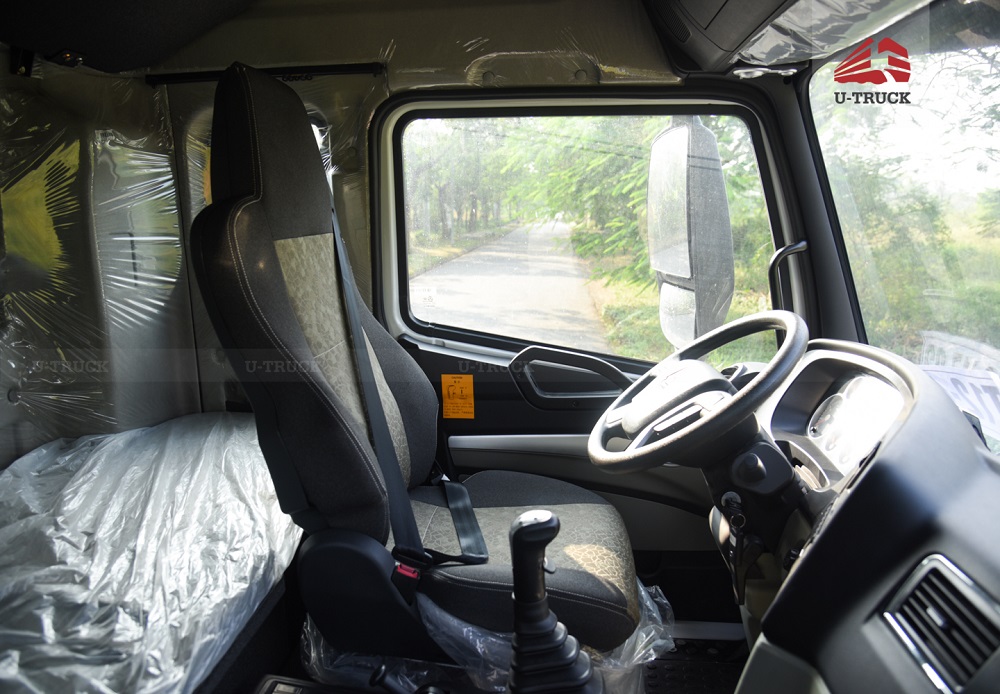

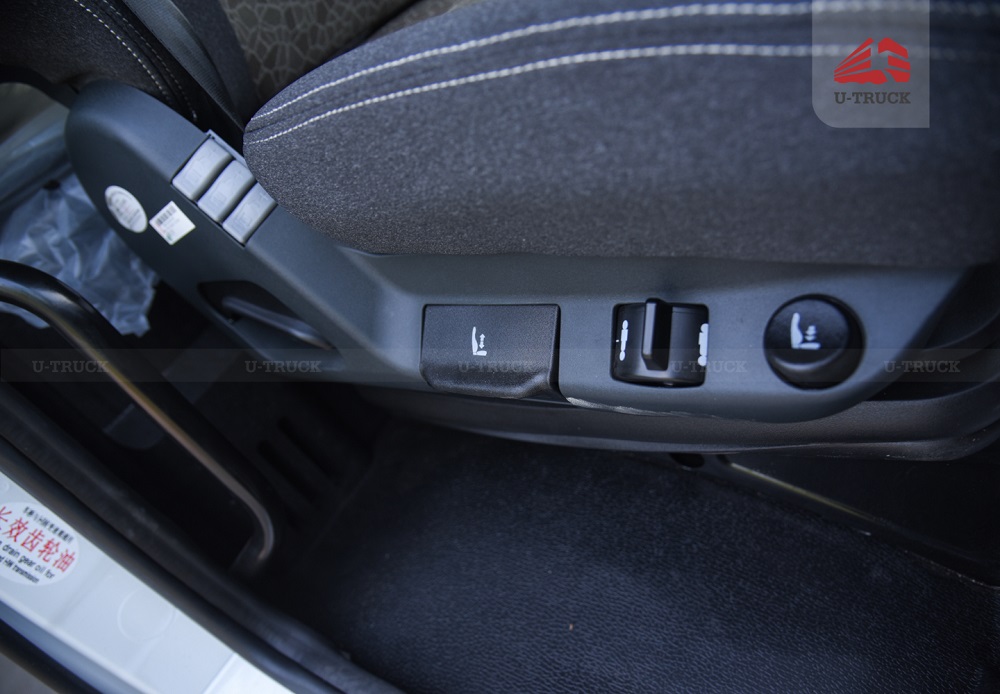

• Driver’s seat: Premium air suspension with adjustable lumbar support to reduce spinal fatigue.

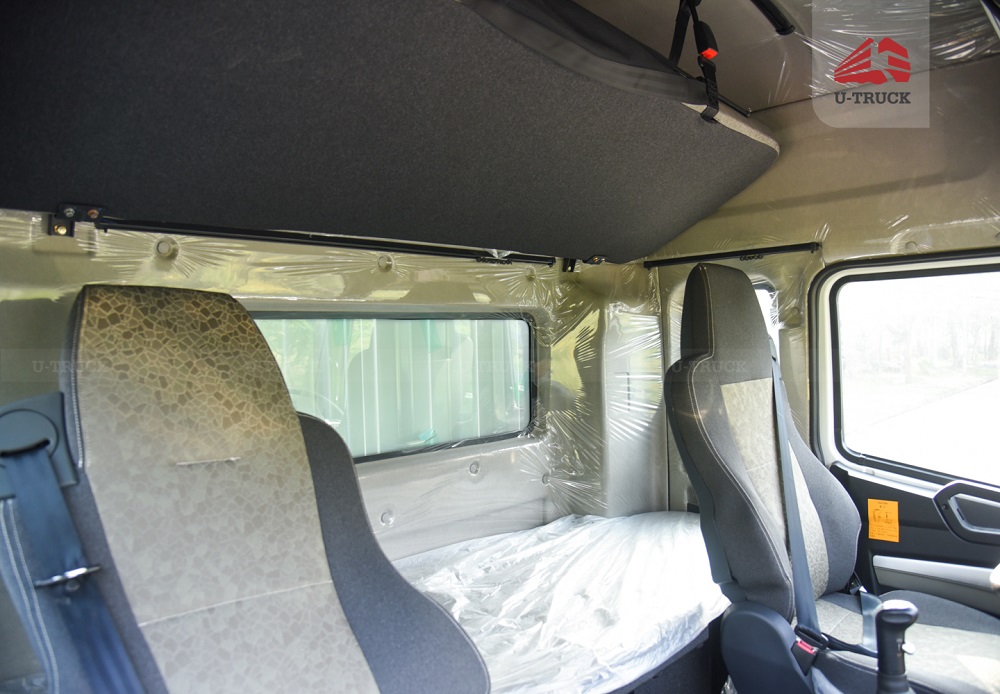

• High-roof cabin with two bunks, made of lightweight, noise-reducing, eco-friendly materials.

POWERTRAIN AND TRANSMISSION

• Max power: 220 Hp
• High torque output for strong performance.
• Extended maintenance intervals and 9% fuel savings thanks to advanced materials and technology.
• Equipped with BOSCH electrical system (Germany) for high reliability and stability.
• Engine lifespan: up to 1.5 million km (B10 standard).
• Safety features: EVB valve and engine braking system.

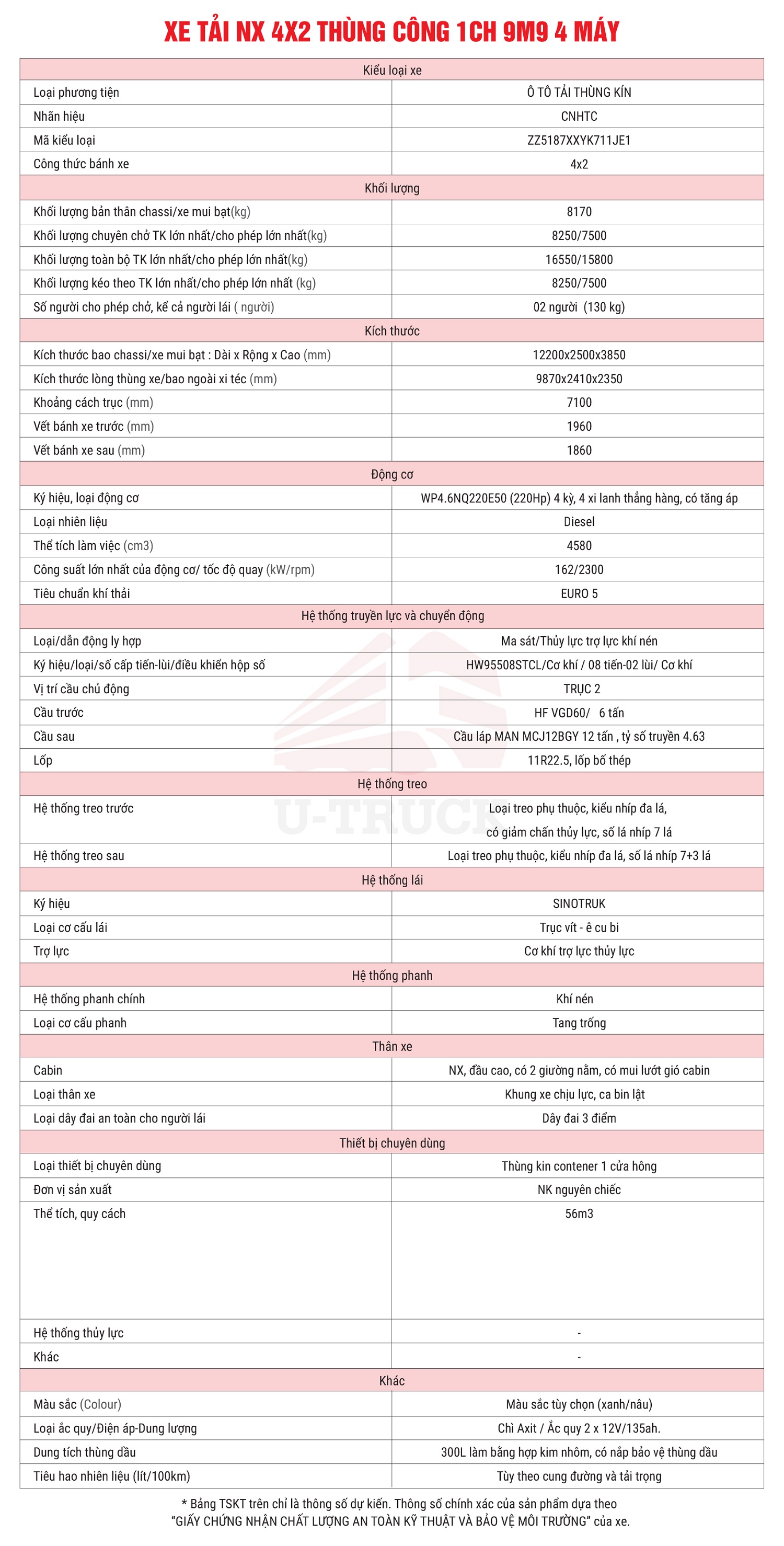

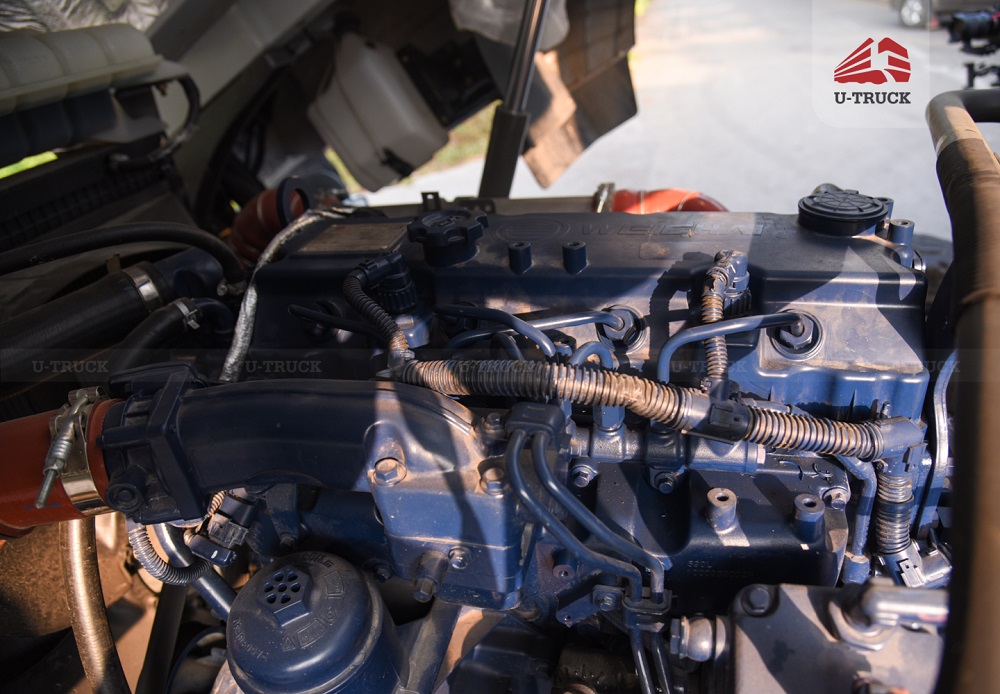

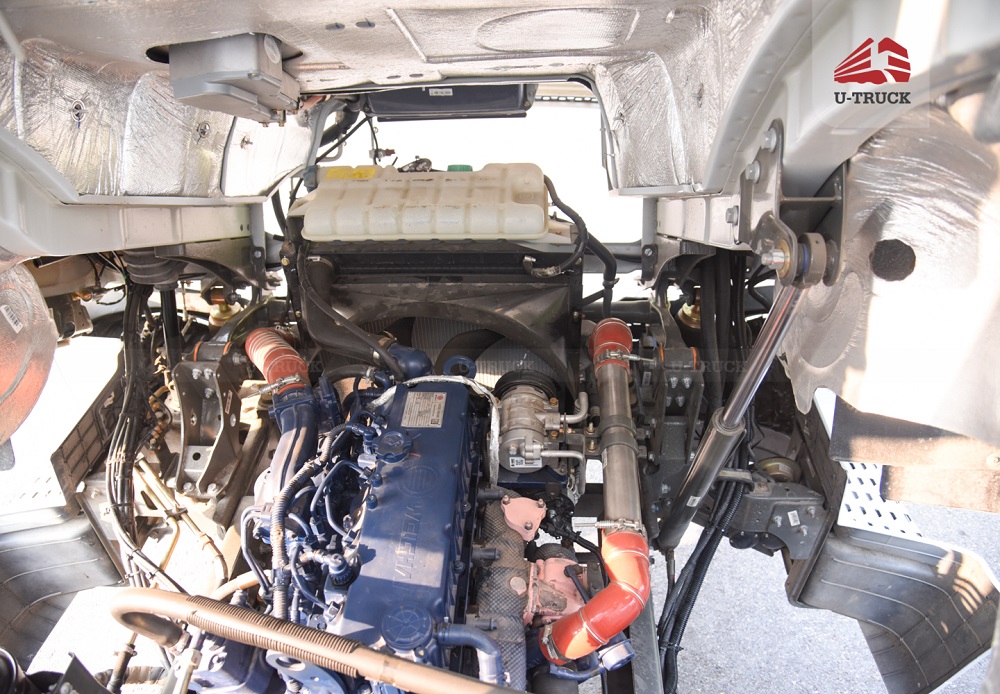

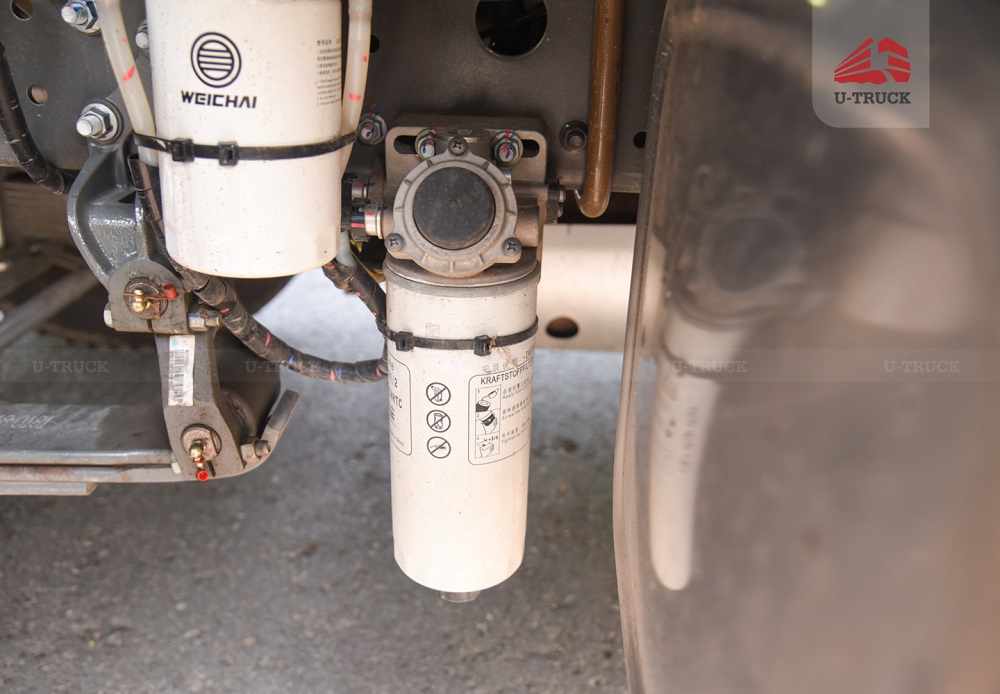

Engine Specifications:

• Model: WP4.6NQ220E50
• Displacement: 4580 cm³
• Power: 162 kW (220 Hp)
• Max Torque: 925 N·m
• Max RPM: 2300 rpm

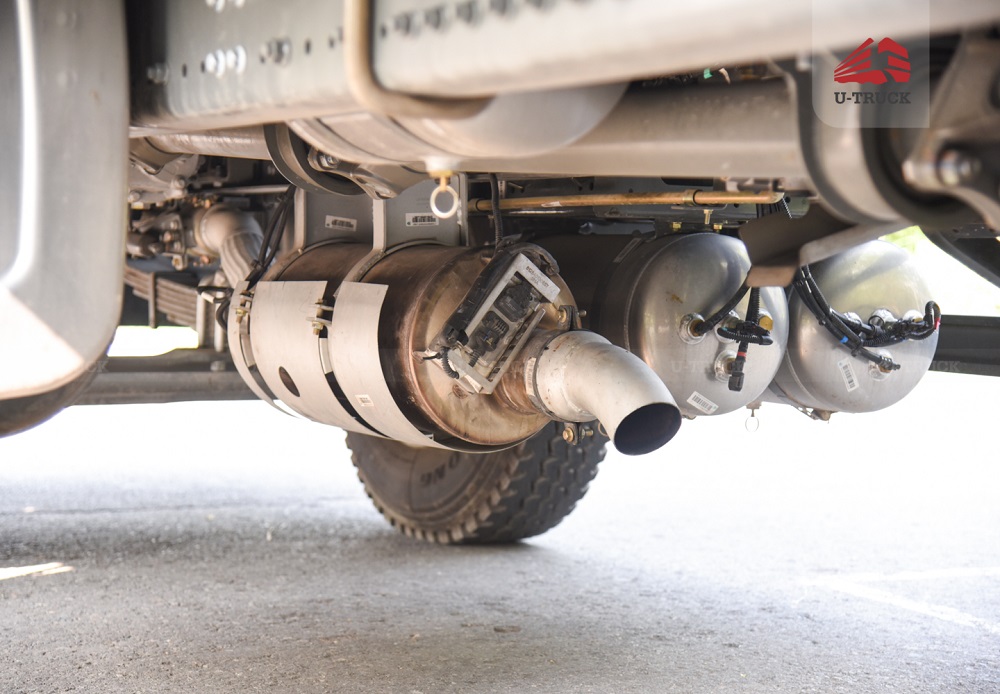

• Emission Standard: Euro 5 (SCR system)

Gearbox: HW25712XSTL

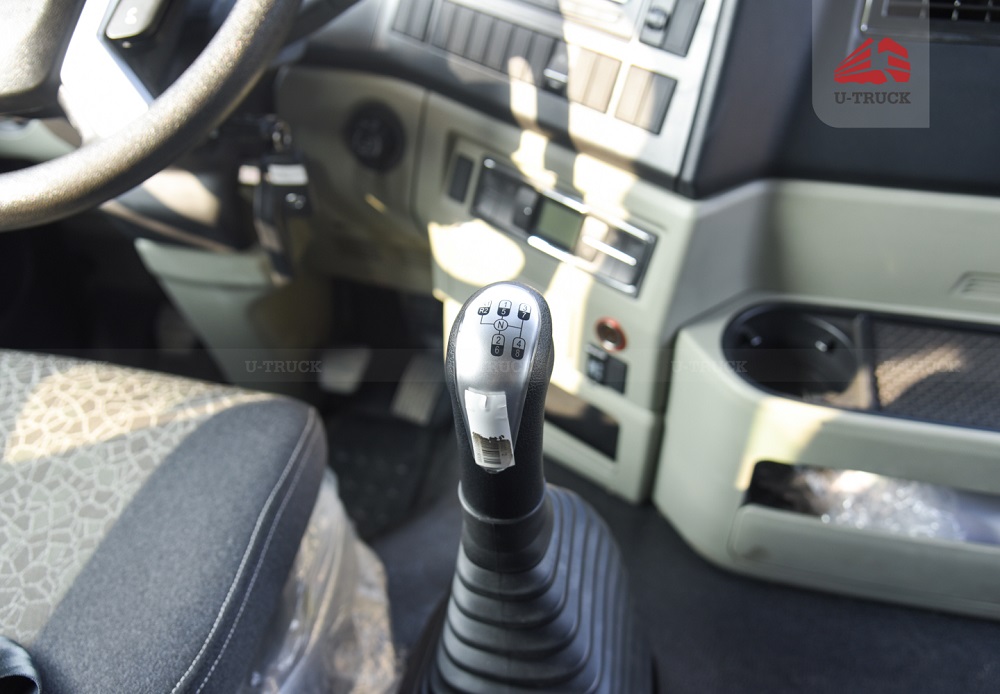

• Model: HW95508STCL
• Type: 8 forward + 2 reverse gears

• Equipped with a split-range shifter, enabling smoother and easier gear shifting.
• Mechanical gearbox with dual auxiliary shafts and synchronizers for enhanced smoothness, durability, and stability.

Axles:

• Front axle: MAN-standard HF VGD60, load capacity 6 tons.

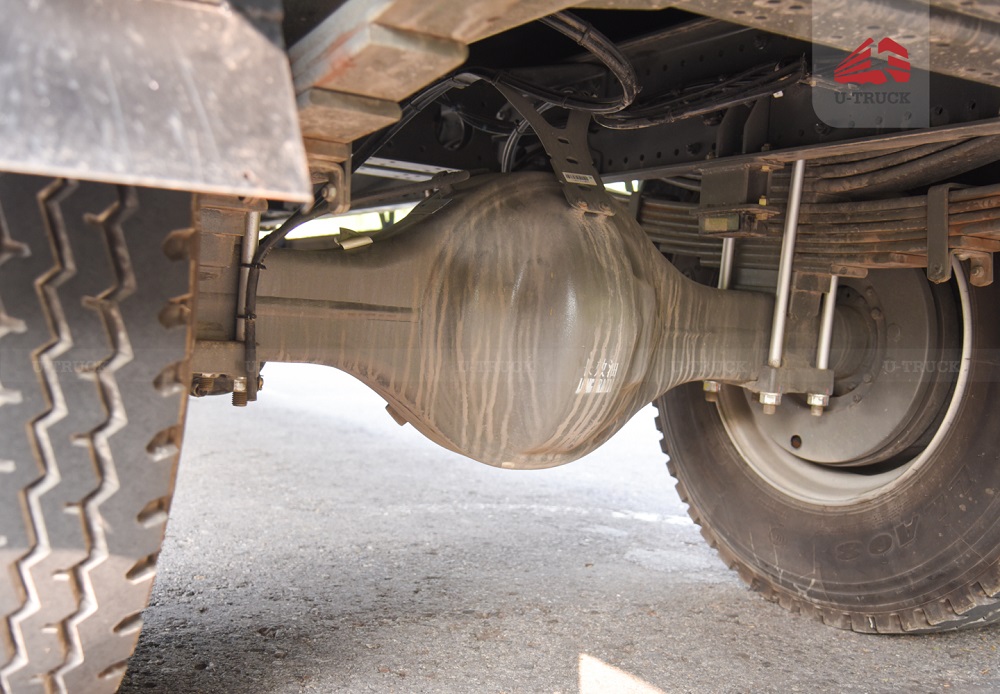

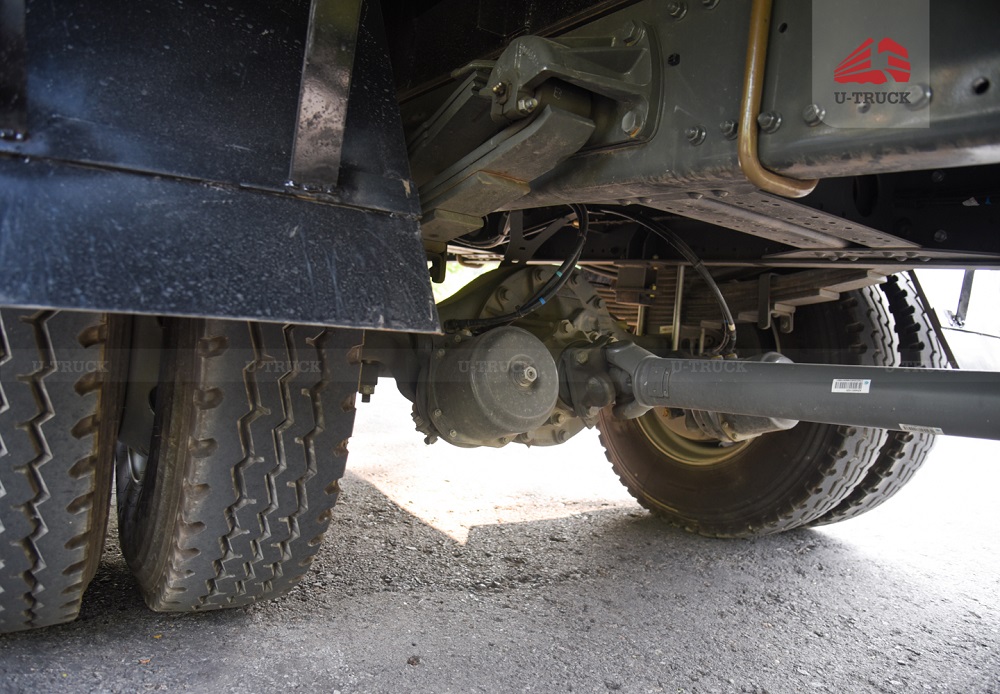

• Rear axle: MCJ12BGY, load capacity 12 tons.

Suspension System

• Dependent leaf-spring suspension, ensuring stability and high load capacity.
• Front: 7-leaf springs with hydraulic shock absorbers.
• Rear: 2-stage leaf springs (7 + 3 leaves)

CARGO TRUCK BODY

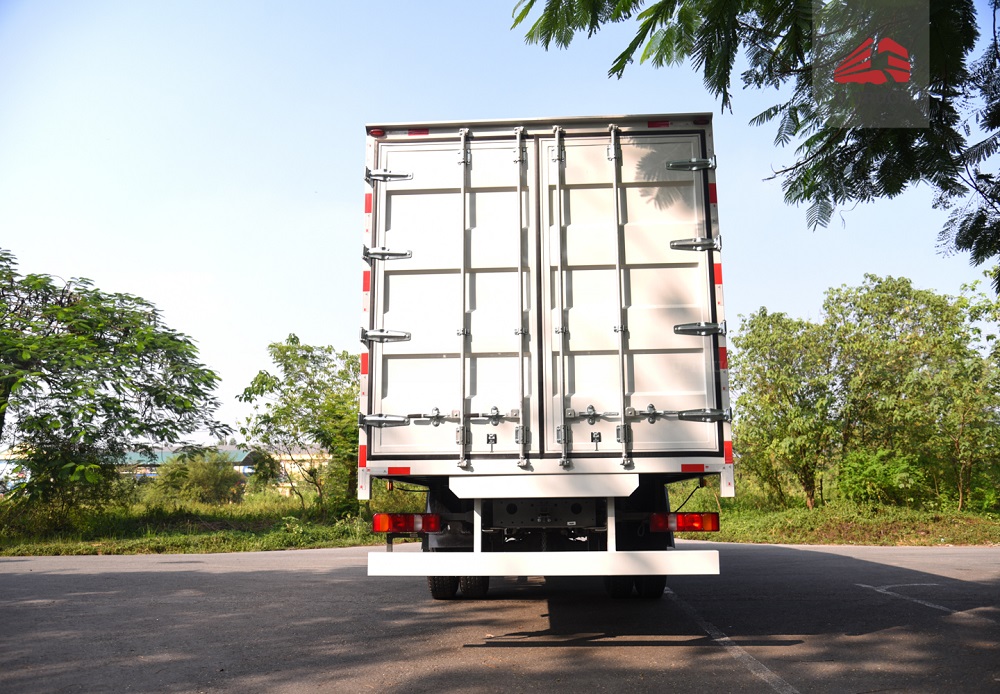

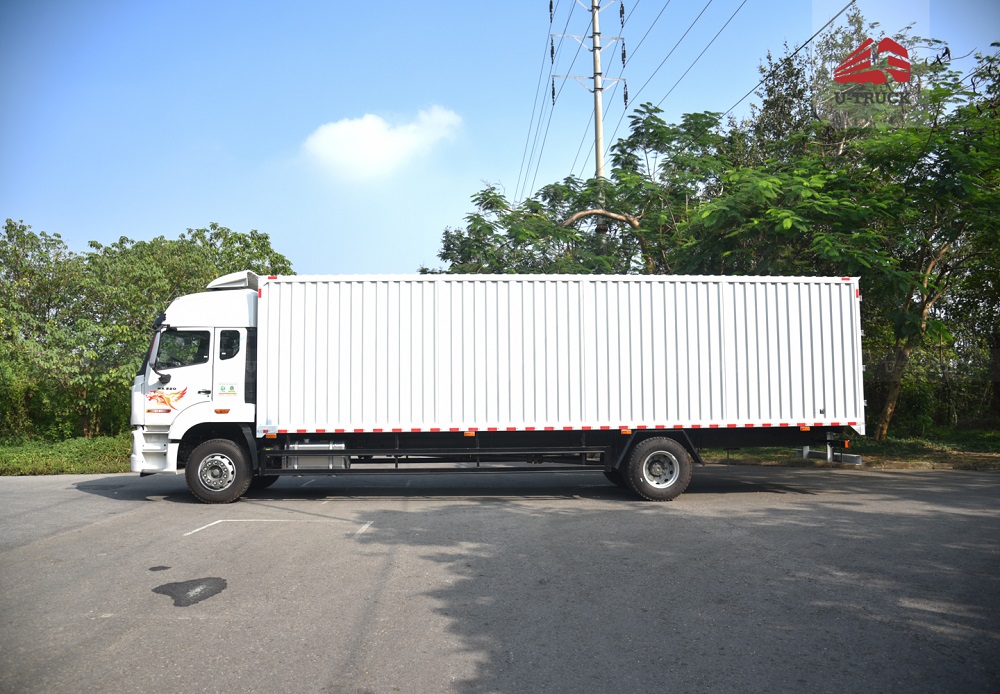

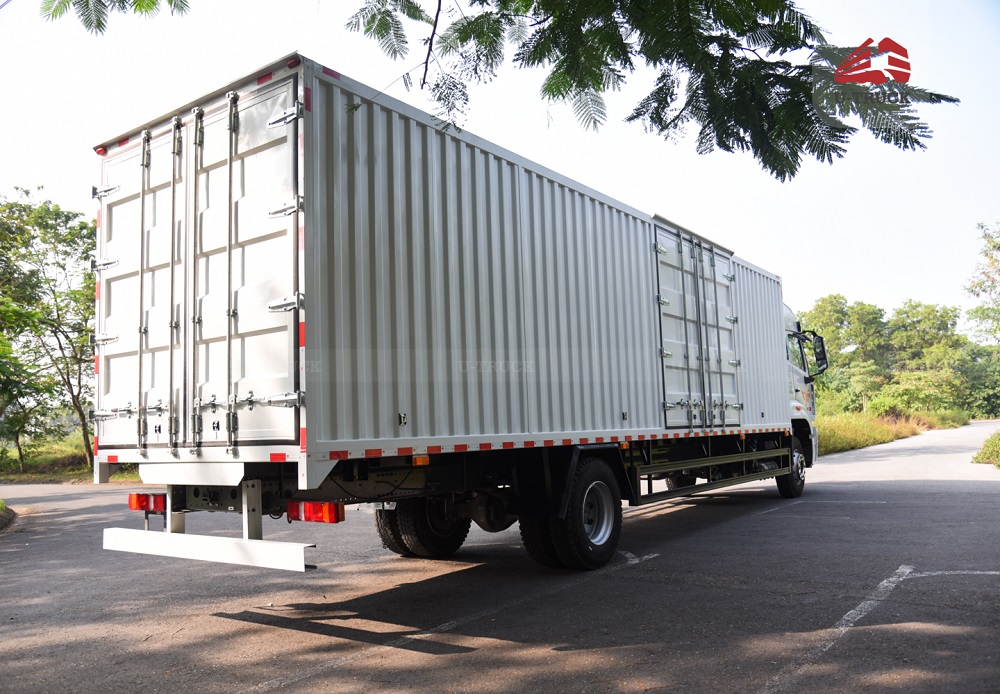

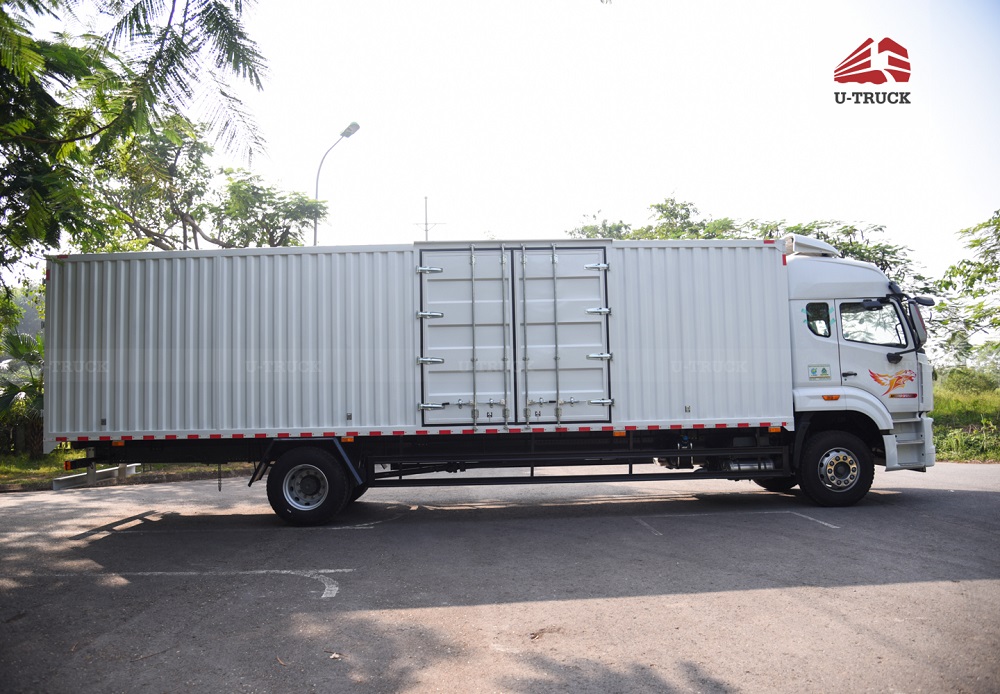

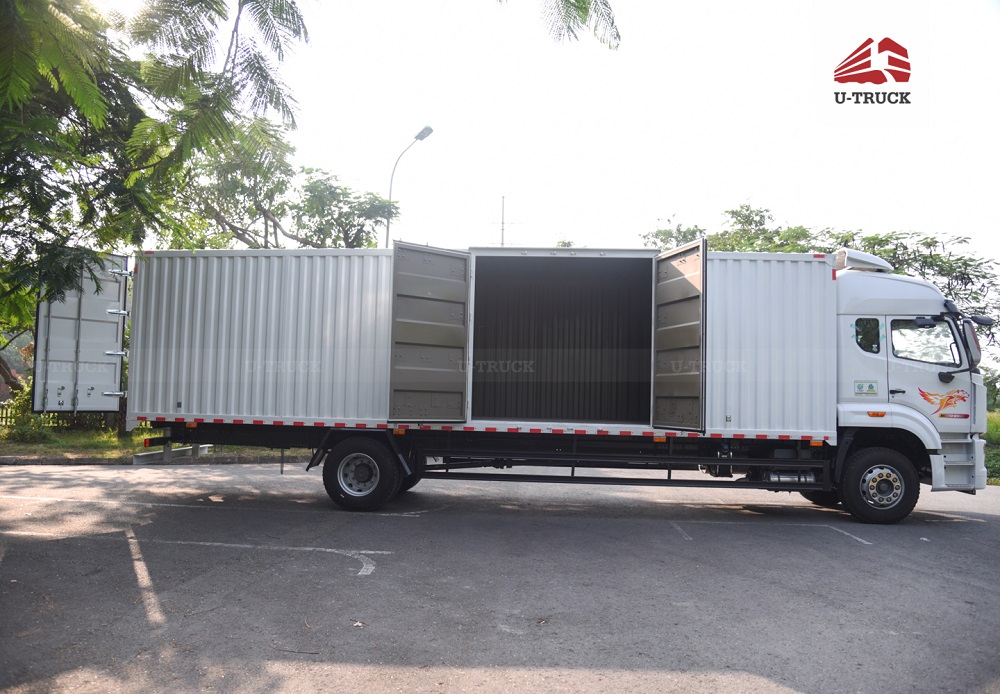

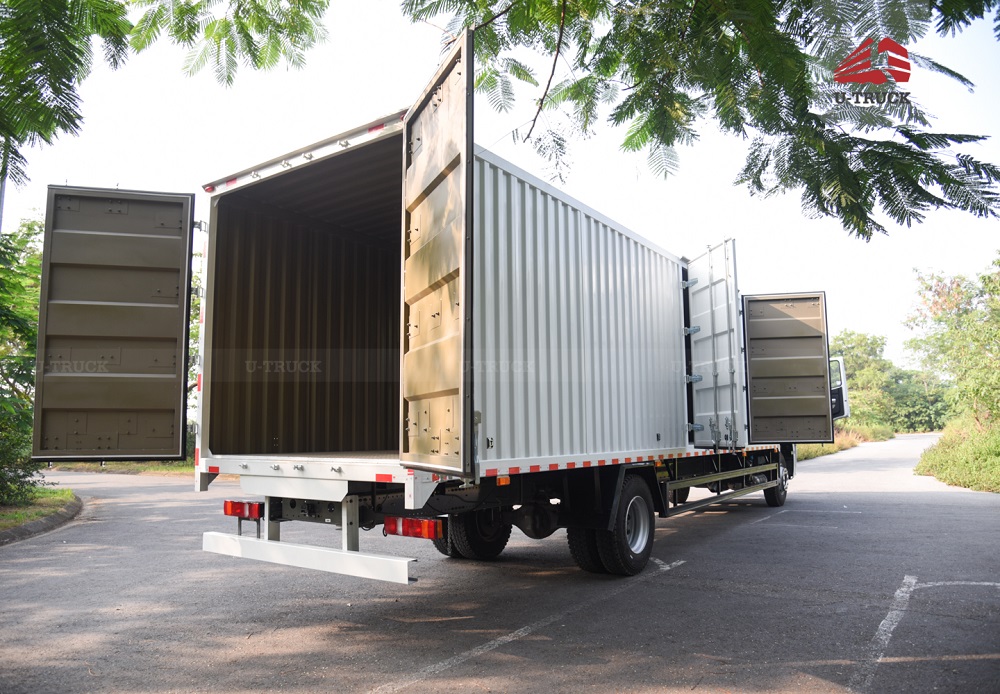

• Imported full-body steel cargo box, 1 side door, total volume: 56m³.
• Outer dimensions: 12,200 × 2,500 × 3,850 mm
• Inner box dimensions: 9,870 × 2,410 × 2,350 mm

OTHER SYSTEMS:

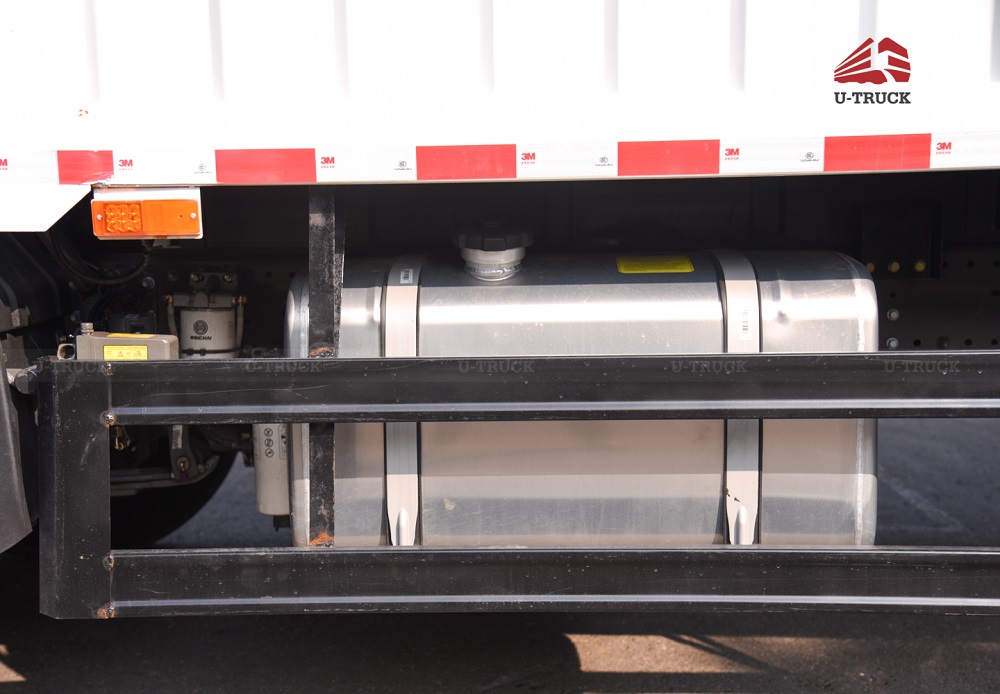

• Anti-corrosion aluminum alloy fuel tank: 300L capacity
• Tires: 11R22.5 (steel-belted radial)
• Steering system: Mechanical with hydraulic power assist
• Battery: Lead-acid, 2 × 12V / 135Ah
