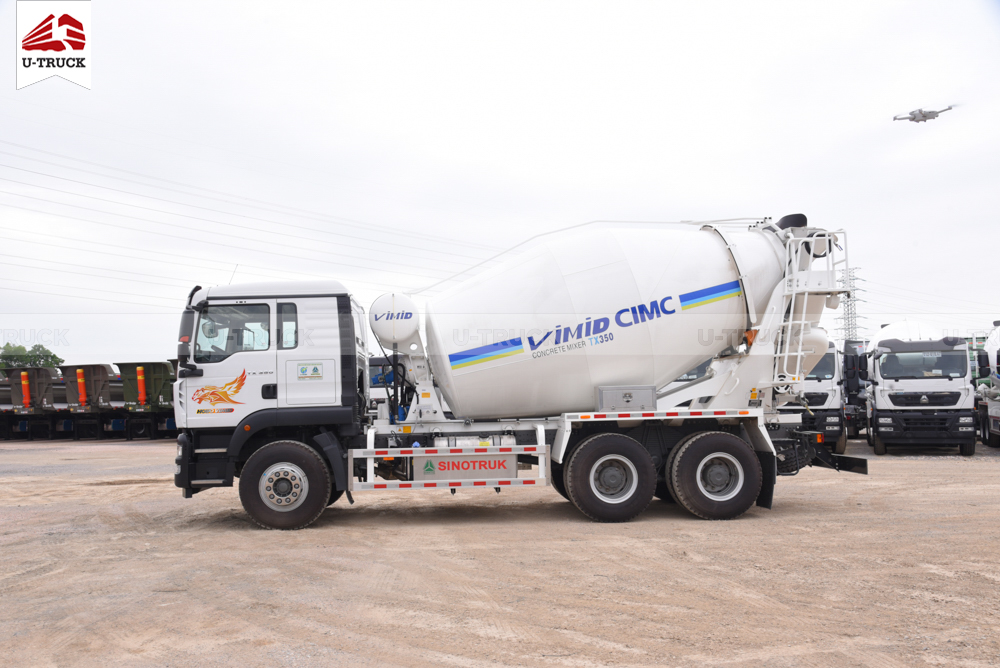

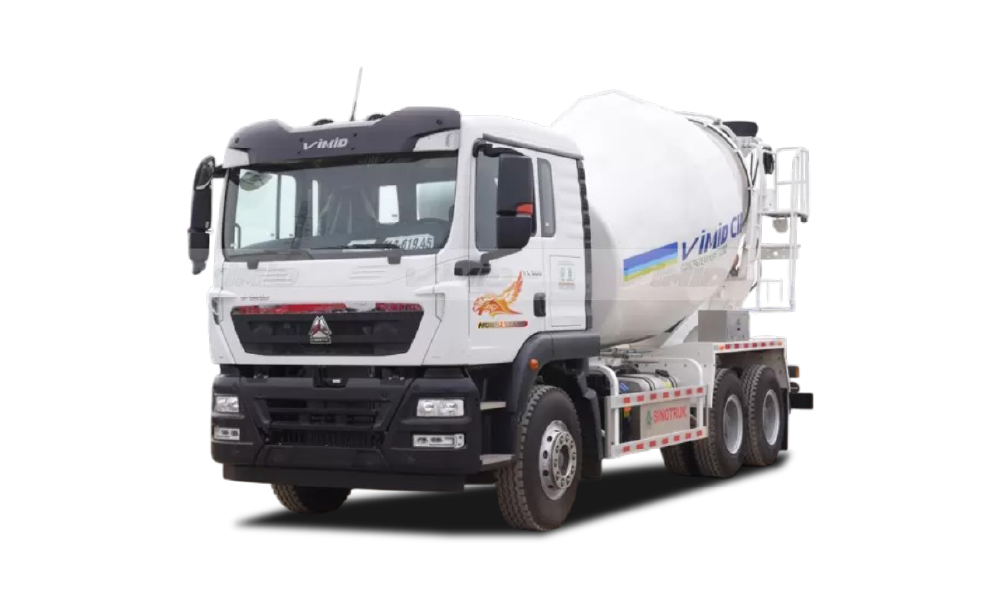

Howo TX 350HP 10m³ Concrete Mixer Truck

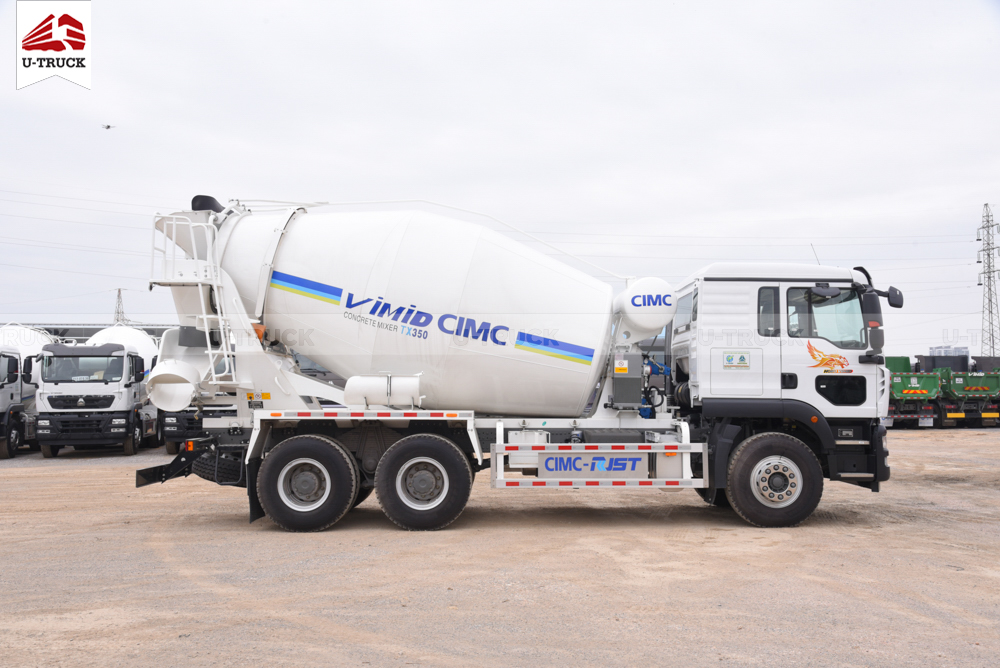

The TX350 6×4 10m³ Concrete Mixer Truck is a specialized vehicle developed to meet the concrete transportation demands of modern construction projects.

With a powerful configuration, durable drivetrain system, and high-quality mixing drum, the TX350 6×4 10m³ delivers stable performance, cost efficiency, and optimized operational productivity for construction contractors.

EXTERIOR & INTERIOR DESIGN

Exterior

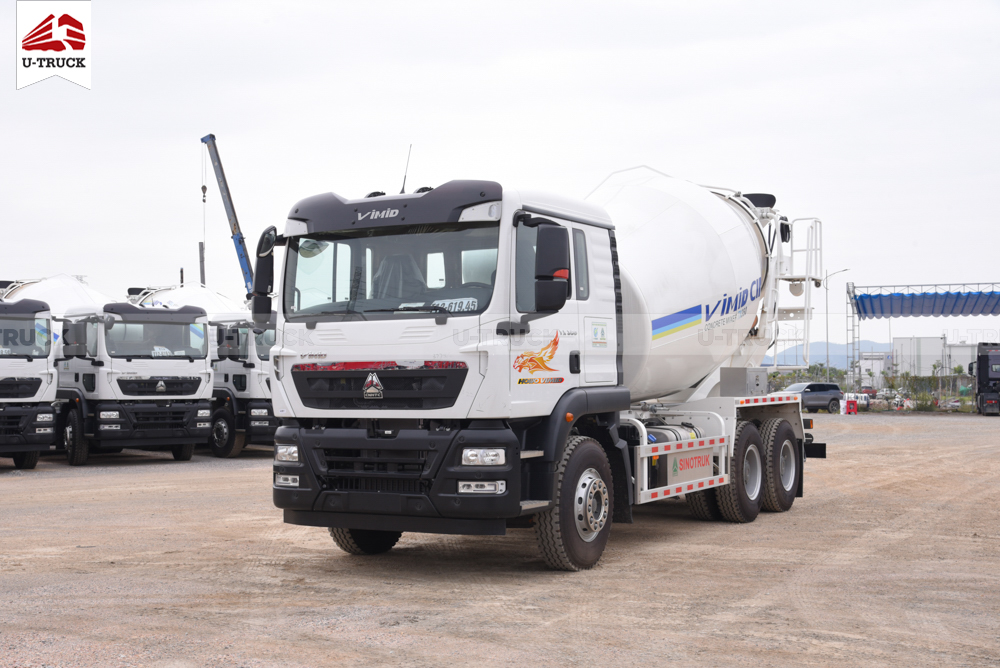

The exterior of the TX350 10m³ Concrete Mixer Truck is designed with a rugged construction-vehicle style. The front end features a squared-off design with a large grille and a sturdy front bumper, combined with headlamps and fog lights to improve visibility during nighttime operation.

The large rearview mirrors provide a wide viewing angle, allowing the driver to easily monitor both sides of the vehicle, minimize blind spots, and improve safety when operating on construction sites.

The front bumper is made of durable steel with a solid design, making it suitable for heavy-duty working conditions.

Interior

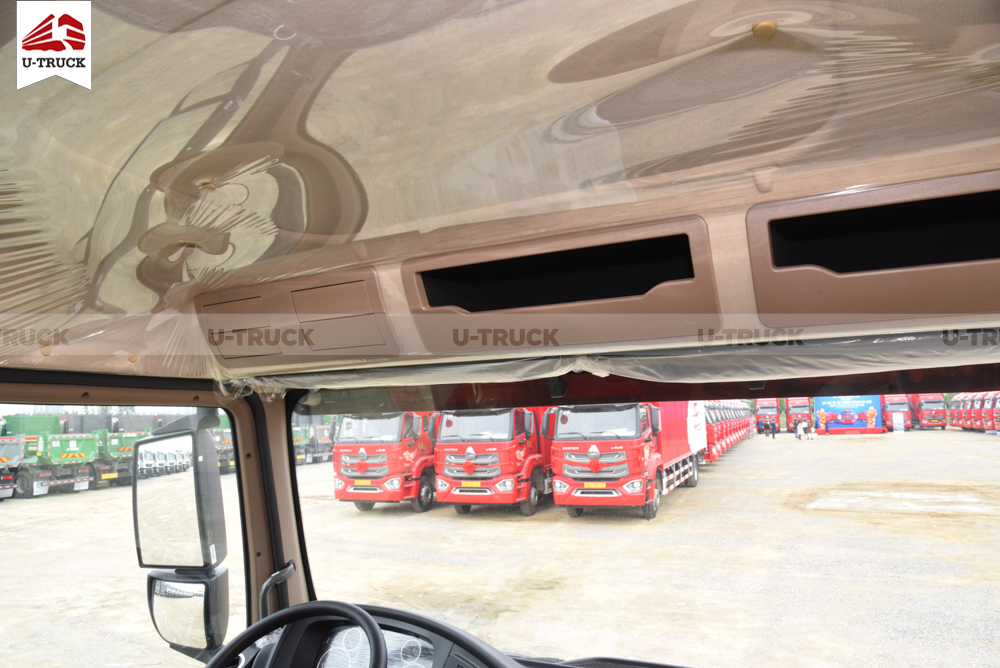

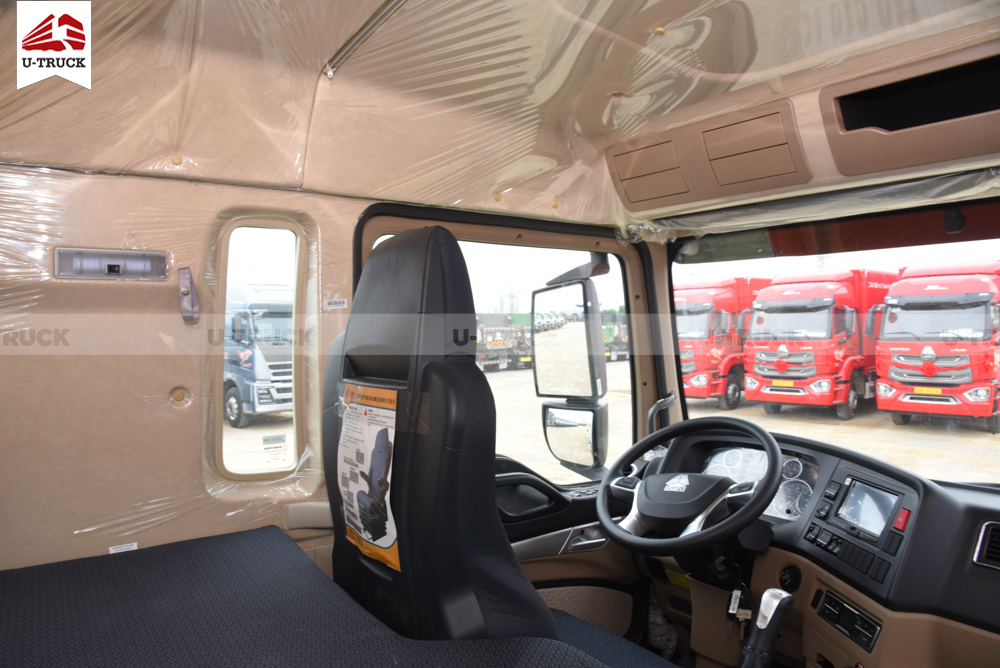

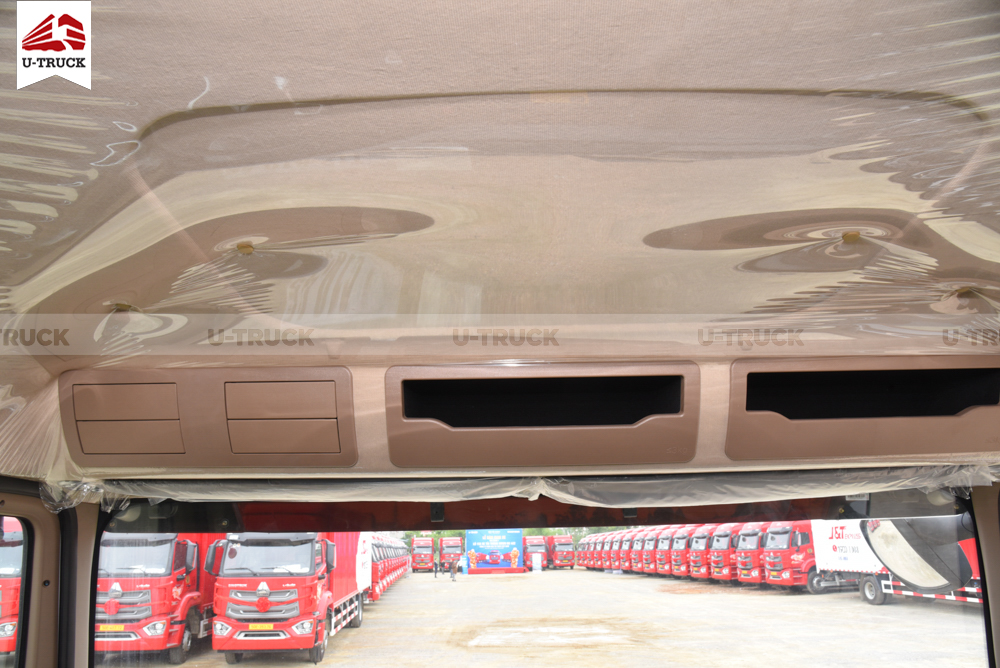

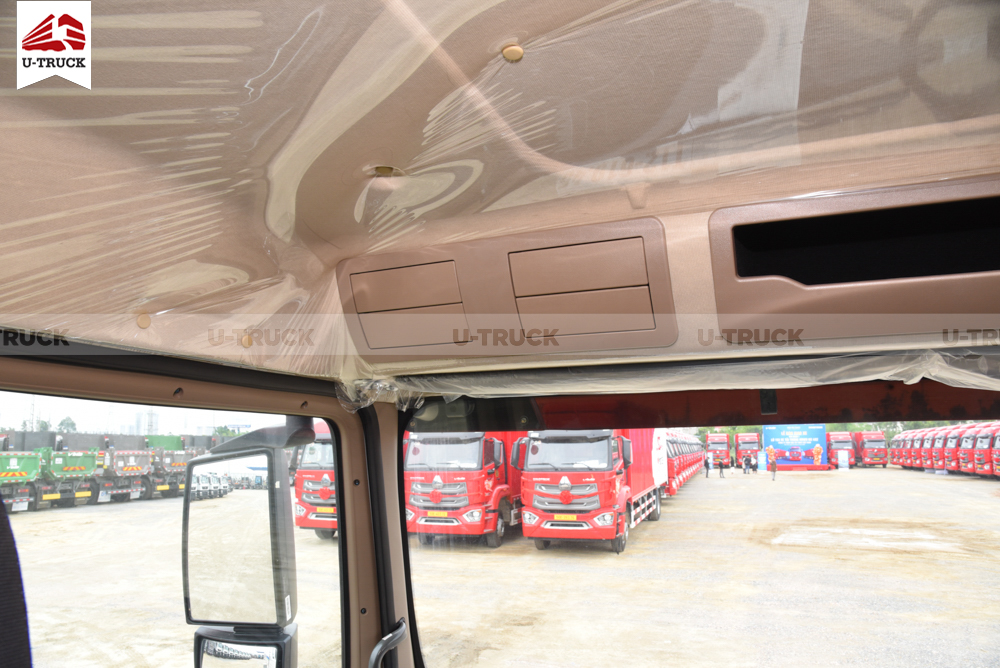

The cabin of the TX350 Concrete Mixer Truck is designed to heavy-duty truck standards, focusing on comfort and providing maximum support for the driver during operation.

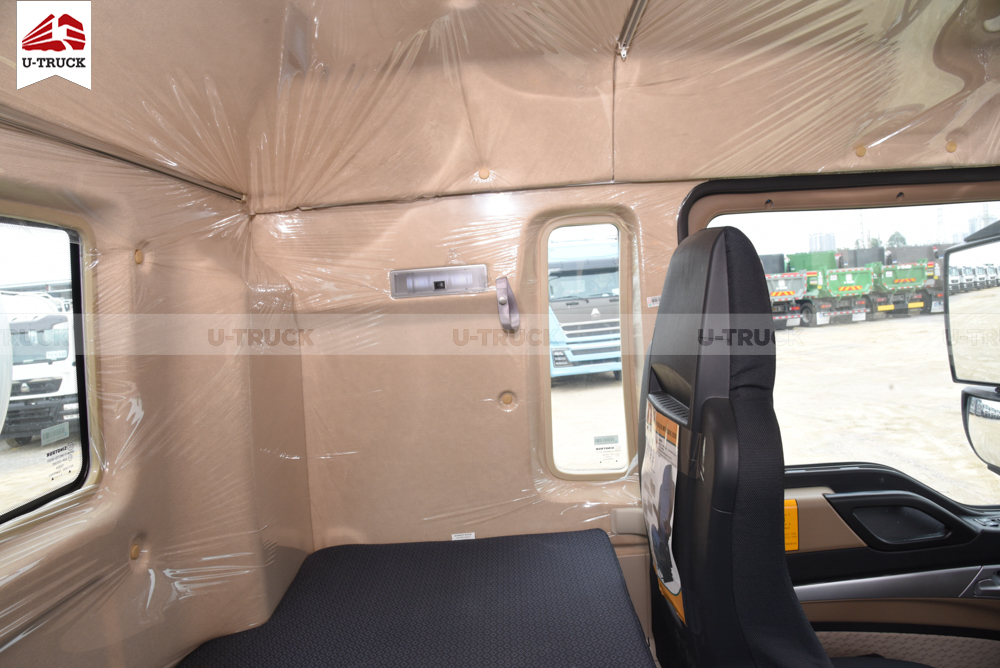

The spacious cabin includes one bed behind the seats, allowing drivers to rest when working continuously at construction sites or traveling long distances.

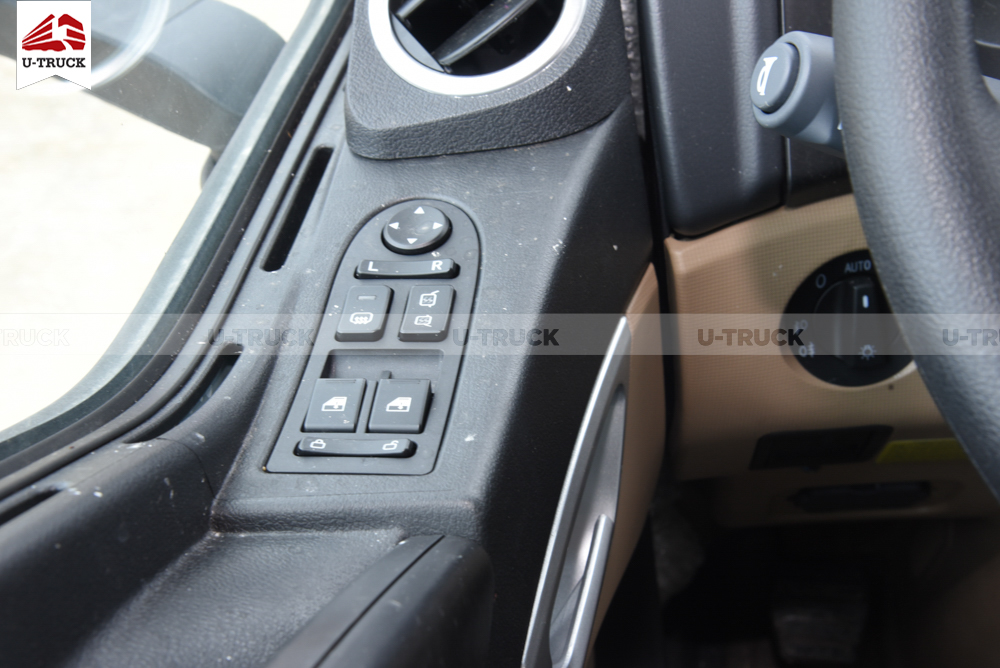

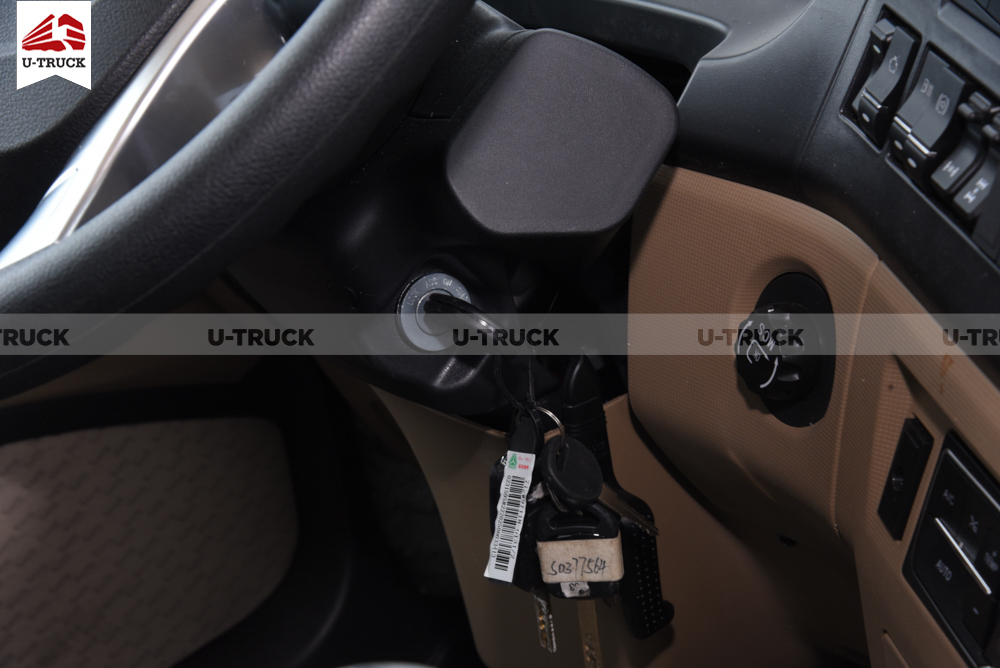

The truck is equipped with a Smart Key system, supporting easy door locking/unlocking and electric window operation.

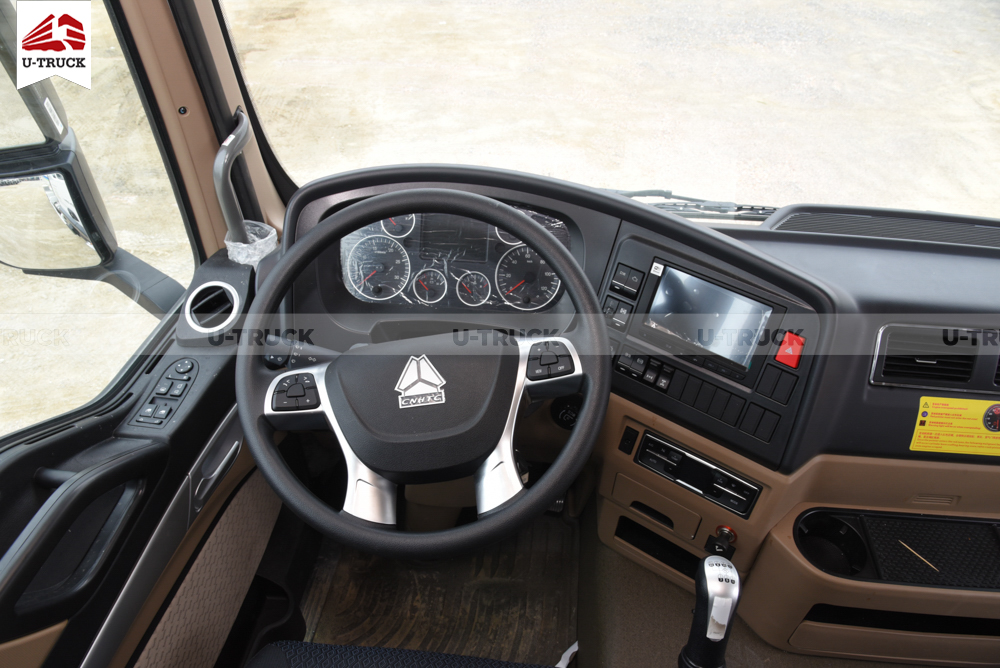

The four-spoke multifunction steering wheel integrates convenient controls such as audio adjustment, hands-free phone connectivity, and cruise control.

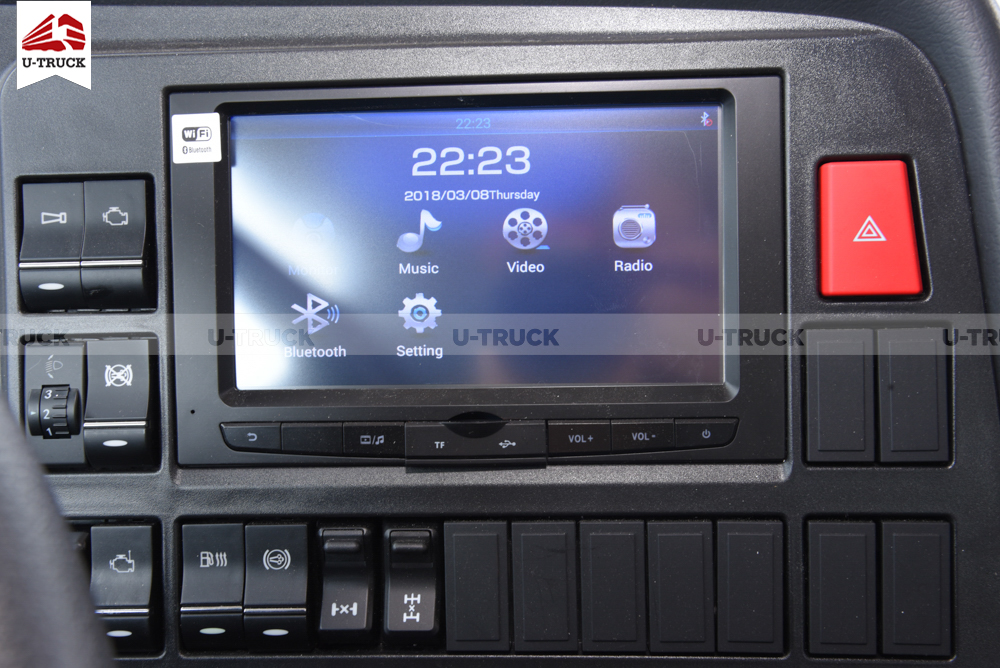

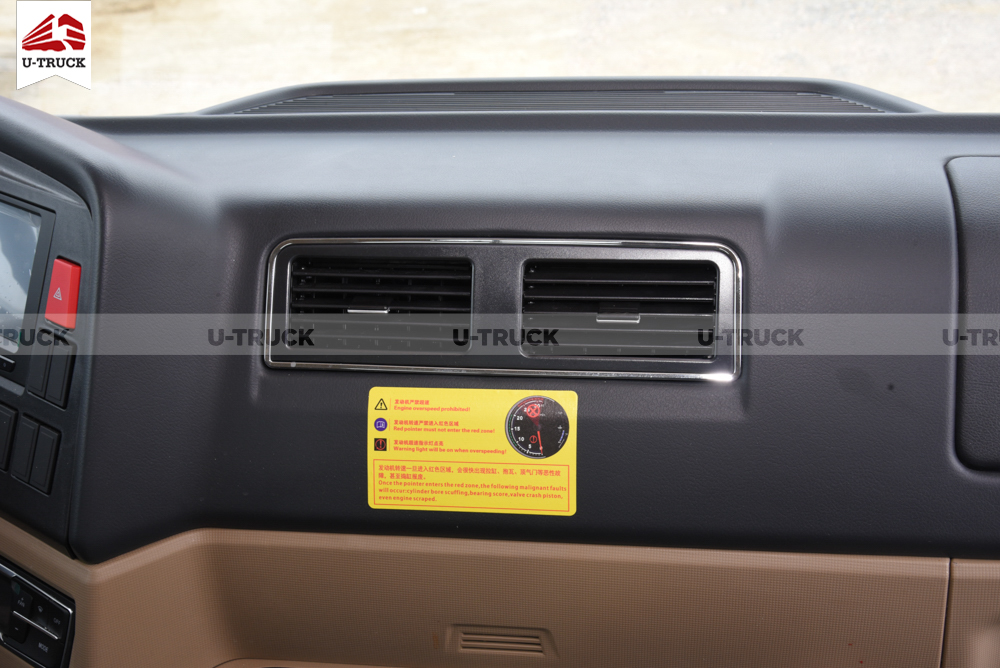

At the center of the dashboard is a large display screen that supports Bluetooth connectivity, camera display, and various entertainment features.

The automatic air conditioning system is designed for easy use, with quick-adjust rotary controls that help maintain a comfortable cabin temperature in all weather conditions.

In particular, the cabin is enhanced with soundproof seals and noise-reduction materials, helping reduce vibration and engine noise during operation for a smoother and more comfortable driving experience.

POWERTRAIN AND TRANSMISSION

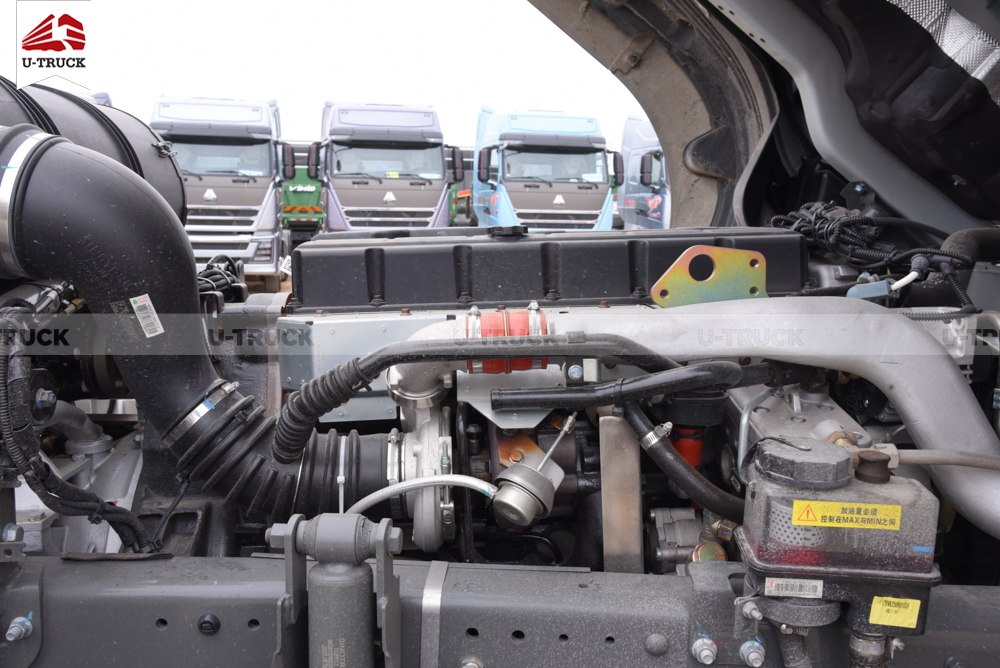

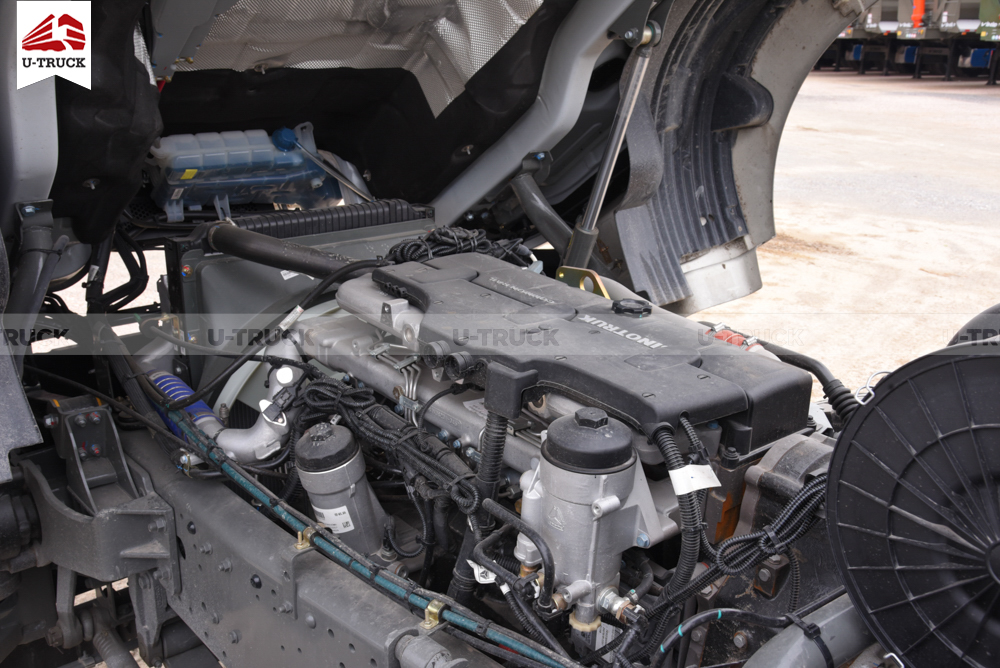

• The TX350 Concrete Mixer Truck is powered by the MC07H.35-50 engine with an output of 350 horsepower, meeting the demands of heavy-duty operation and continuous movement at construction sites.
• The engine meets Euro 5 emission standards, helping reduce fuel consumption and making it more environmentally friendly.
• The HW19712 transmission features 12 forward gears and 2 reverse gears, allowing the truck to operate flexibly across various terrains.

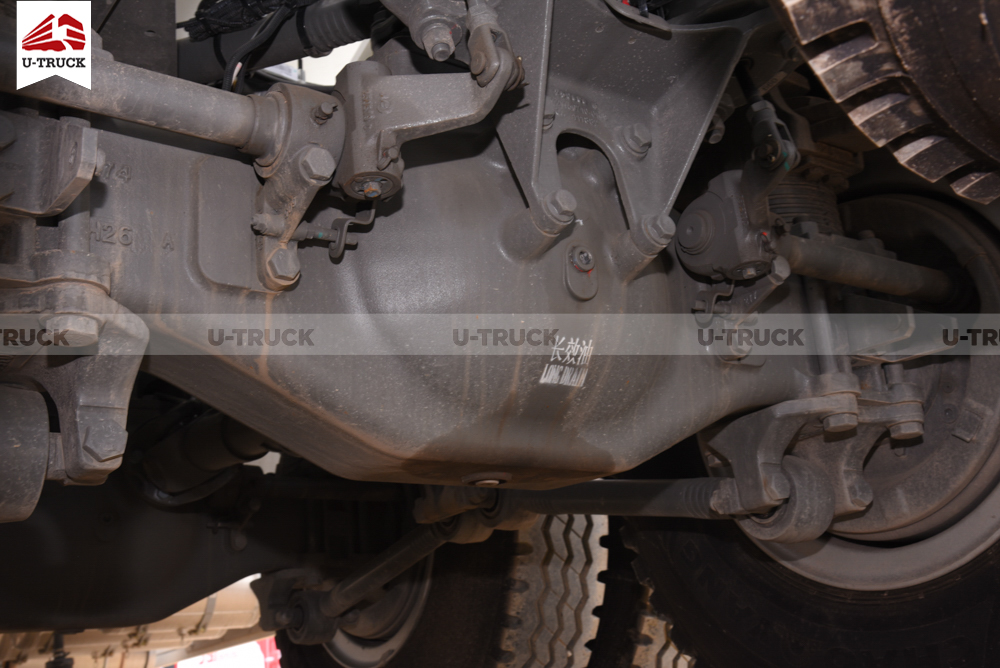

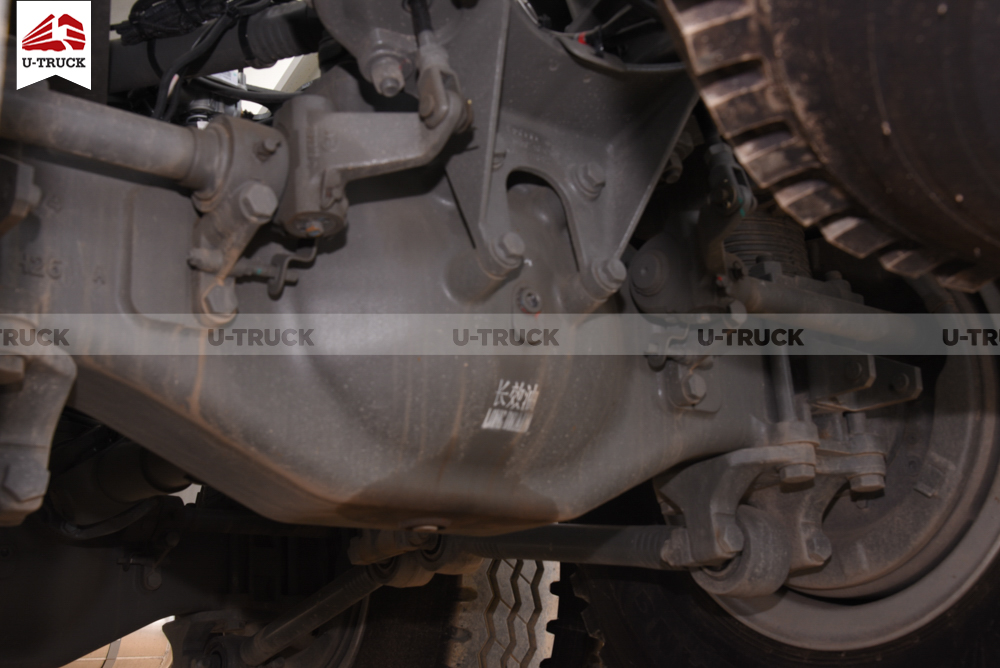

• The front HF VGD95 axle with a load capacity of 9.5 tons, combined with the MCX16ZG rear axle with a load capacity of 16 tons, gives the truck high load-bearing capability and excellent stability during operation.

SUSPENSION & BRAKING SYSTEM

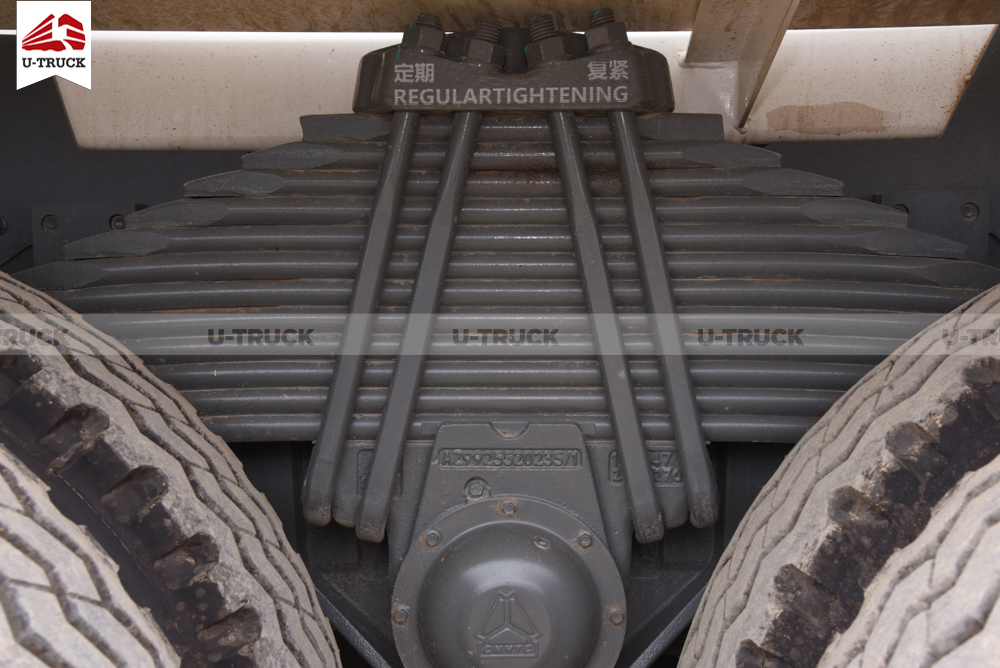

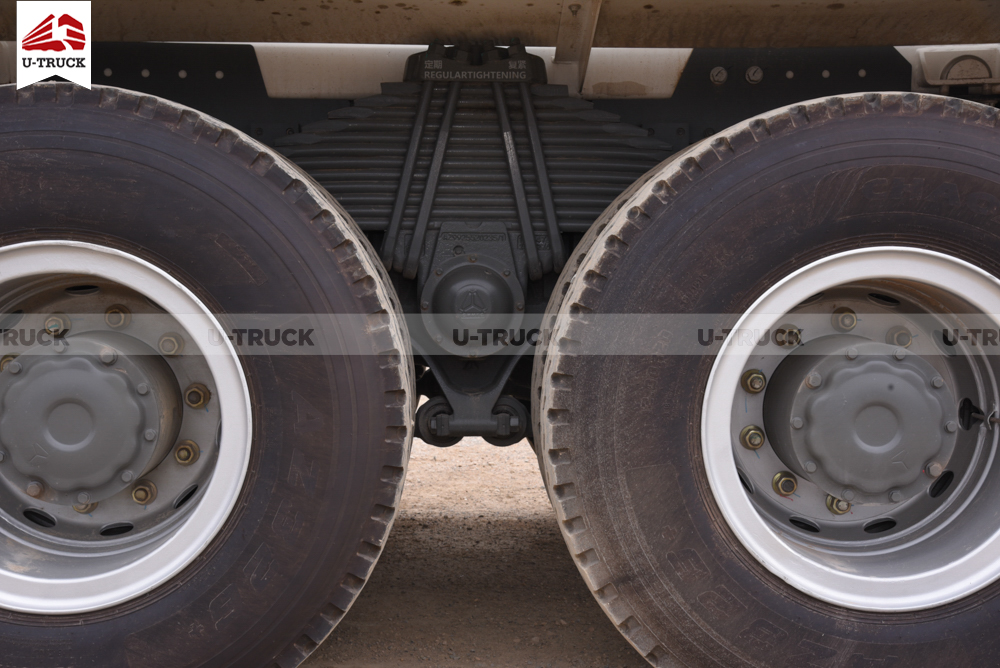

• The TX350 is equipped with a dependent leaf spring suspension system, which enhances durability and load-carrying capacity under construction site conditions.
• The front suspension uses 9 leaf springs, while the rear suspension uses 12 leaf springs, ensuring stability when carrying heavy loads.
• The dual-circuit air brake system combined with drum brakes provides stable braking performance and high safety when driving on slopes or under full load.

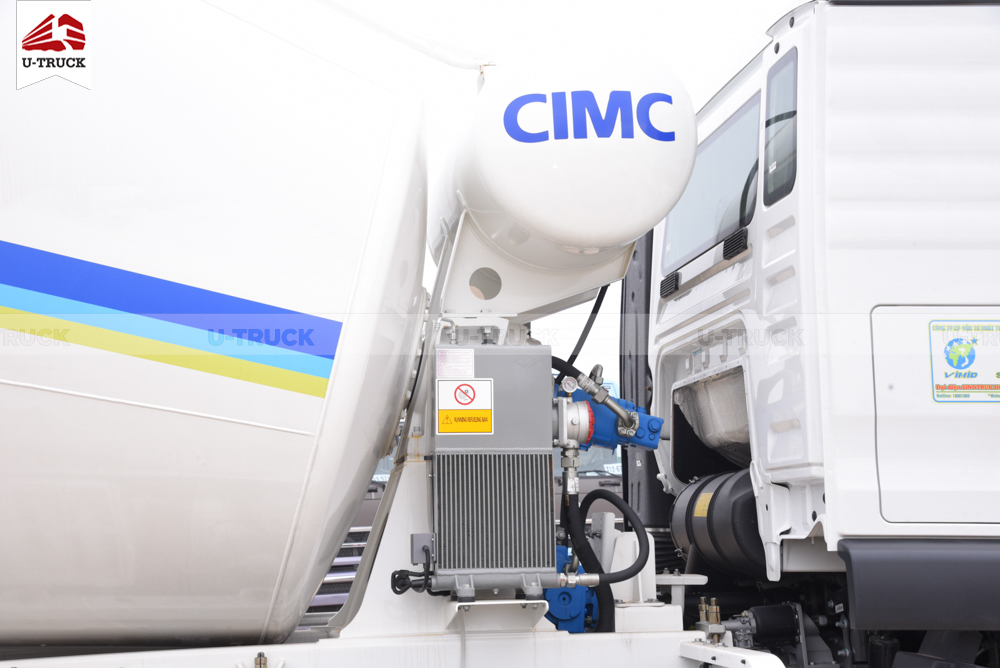

MIXING DRUM

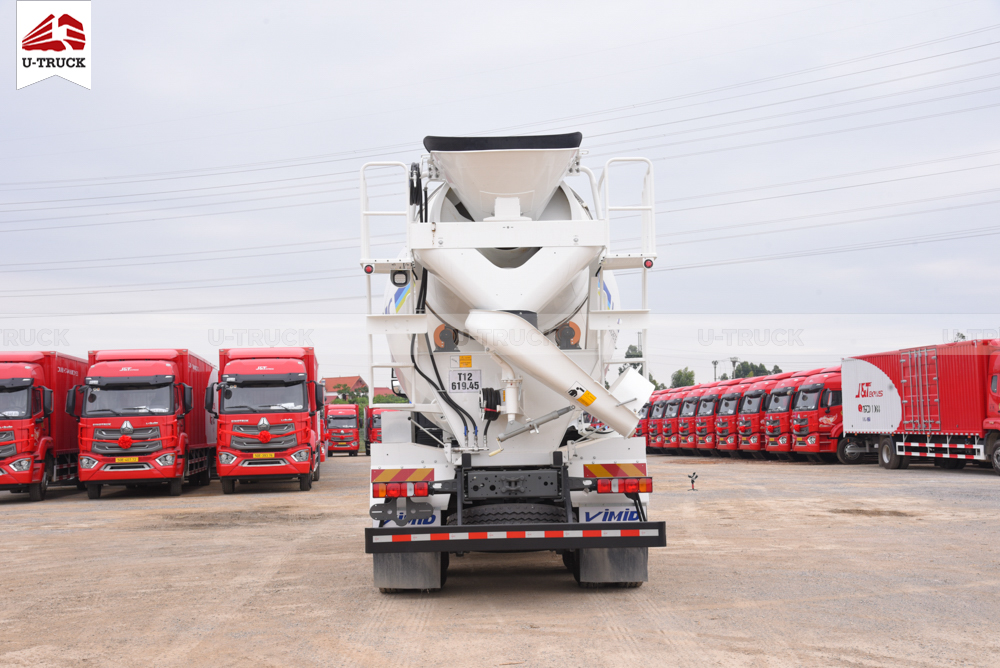

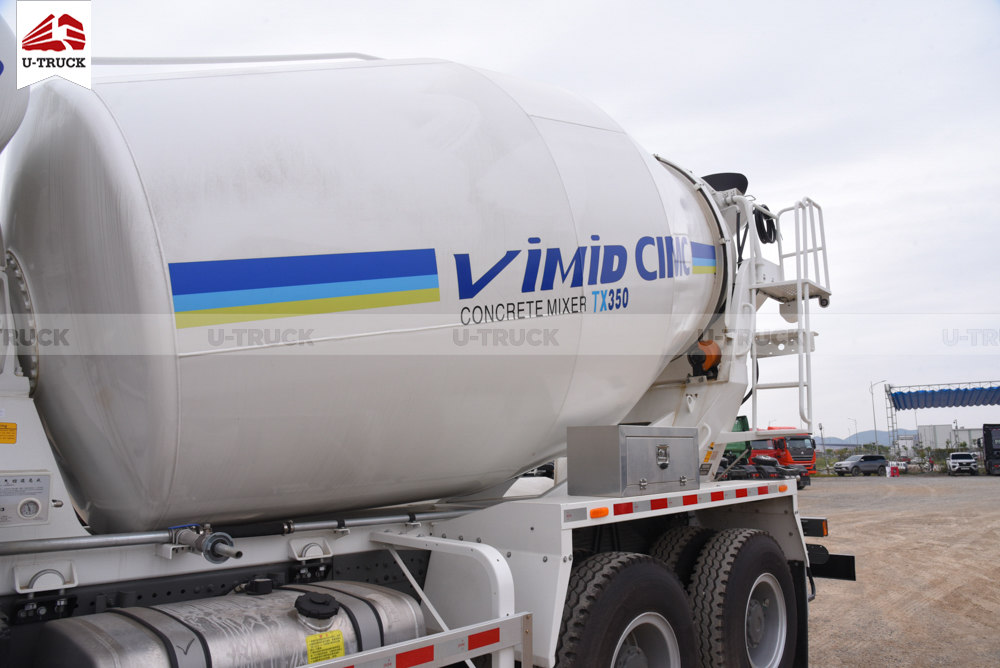

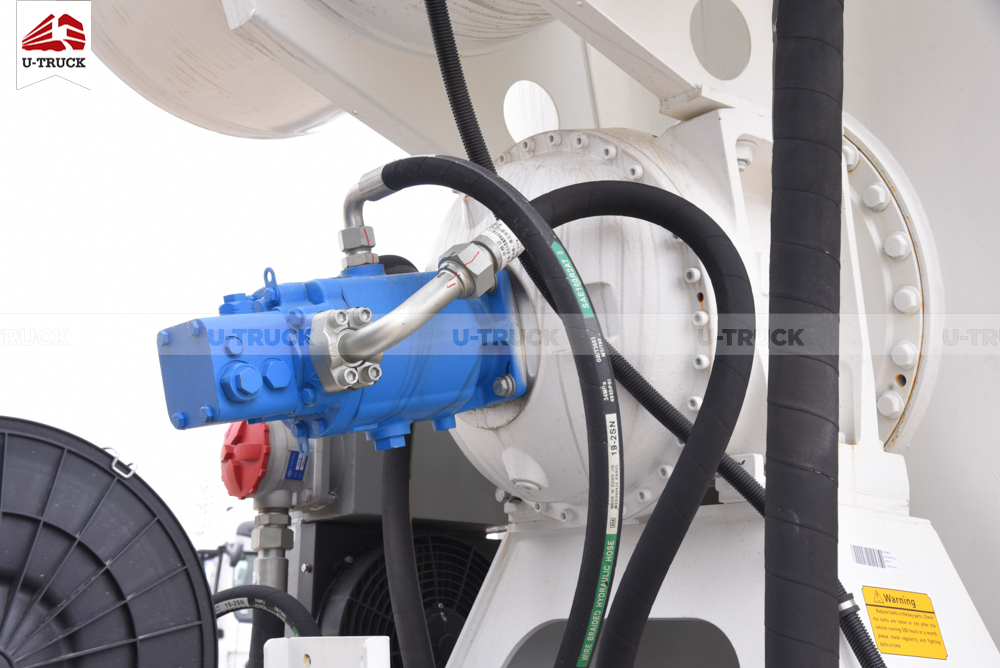

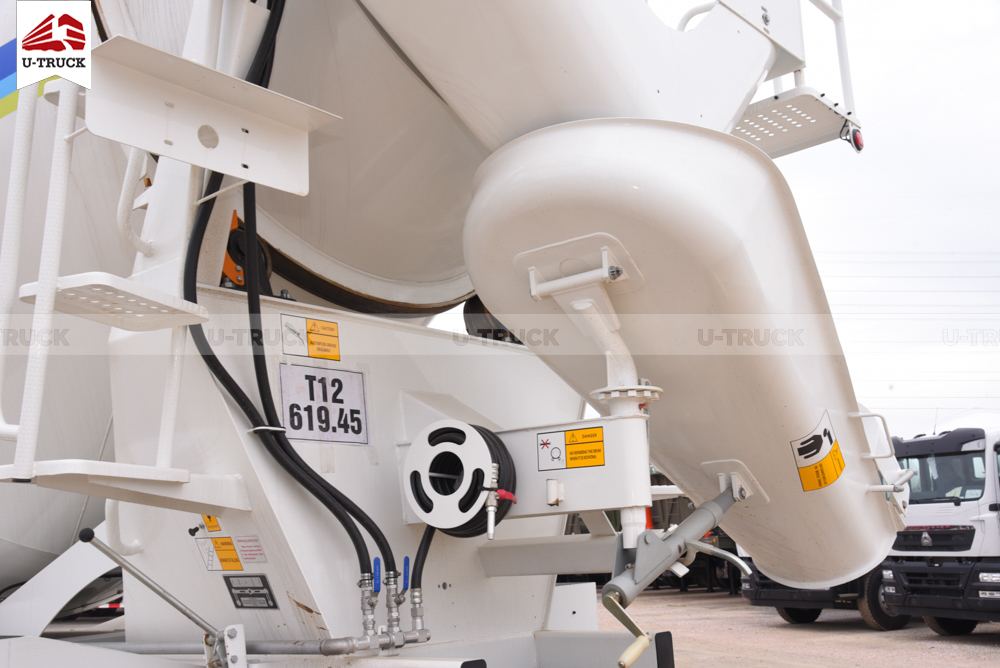

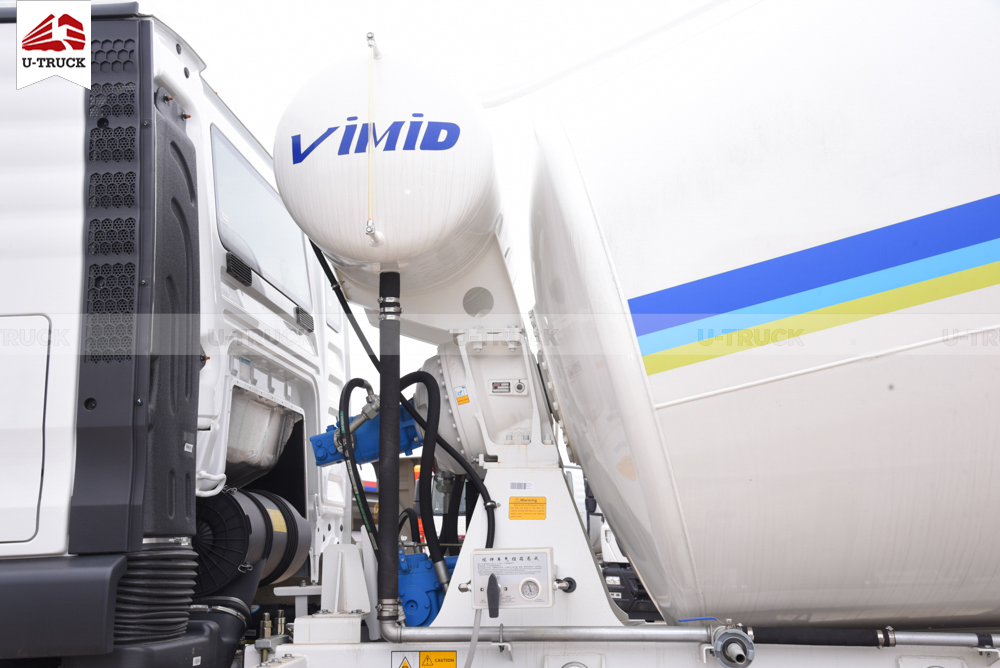

The truck is equipped with a 10m³ mixing drum, meeting the concrete transport needs of large-scale construction projects.

The mixing drum is made from specialized 520JJ steel, with 5 mm thick walls and mixing blades, improving durability and reducing wear during long-term use.

In addition, the truck is equipped with a 400L water tank.

Other Specifications

• High-power engine with durable performance
• Heavy-duty axle system suitable for demanding construction sites
• Specialized wear-resistant steel mixing tank
• Comfortable cabin designed to support long-term driver operation

With its powerful configuration and durable design, the TX350 6×4 10m³ Concrete Mixer Truck effectively meets today’s concrete transportation demands for construction projects.
