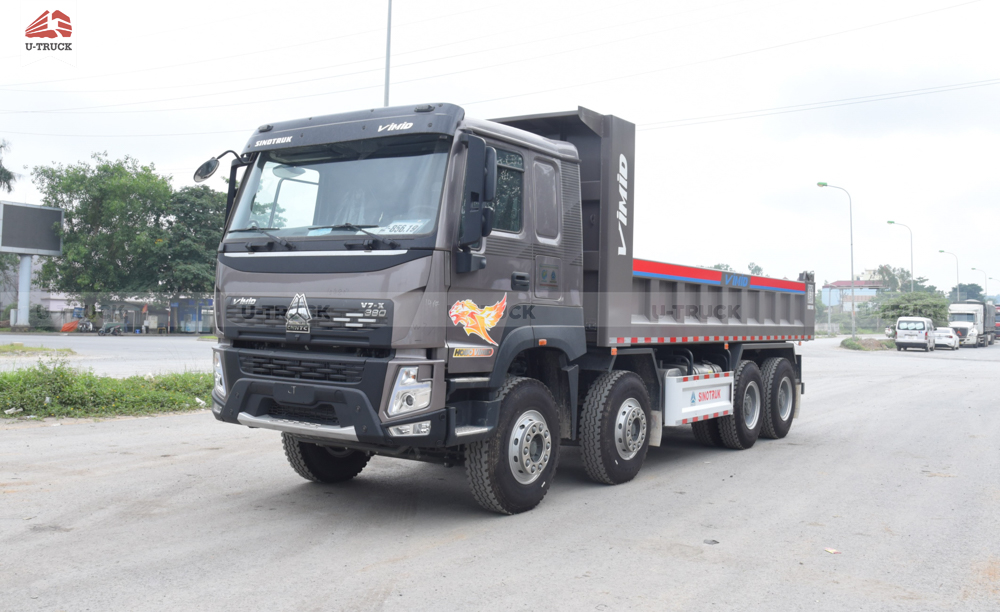

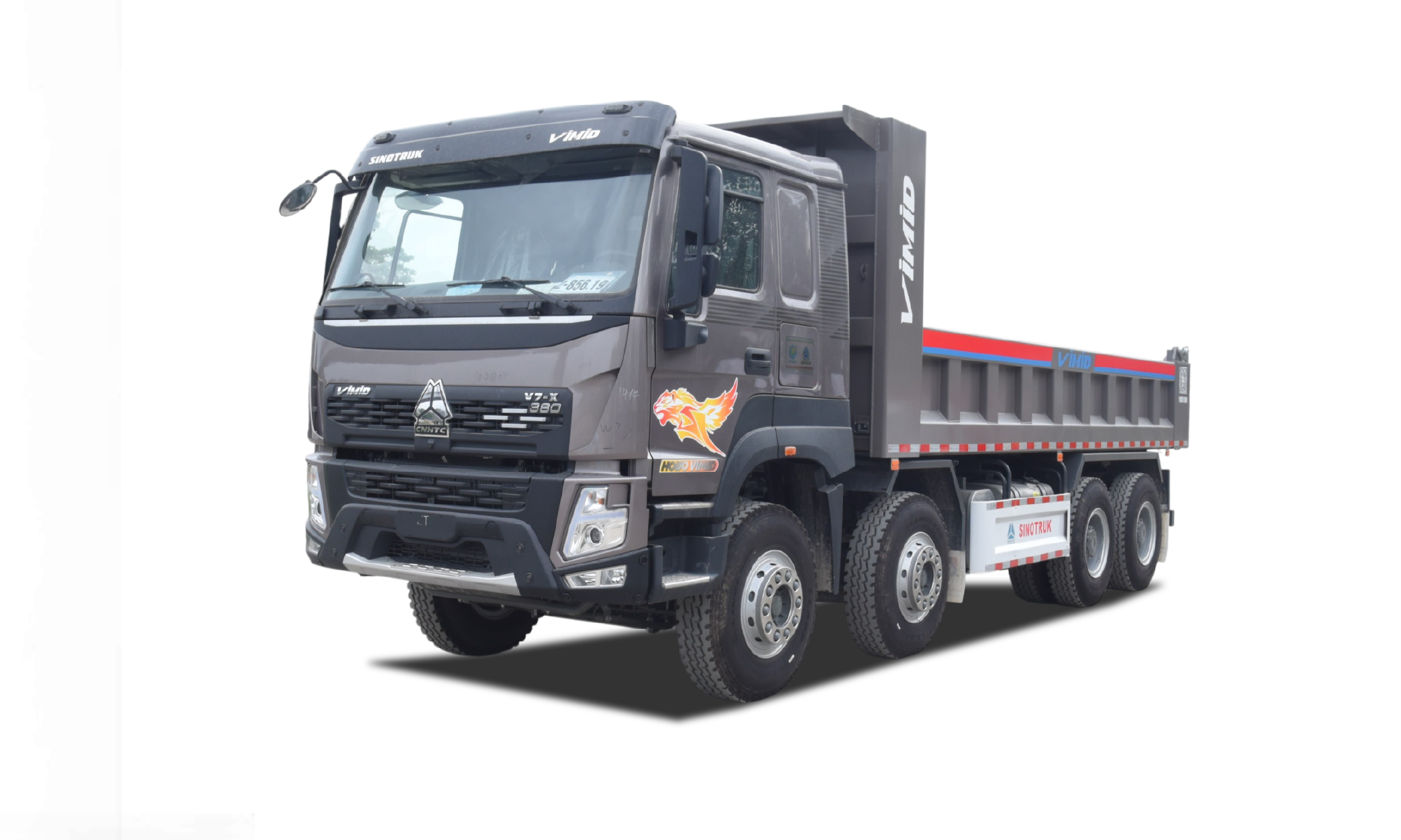

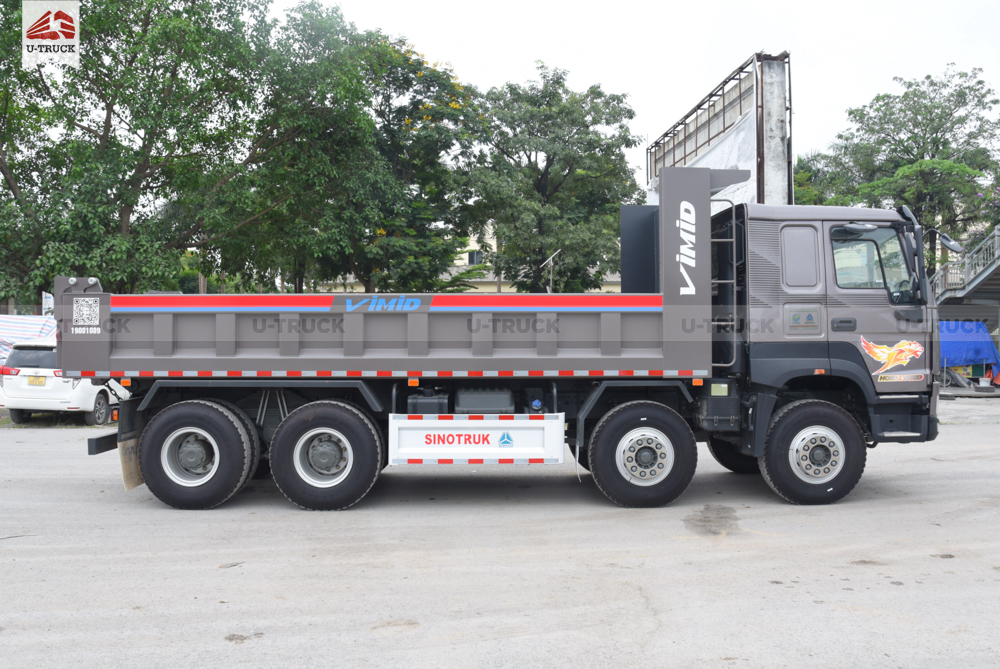

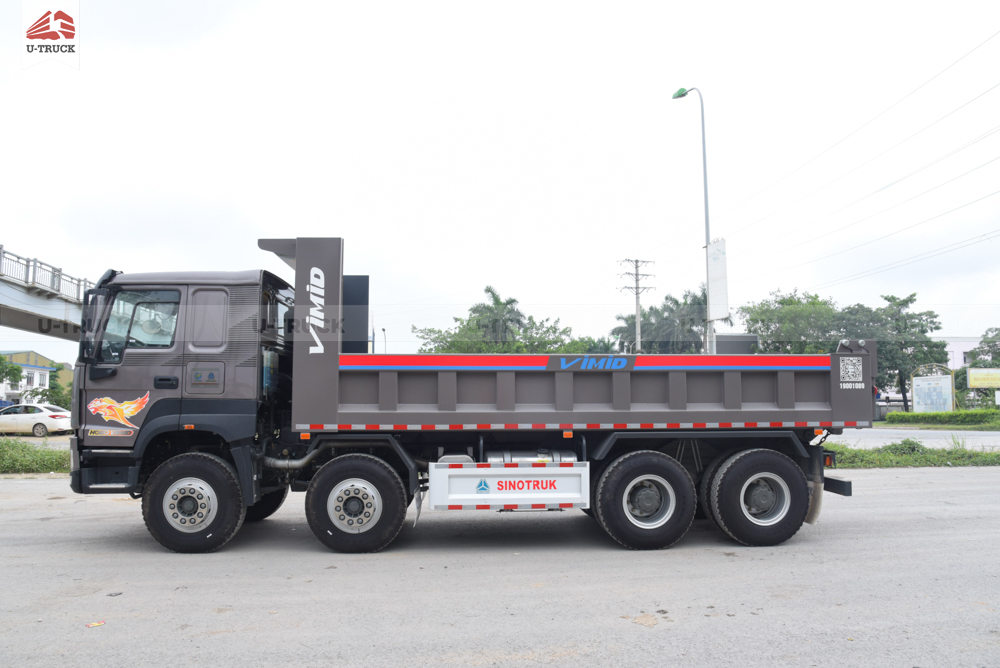

Howo V7X 380 8×4 Dump Truck – Square Shape Dump Box (8+8)

The HOWO V7X dump truck series is the latest upgraded generation of SINOTRUK HOWO dump trucks. This new generation is jointly developed with three of the world’s leading commercial vehicle manufacturers, integrating the best advantages from each brand: Volvo’s top-level safety standards, MAN’s powerful drivetrain and robust chassis technology, and China’s most advanced commercial vehicle technologies. The vehicle is ideally suited for construction projects, land leveling, building material transportation, mining operations, and other heavy-duty applications.

The chassis system is exceptionally robust, featuring a double-layer 8+8mm chassis frame – one of the strongest in its segment. The cargo body has also been comprehensively upgraded with a stronger structure and enhanced load-carrying capability..

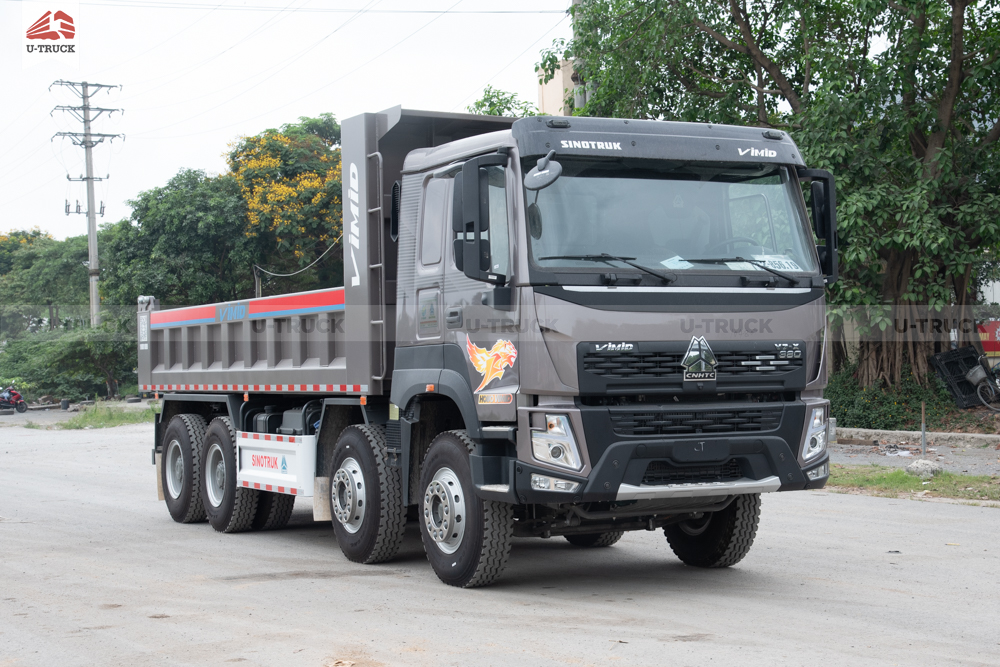

Exterior

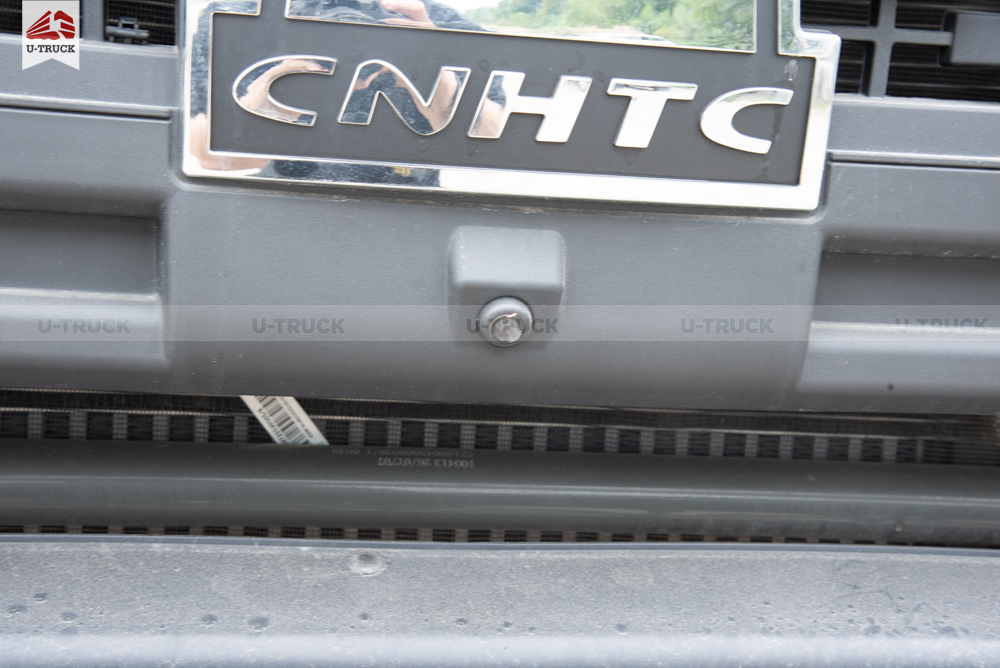

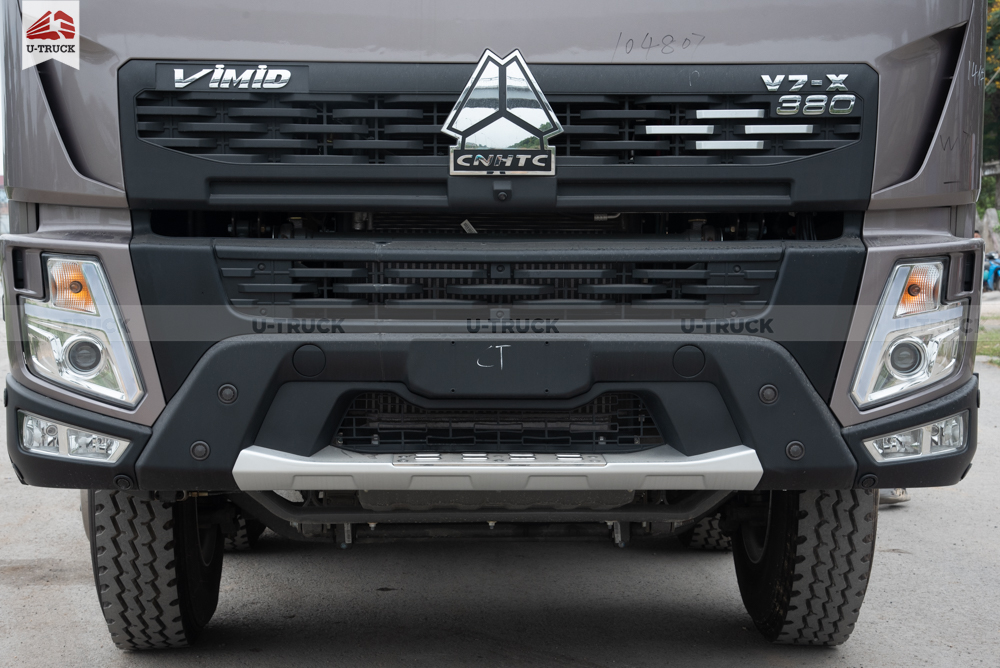

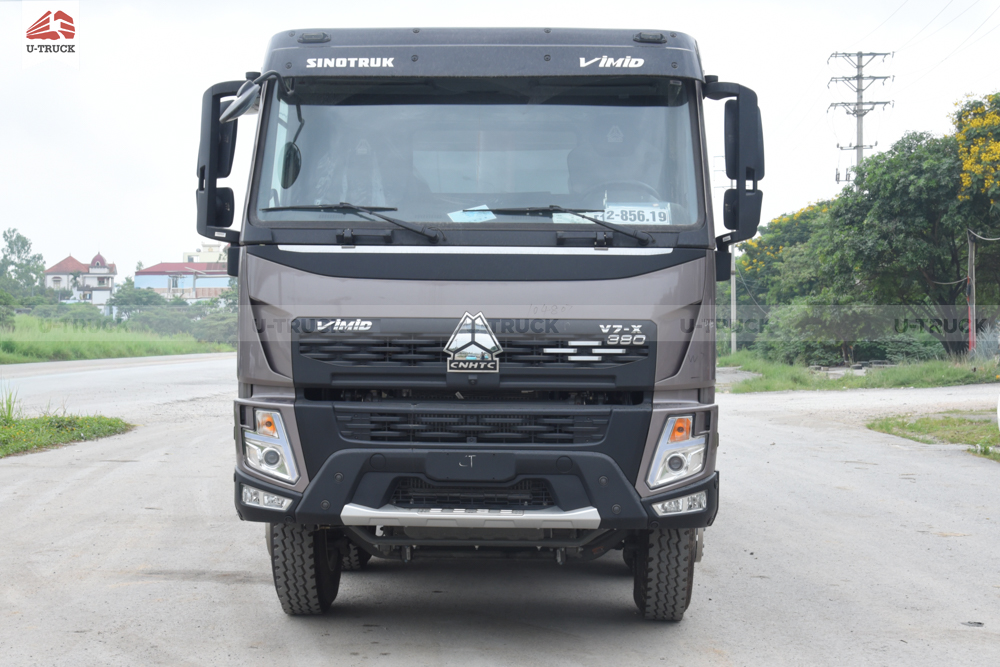

The vehicle features a newly redesigned front grille with a more harmonious, aggressive, and modern appearance compared to previous HOWO dump truck generations in Vietnam. The V7X cabin is the latest upgraded version, inheriting advanced Volvo-inspired cabin safety technology. The cabin structure is finely engineered, rigid, and durable, while the expanded field of vision enhances operational safety for the driver.

Exterior Highlights:

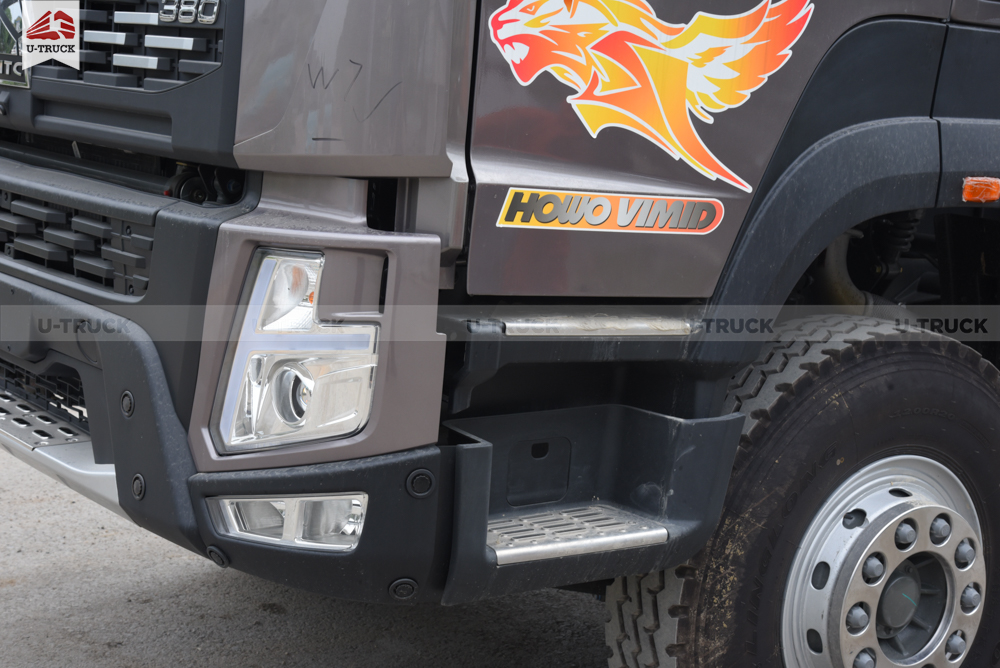

• Heavy-duty steel front bumper specially designed for construction-site operation.
• The bumper height is raised more than 10cm compared to previous-generation dump trucks, improving ground clearance for rough terrain and eliminating concerns about bumper impacts.

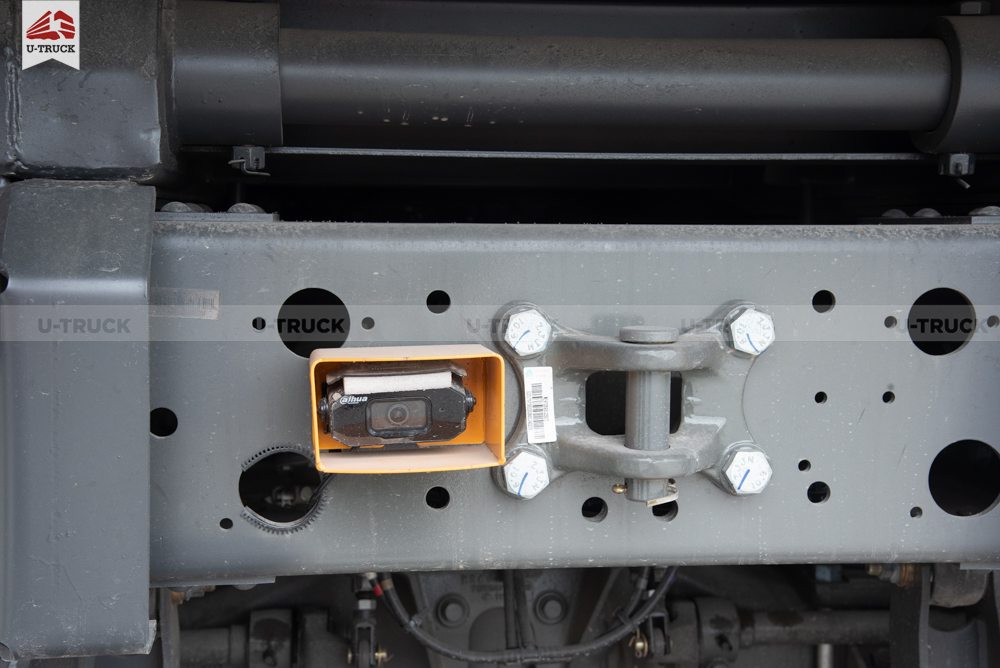

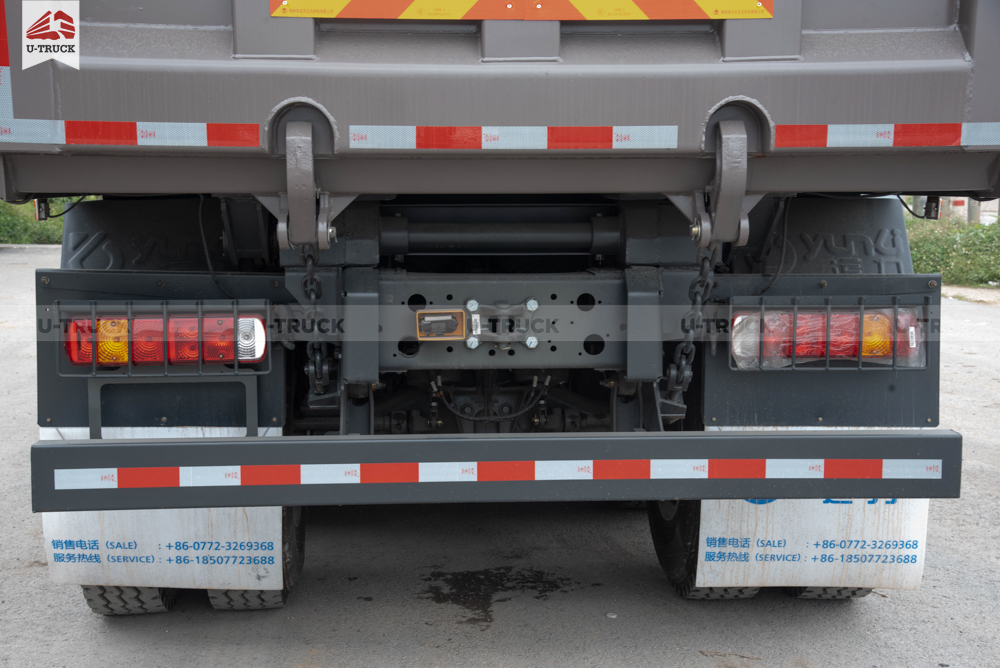

• Reinforced towing hook mounted directly onto the chassis frame, preventing bumper damage during towing operations.

To further improve driving safety, SINOTRUK equips the vehicle with an ultra-wide-angle 360-degree camera system – the first factory-installed 360° camera system on HOWO dump trucks in Vietnam. The camera system is integrated into a large 14-inch LCD display, significantly improving operational safety.

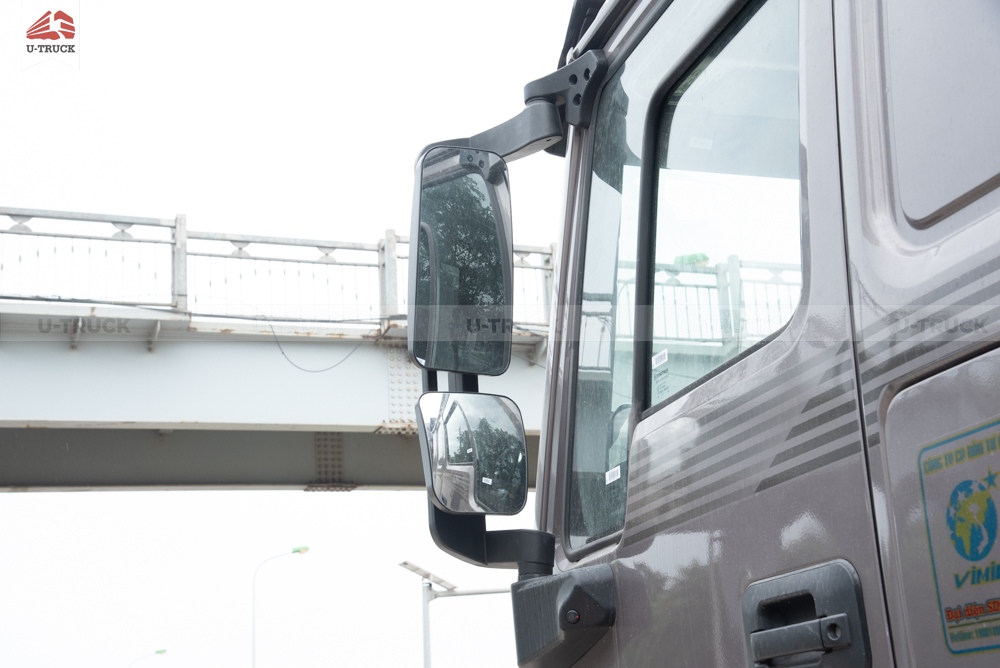

• Electrically adjustable 4-way rearview mirrors with heating function
• Electrically tilting cabin with lower-mounted engine start control system
• LED daytime running lights
• Halogen turn signals, fog lamps, and marker lamps
• Bi-Xenon headlamps for superior illumination performance.

Interior

The spacious cabin features a premium dark-tone interior combined with chrome-plated accents, modern roof and sleeper berth patterns, creating a luxurious and elegant cabin environment.

The smart key system replaces the conventional mechanical key. Drivers can remotely raise or lower the windows by pressing and holding the key button, reducing cabin heat buildup during hot weather.

The stylish 4-spoke multifunction steering wheel integrates:

• Multimedia display controls
• Hands-free communication
• Cruise control system

The LCD multimedia screen supports:

• Bluetooth connectivity
• Carbit Link smartphone integration
• 360-degree camera display
• WiFi and multi-function connectivity

The automatic air-conditioning system features a more user-friendly rotary control design instead of traditional push buttons.

Additional cabin upgrades include:

• Enhanced soundproofing and waterproof sealing
• Engine dust shield for improved cabin insulation
• Low-roof V7X cabin with 700mm sleeper berth
• Integrated storage compartment beneath the sleeper berth
• Lightweight and user-friendly interior materials for reduced noise and improved comfort

Seating System:

• Air suspension driver seat with multiple adjustment functions and automatic height adjustment
• Premium upholstery materials and upgraded interior trim
• Passenger seat finished with high-quality materials.

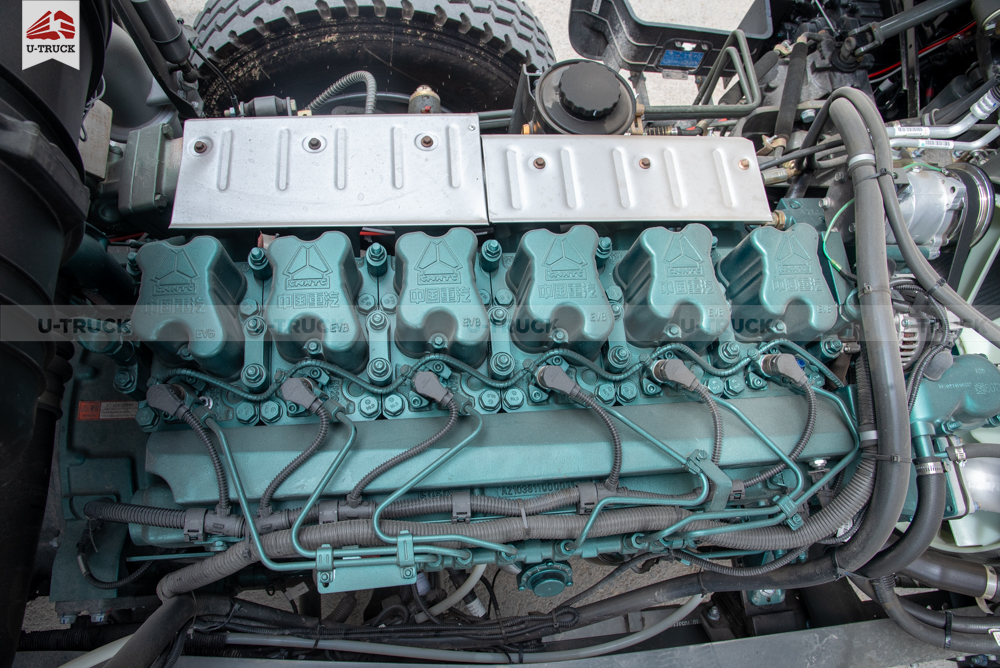

Engine

D10.38-50 (380HP)

• Maximum power output: 380 HP
• Maximum torque: 1560 N.m
• 4-stroke, inline 6-cylinder turbocharged diesel engine
• Liquid-cooled engine system
• Euro V emission standard
• Equipped with EVB valve system and engine brake for enhanced safety
• Key components including injectors, ECU, and fuel pump supplied by BOSCH
• SINOTRUK technology engine with B10 engine life reaching 1.5 million km

Gearbox

• Transmission model: HW19712
• 12 forward gears and 2 reverse gears
• Equipped with range-shift mechanism for smoother and lighter gear shifting
• Highly stable cast-iron gearbox with excellent impact resistance
• Widely available spare parts and easy maintenance

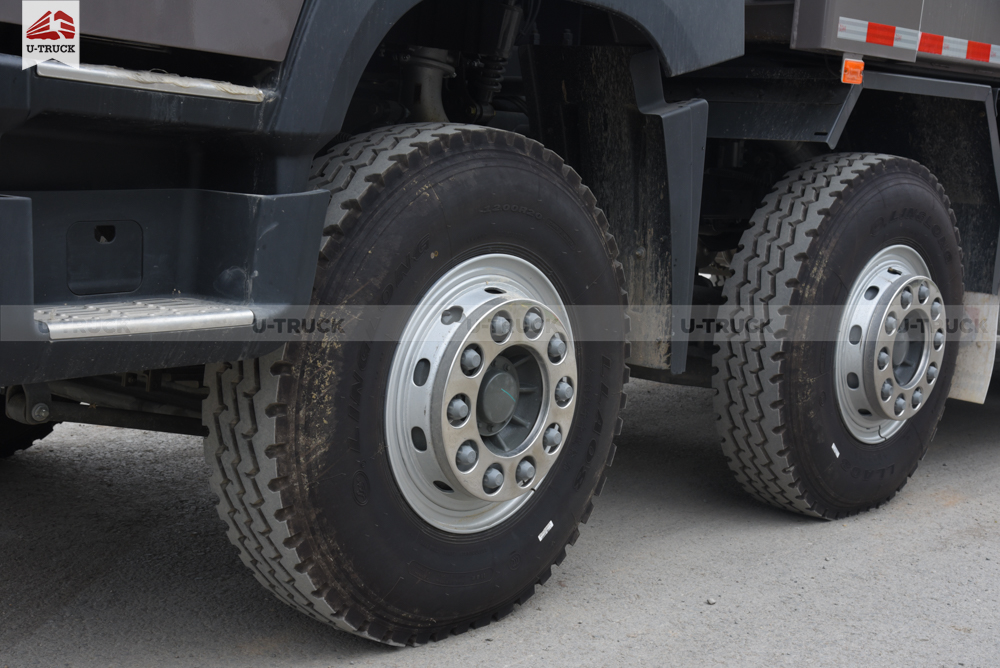

Axles

Front Axles

• Model: HF VGD95
• Load capacity: 9.5 tons

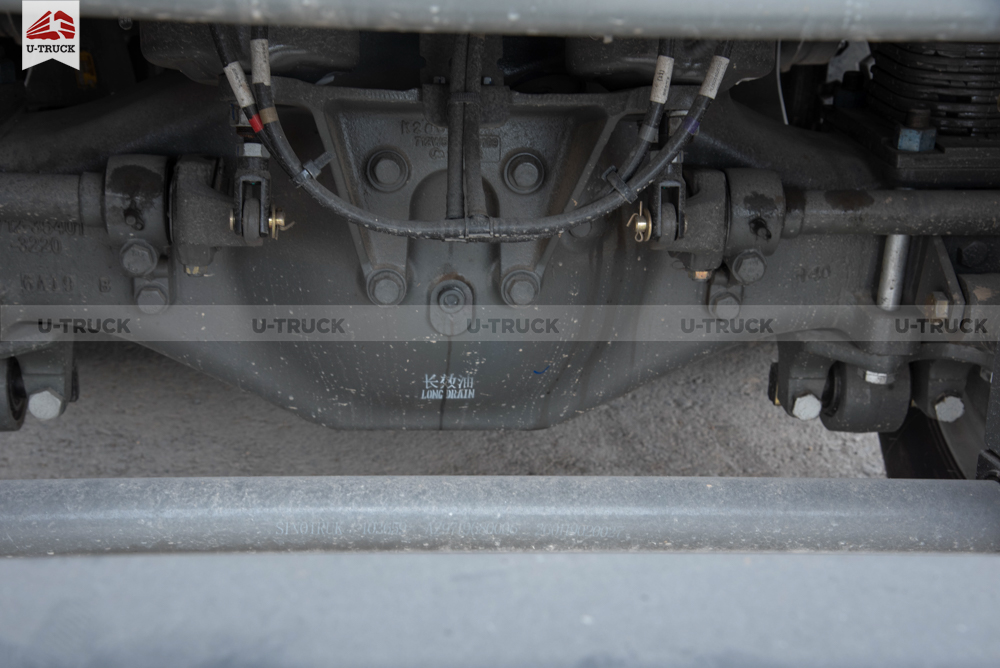

Rear Axles

• Model: MCP16ZG
• Load capacity: 16 tons
• Designed for mountainous roads, steep gradients, and heavy-duty operations such as North-west region transportation
• Ratio: 4.77

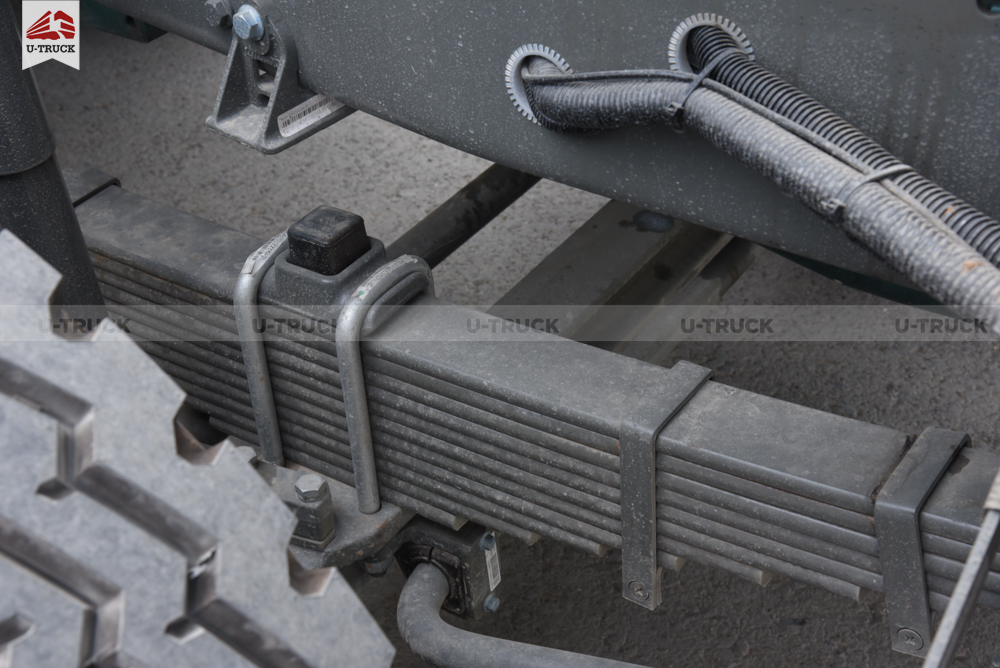

Suspension System

Front Suspension

• 11-leaf spring pack, 16mm thickness
• Hydraulic shock absorbers on axles 1 and 2
• Stabilizer bar on axle 1

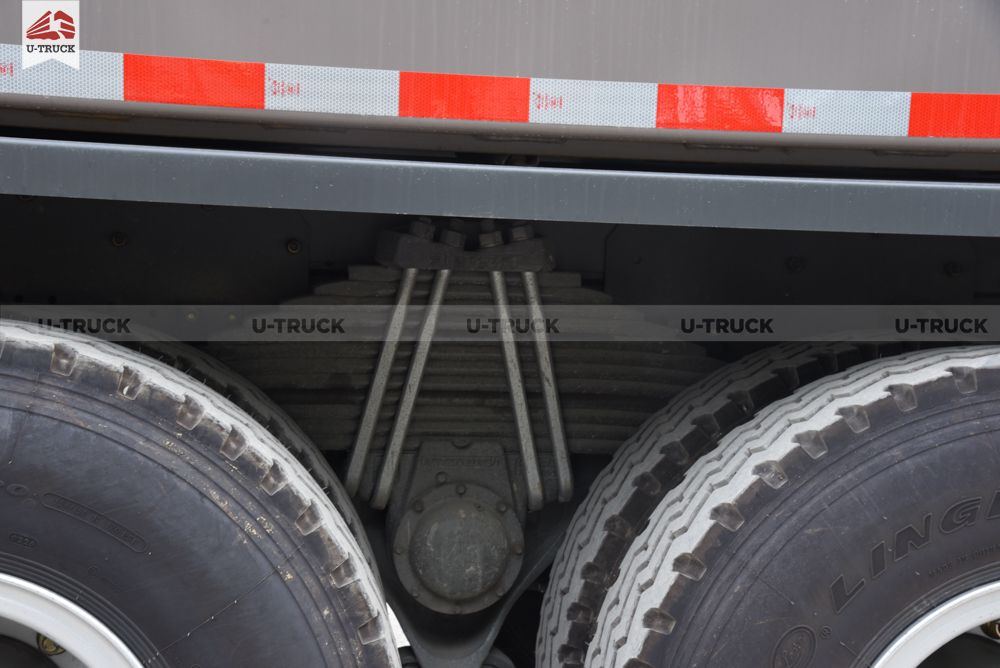

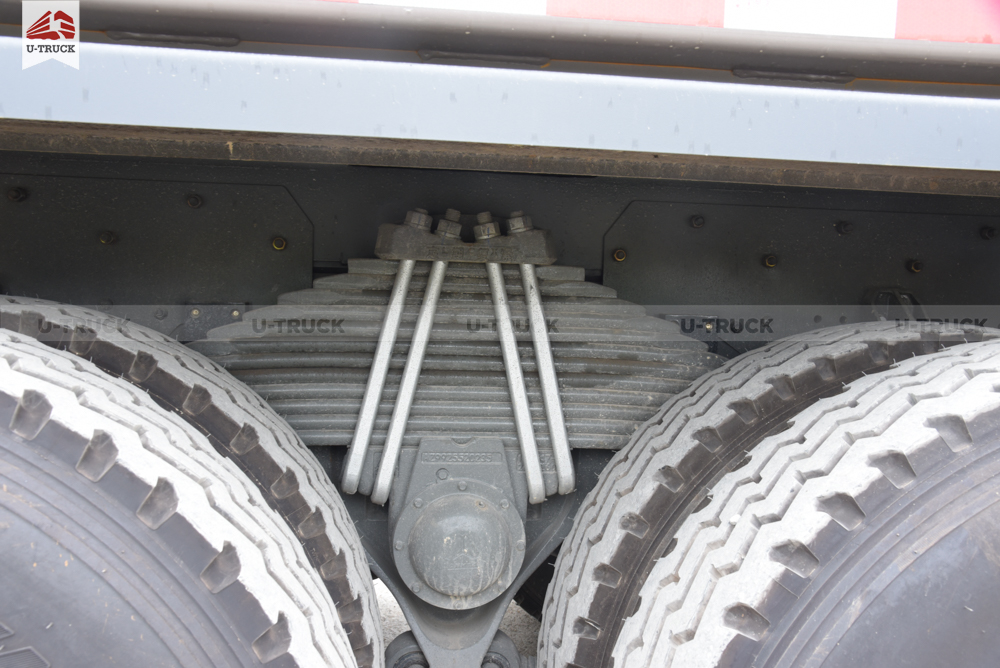

Rear Suspension

• 12-leaf heavy-duty spring pack with 25mm thick leaf springs
• Double U-bolt structure
• Dependent suspension system with stabilizer bar on axle 4

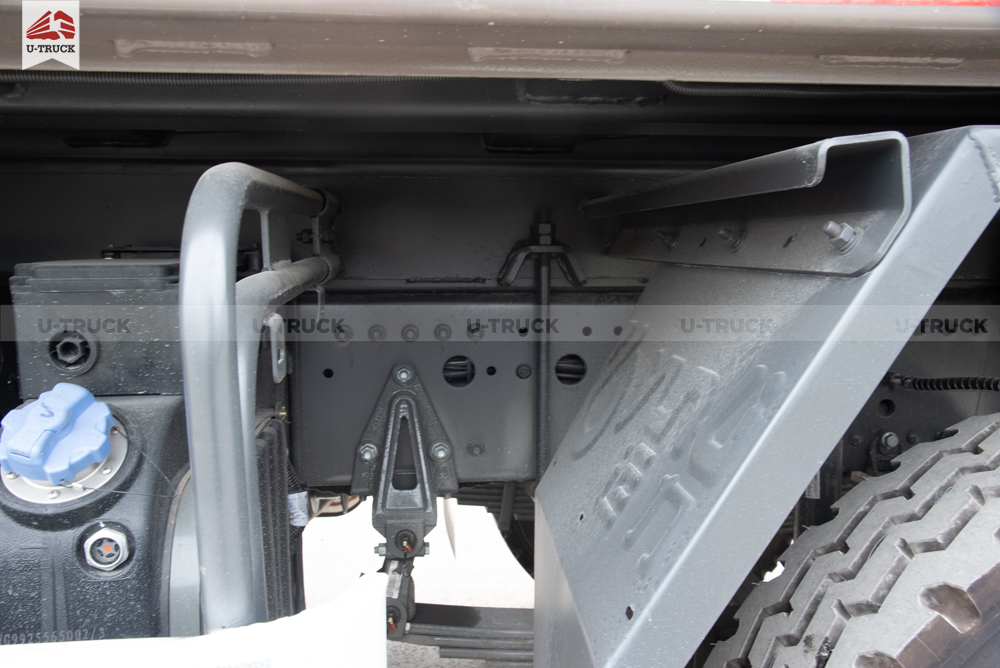

Chassis

The chassis system is significantly larger and stronger than comparable products on the market.

While many competing models use 8+5mm or 8+4mm double-layer chassis frames, the HOWO V7X 8×4 features an 8+8mm double-layer chassis combined with a 300mm-wide frame, delivering exceptional rigidity, stability, and durability.

The vehicle is also equipped with:

• V-shaped axle stabilizer brace
• Cargo body stabilizer system
• Cabin stabilization mechanism

These systems improve chassis stability and reduce lateral chassis oscillation.

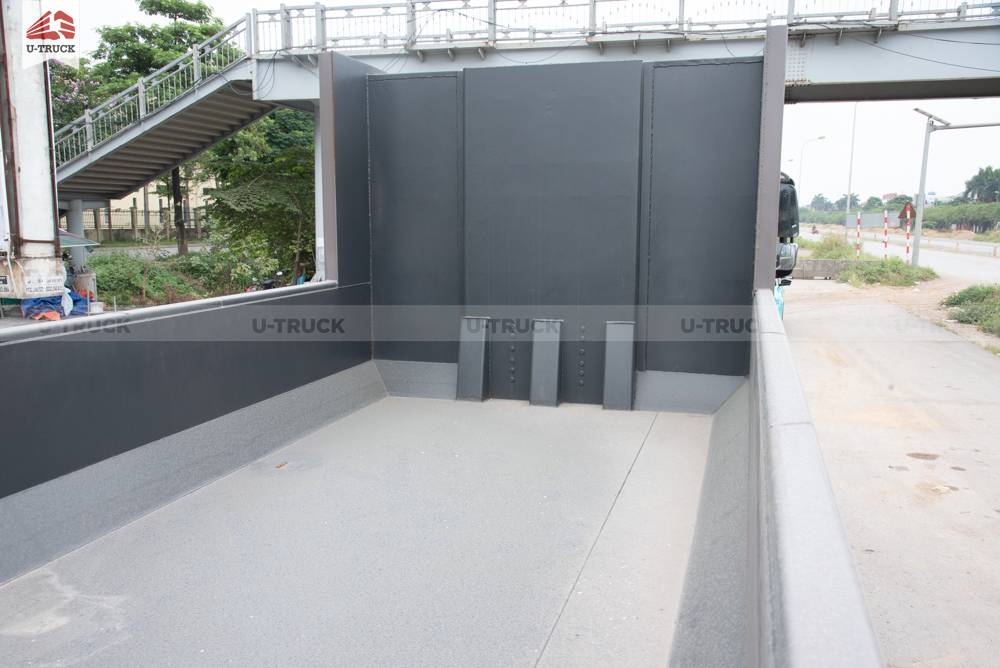

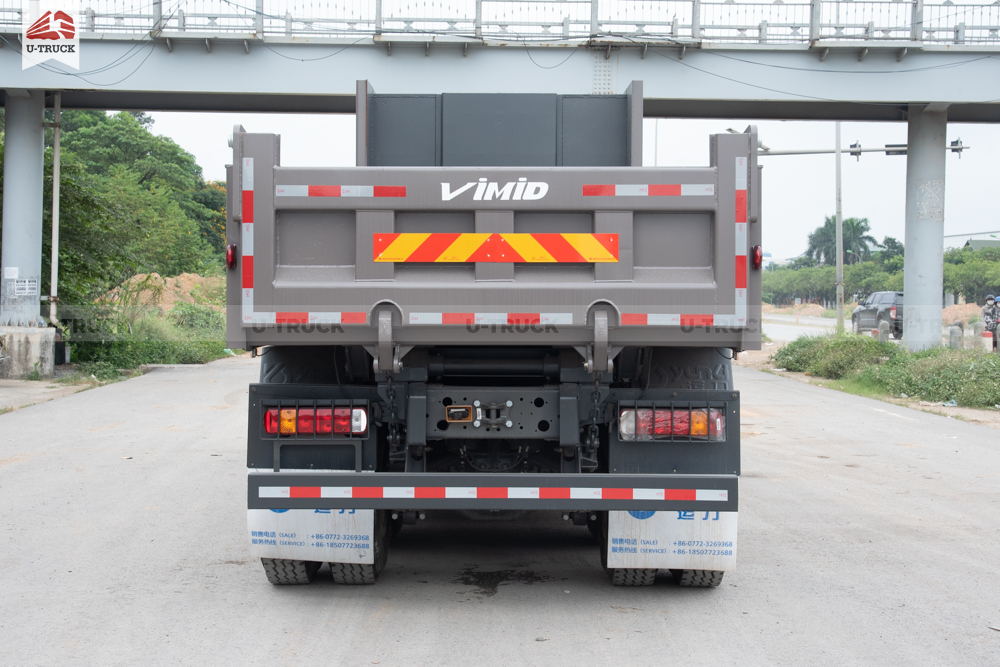

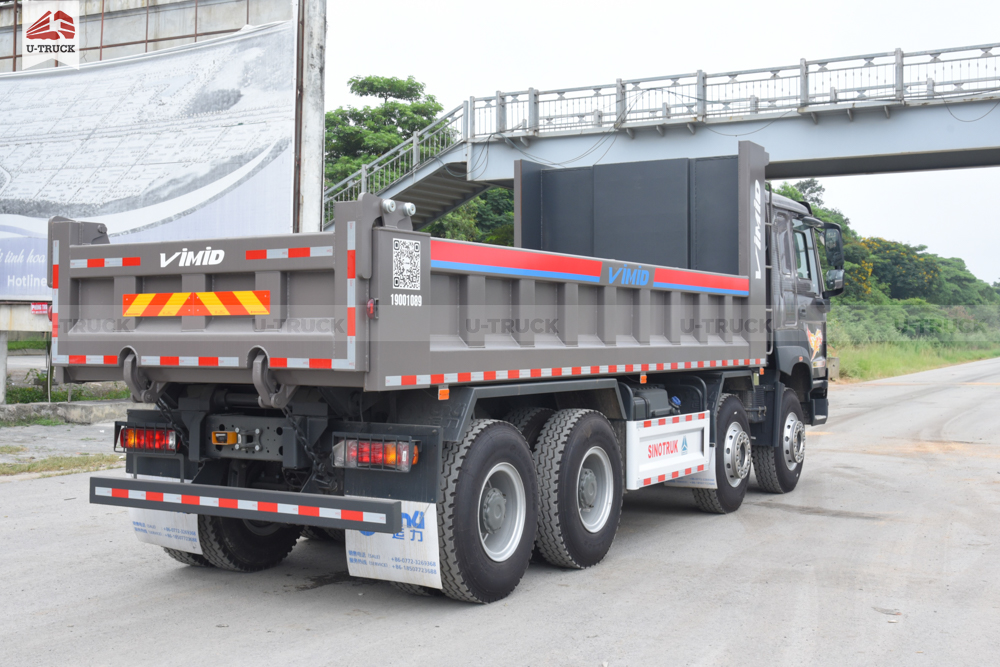

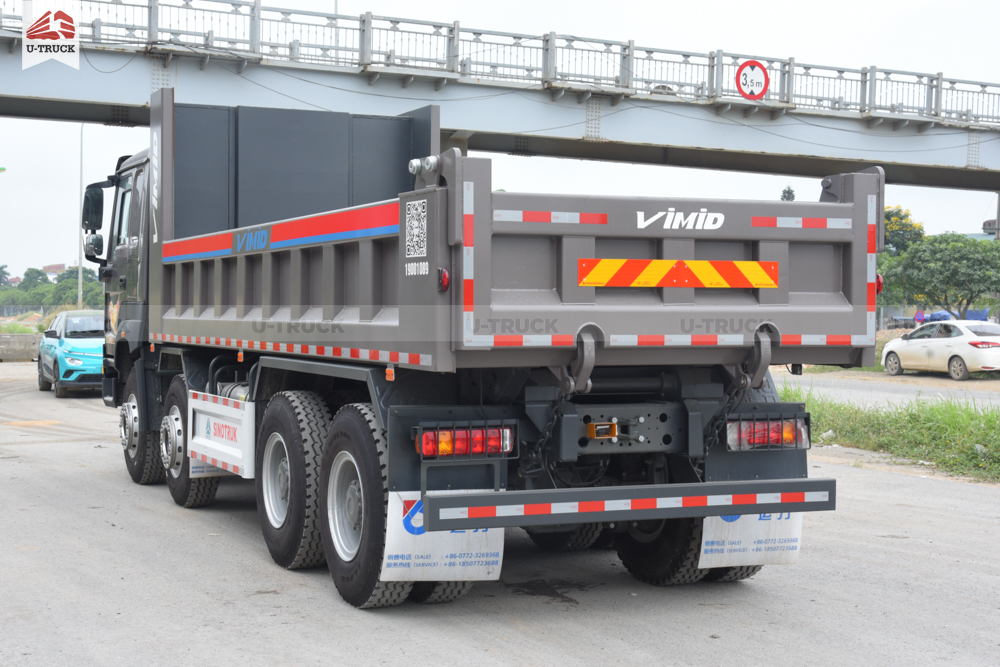

Dump box

• Dimensions: 6500 x 2300 x 720 mm
• Volume: 10.5 m³
• Side wall thickness: 8mm
• Floor thickness: 10mm
• Material: Q355 high-strength steel with excellent wear and impact resistance

The Structure includes:

• 4 main longitudinal reinforcement beams
• 7 wide transverse reinforcement beams
• 8 side stiffeners

Hydraulic System

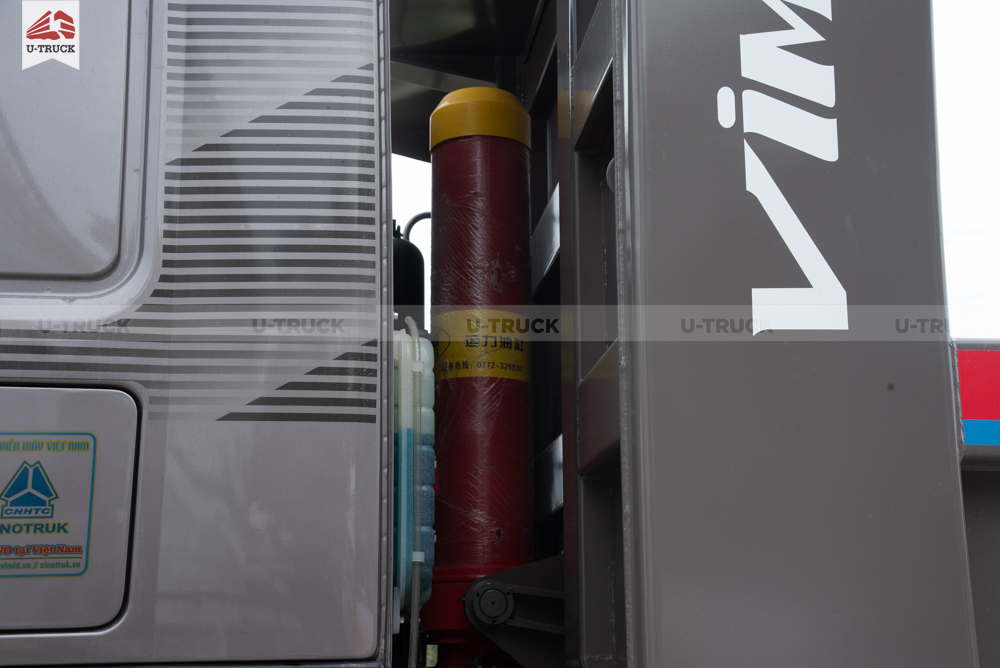

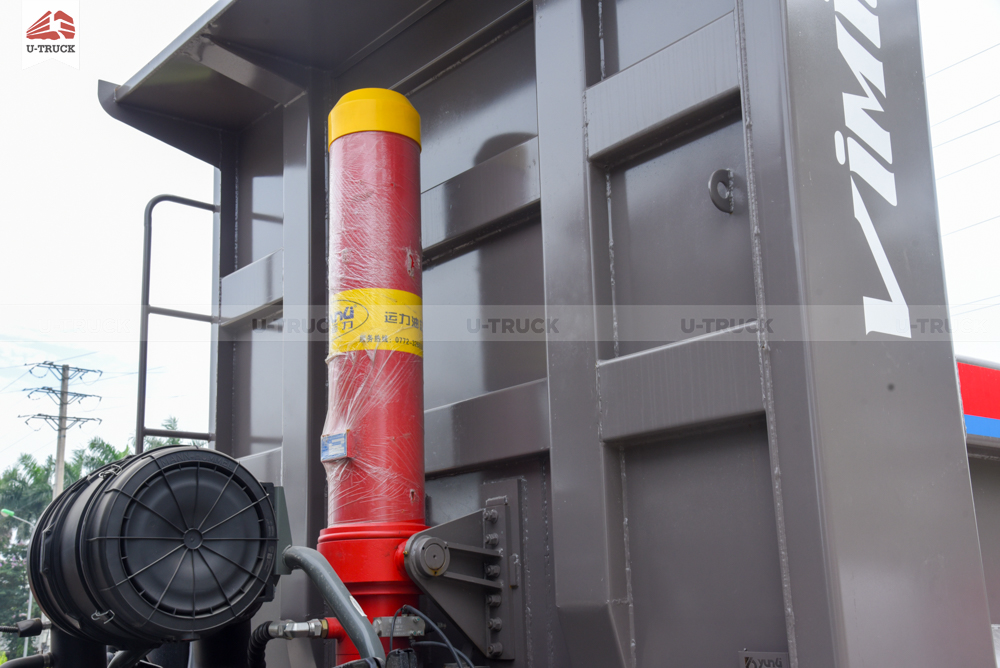

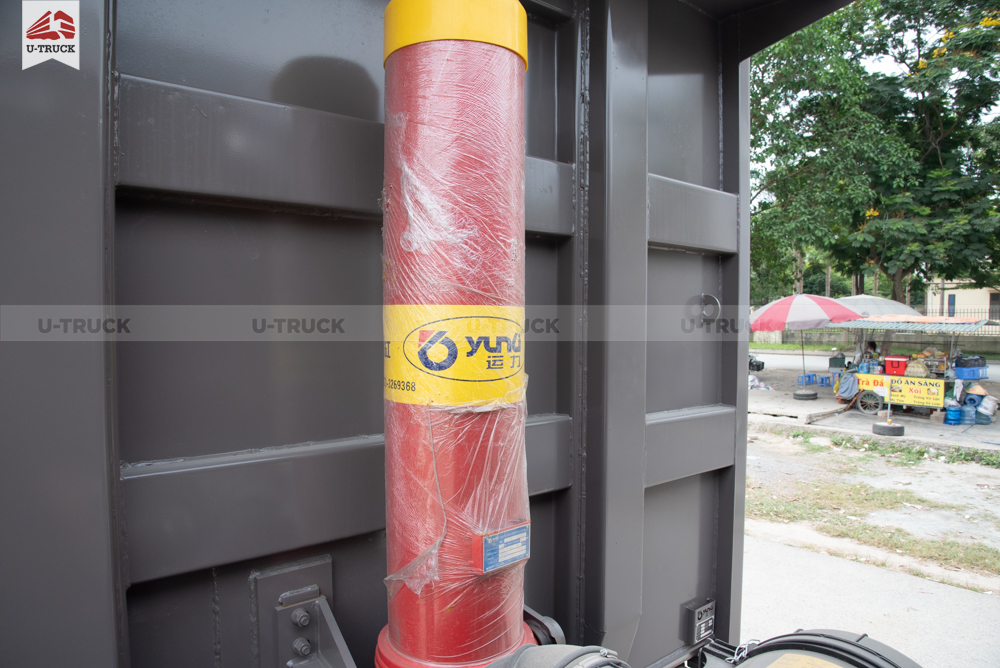

The vehicle uses a YUNLI 179-4-5000 hydraulic lifting cylinder with:

• Maximum outer diameter: 179mm
• 4-stage telescopic cylinder design
• Maximum lifting stroke: 5000mm
• Chrome-plated cylinder surface for increased durability and corrosion resistance

Hydraulic oil system, oil pump, control valve, and hydraulic cylinder are manufactured to Chinese domestic heavy-duty standards.

Additional Systems

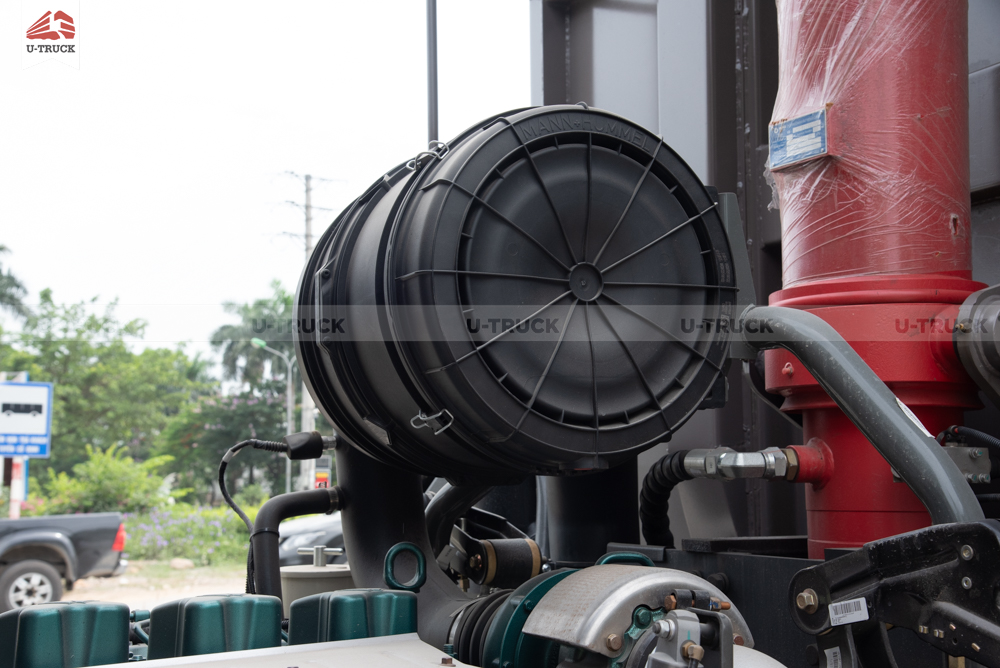

The HOWO V7X 380 8×4 dump truck is additionally equipped with a wet-type air filter system before the engine air intake.

Benefits of the Wet Air Filter System

Improved Engine Performance

• Filters impurities from intake air
• Improves air-fuel mixture formation
• Enhances combustion efficiency and engine thermal performance

Reduced Fuel Consumption & Noise

• Improves intake air quality
• Reduces fuel consumption
• Minimizes engine knocking, vibration, and operational noise

Environmental Protection

• More complete combustion process
• Reduces CO and PM emissions

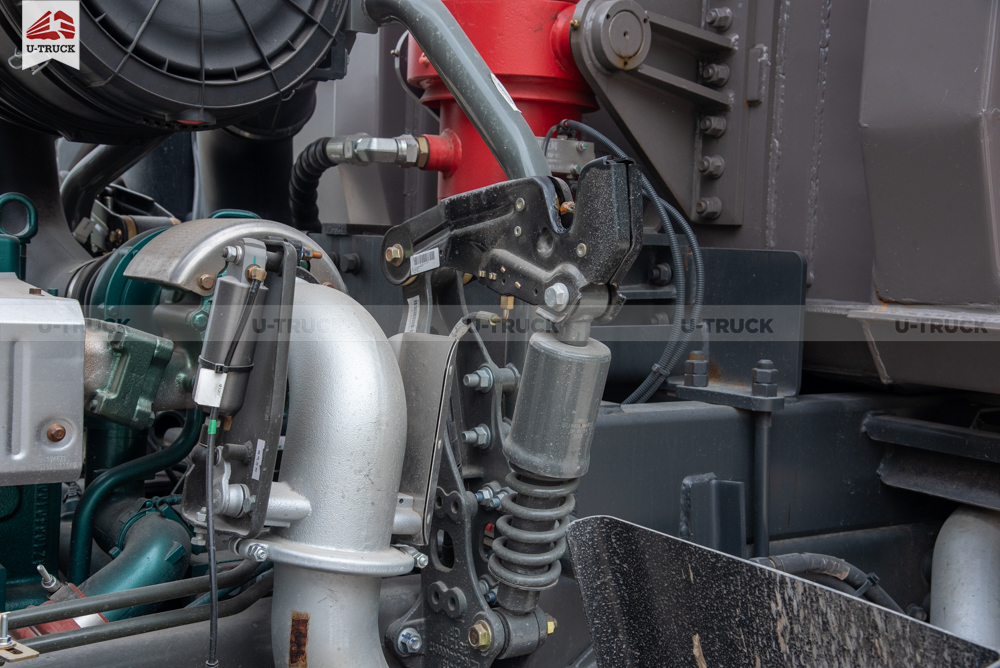

The PTO system uses an integrated direct-mounted PTO connected directly to the gearbox, offering:

• Longer service life
• Fewer components
• Reduced maintenance requirements
• Higher operational reliability compared to conventional PTO systems

For more information about the HOWO V7X 380HP 8×4 Dump Truck (8+8mm Chassis), please contact VIMID Hotline 1900 1089 for detailed consultation and support.
