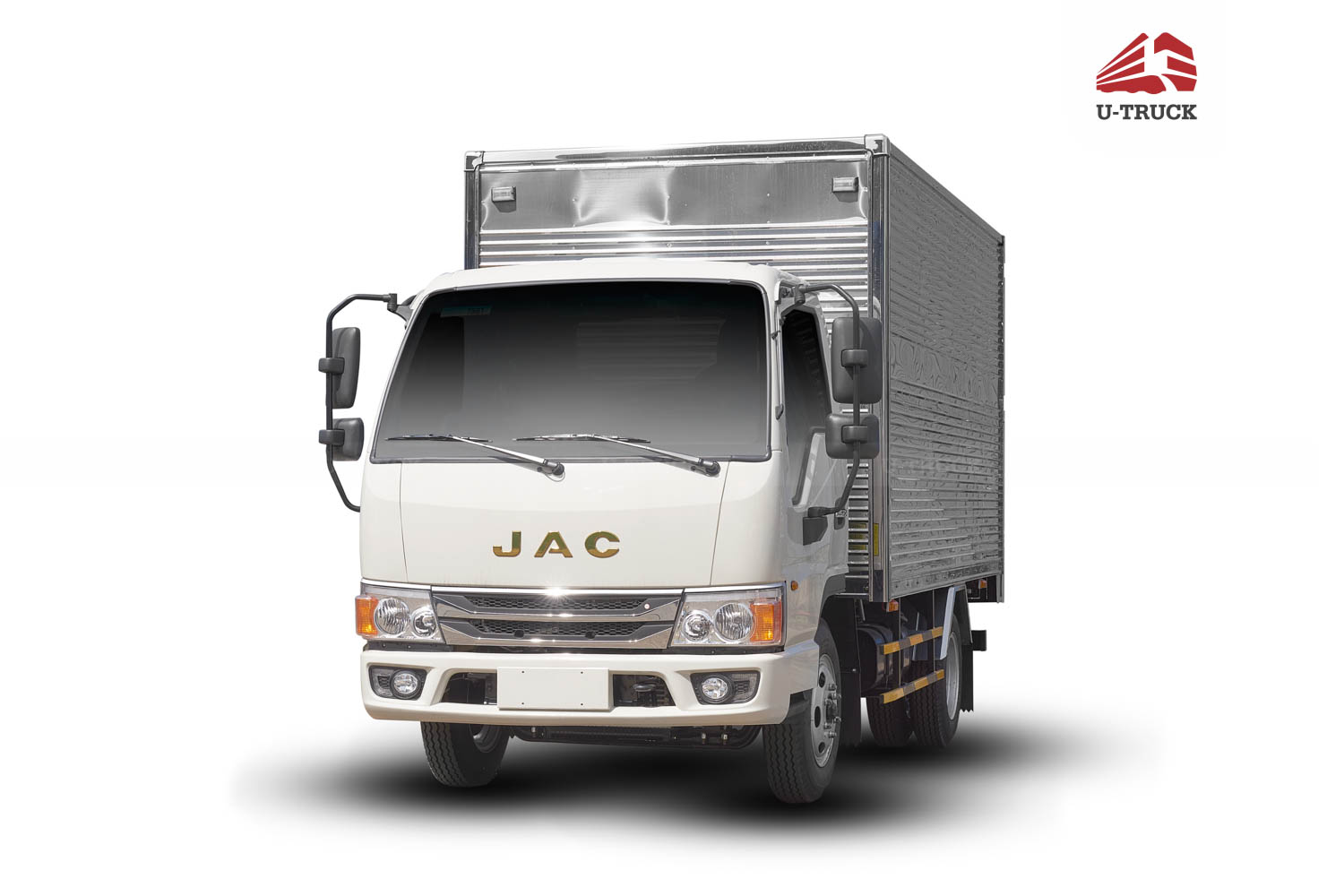

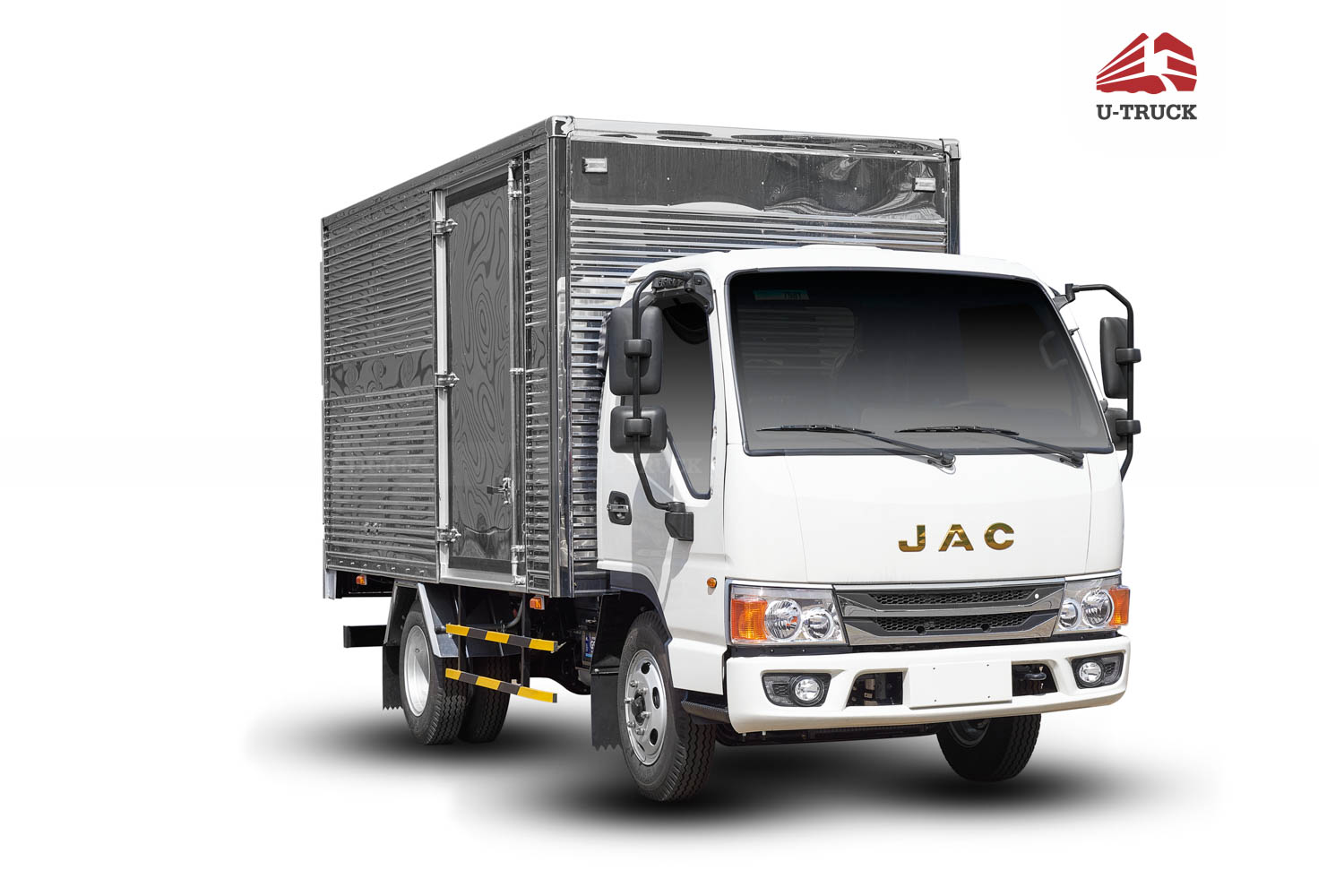

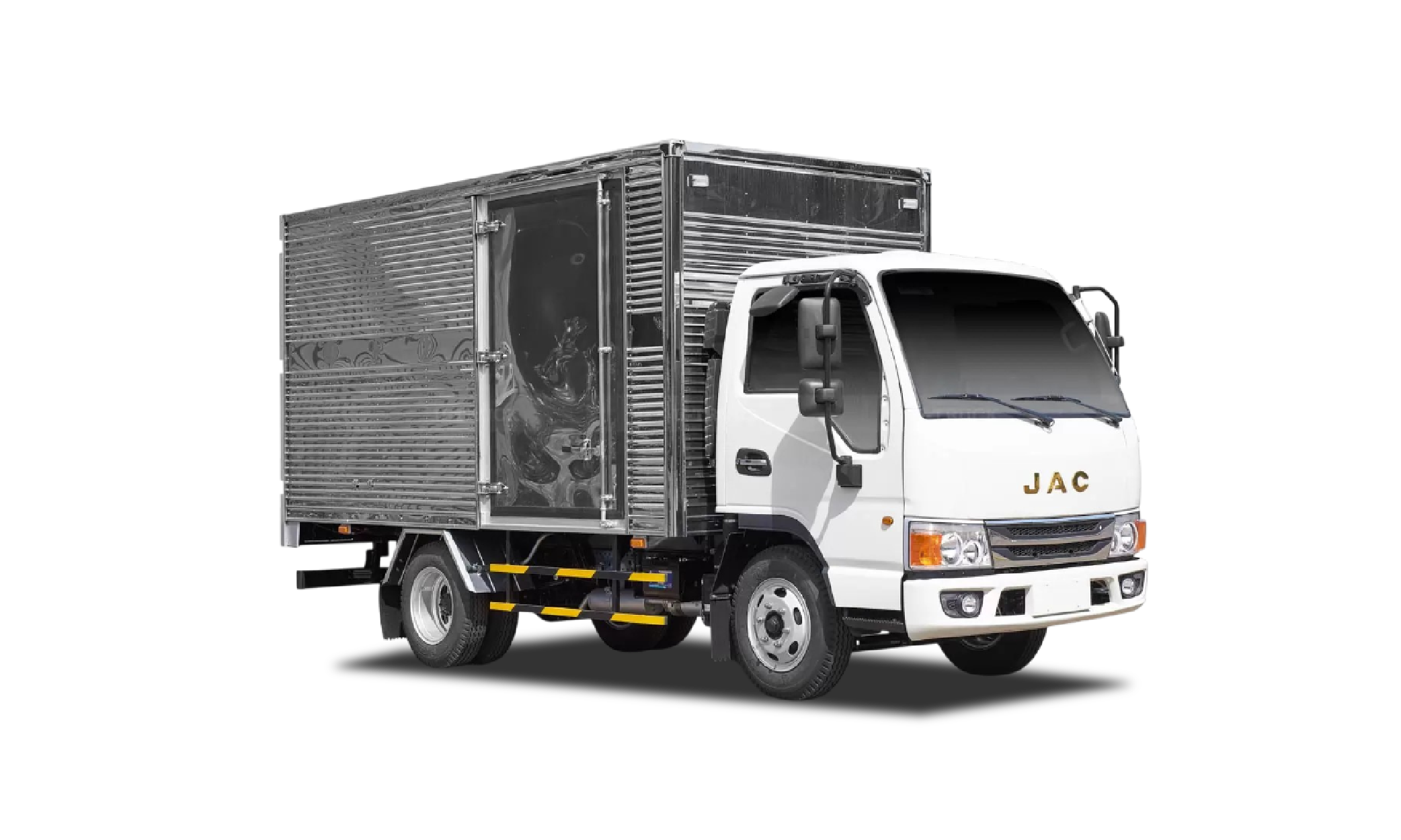

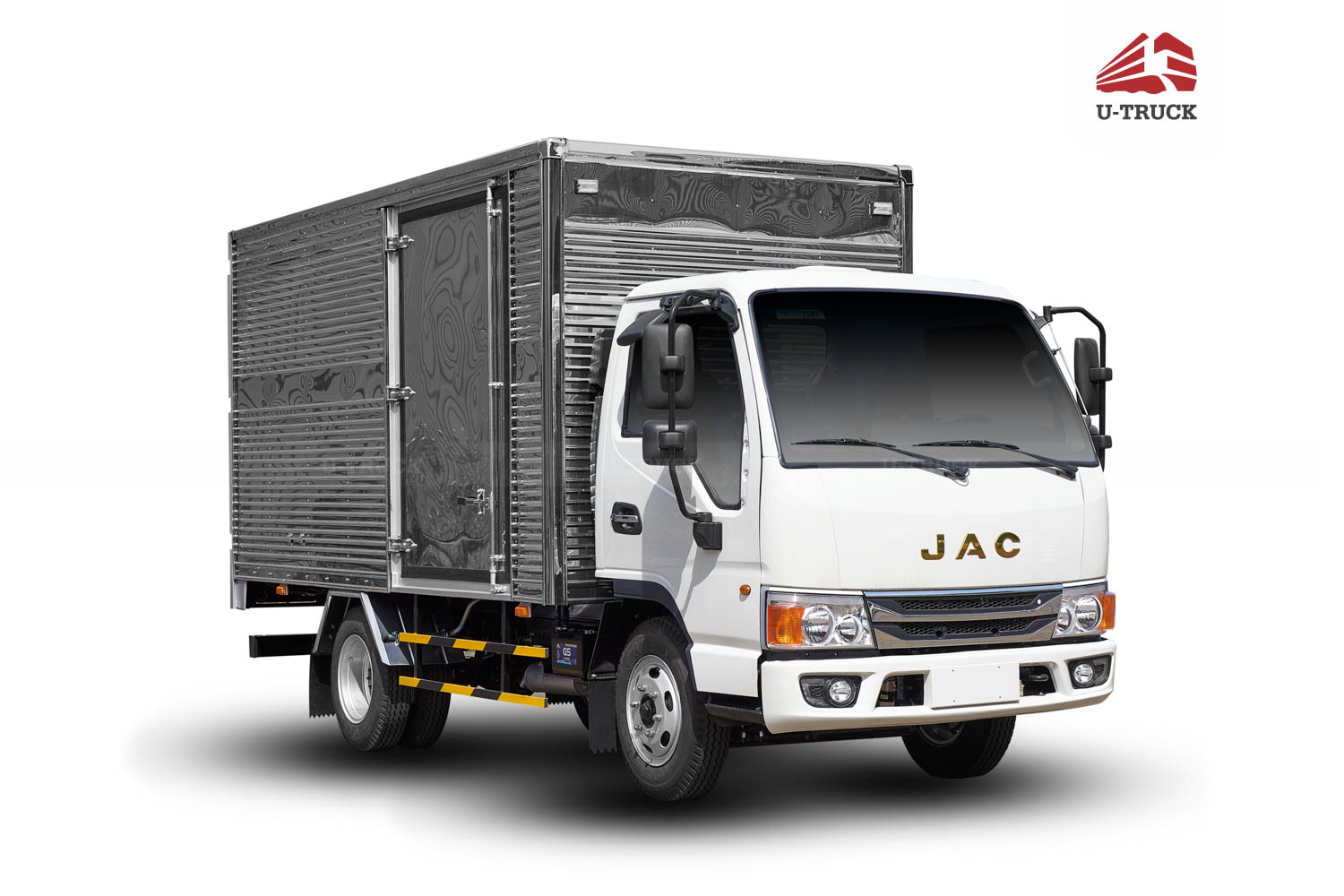

JAC H200 E5 – Box Cargo Truck

The JAC H200 E5 box truck is a Euro 5-compliant light-duty truck designed to deliver flexibility and efficiency in transporting various types of goods such as dry cargo, food, electronics, and more.

Exterior – Modern & Functional

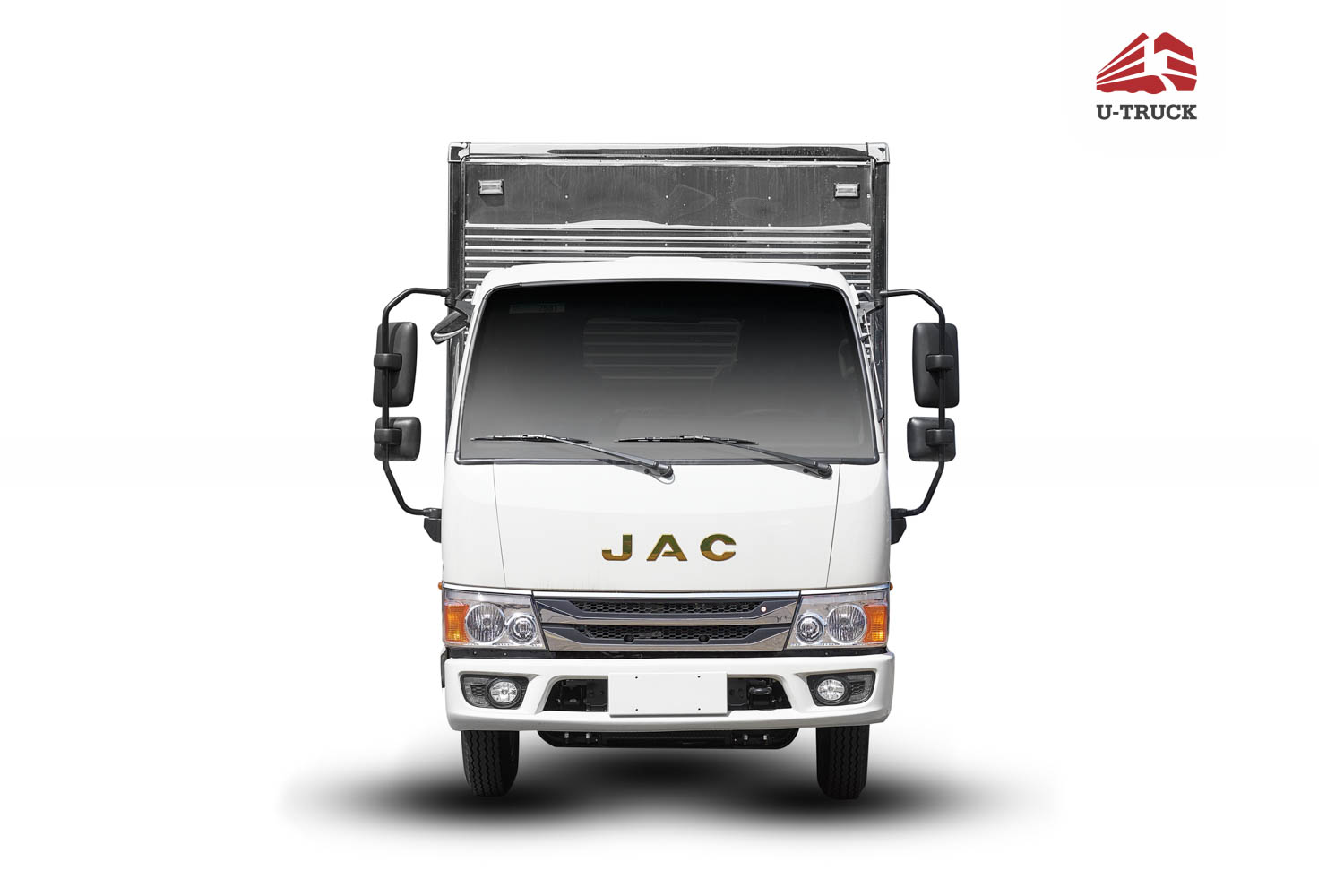

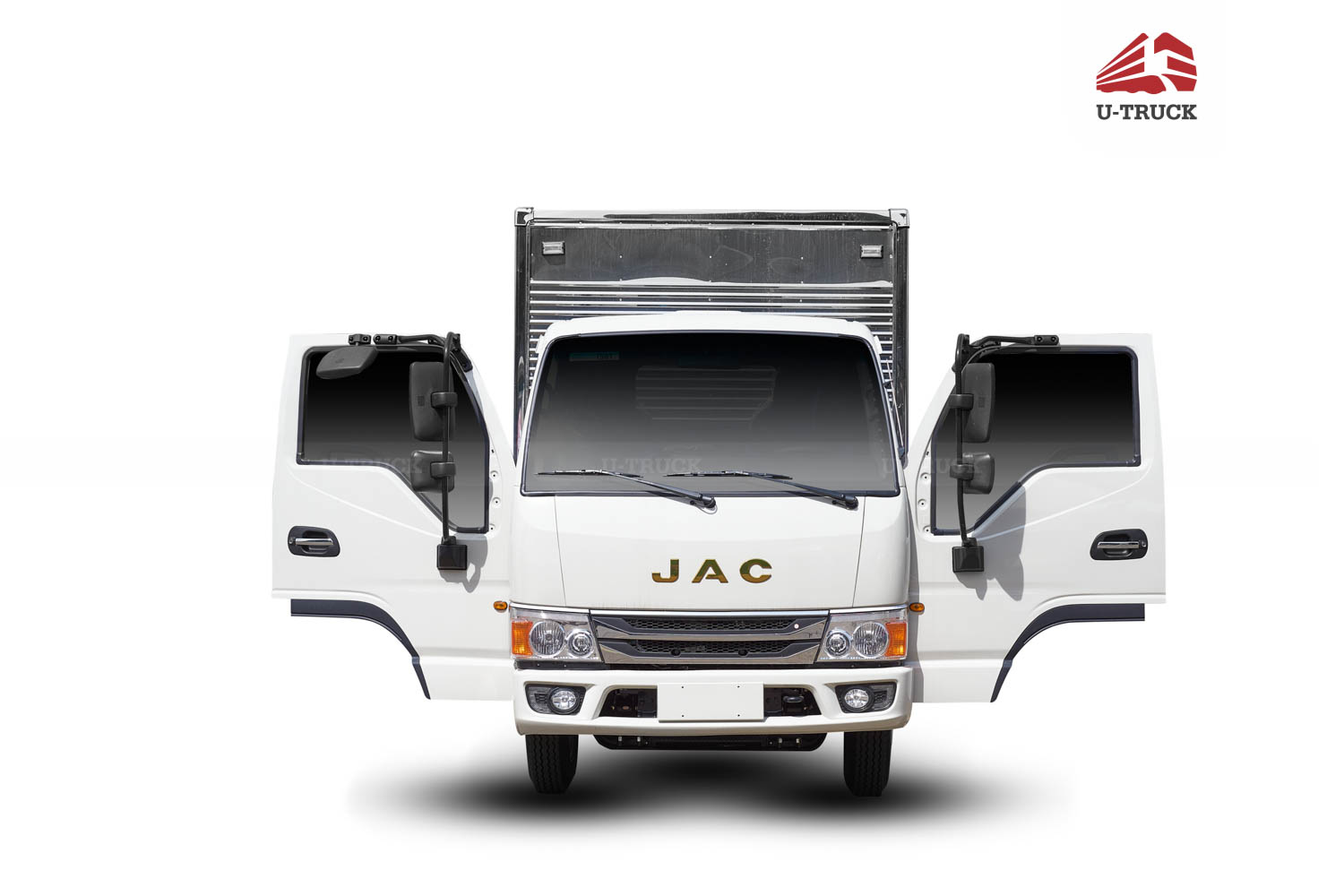

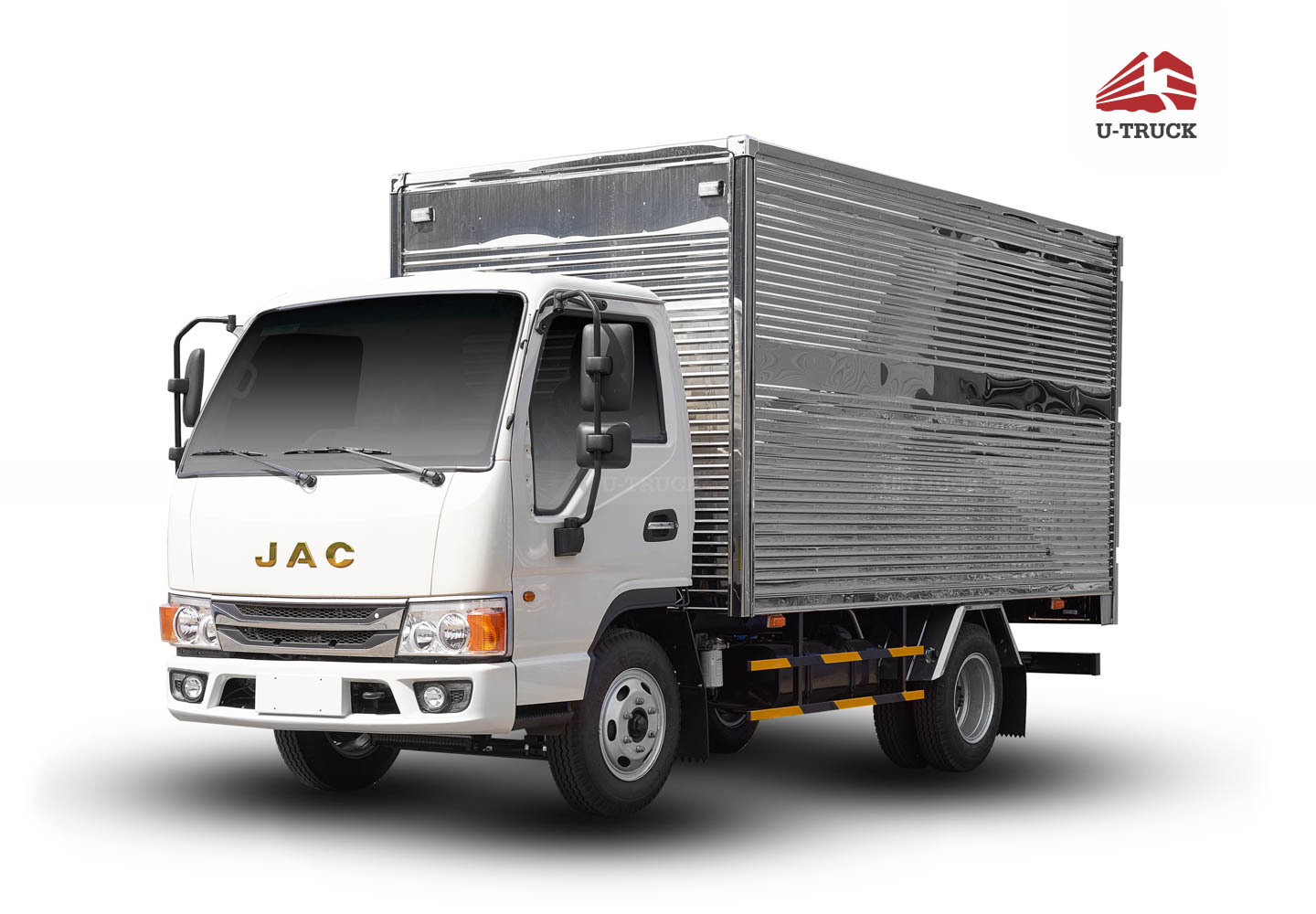

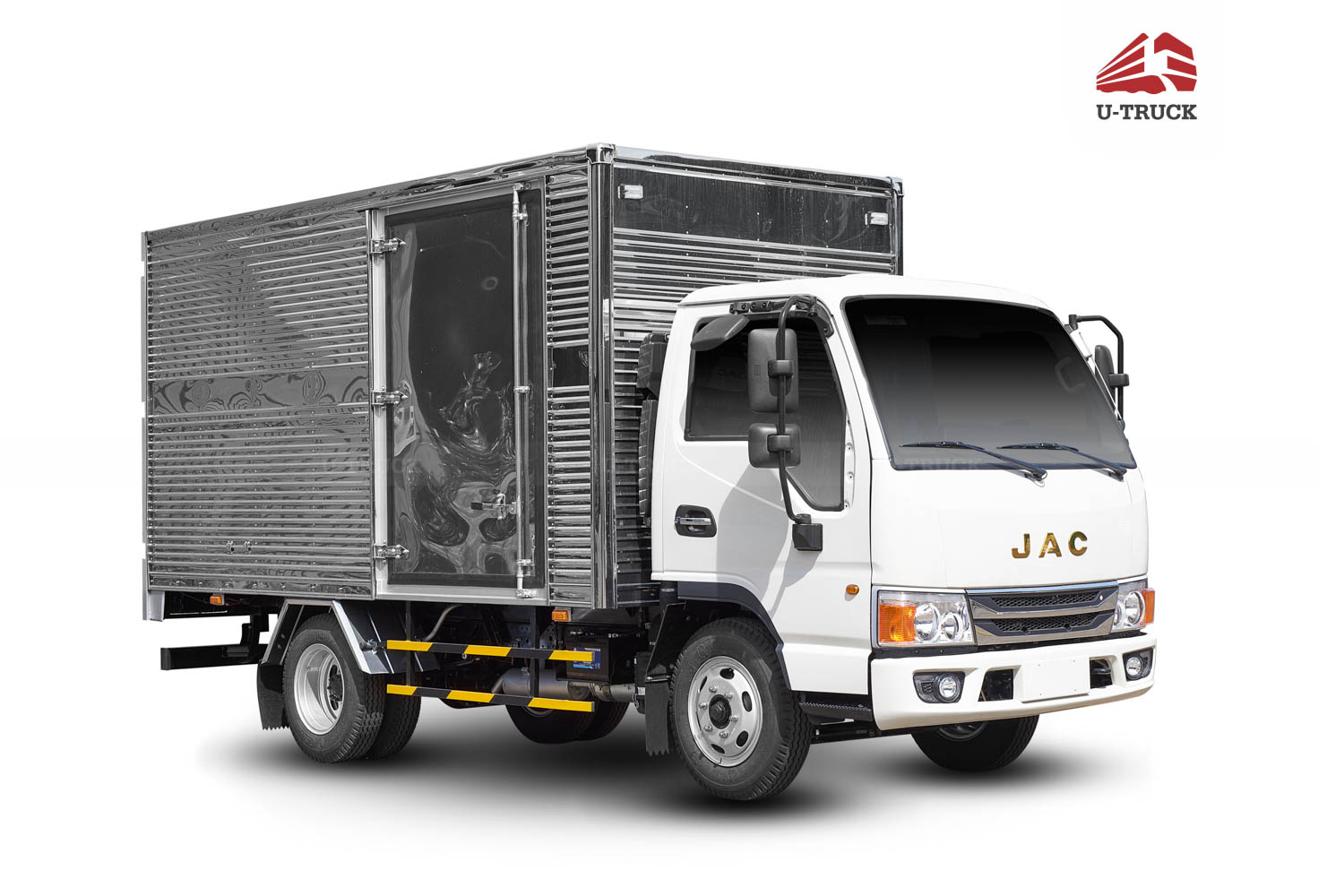

The JAC H200 E5 box truck features a modern design with a spacious cabin and wide visibility, making it easier for drivers to observe their surroundings:

• Chrome-plated grille enhances engine cooling performance
• LED daytime running lights combined with fog lamps improve visibility in low-light or adverse weather conditions

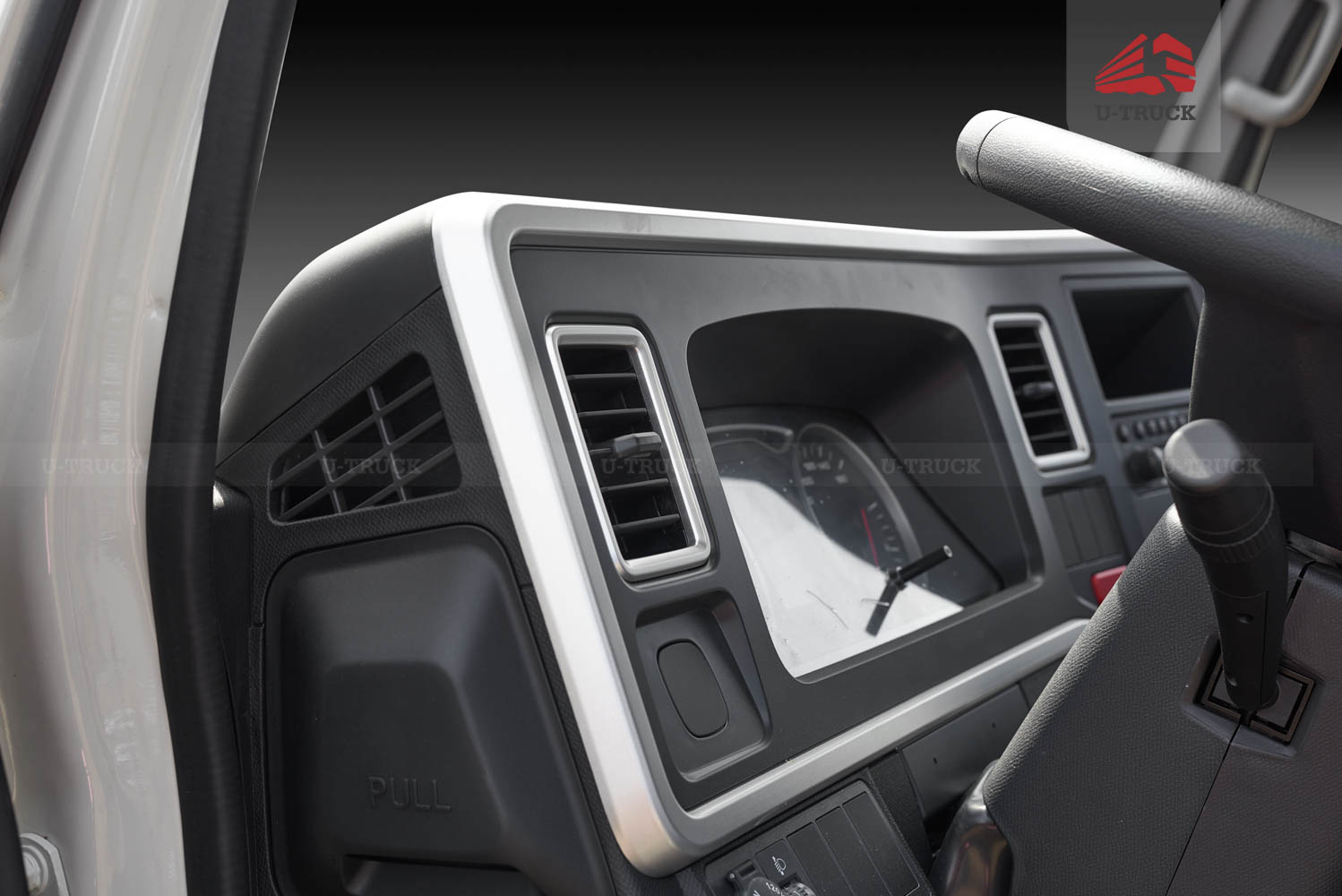

Interior – Comfortable & Practical

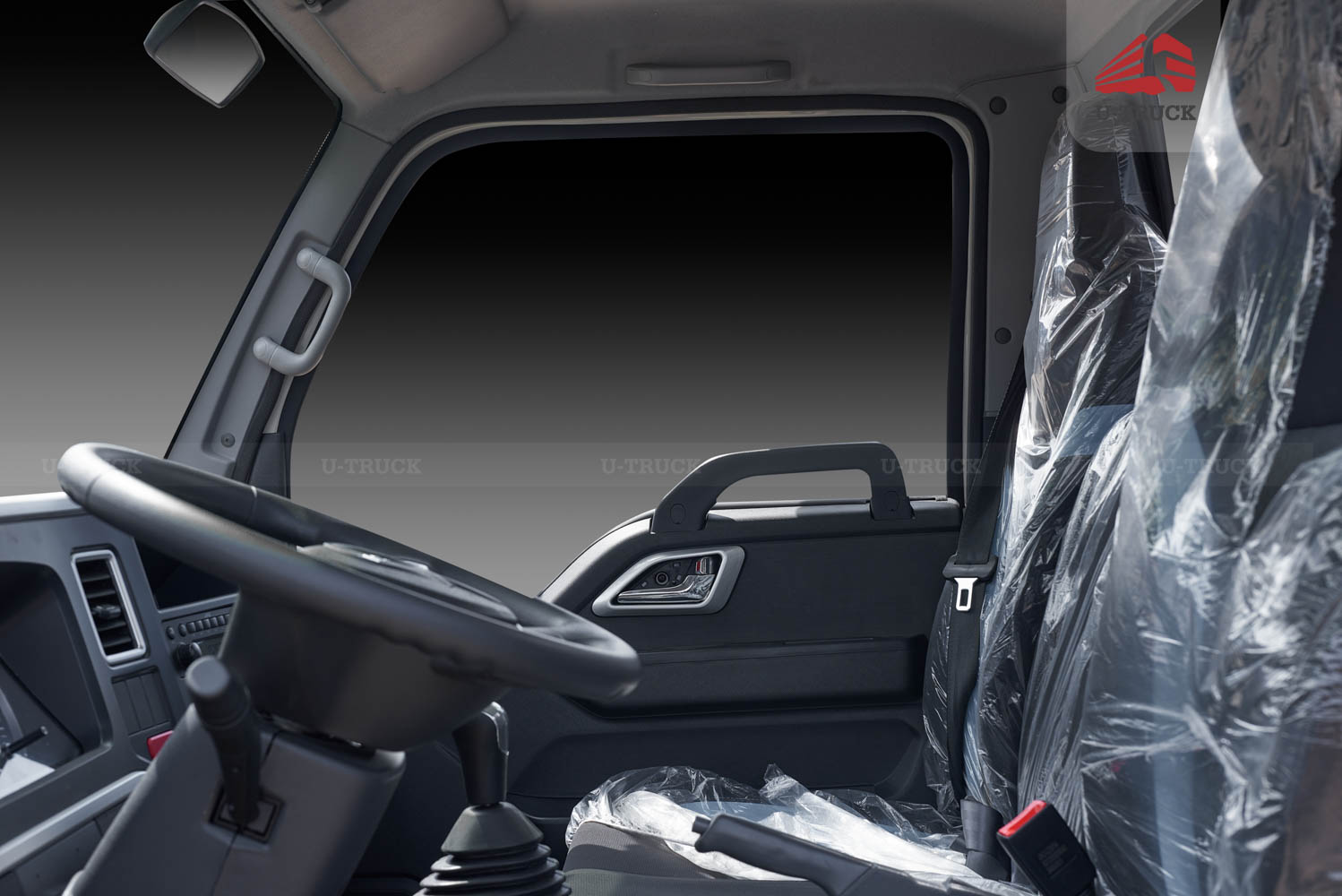

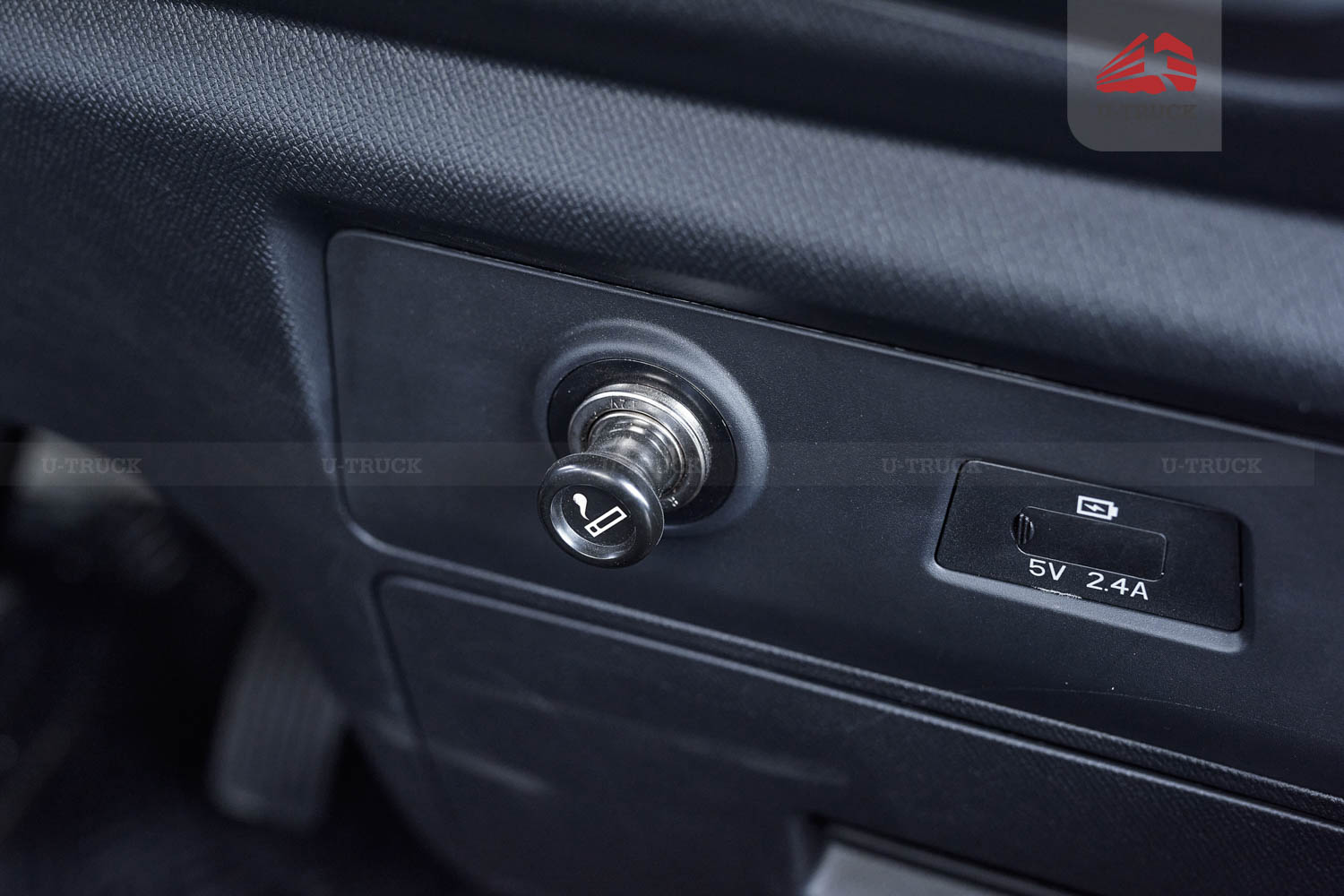

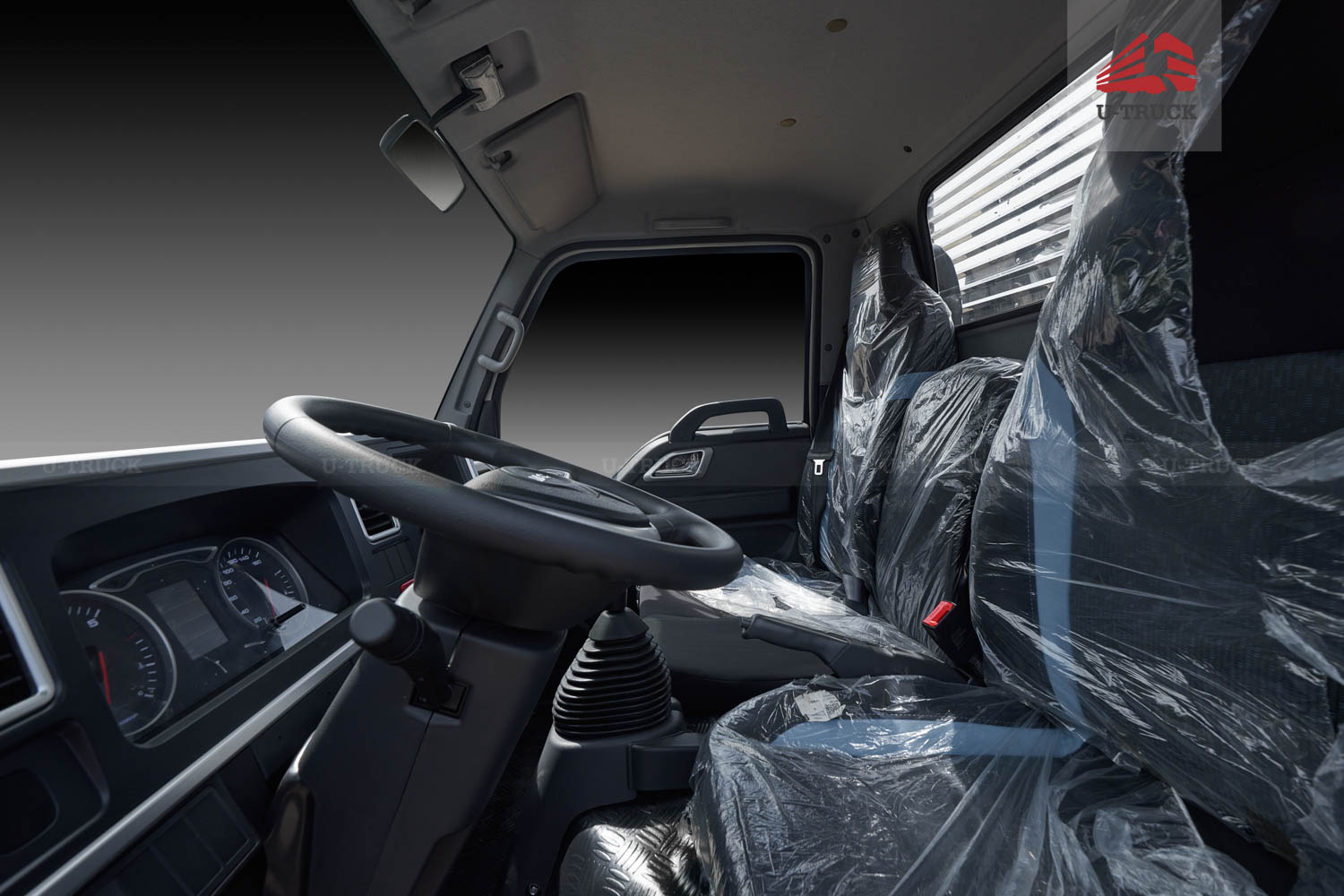

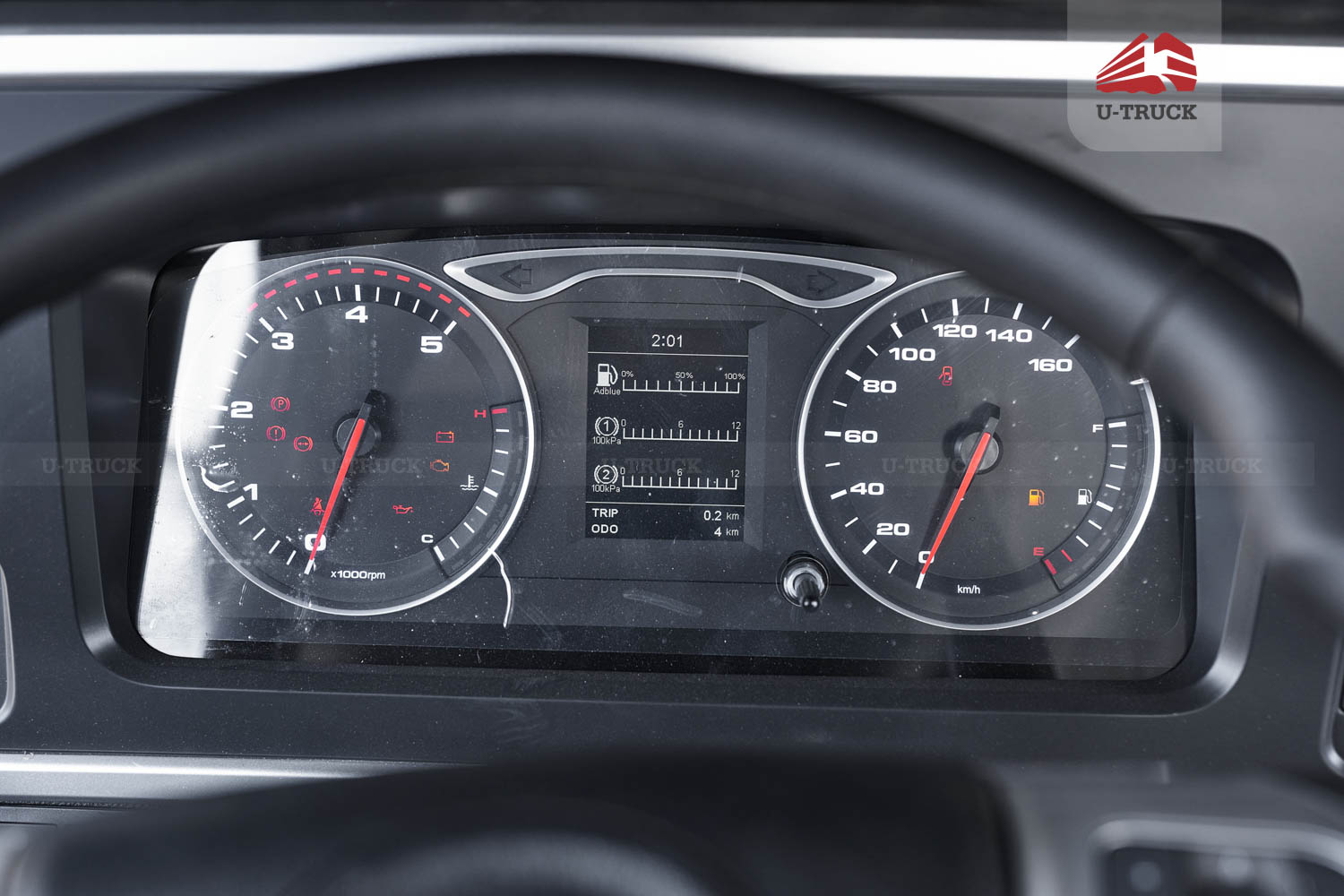

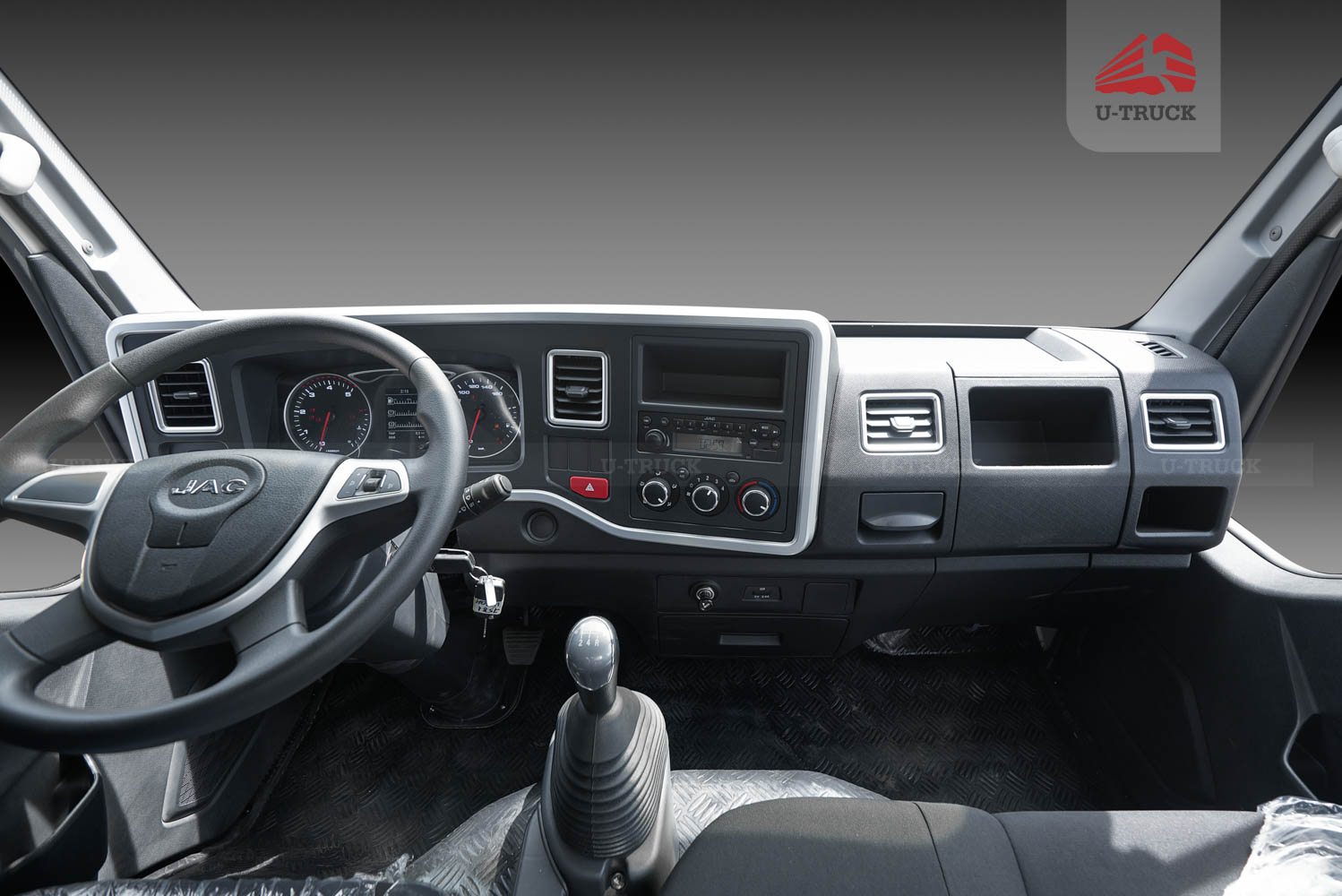

The cabin is spacious and well-equipped with essential features to support drivers:

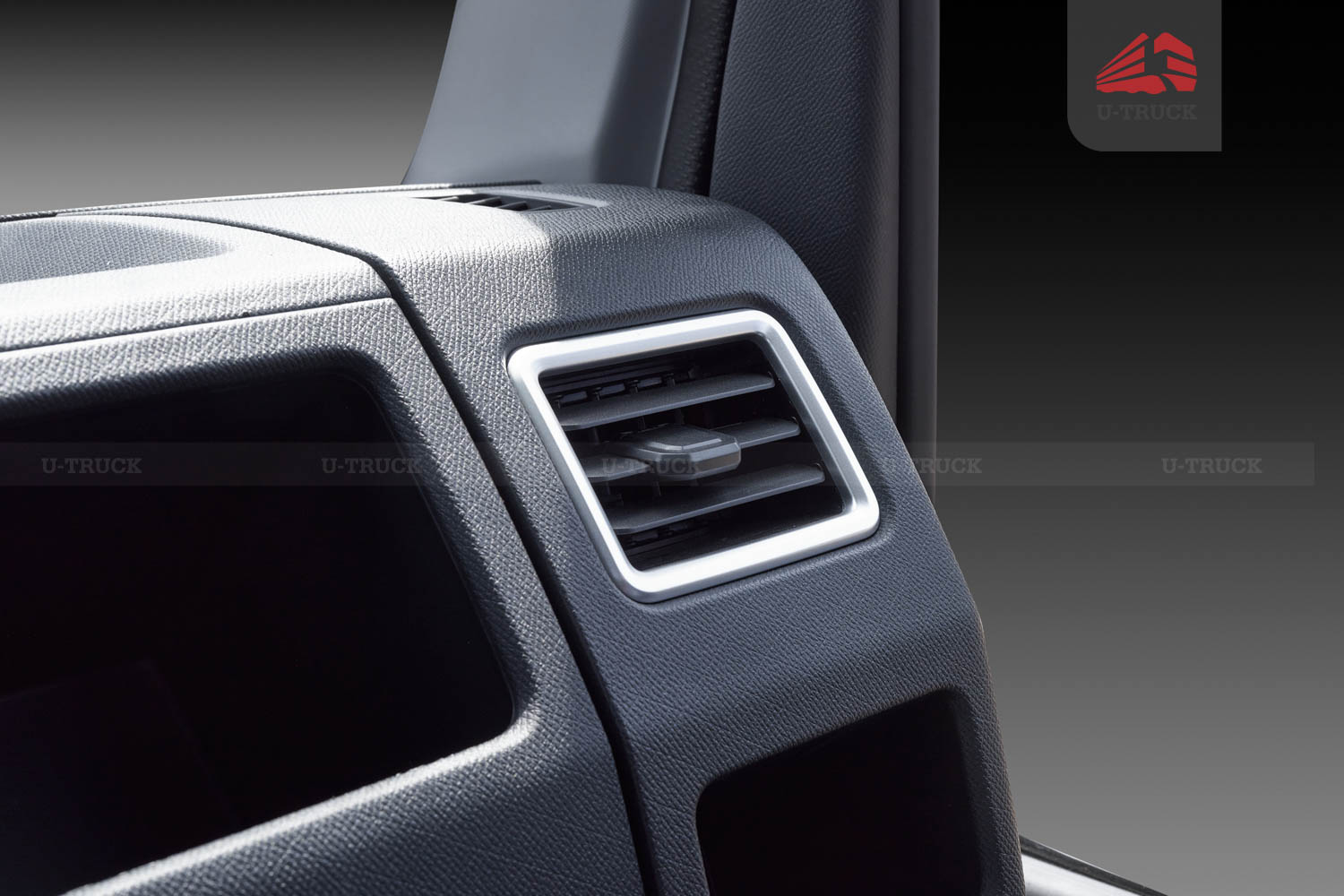

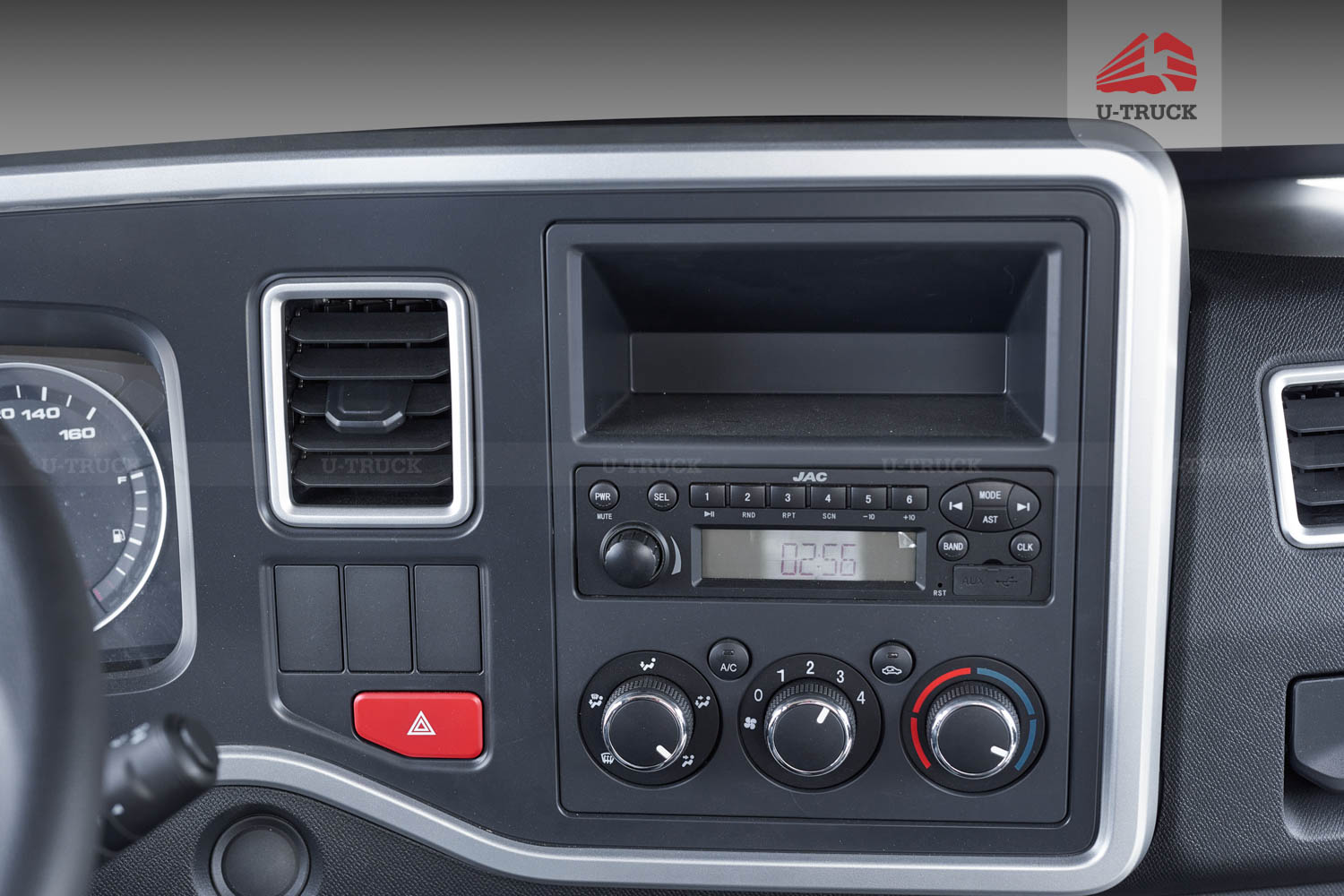

• High-capacity dual-mode air conditioning maintains a cool and comfortable environment

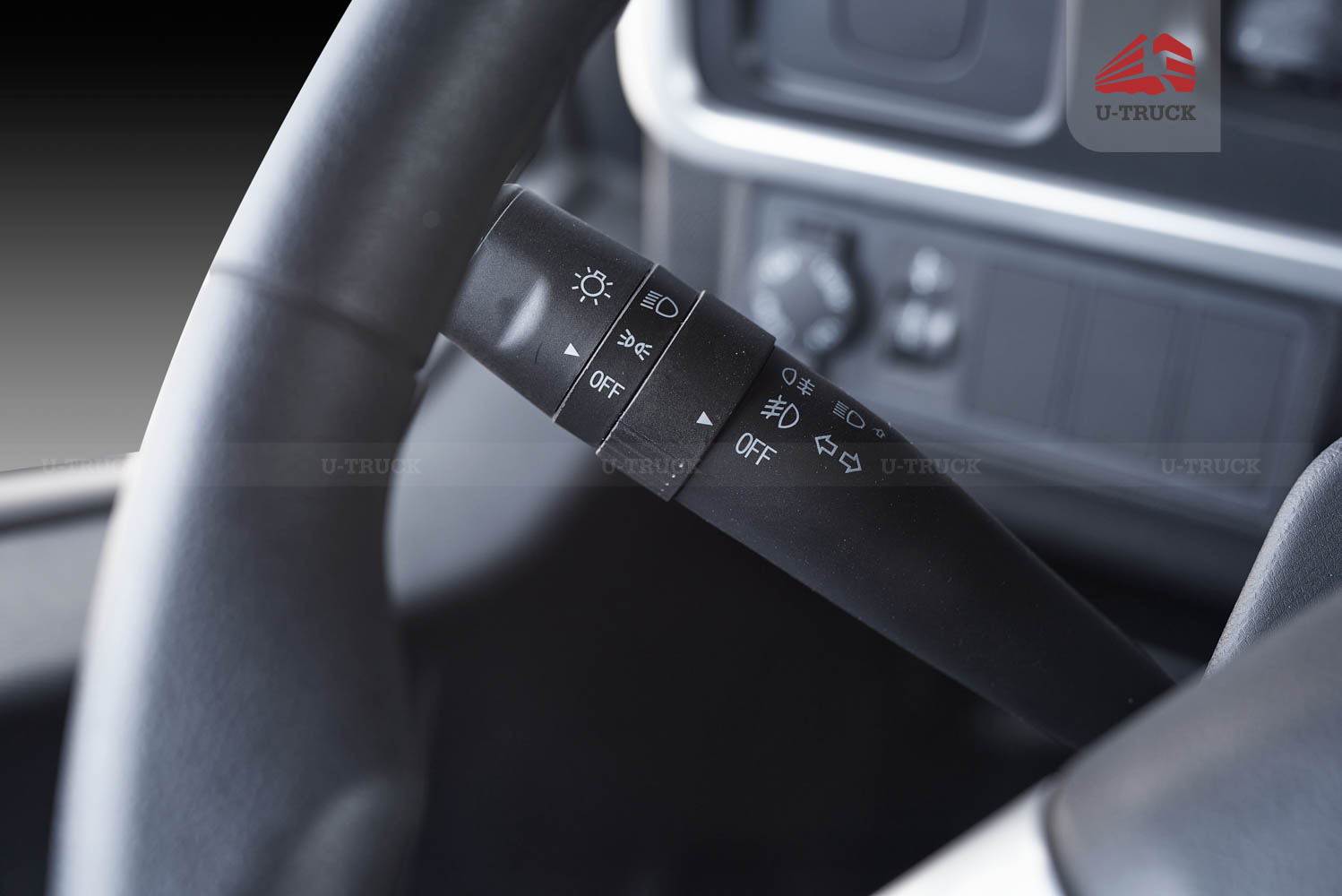

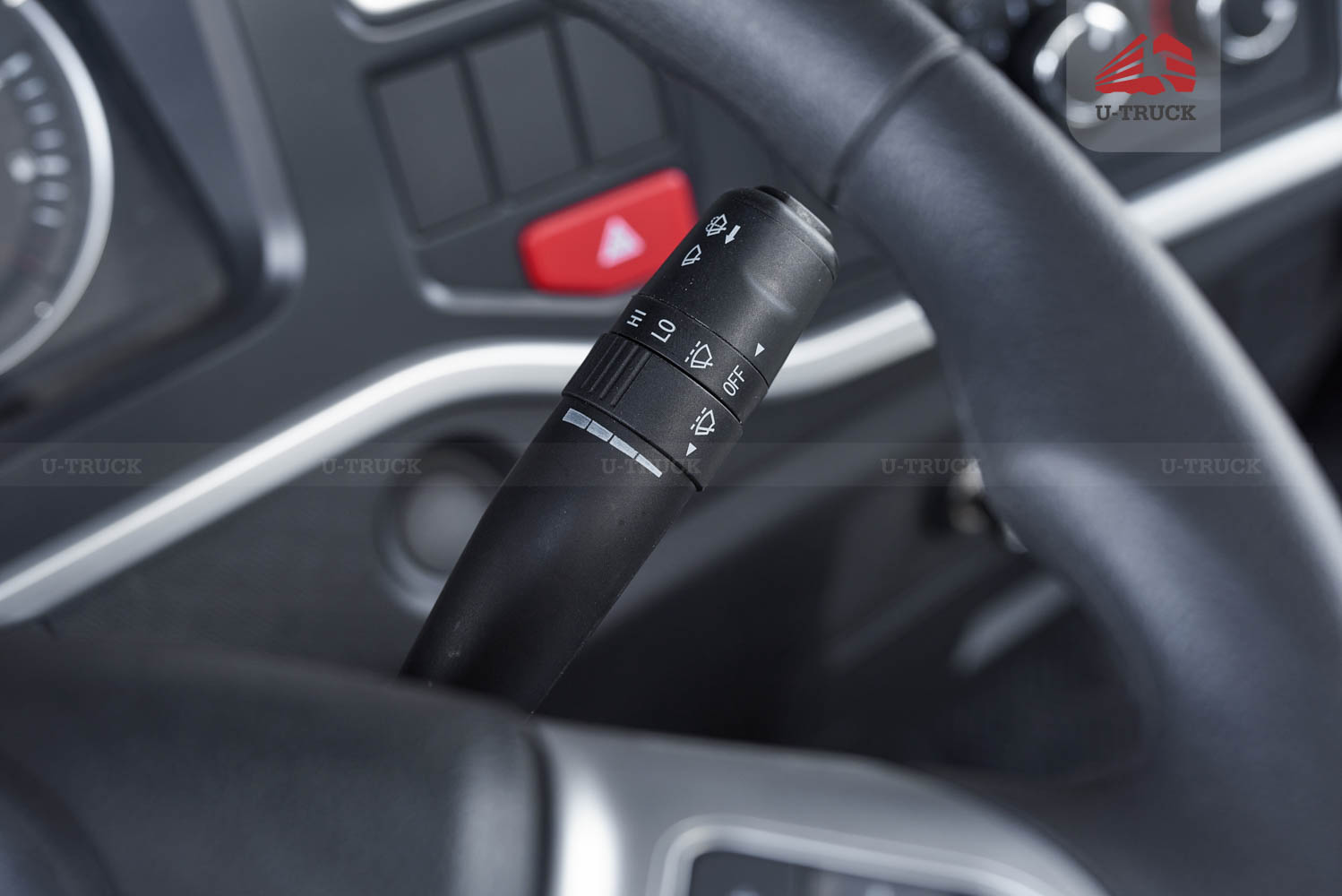

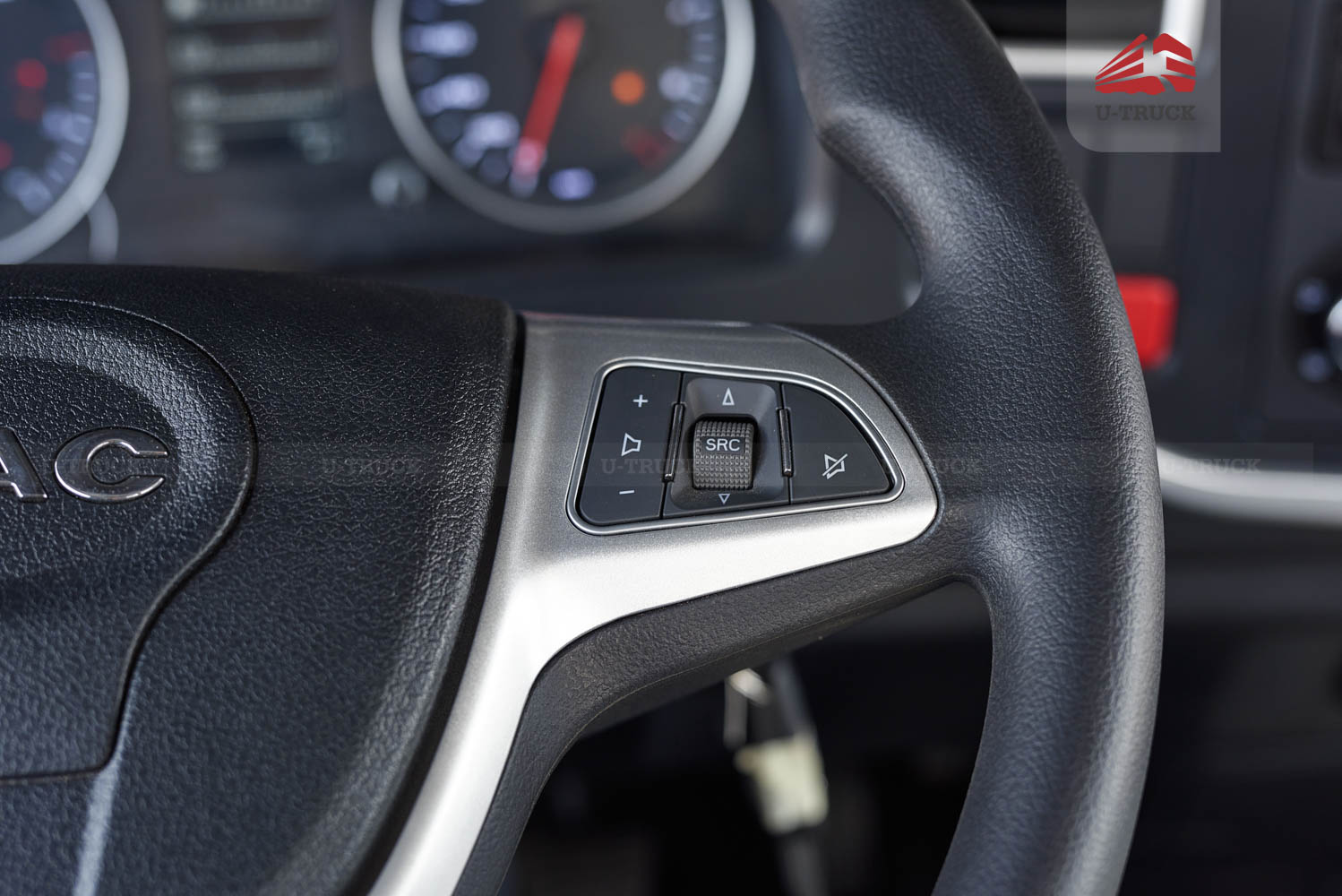

• Steering wheel integrated with control buttons allows easy operation without distraction

Engine – Powerful & Efficient

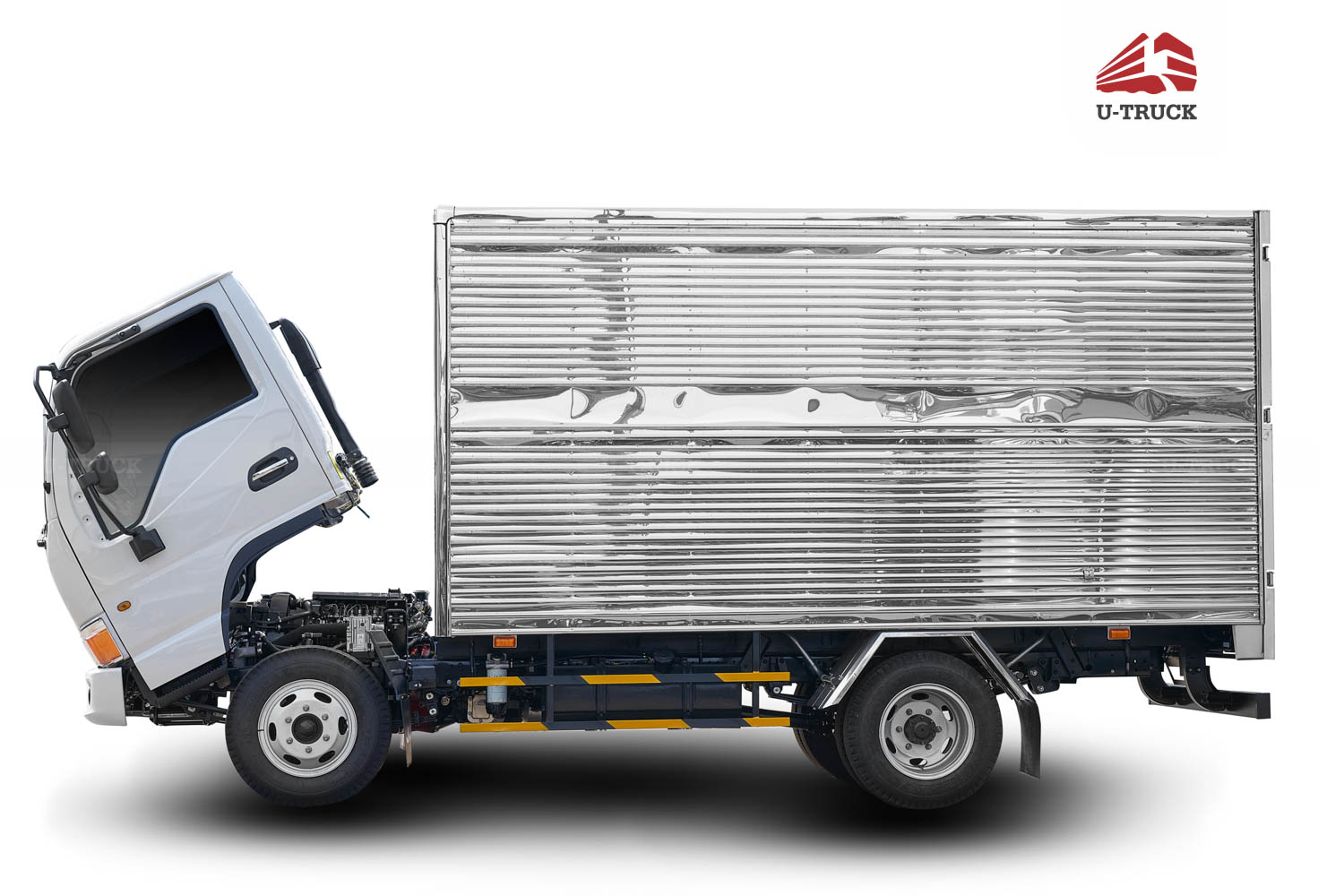

The JAC H200 E5 box truck is powered by the Q25N-132E50 engine with outstanding specifications:

• Diesel, 4-stroke, 4-cylinder inline engine
• Maximum torque: 295 Nm at 2,000 rpm
• BOSCH high-pressure fuel injection system (1,800 bar) ensures efficient combustion and fuel savings
• Engine lifespan (B10) up to 800,000 km for long-term durability

Additionally, enhanced performance technology allows the vehicle to operate more powerfully, especially under heavy loads.

Transmission

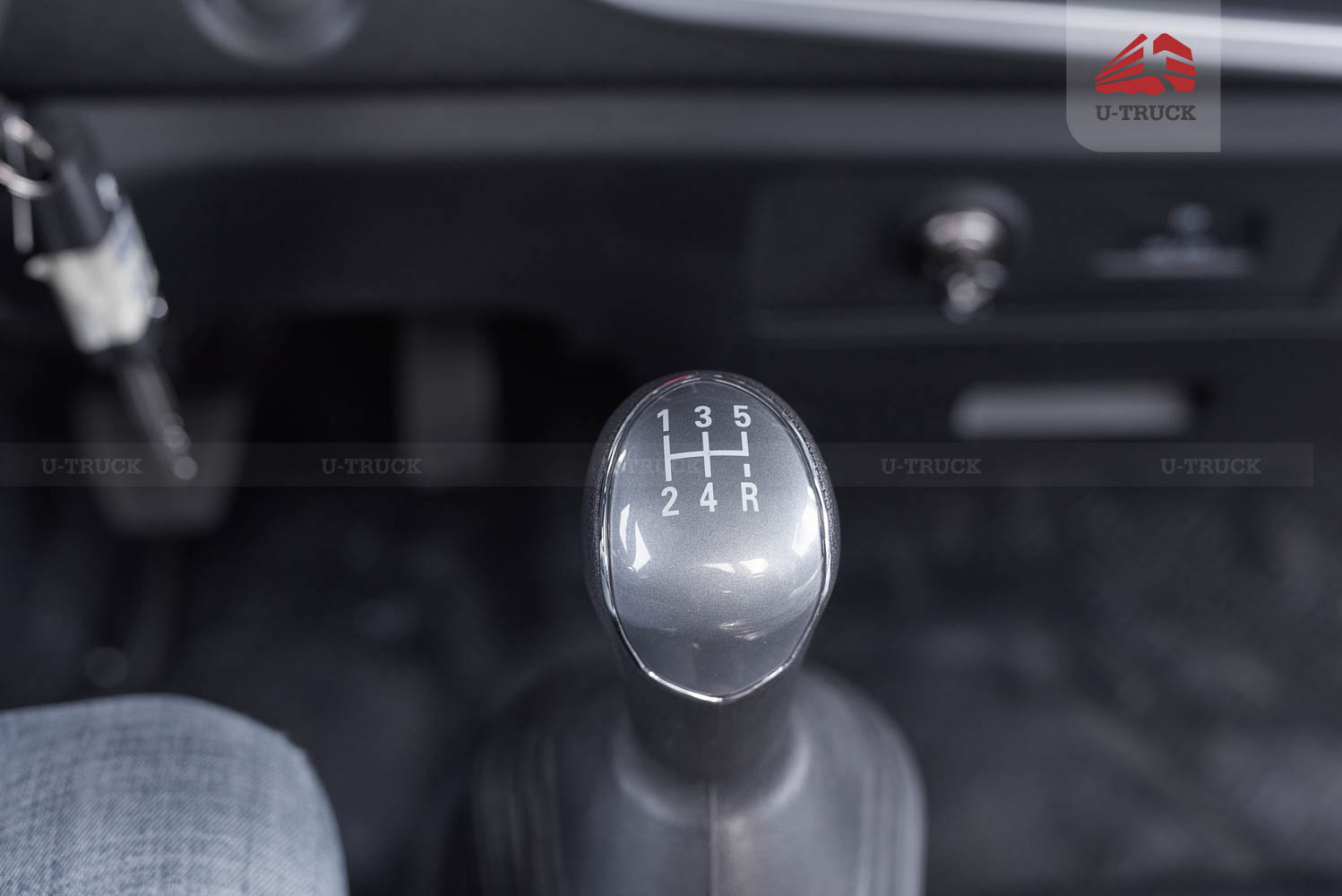

• Equipped with LC5T28 gearbox: 5 forward gears and 1 reverse
• Optimized design ensures smooth shifting, easy control, and improved fuel efficiency

Axles & Chassis

• Front axle: I-beam type, load capacity up to 2,000 kg
• Rear axle: load capacity up to 4,400 kg, final drive ratio 4.875 for stable performance under heavy loads
• Leaf spring suspension combined with hydraulic shock absorbers ensures smooth driving and reduced vibration on rough roads

Braking & Safety

• ABS braking system combined with hydraulic drum brakes enhances safety and braking efficiency on slippery roads
• DOC + POC emission treatment system eliminates the need for urea fluid, making the vehicle more environmentally friendly

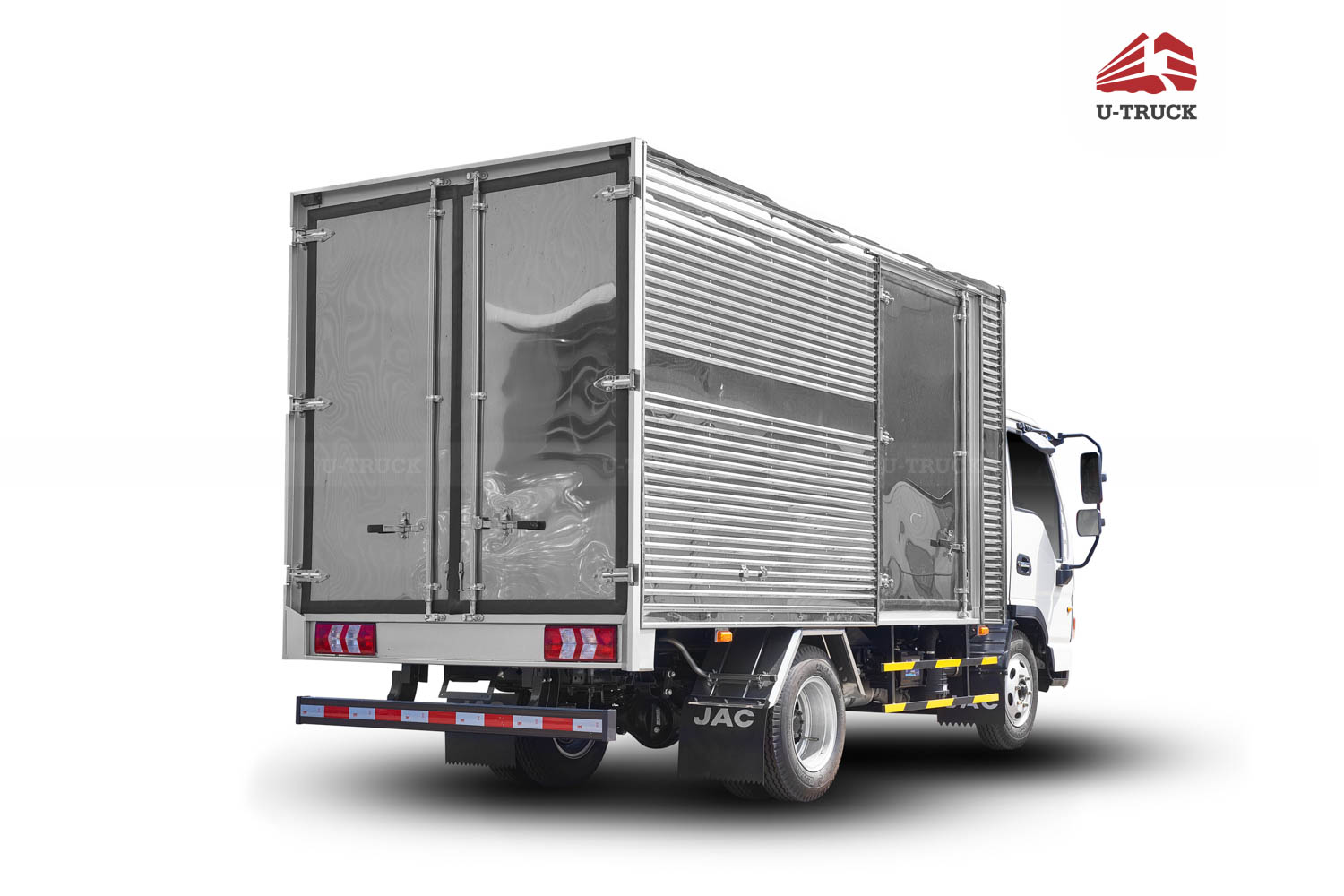

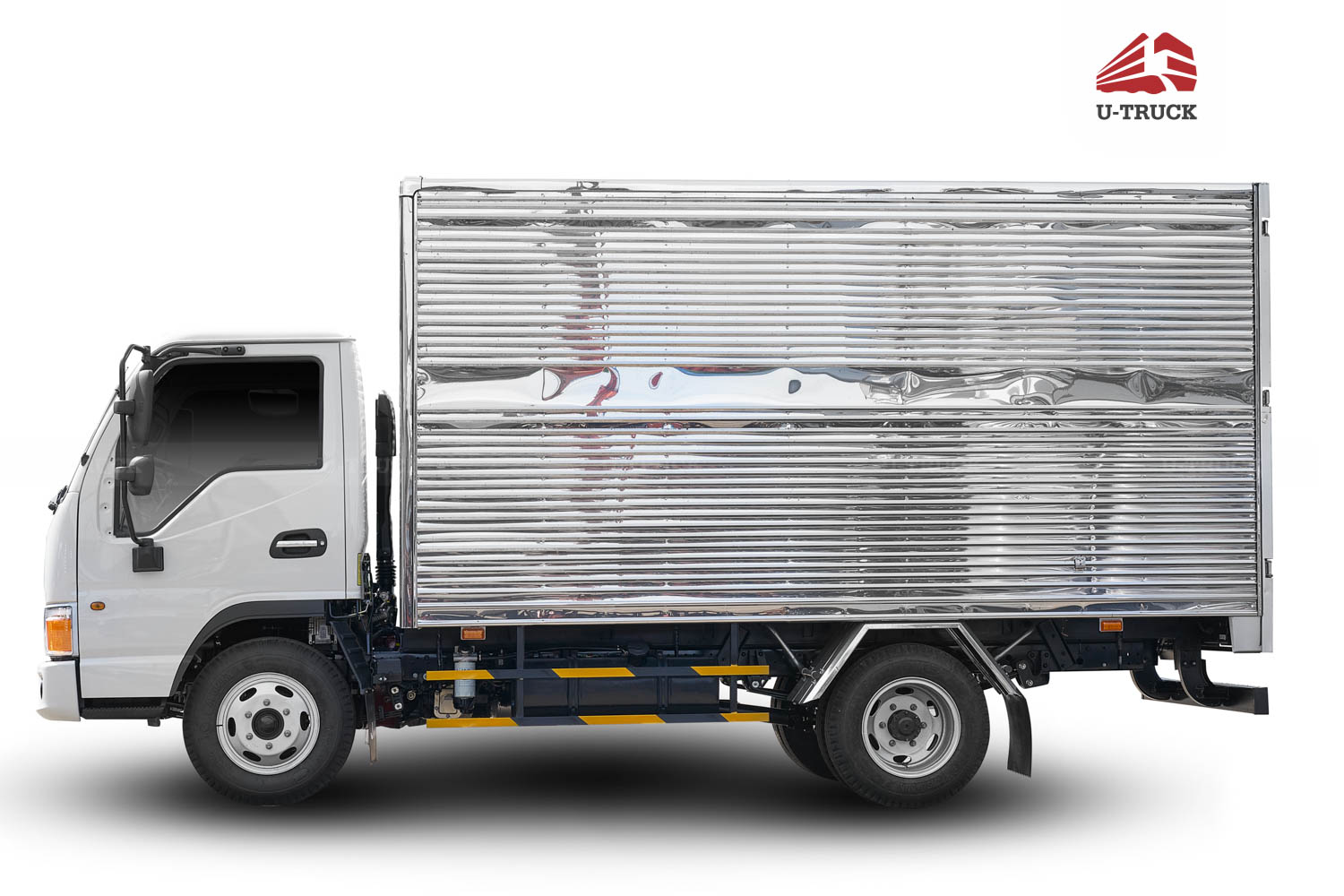

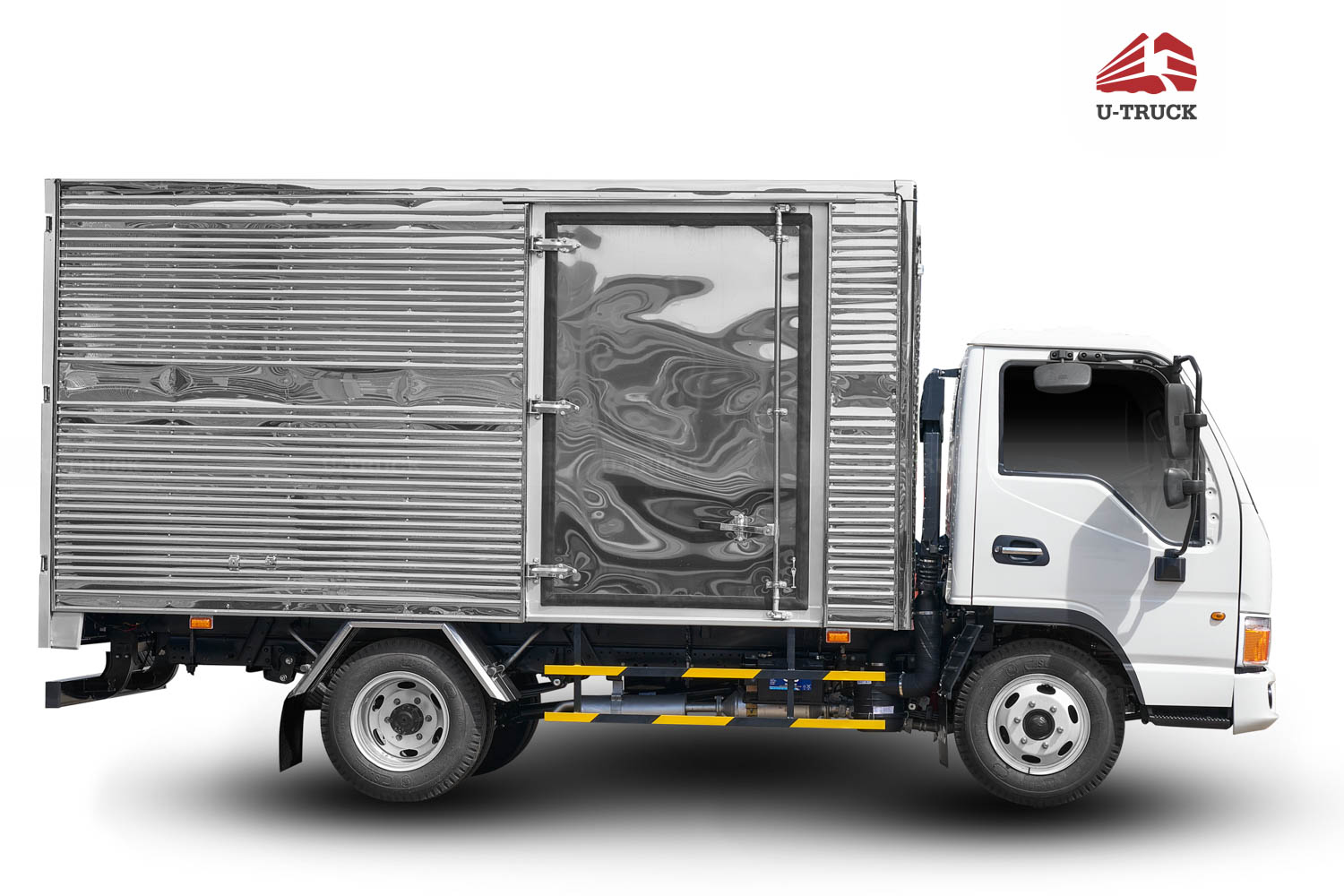

Cargo Box

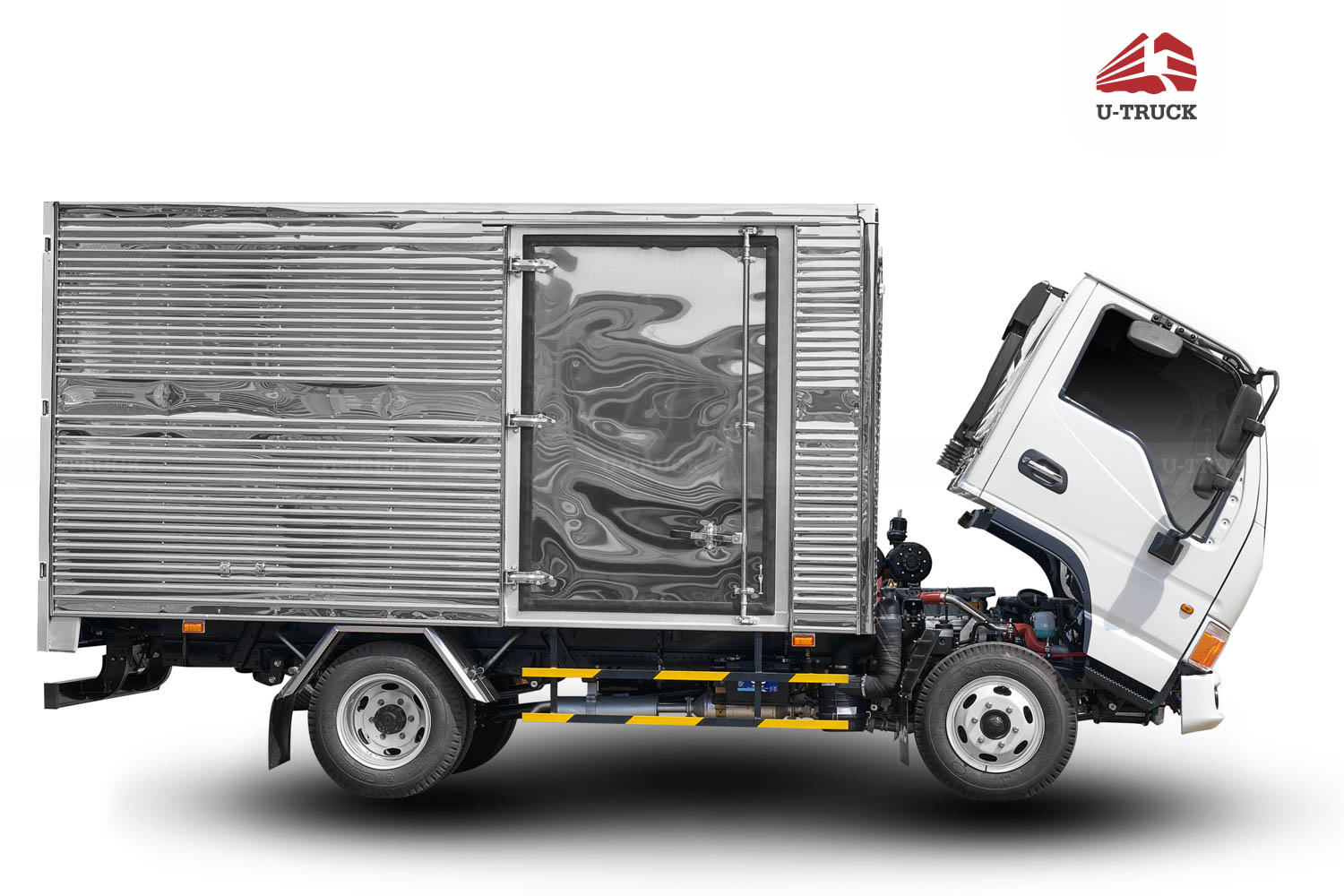

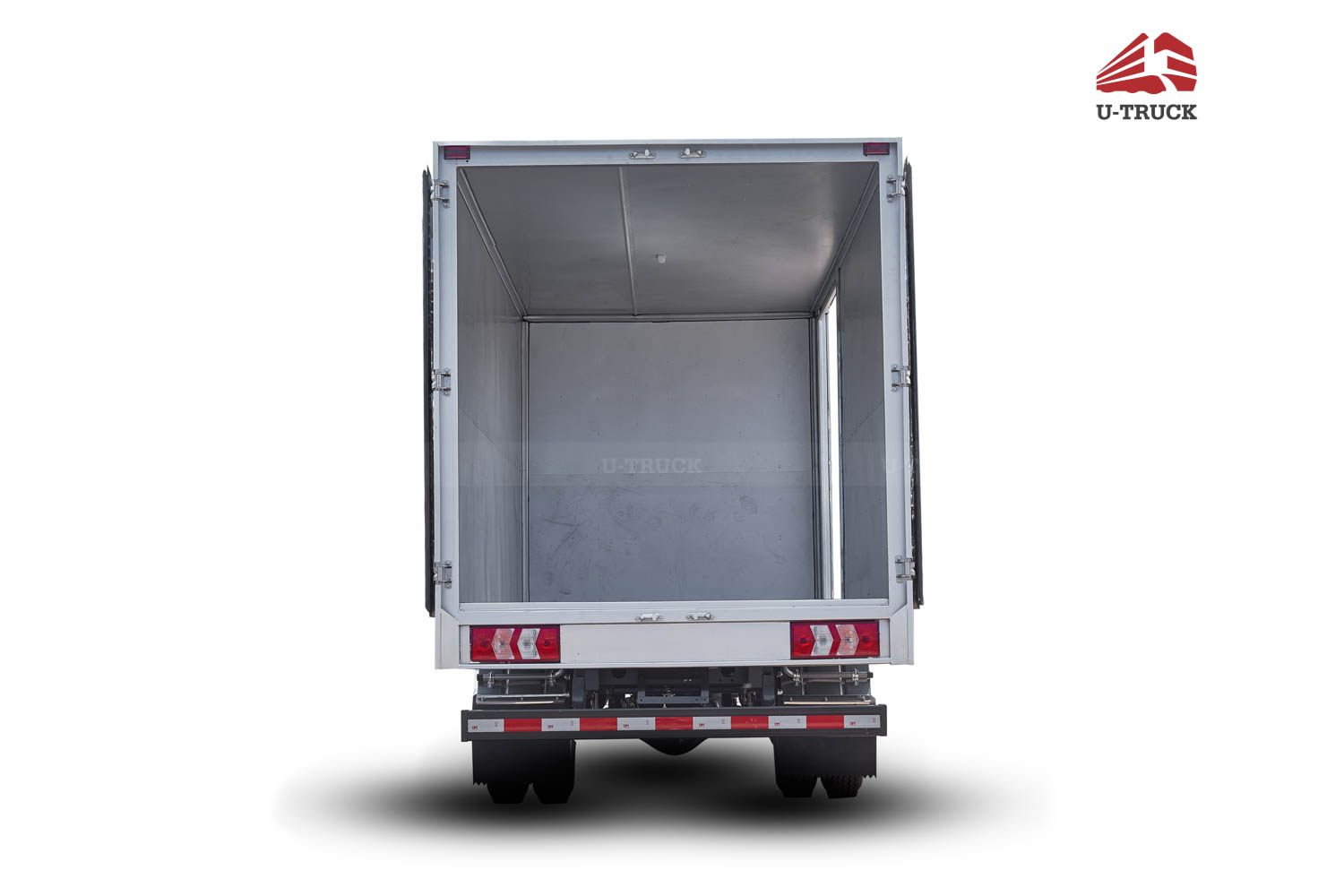

• Cargo dimensions: 3,820 × 1,820 × 1,840 mm, suitable for transporting a wide range of goods
• Reinforced cargo structure protects goods from weather conditions such as rain, sun, and dust

Warranty & After-sales Service

The JAC H200 E5 box truck comes with a 3-year or 100,000 km warranty, giving customers peace of mind during operation. U-TRUCK also offers flexible pricing policies and professional after-sales service with a nationwide network of over 22 service stations and authorized JAC dealers.
