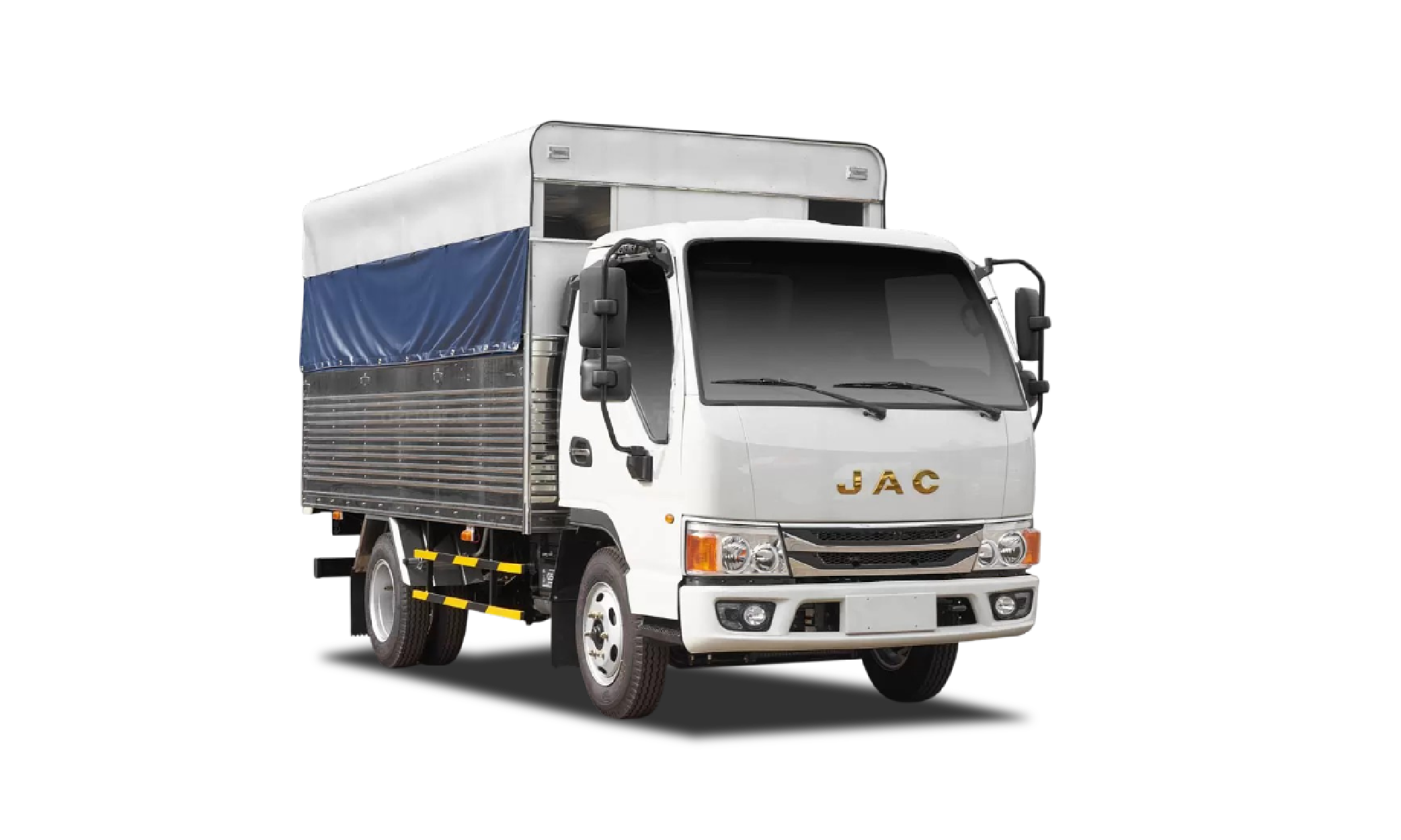

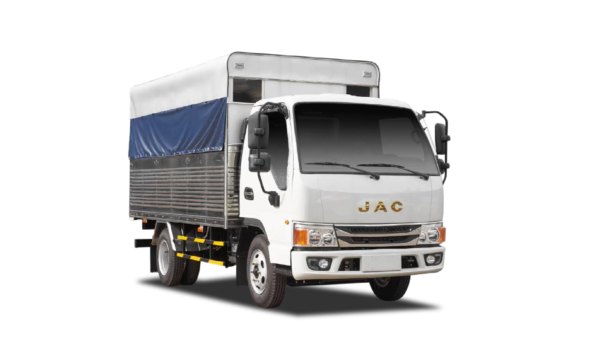

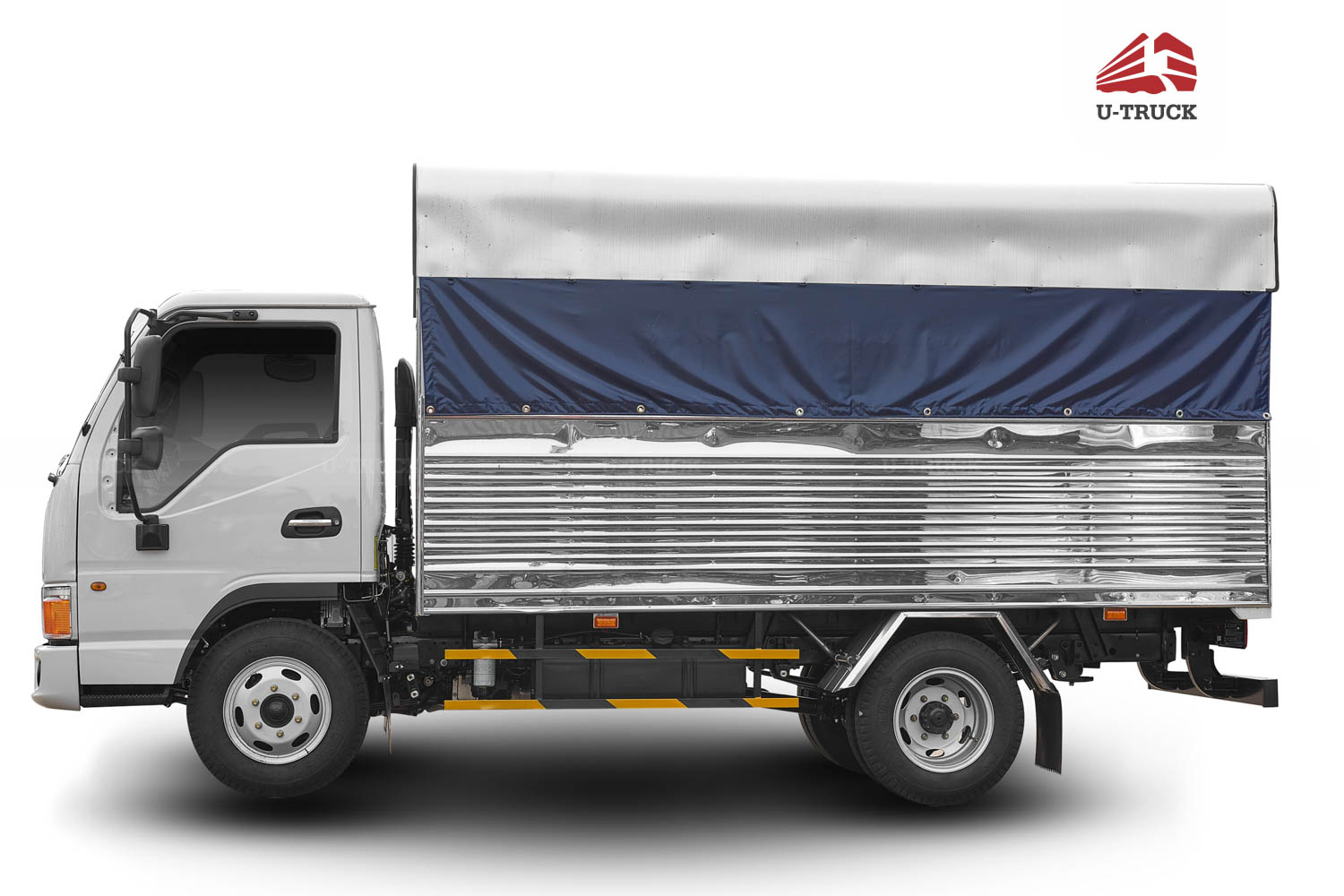

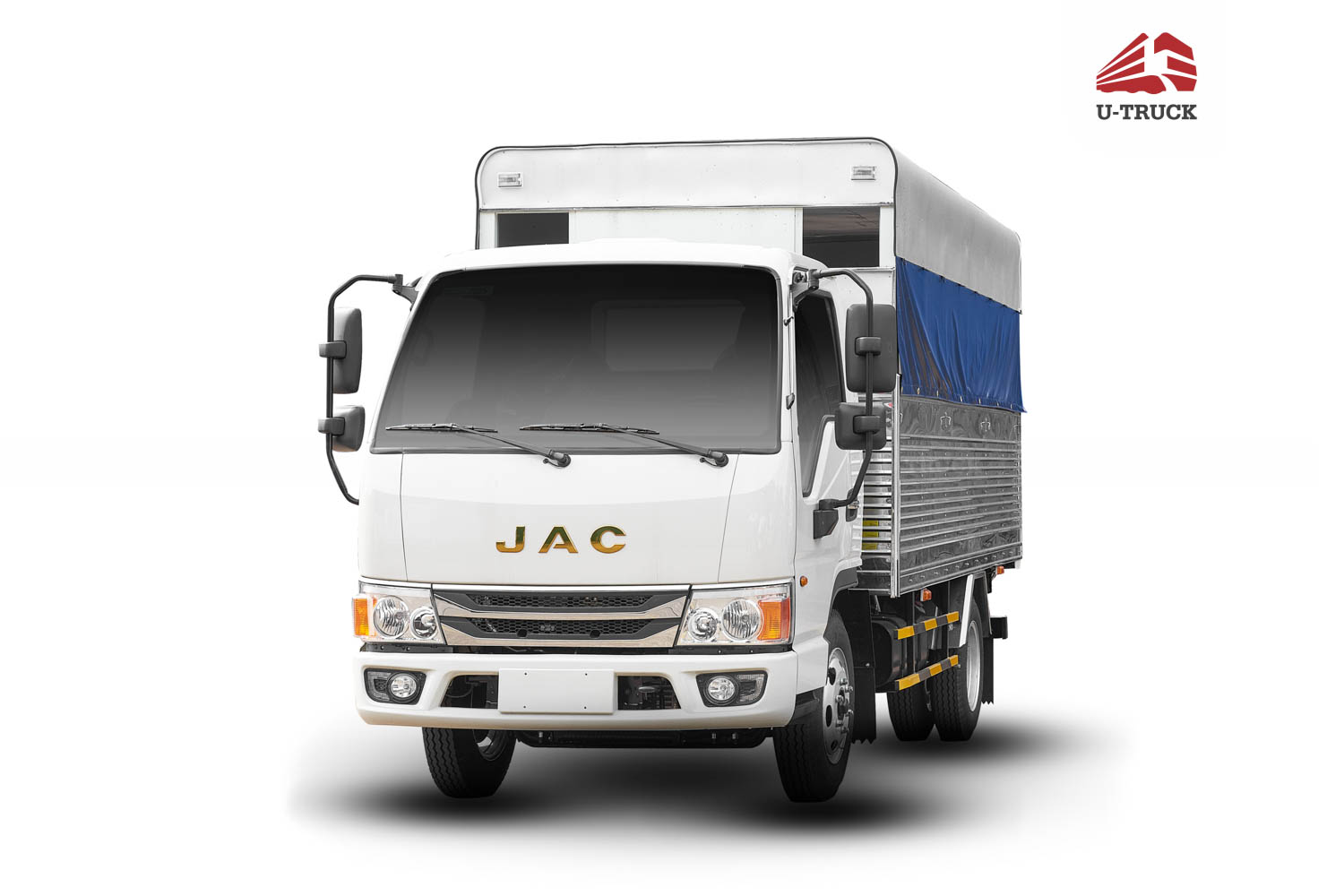

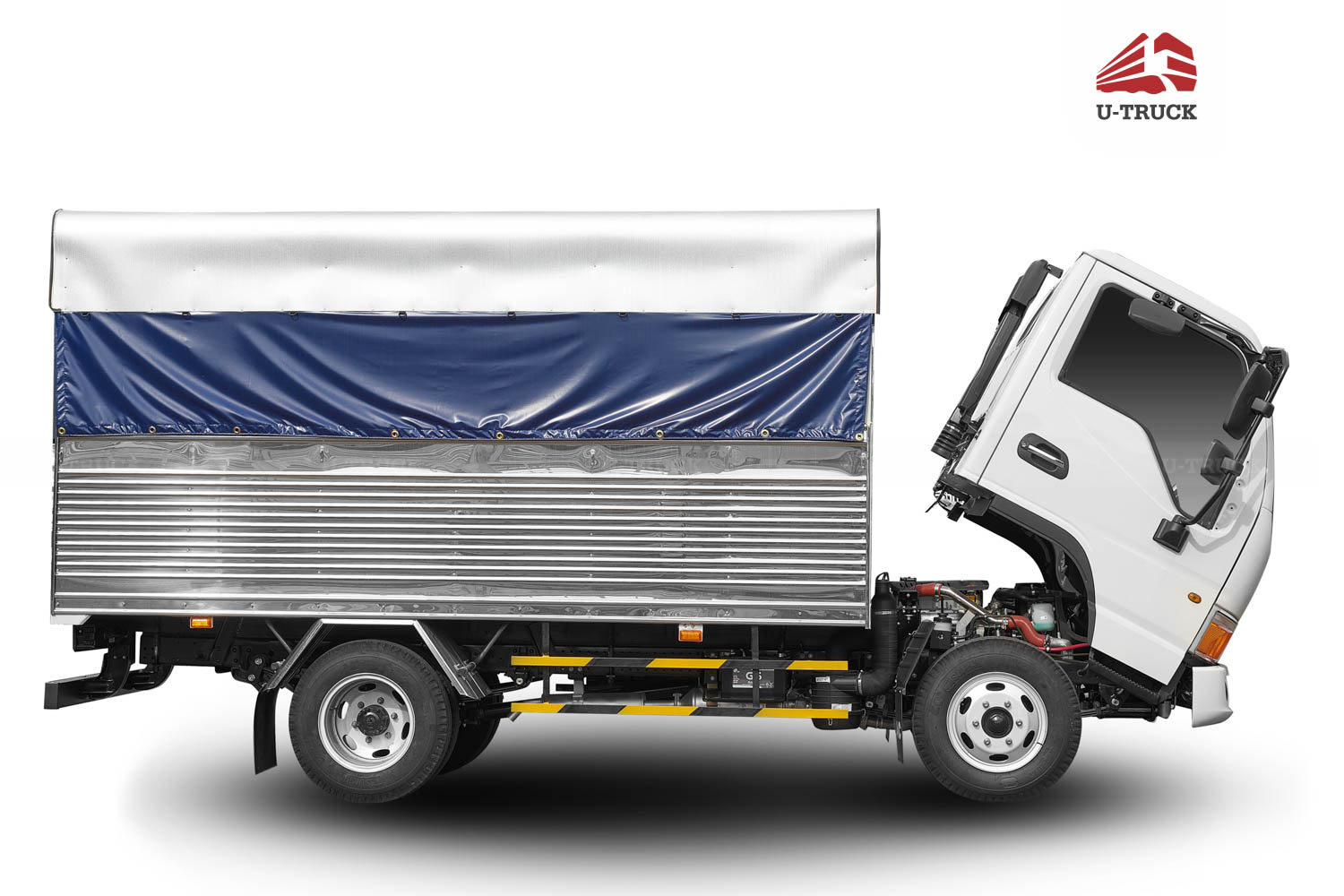

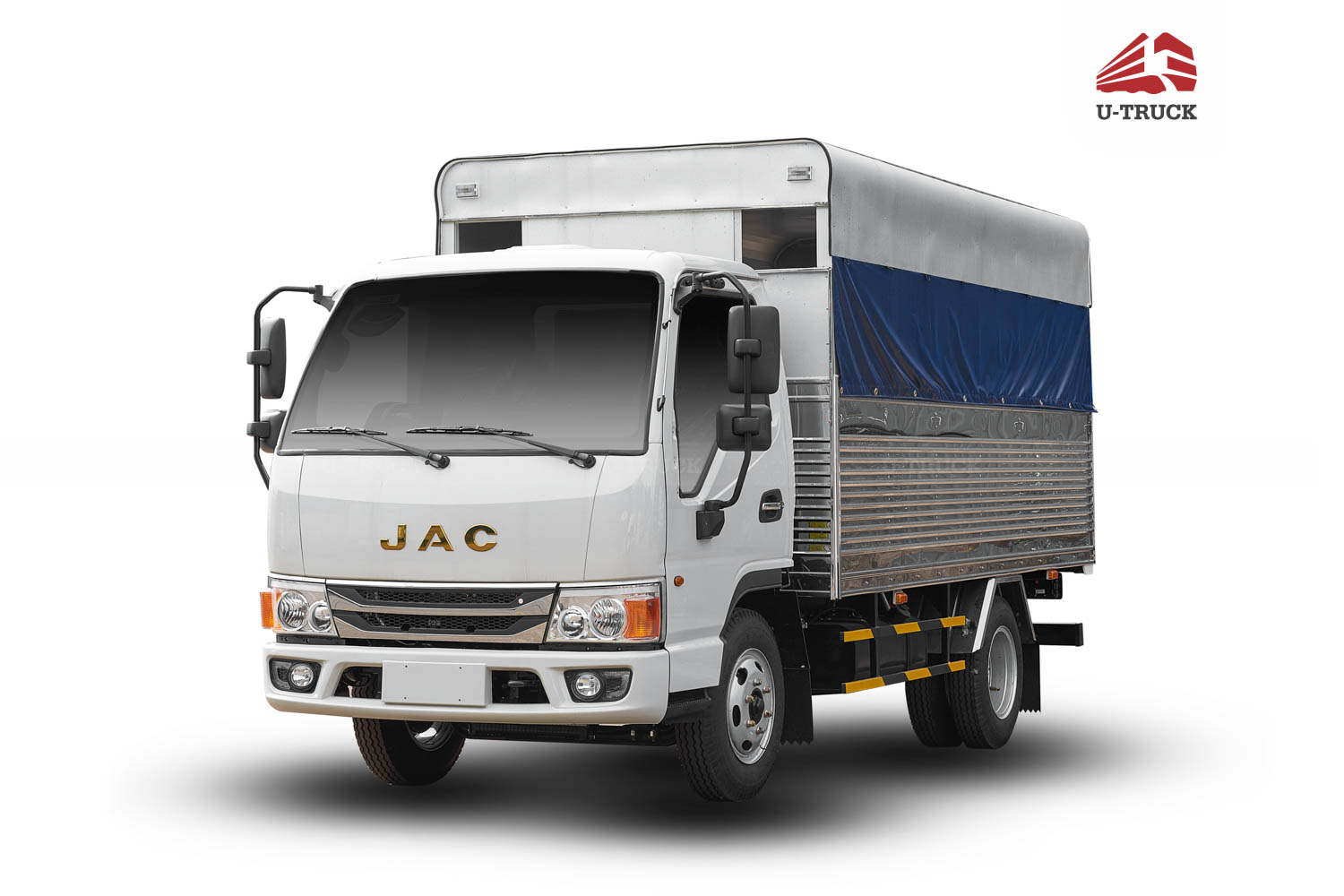

JAC H360 E5 Cargo Truck for Driving School

The JAC H360 E5 is a light-duty truck with a modern design, strong performance, and advanced safety features. It is specially developed for driving training centers, offering excellent fuel efficiency.

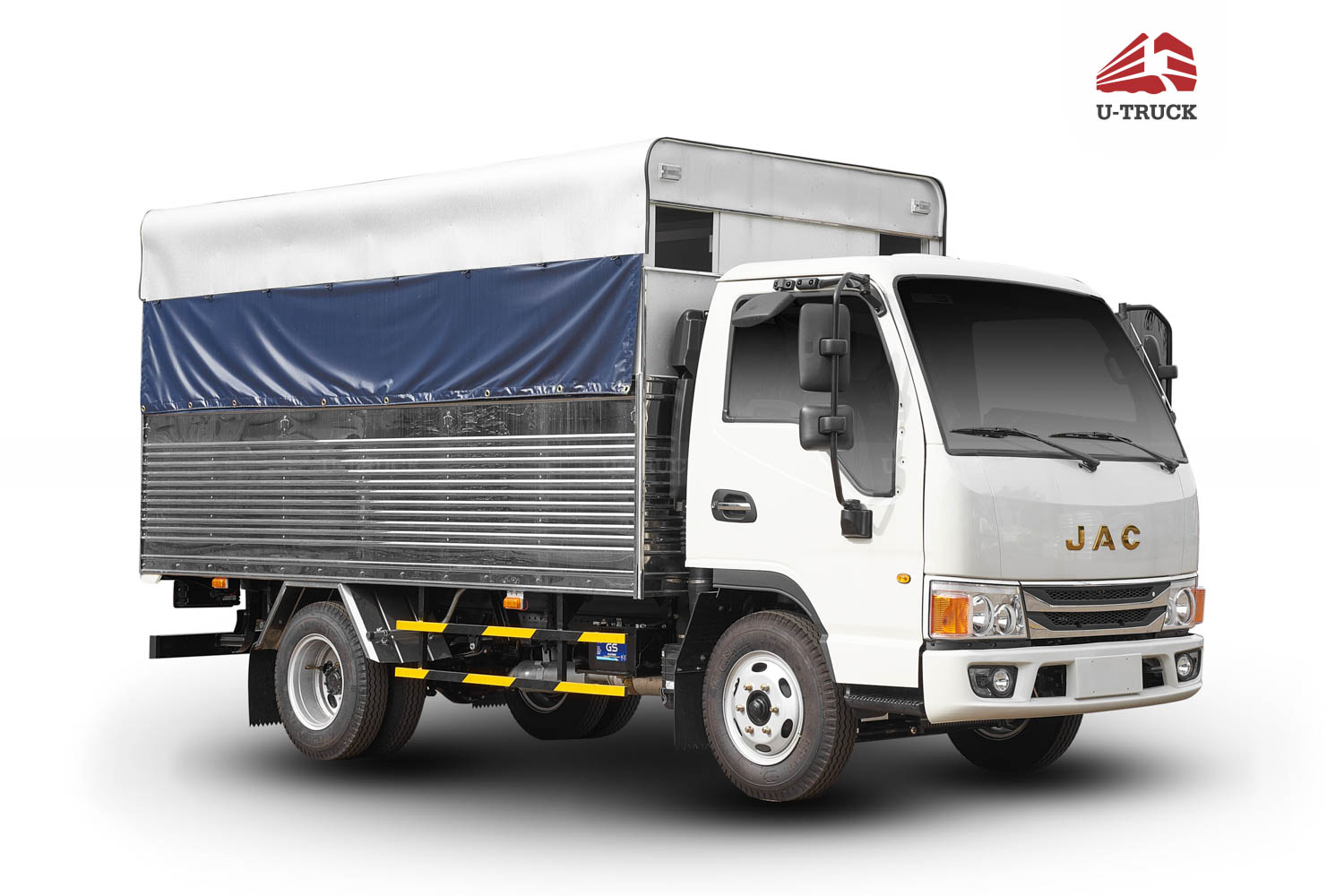

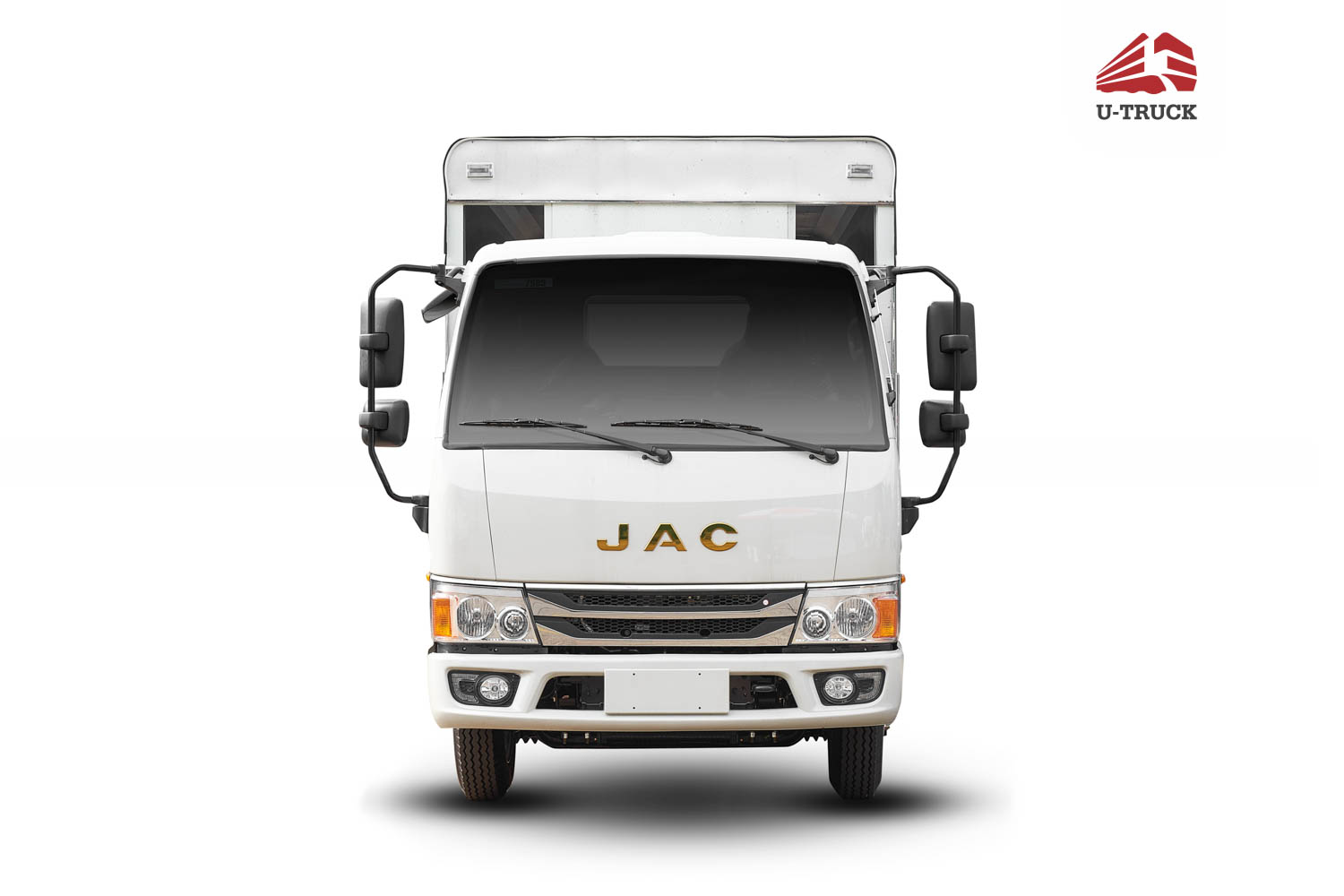

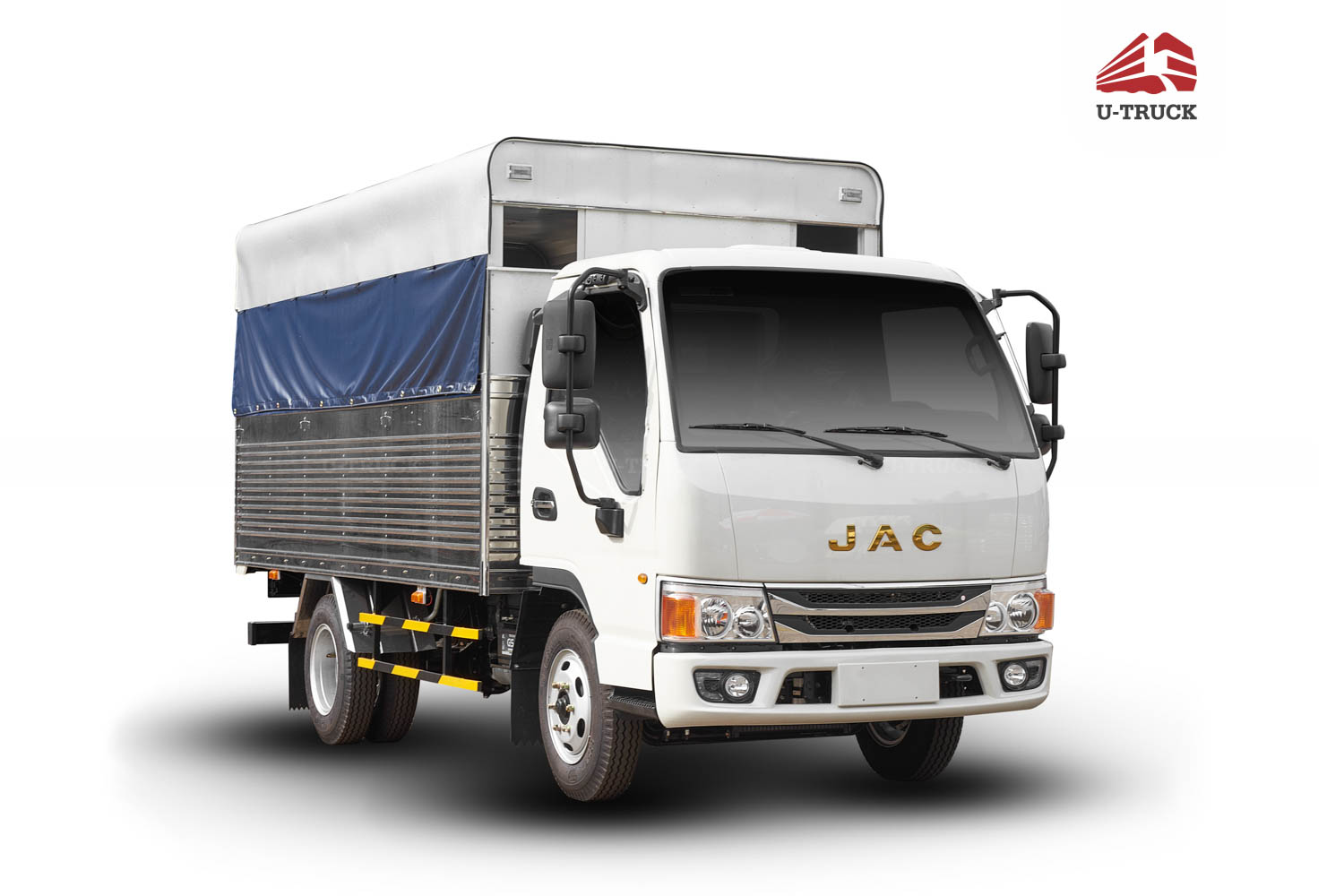

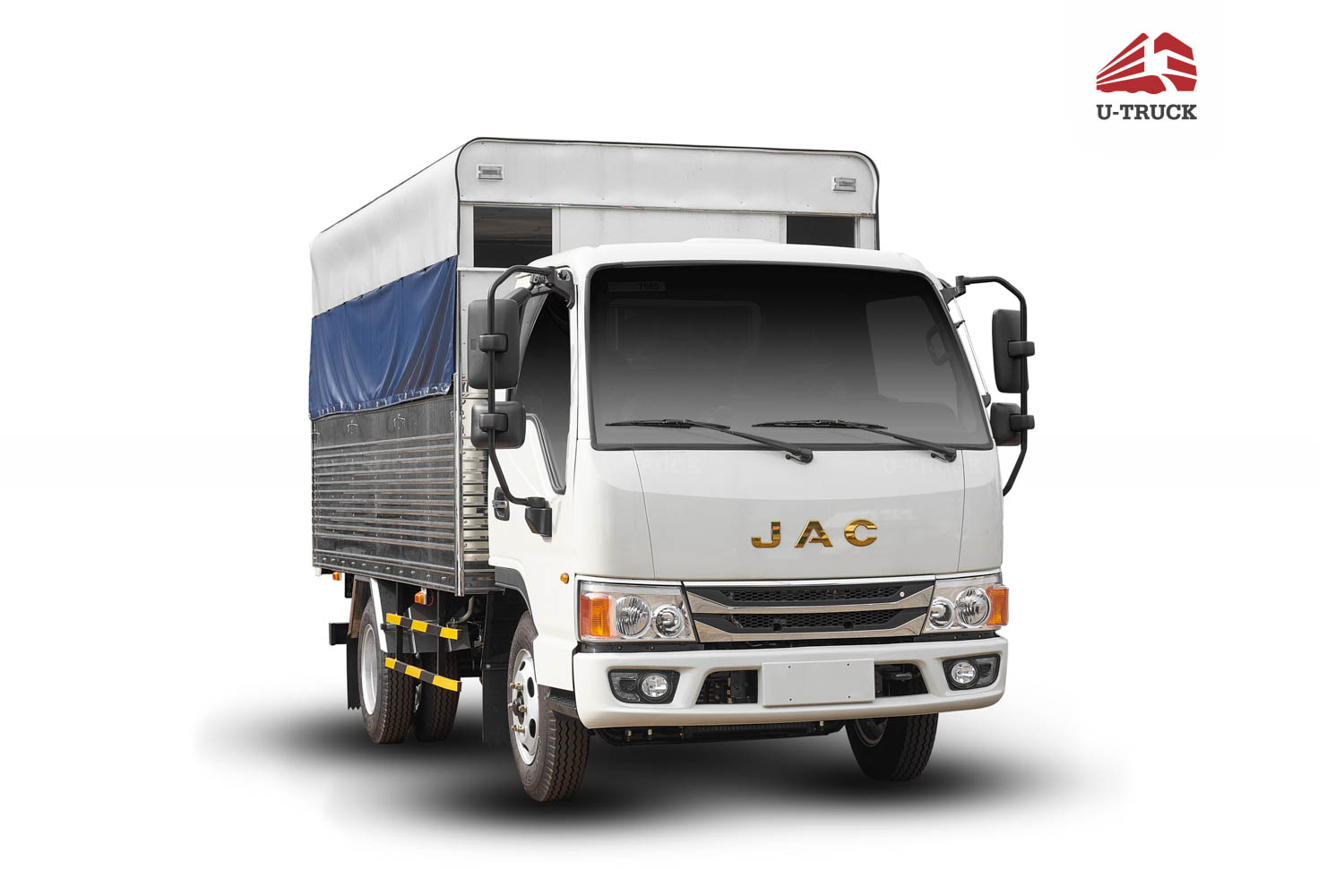

Exterior – Modern and Practical Design

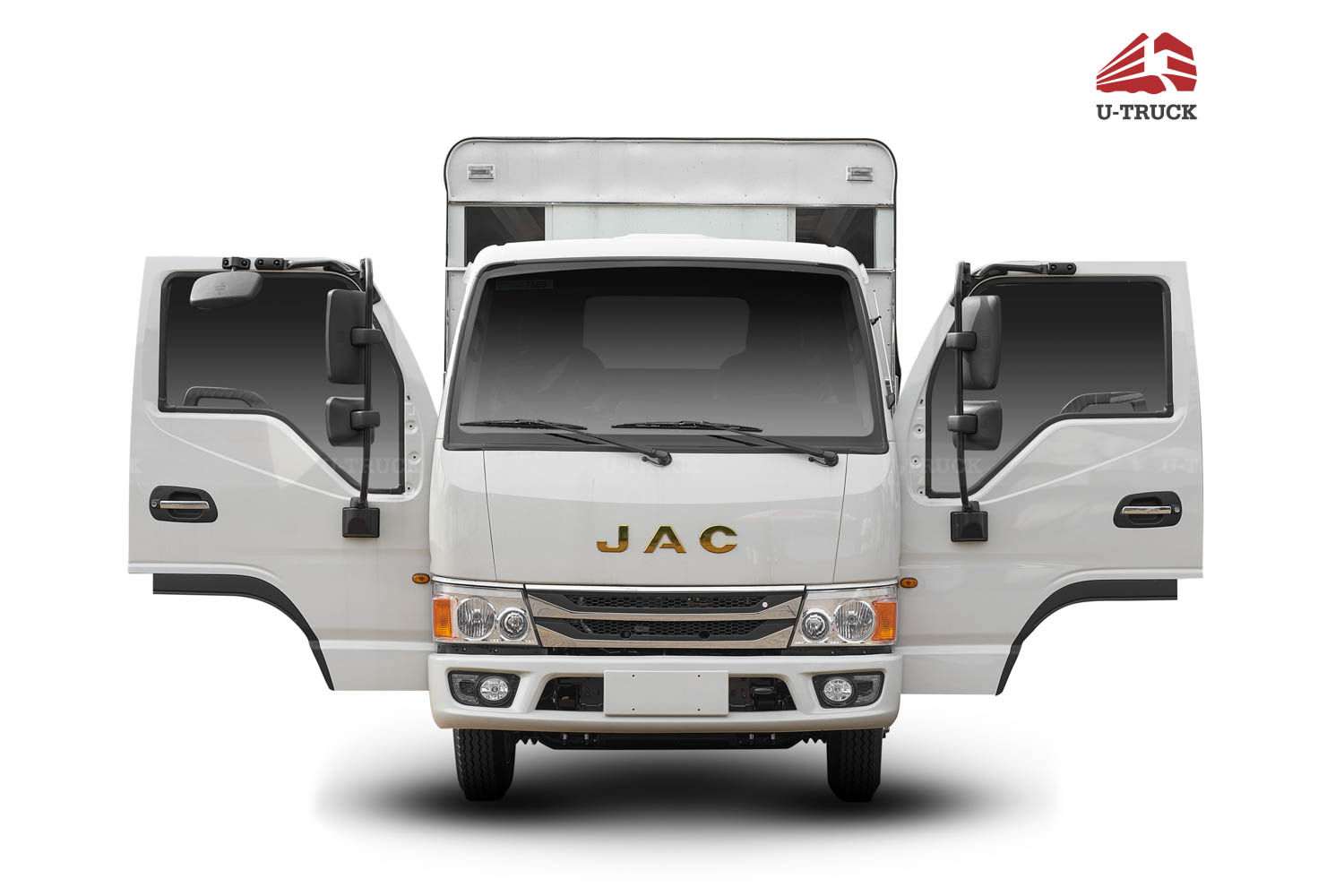

The JAC H360 E5 features a modern exterior with a spacious cabin, ensuring driver comfort during operation:

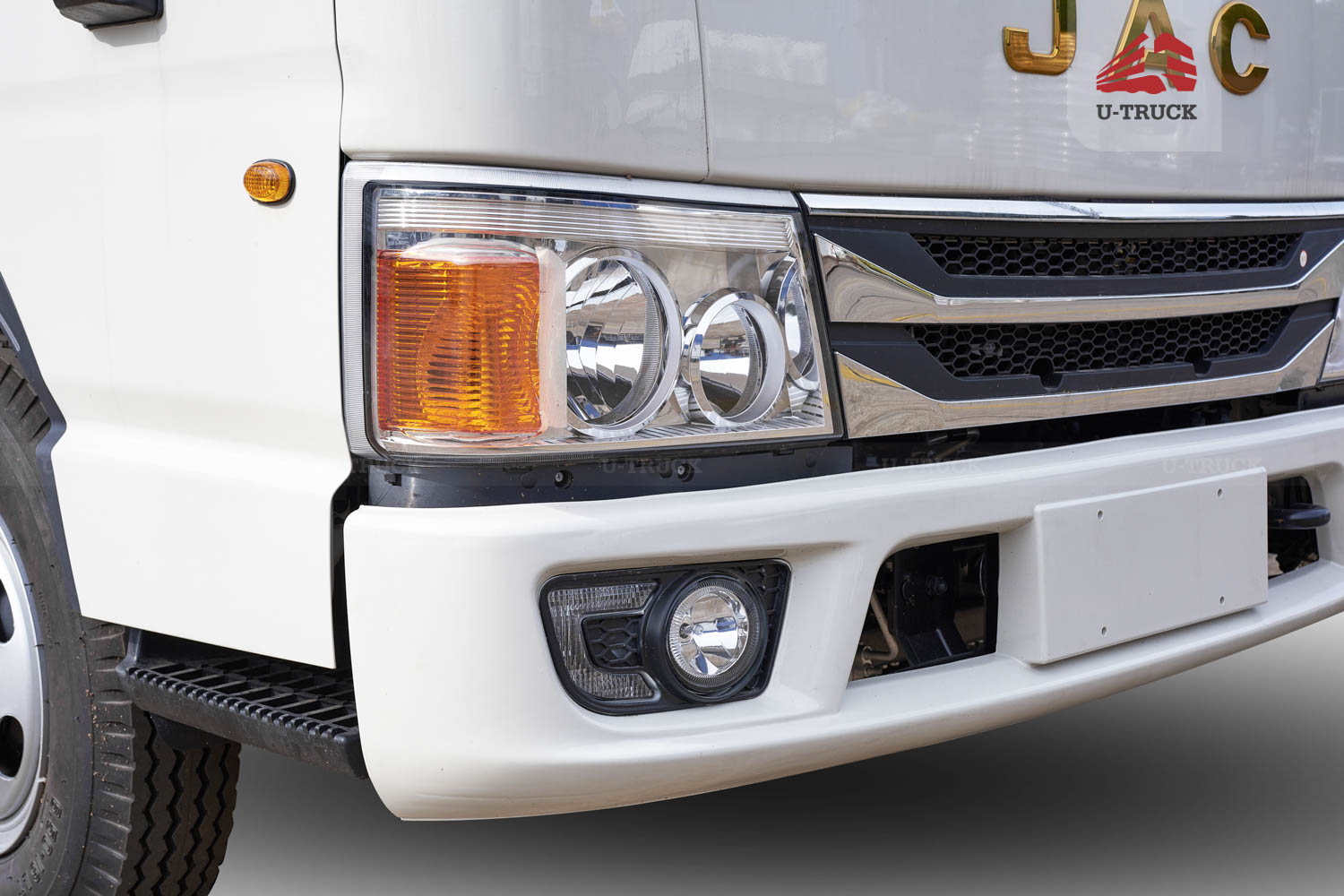

• Chrome-plated grille enhances airflow and improves engine cooling efficiency.
• Daytime running LED lights combined with fog lights improve visibility and ensure safety in low-light conditions.
• Wide viewing angle reduces blind spots, helping drivers maintain better control.

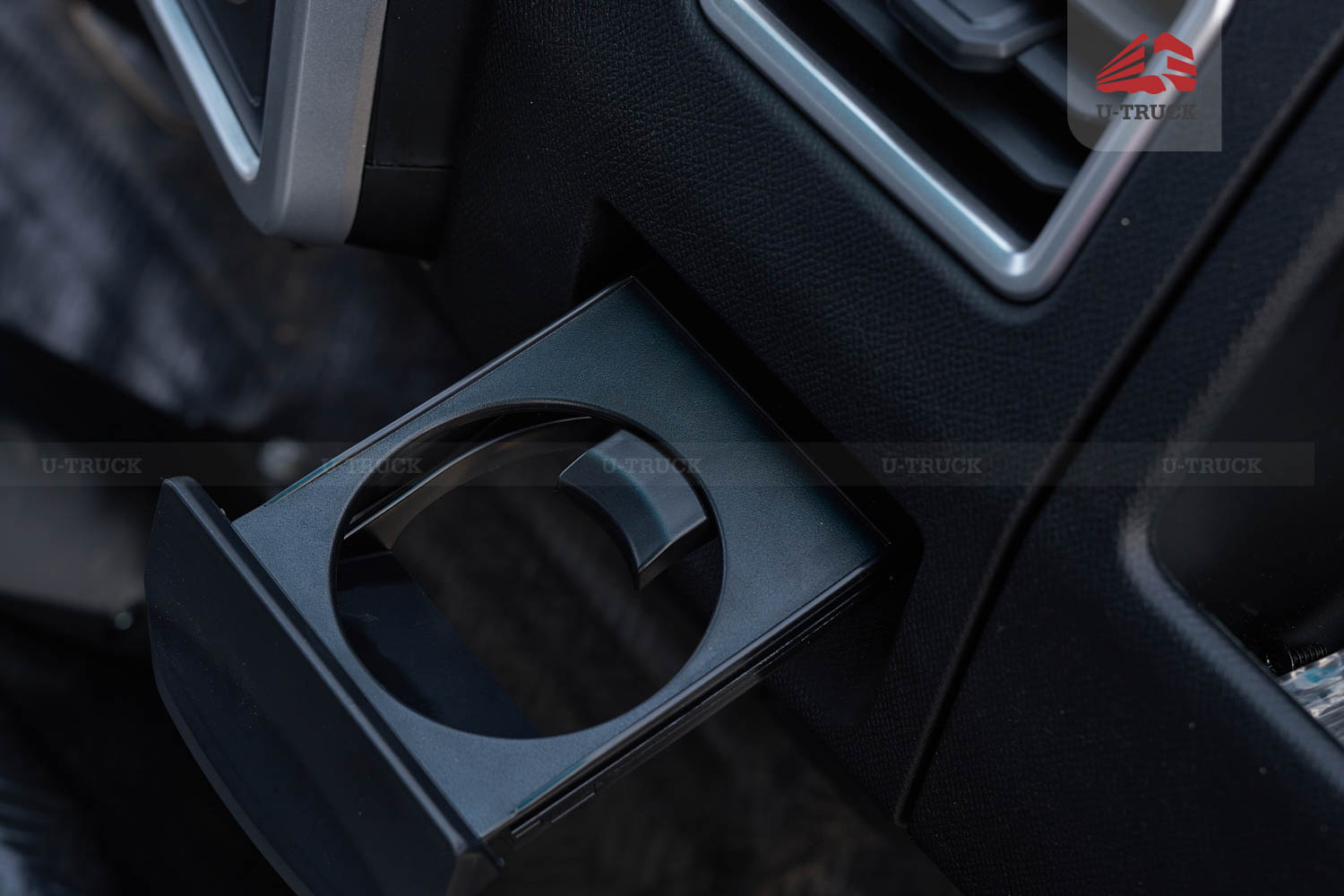

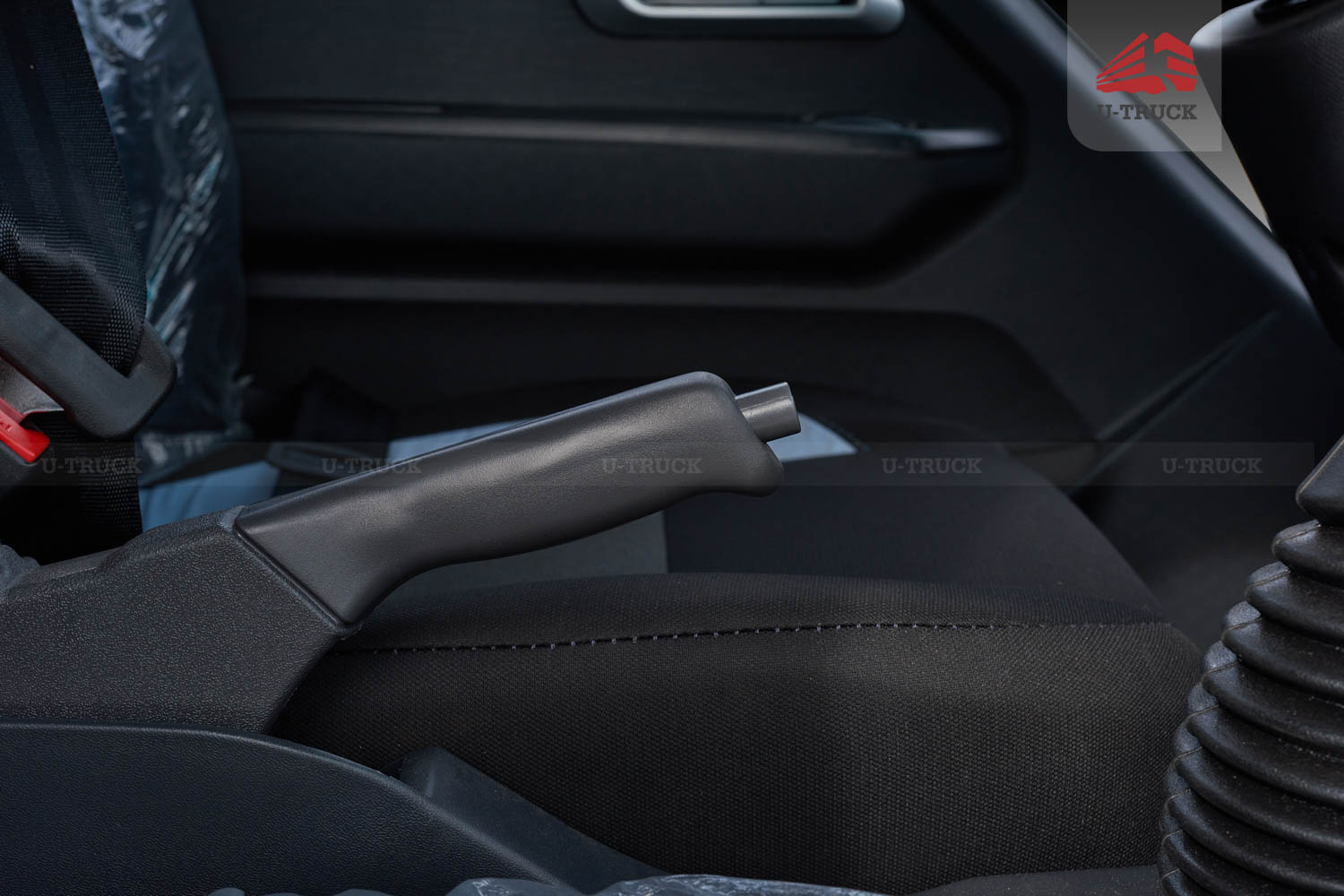

Interior – Comfortable and Functional

The cabin is designed to maximize driver comfort with modern features:

• High-capacity dual-mode air conditioning ensures a pleasant environment in all weather conditions.

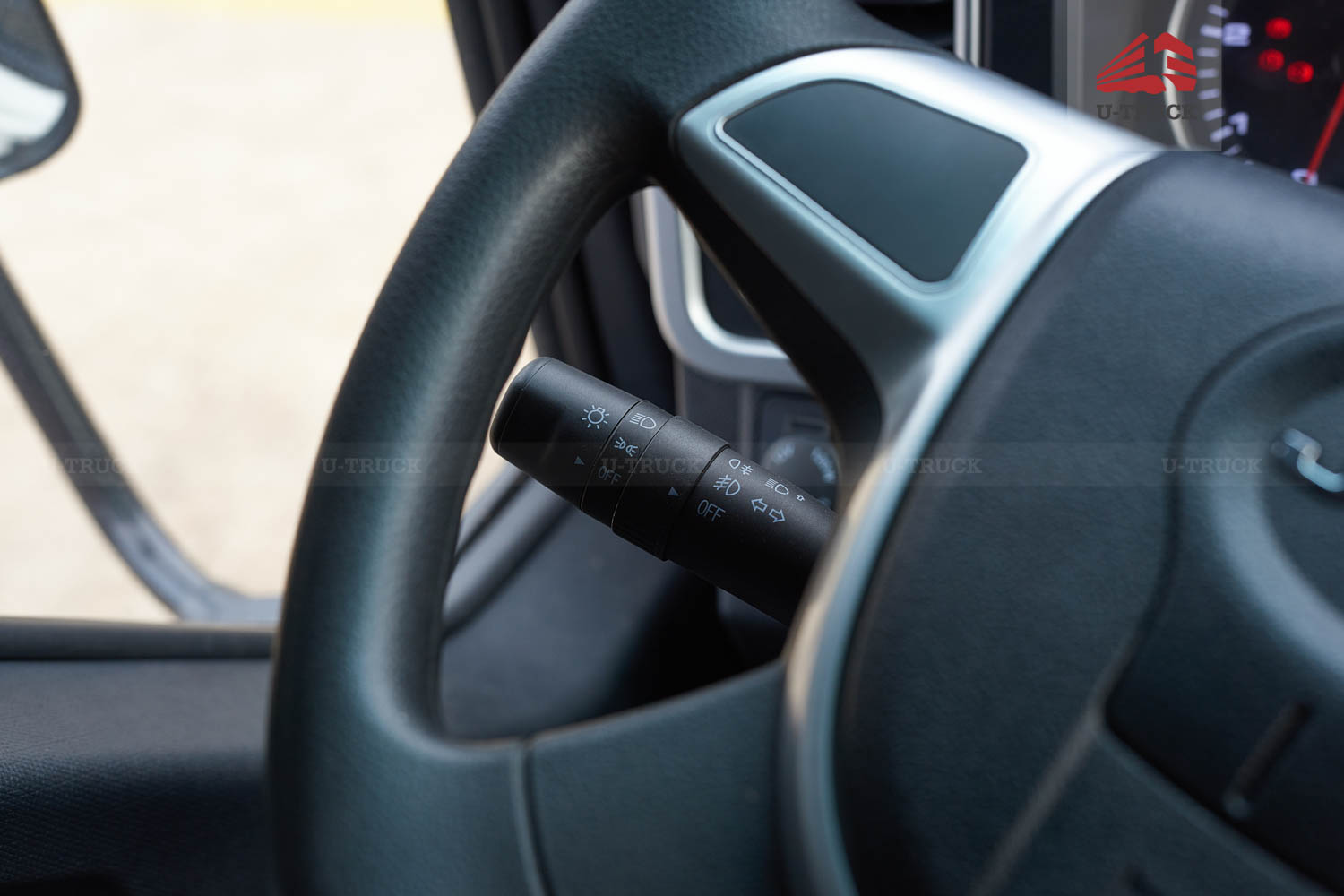

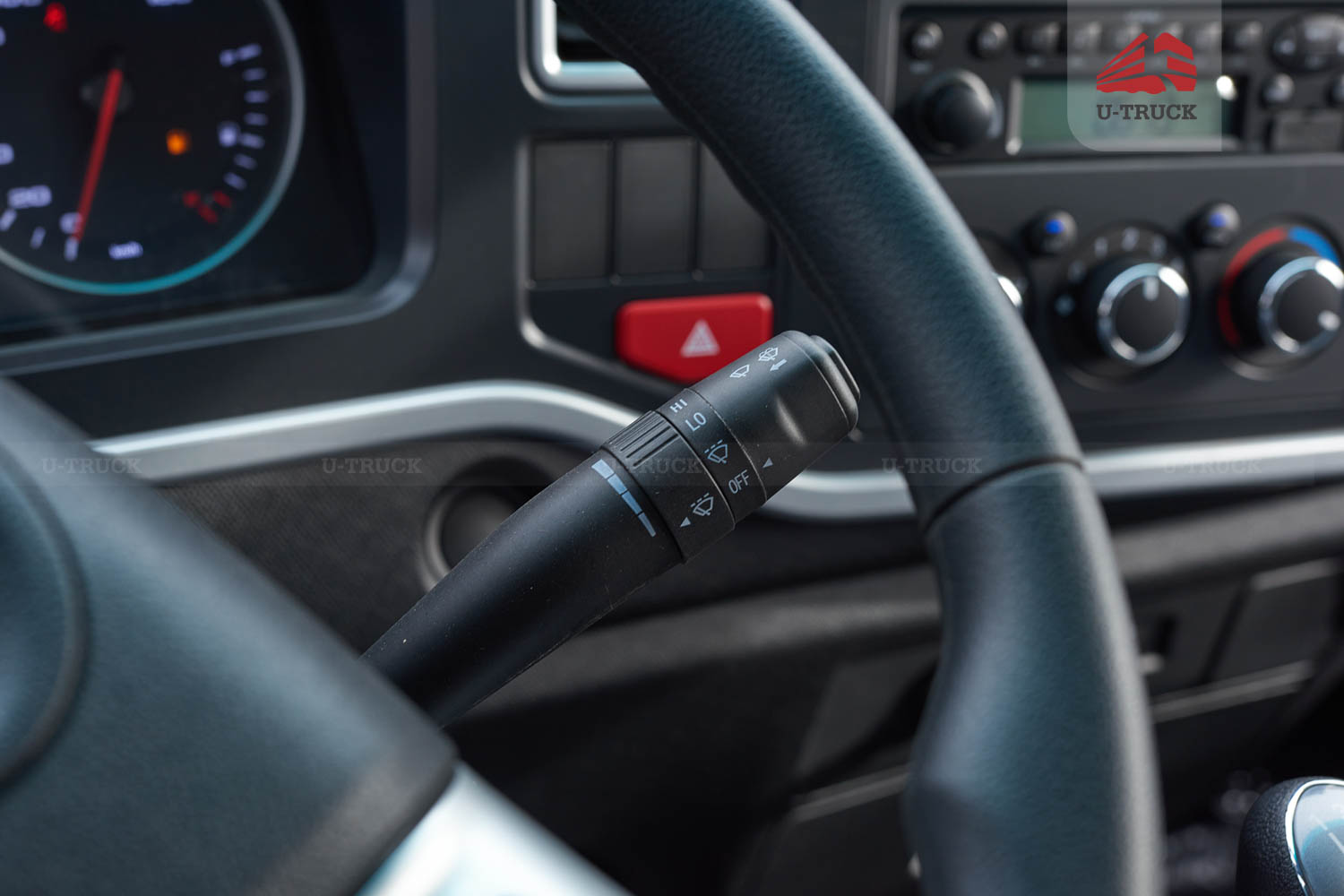

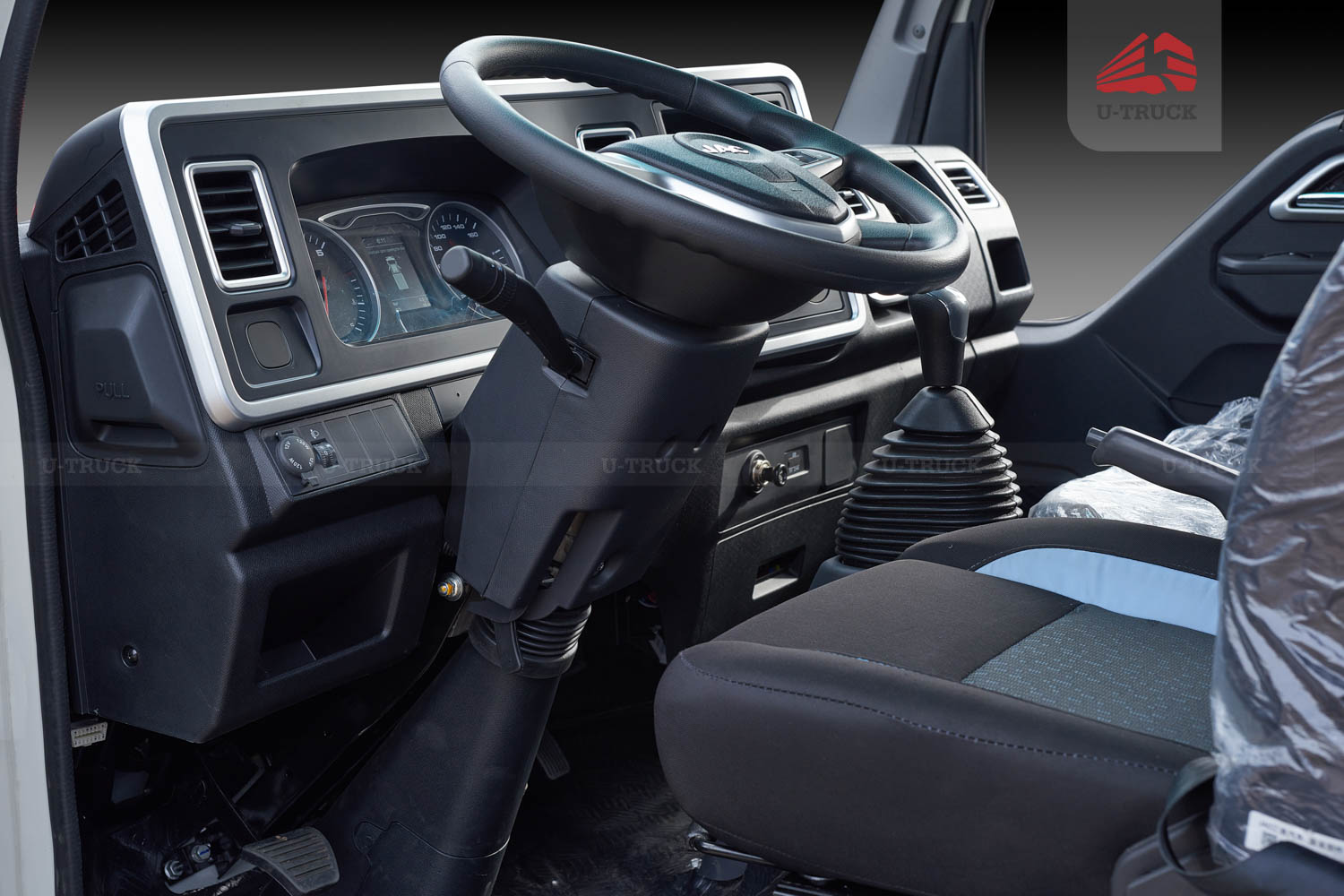

• Multifunction steering wheel allows quicker and more convenient control.
• Multi-information dashboard provides clear and detailed vehicle data.
• Ergonomic seats reduce fatigue during long driving sessions.

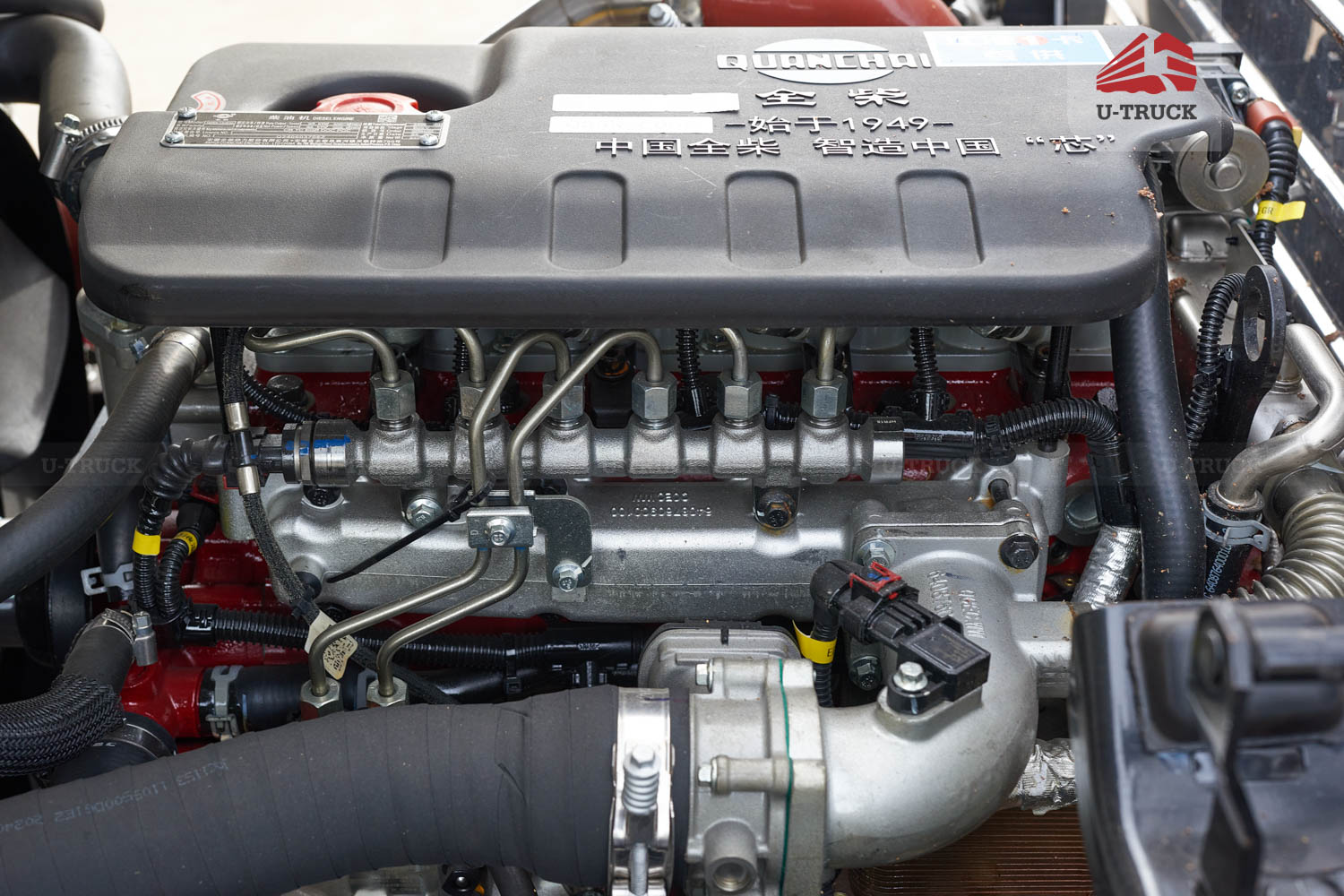

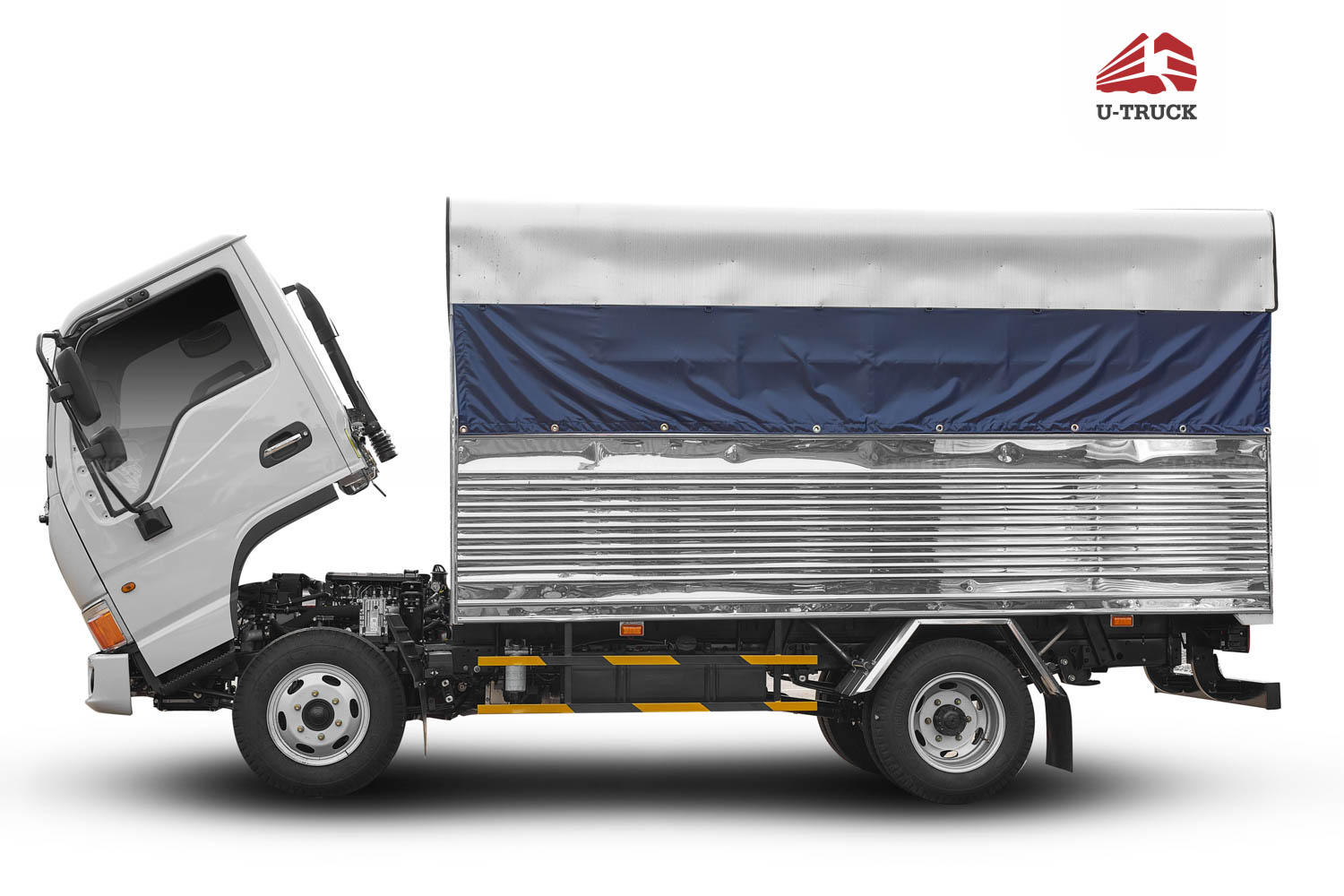

Engine – Powerful and Fuel Efficient

The JAC H360 E5 is equipped with the Q25N-132E50 engine:

• Displacement: 2,496 cc
• Maximum output: 95 kW at 3,200 rpm
• Maximum torque: 295 Nm at 2,000 rpm
• High-pressure BOSCH fuel injection system (1,800 bar) for optimal fuel efficiency
• B10 engine lifespan up to 800,000 km, ensuring outstanding durability

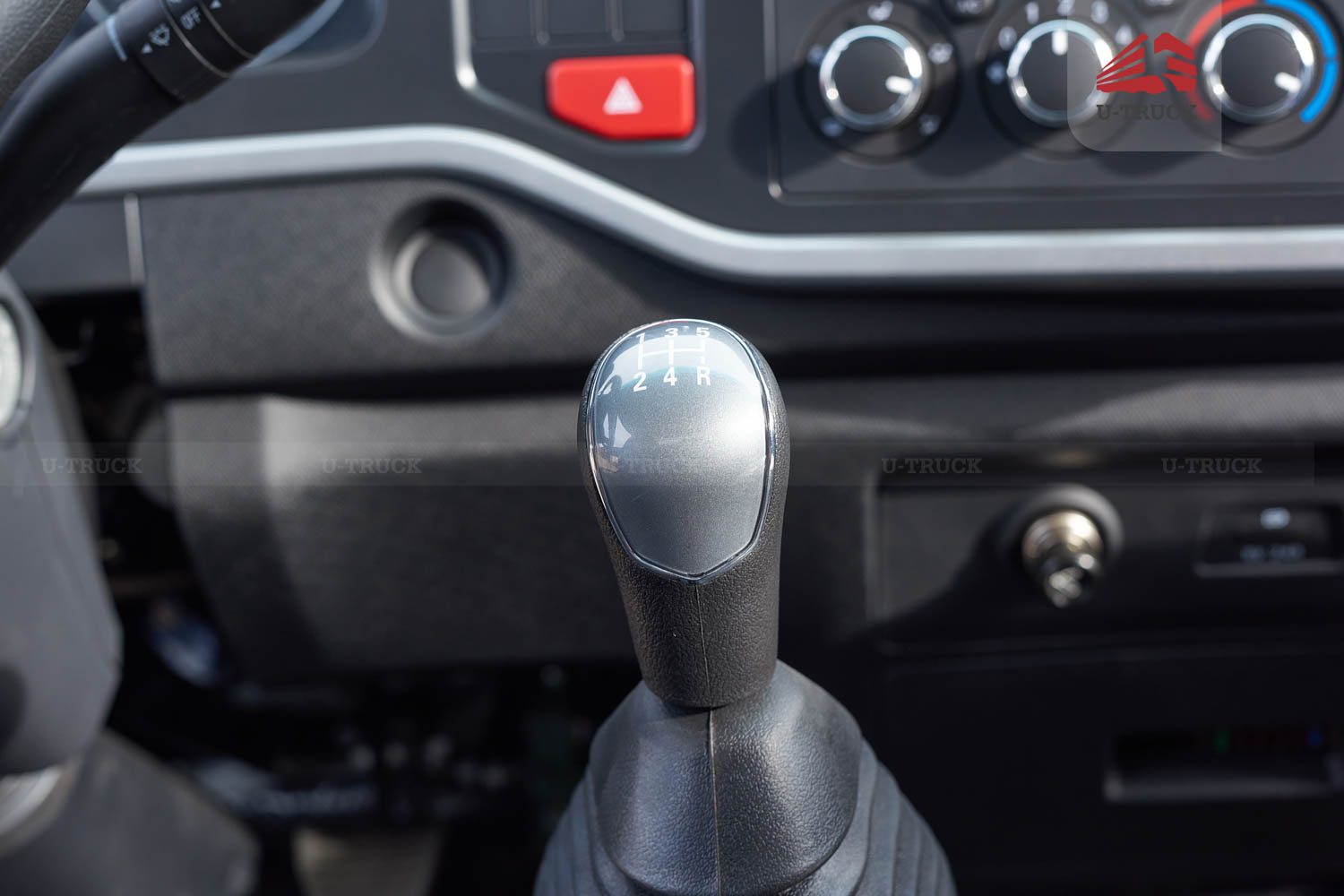

Transmission – Durable and Flexible

The vehicle uses an LC5T28 gearbox, providing flexible operation across various terrains:

• 5 forward gears and 1 reverse gear for smooth shifting
• Single dry clutch with vacuum assist reduces pedal effort
• Optimized gear ratios improve performance while maintaining fuel efficiency

Other Systems

• Reinforced chassis with large cross-section for better load capacity
• Front axle: I-beam design, load capacity 2,000 kg
• Rear axle: load capacity 4,400 kg, final drive ratio 4.875
• Leaf spring suspension combined with hydraulic shock absorbers for smoother rides
• ABS braking system enhances braking efficiency and safety
• Hydraulic drum brakes ensure stable stopping performance
• 100L fuel tank supports long-distance travel
• DOC + POC emission system (no urea required), environmentally friendly

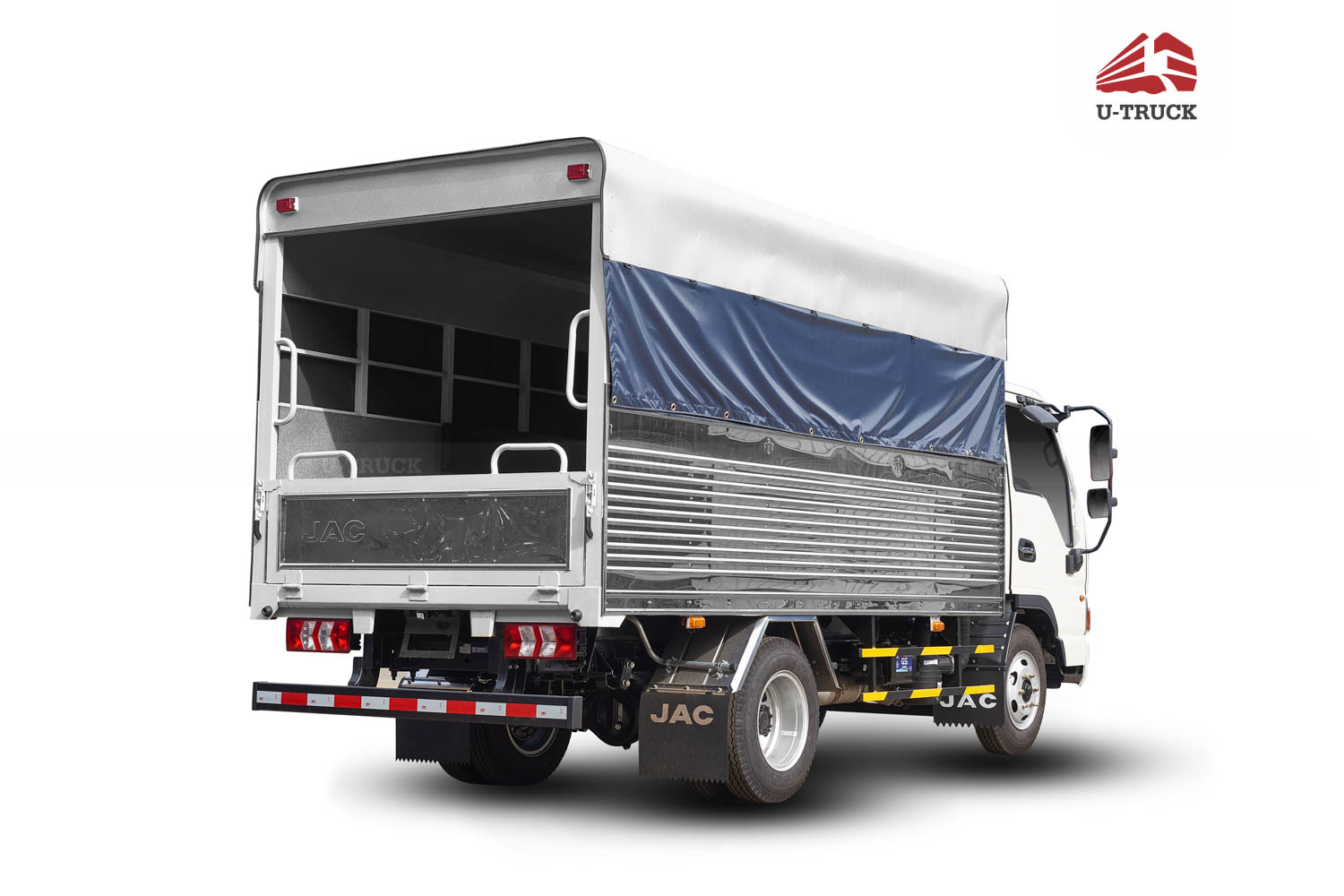

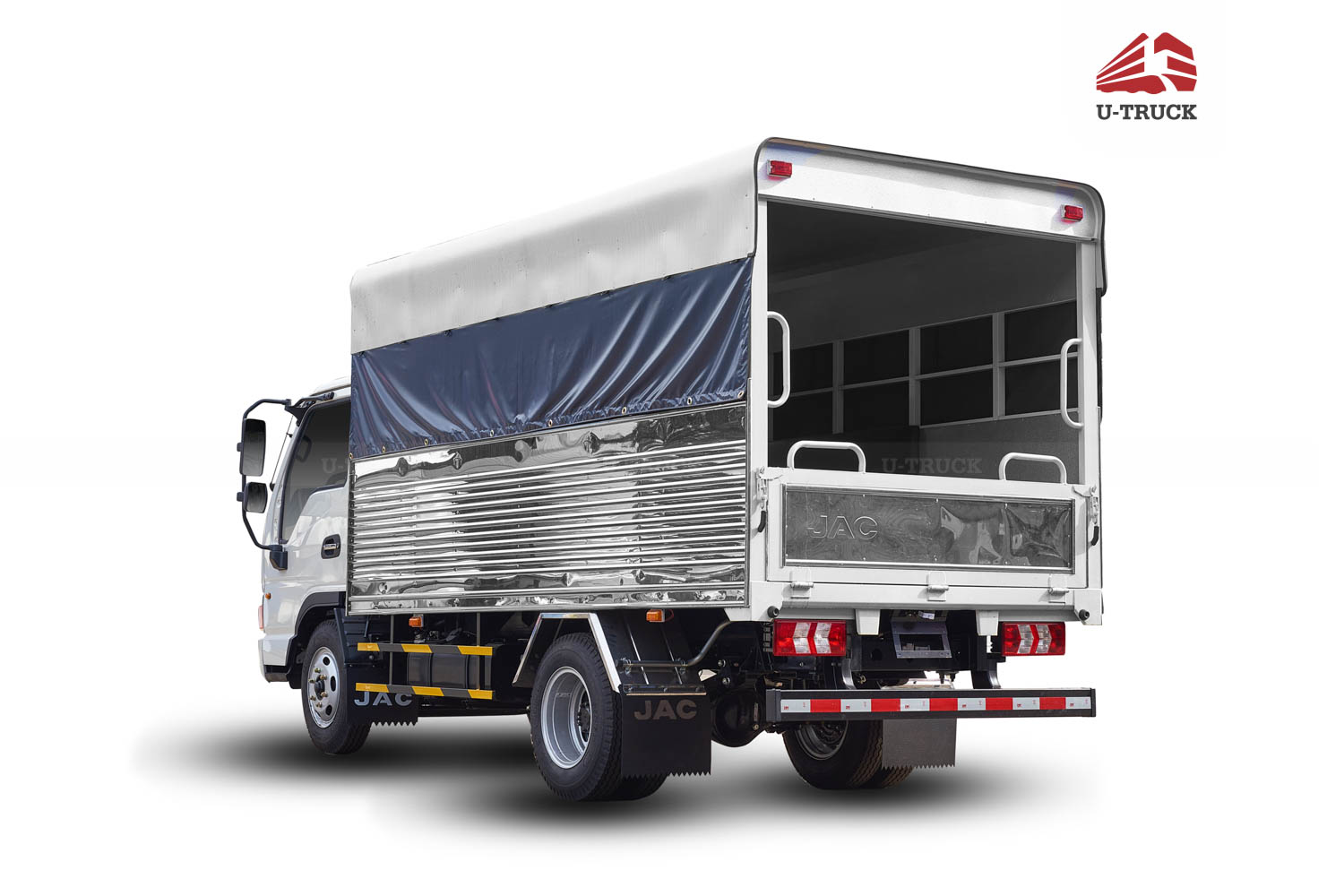

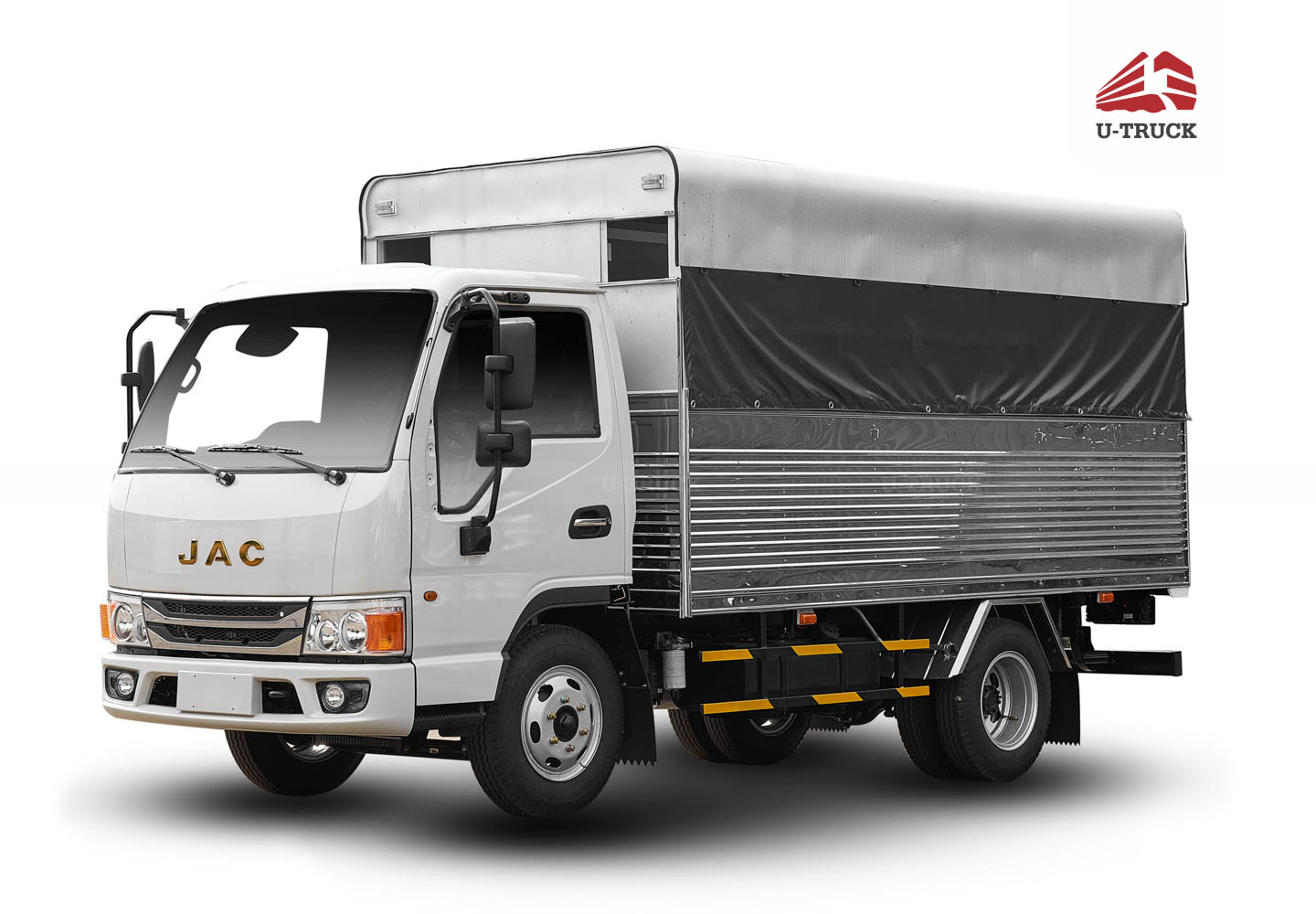

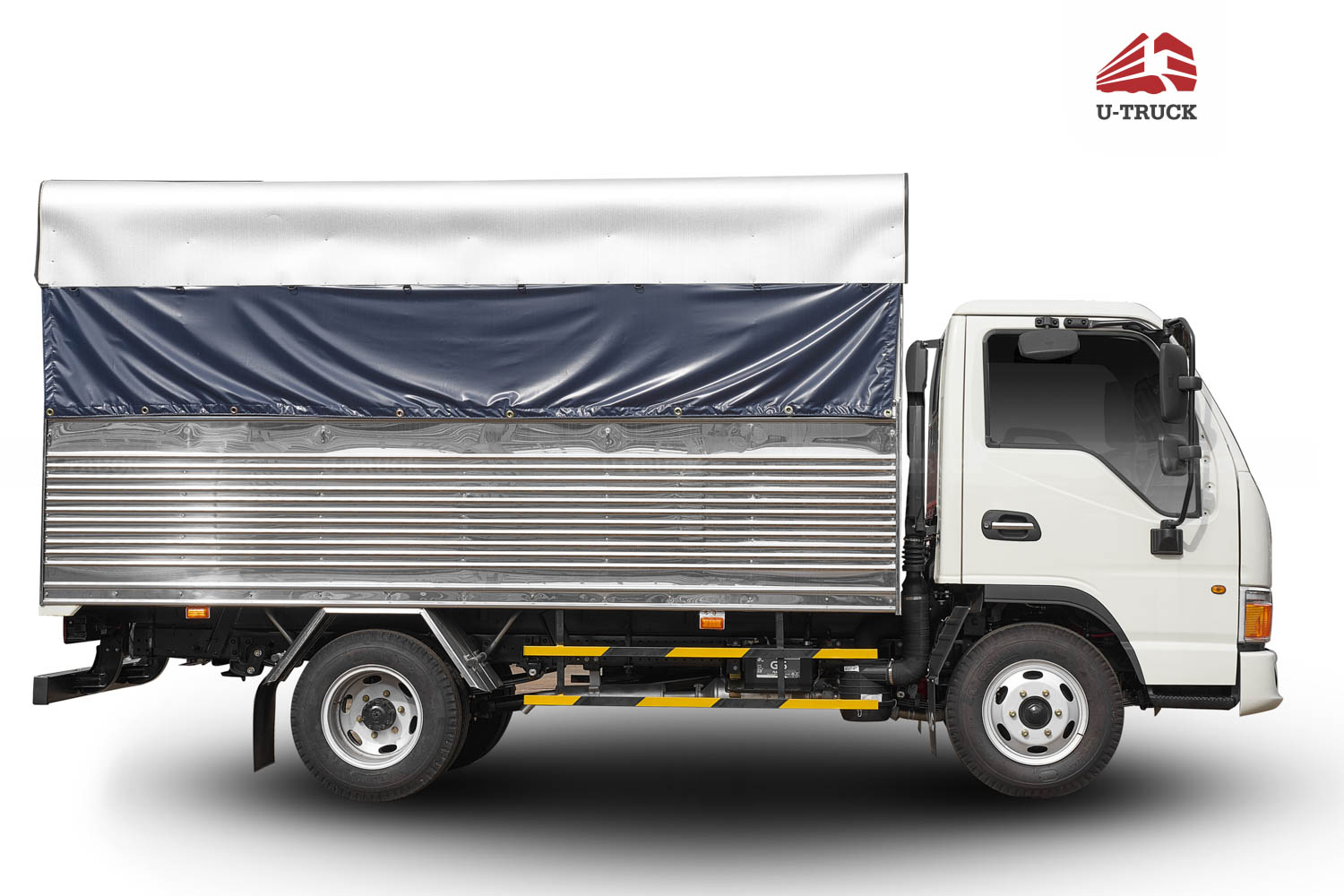

Specialized Cargo Body – Driving School Version

With cargo body dimensions of 3,800 × 1,770 × 1,730 mm, the JAC H360 E5 driving school version is specifically designed for driver training centers, enabling safe and effective hands-on practice while meeting all licensing test standards.

Warranty & Support

The JAC H360 E5 is backed by U-TRUCK with:

• Warranty: 3 years or 100,000 km
• Professional after-sales service for complete peace of mind
