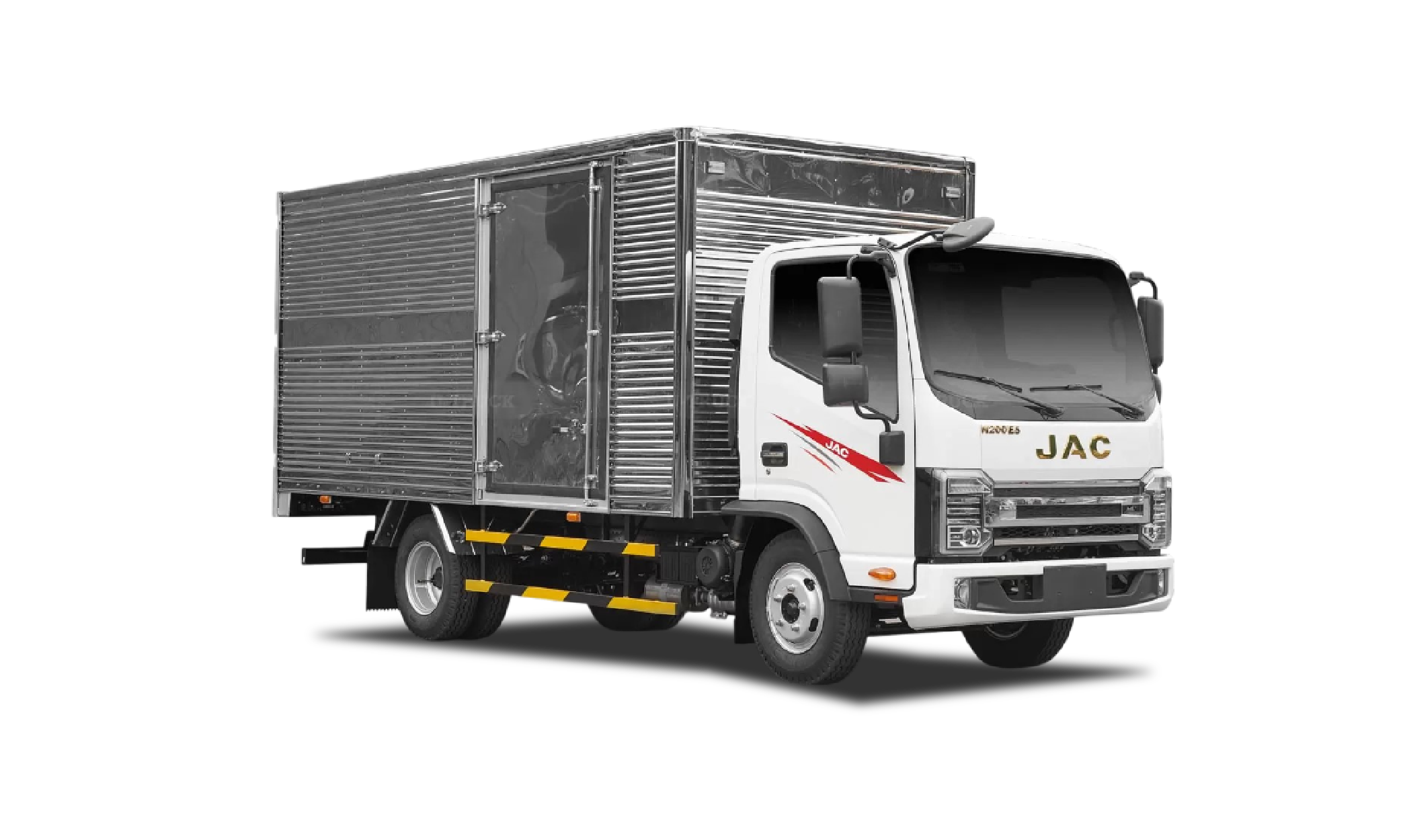

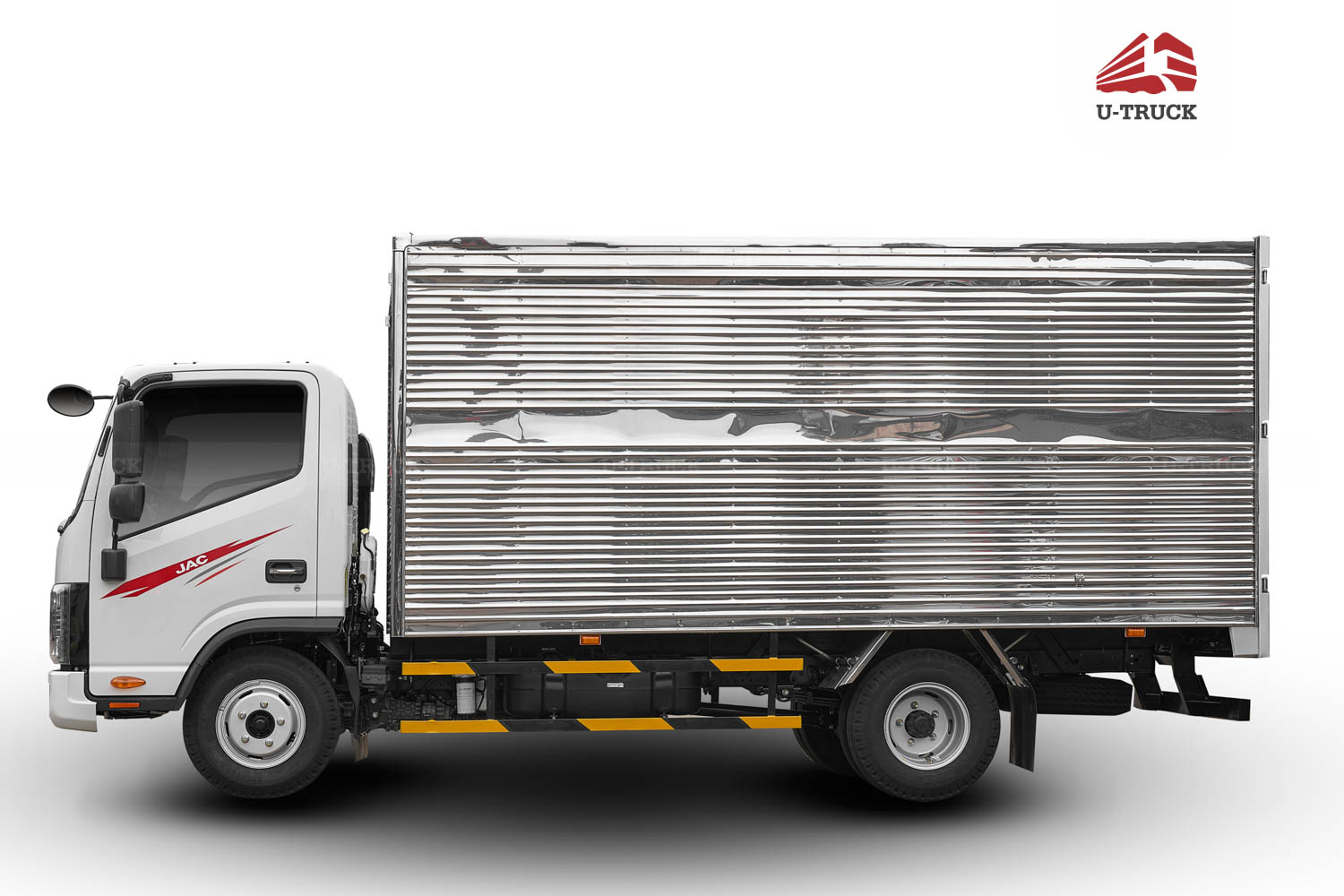

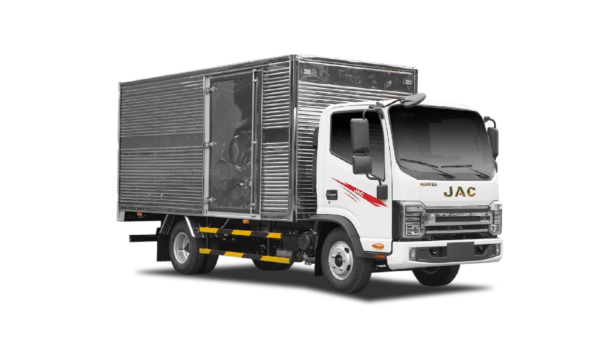

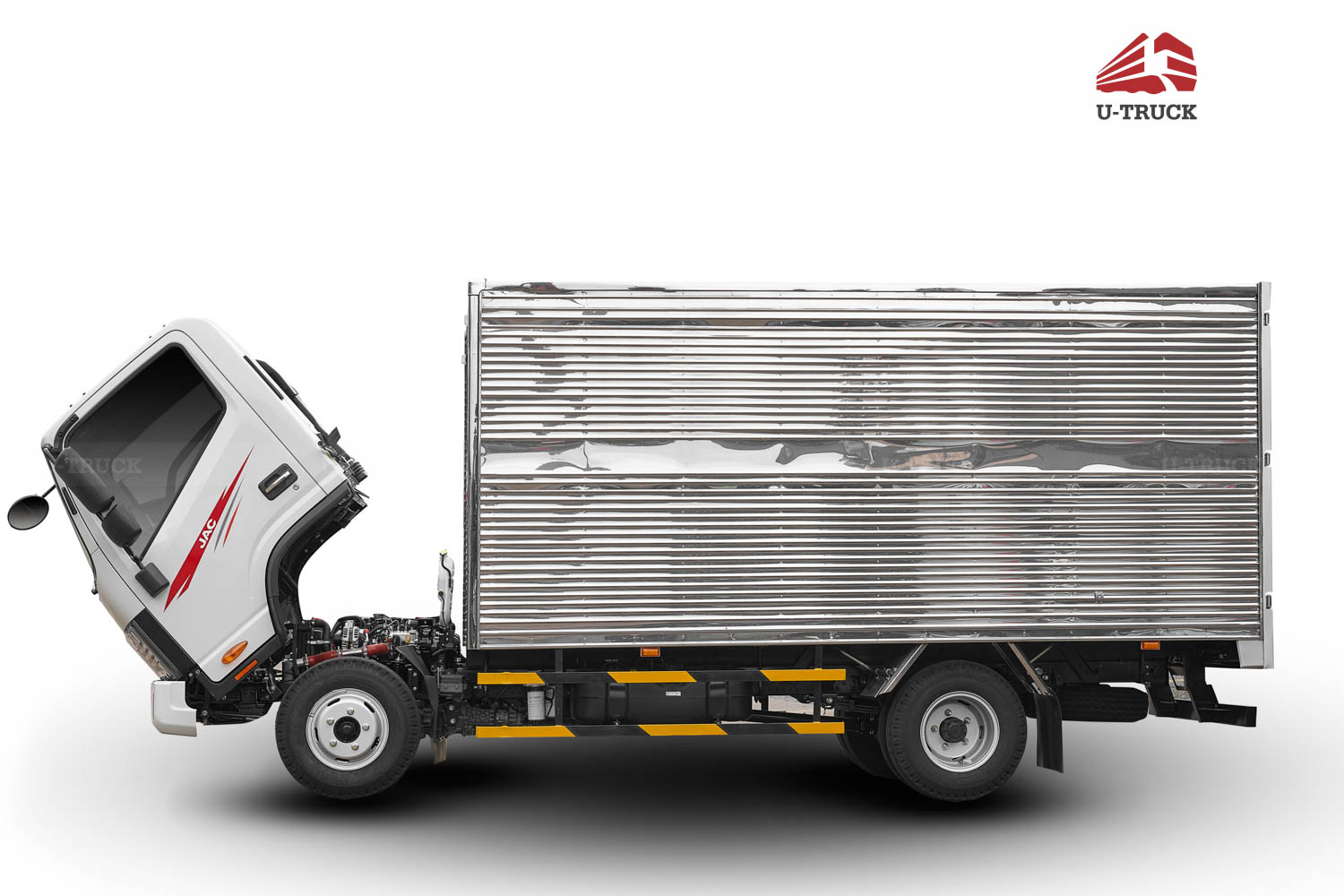

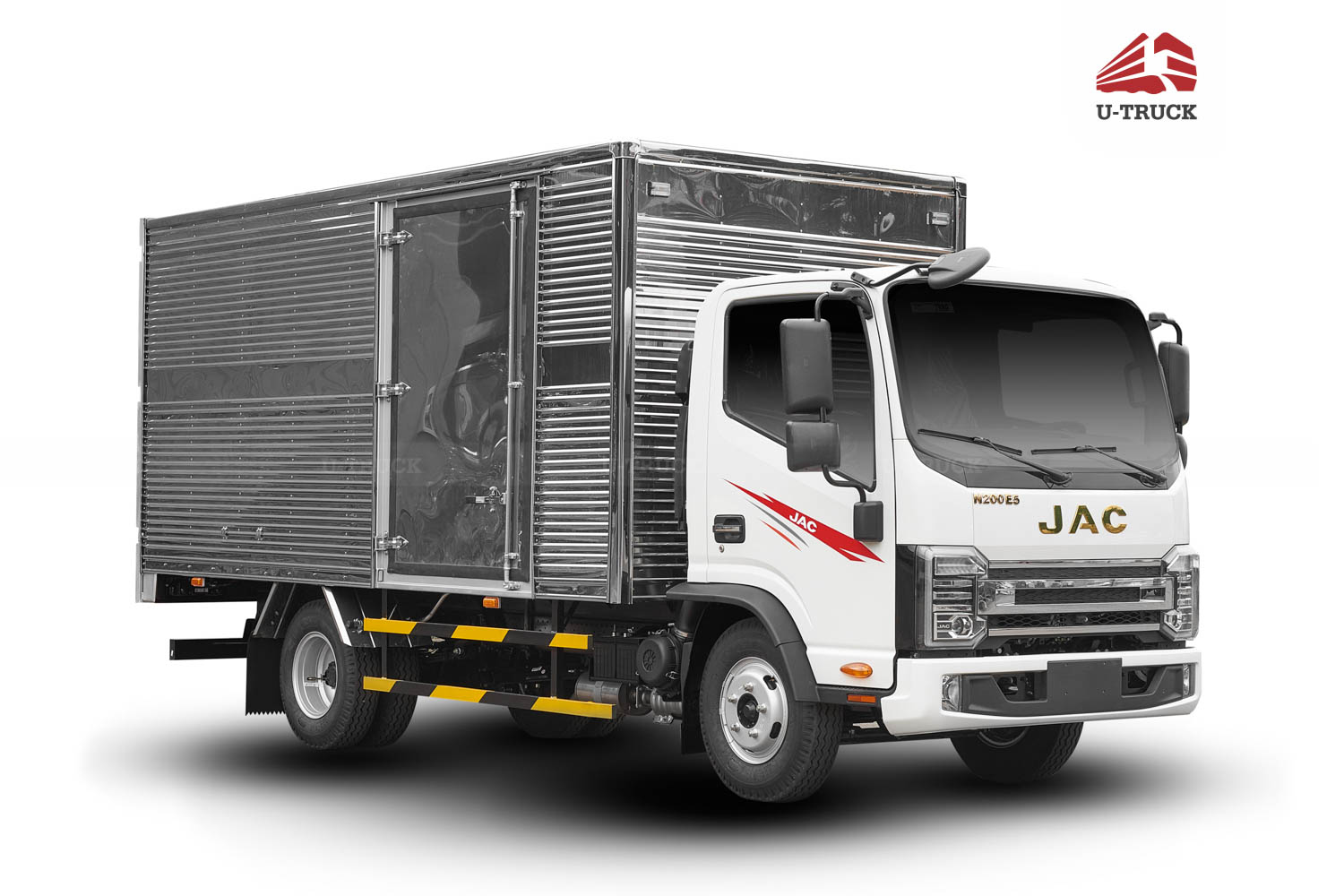

JAC N200S E5A – Box Cargo Truck

A new-generation light-duty truck with modern design, powerful engine, and optimized performance. The JAC N200S E5A box truck stands out with its aerodynamic “shark mouth” cabin, well-equipped interior, and Euro 5 emission compliance – perfect for urban logistics.

Exterior – Aerodynamic and Eye-catching Design

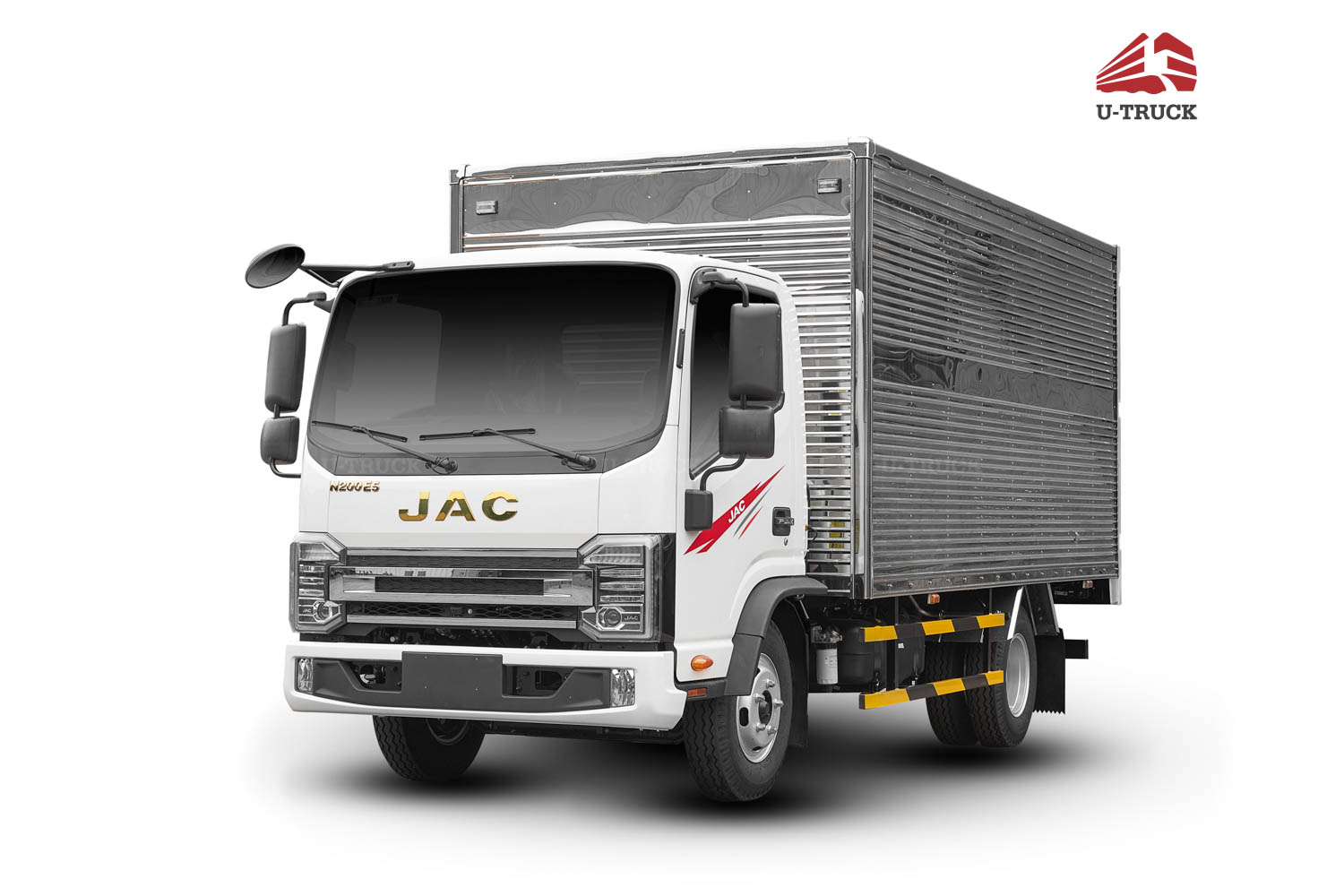

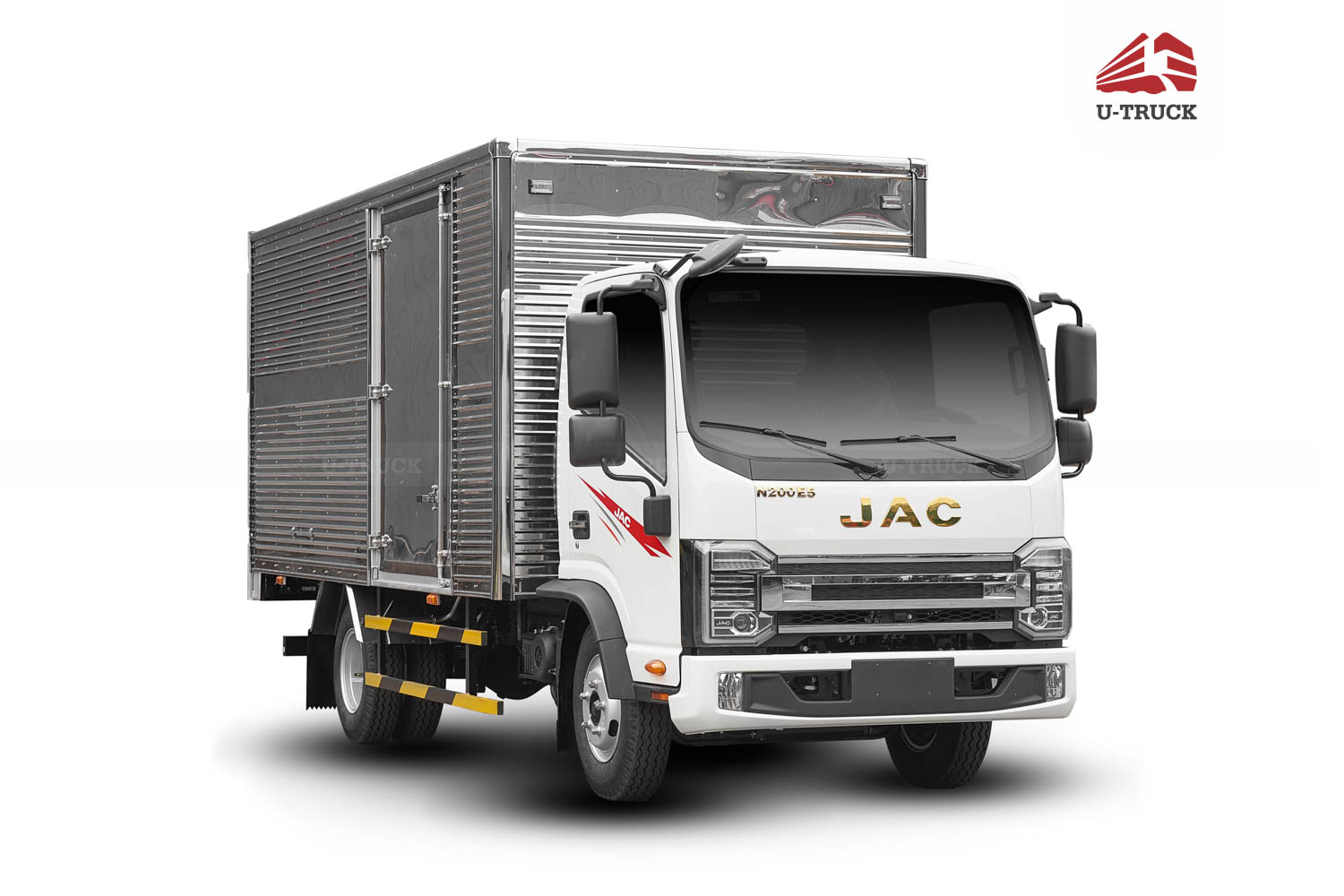

The JAC N200S E5A features an optimized aerodynamic design, highlighted by its distinctive “shark mouth” front:

• Sculpted hood lines reduce air resistance and improve overall performance
• Signature C-shaped LED lights with projector headlamps ensure strong illumination and clear visibility in low-light conditions

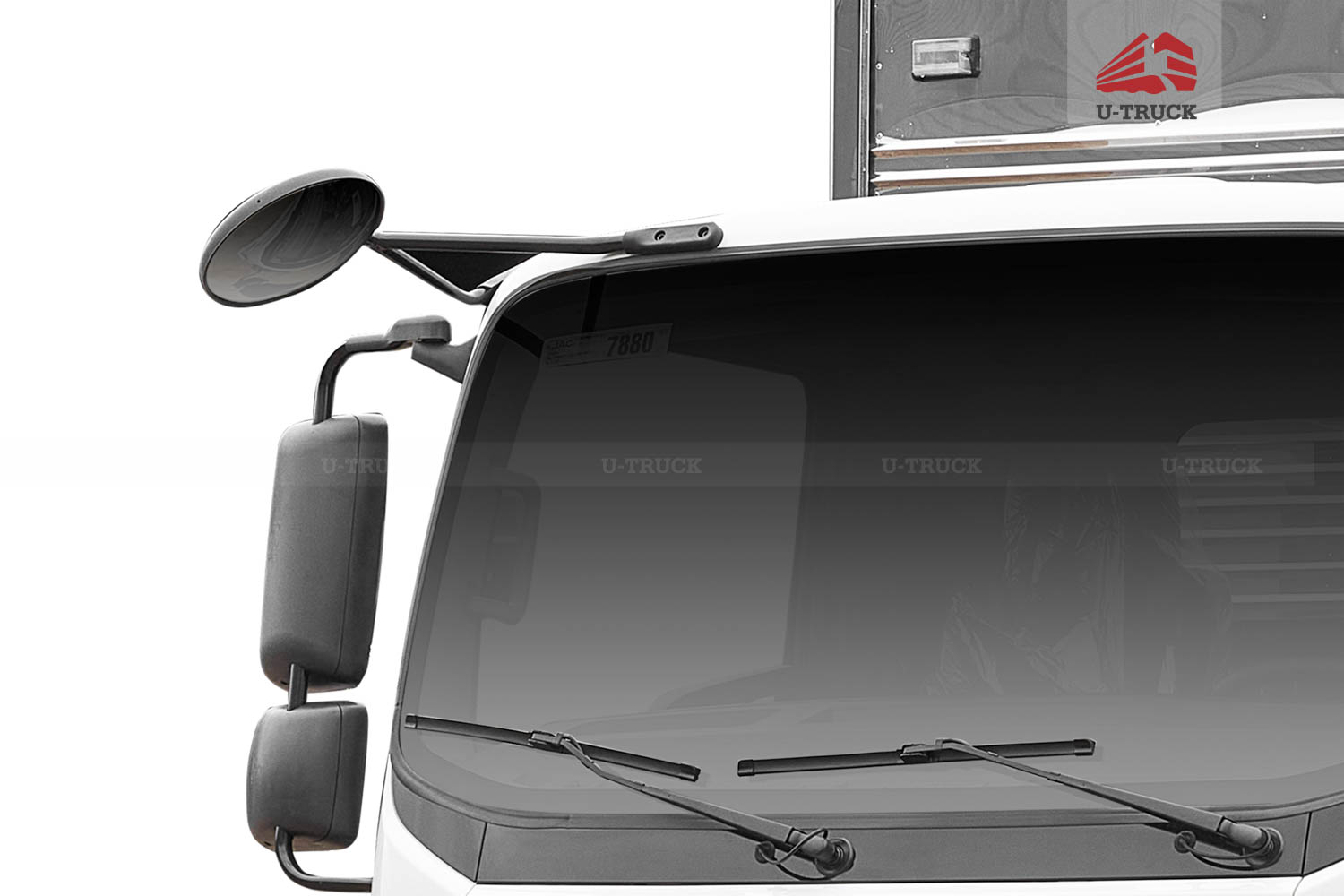

• Heated side mirrors prevent fogging in rainy or foggy weather
• Chrome-plated rectangular grille enhances both aesthetics and engine cooling efficiency
• Prominent gold JAC logo adds a premium and attractive look

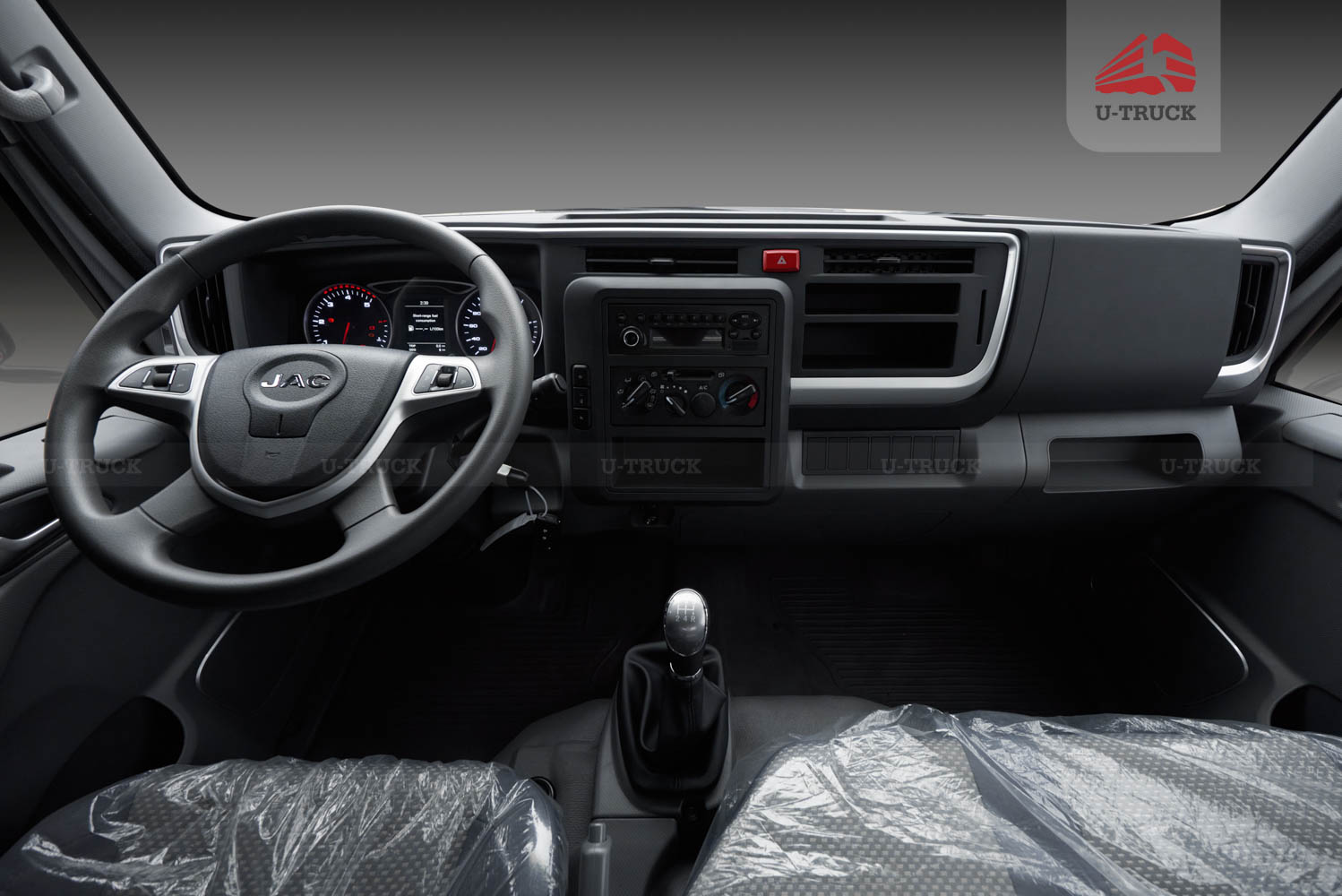

Interior – Comfortable and Well-equipped

The spacious cabin is designed with modern features to ensure driver comfort on long journeys:

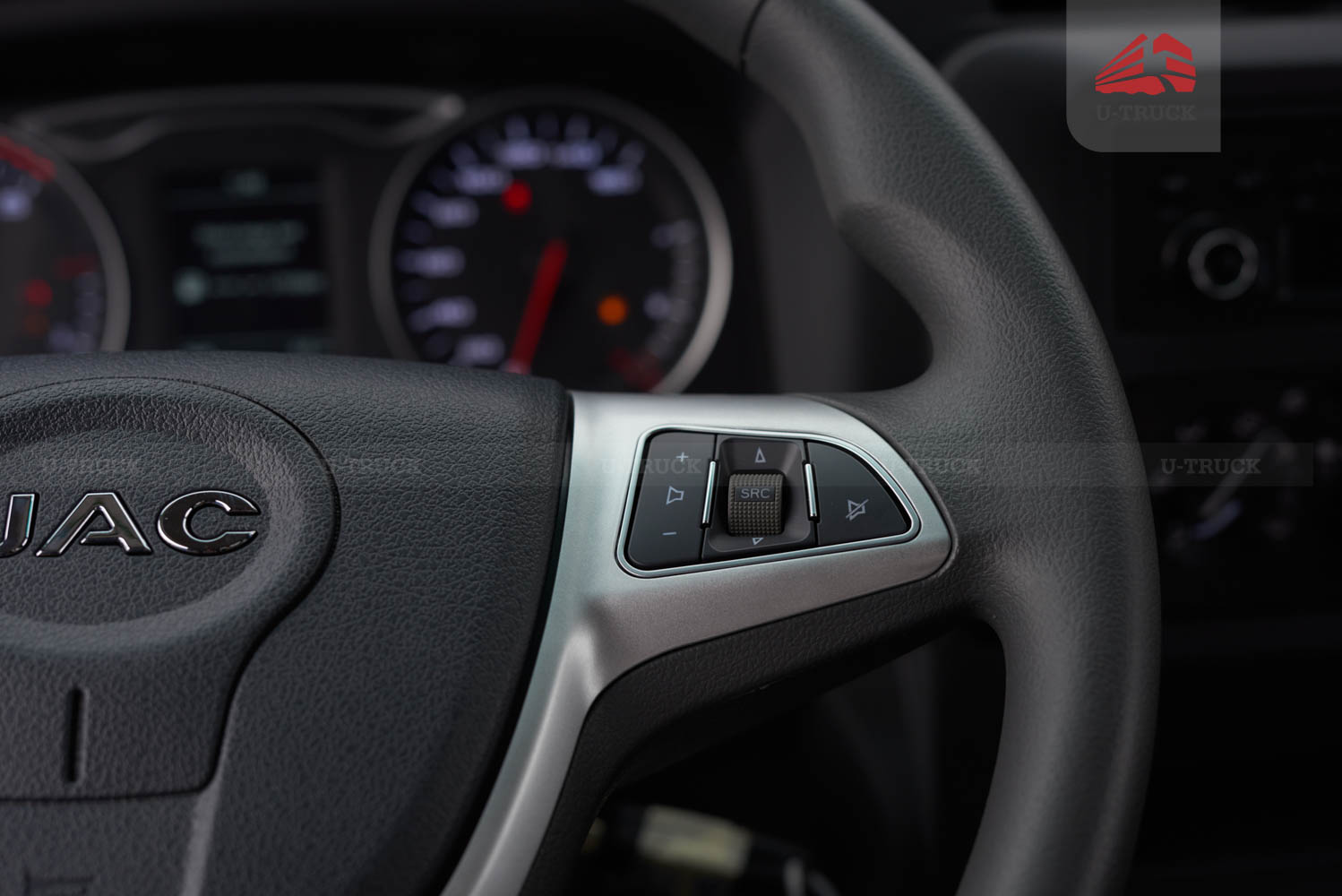

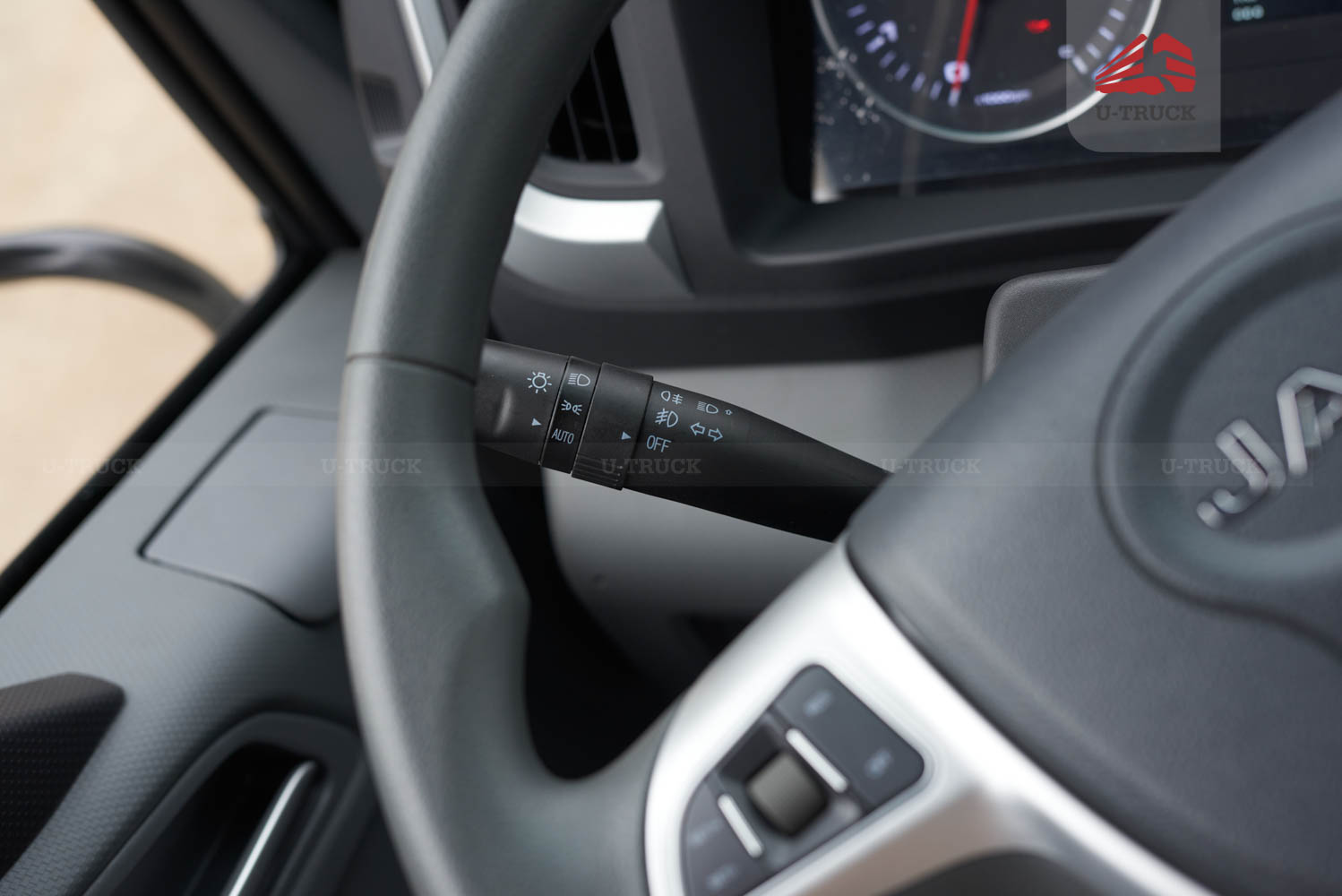

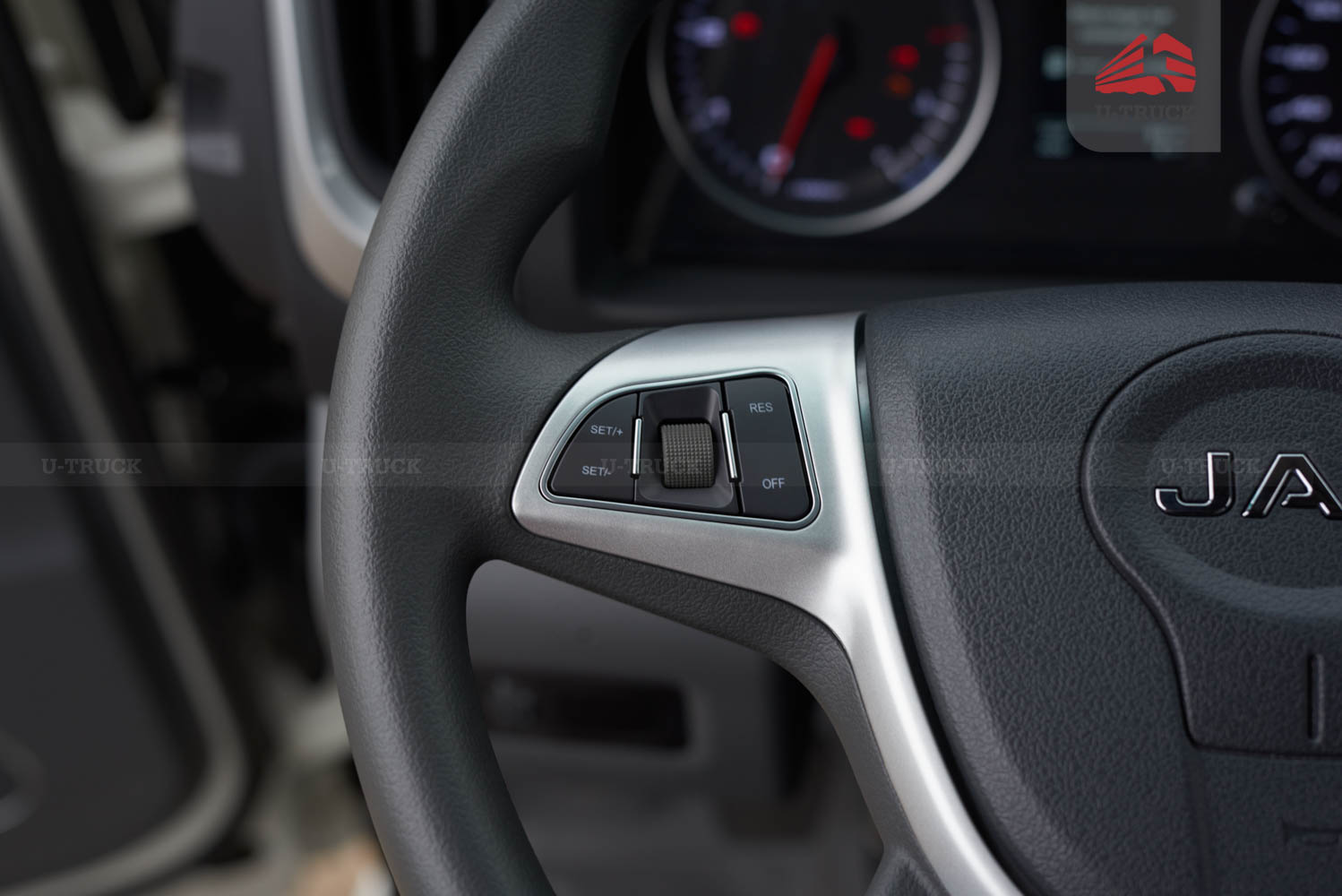

• Multifunction steering wheel with Cruise Control for maintaining stable speed

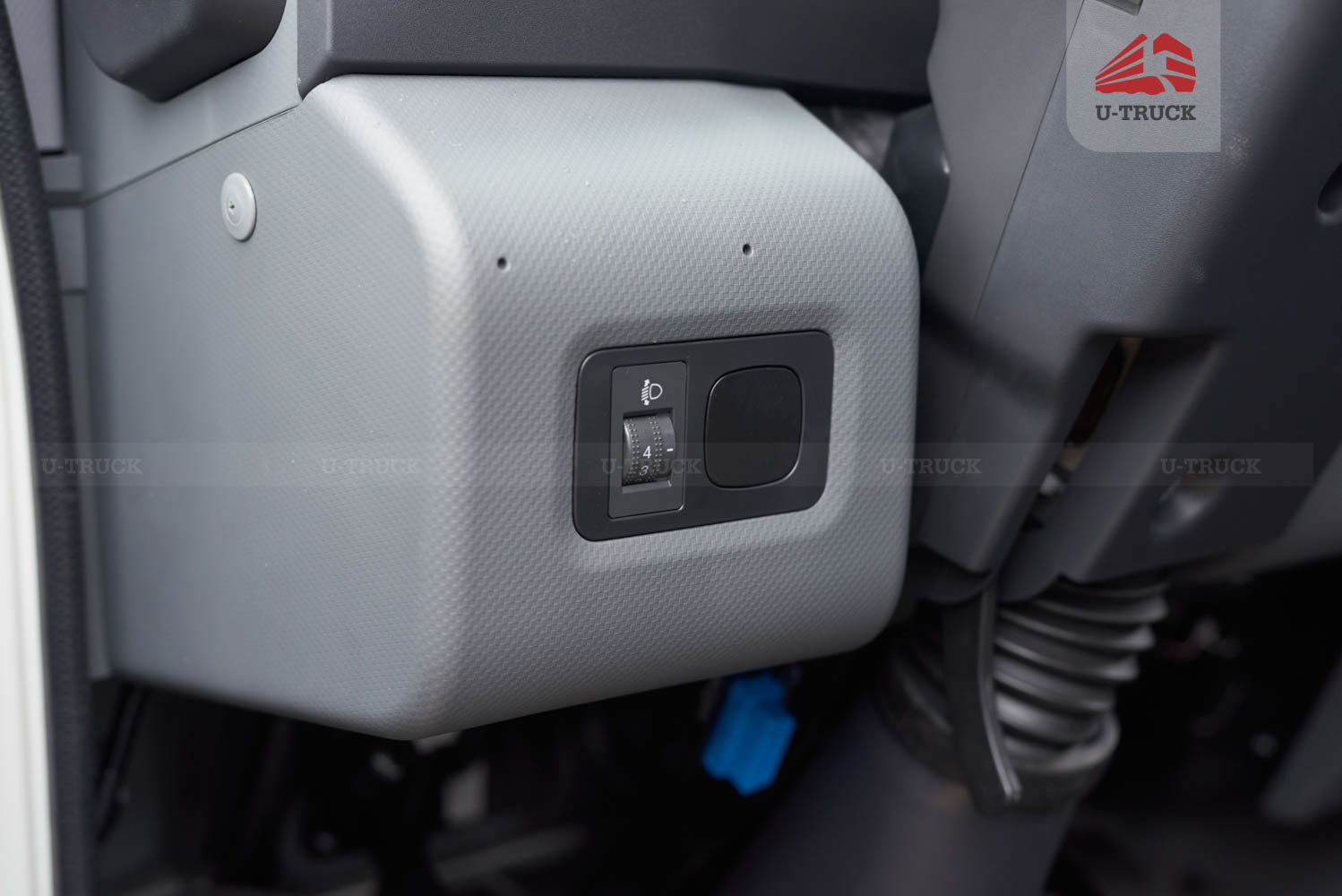

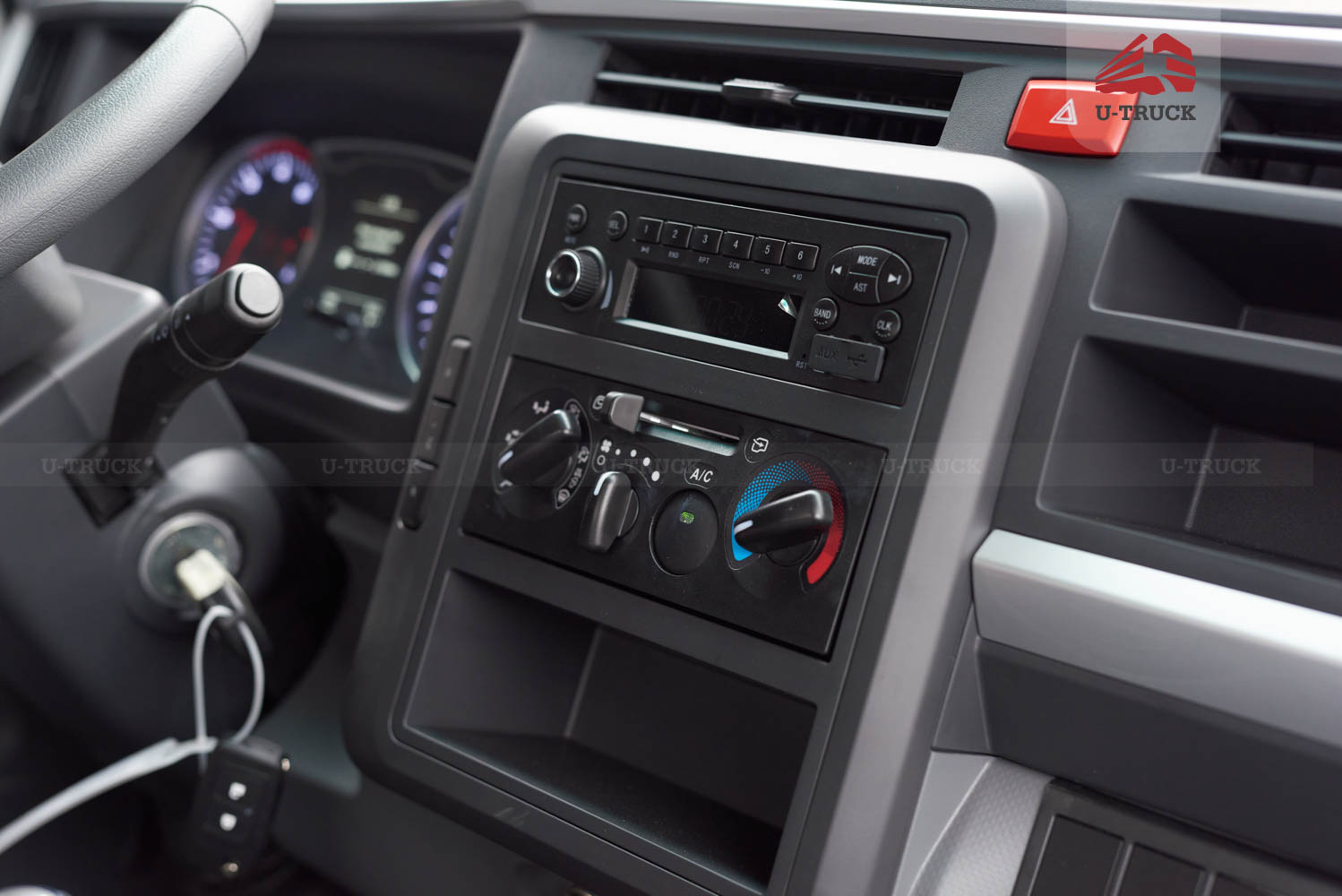

• Integrated features: air conditioning, radio, USB ports, MP5 touchscreen, headlight adjustment switch, and power windows
• DPF regeneration system helps clean the exhaust filter, improving engine efficiency and extending exhaust system lifespan

With its smart features and modern conveniences, the interior enhances safety, comfort, and operational efficiency.

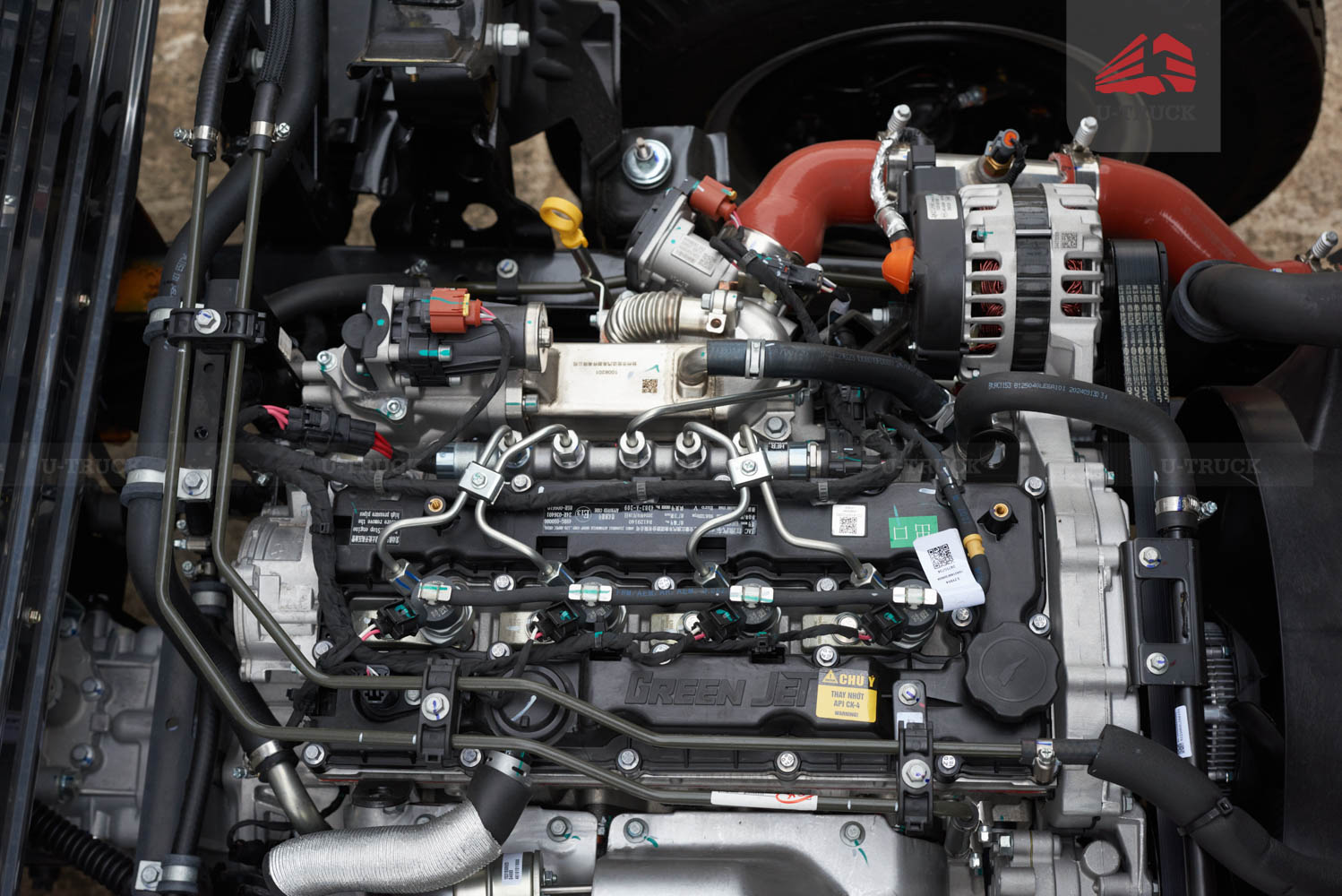

Engine – Powerful and Fuel Efficient

• Engine: HFC4DB3-2D
• Diesel, 4-stroke, inline 4-cylinder, turbocharged and intercooled
• Maximum torque: 320 Nm at 1,600–2,000 rpm
• BOSCH high-pressure electronic fuel injection system (ECU-controlled)
• No urea (DEF) required

Transmission

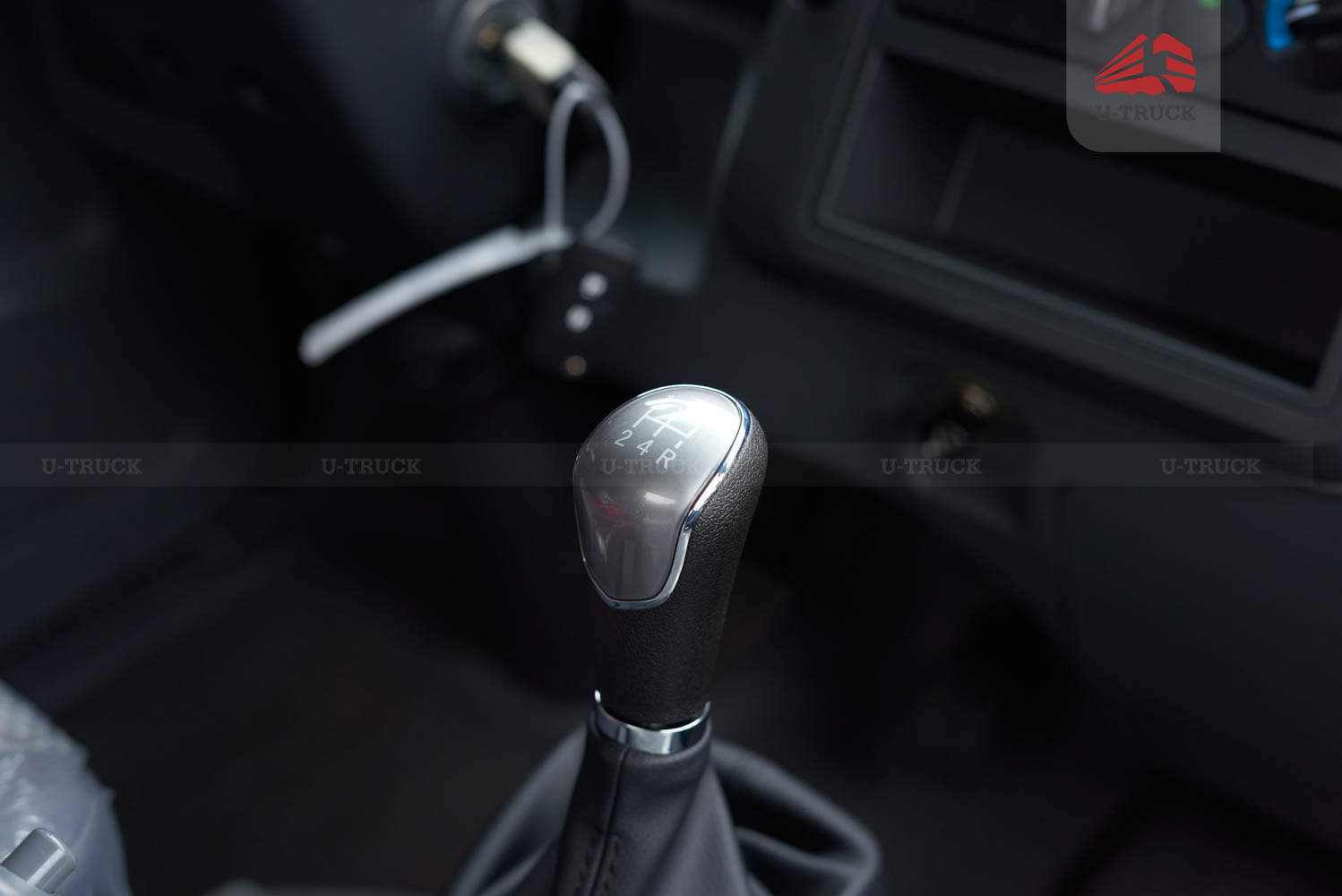

• LC gearbox with 5 forward gears and 1 reverse gear
• Optimized gear ratios for better acceleration and fuel efficiency
• Aluminum alloy casing: lightweight, durable, and heat-efficient
• Counterweight gear mechanism for smoother shifting

Axle System

• Front axle: I-beam design, load capacity up to 2,500 kg
• Rear axle: AAM (USA), final drive ratio 4.875, load capacity up to 4,500 kg

Other Systems

Suspension:

• Leaf spring suspension combined with hydraulic shock absorbers (front & rear) for smooth and stable operation
• Reinforced leaf springs and cast spring mounts enhance durability and load capacity

Braking System:

• Front and rear drum brakes with hydraulic actuation
• Equipped with ABS to improve braking efficiency and prevent wheel lock

Emission System:

• DOC + DPF technology (no urea required)
• Meets Euro 5 standards while reducing operating costs

Chassis:

• High-strength chassis with U-shaped cross-section (180×65×4.5 mm)
• Double-layer structure for enhanced stability
• Electrostatic coating for anti-rust protection and long-term durability

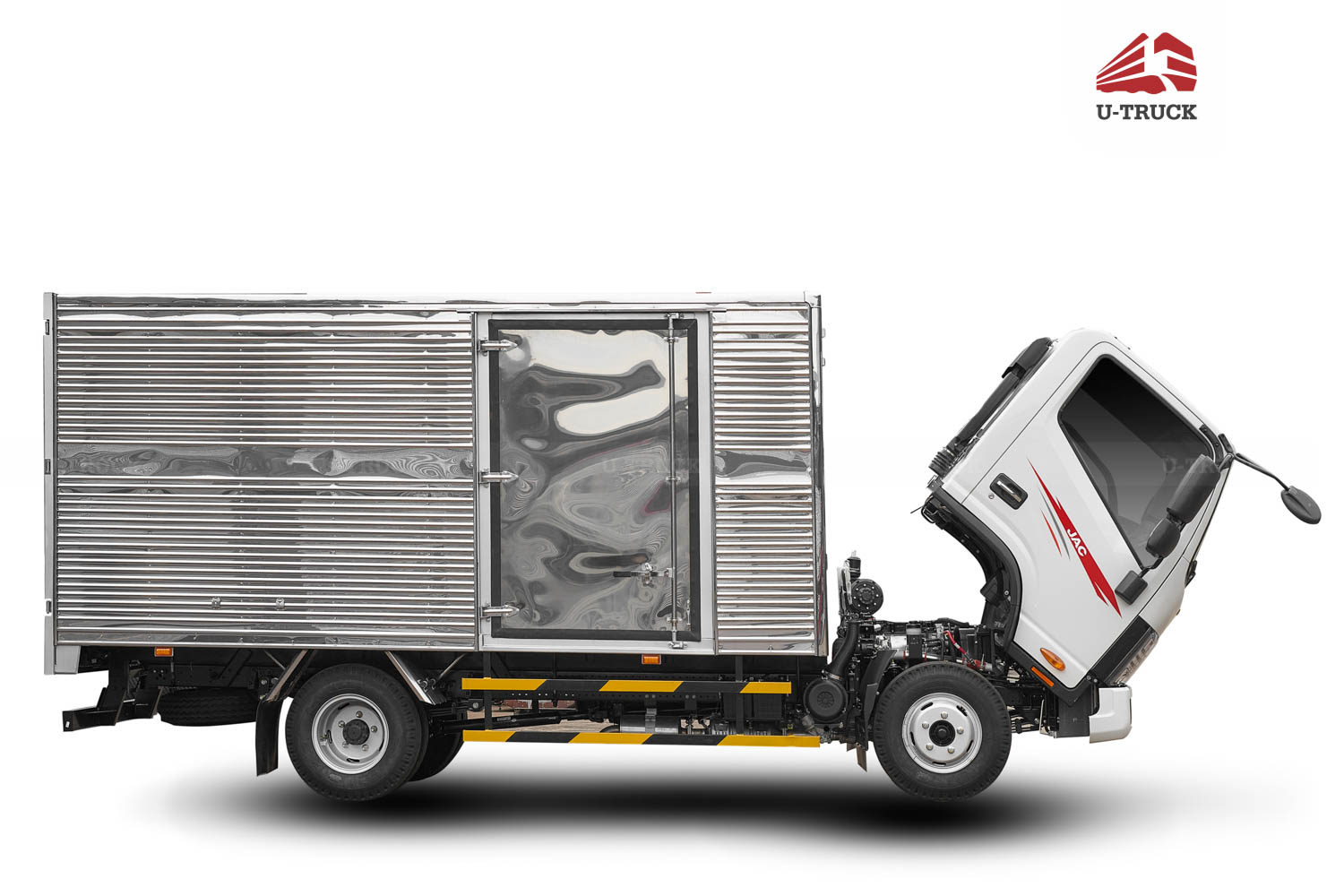

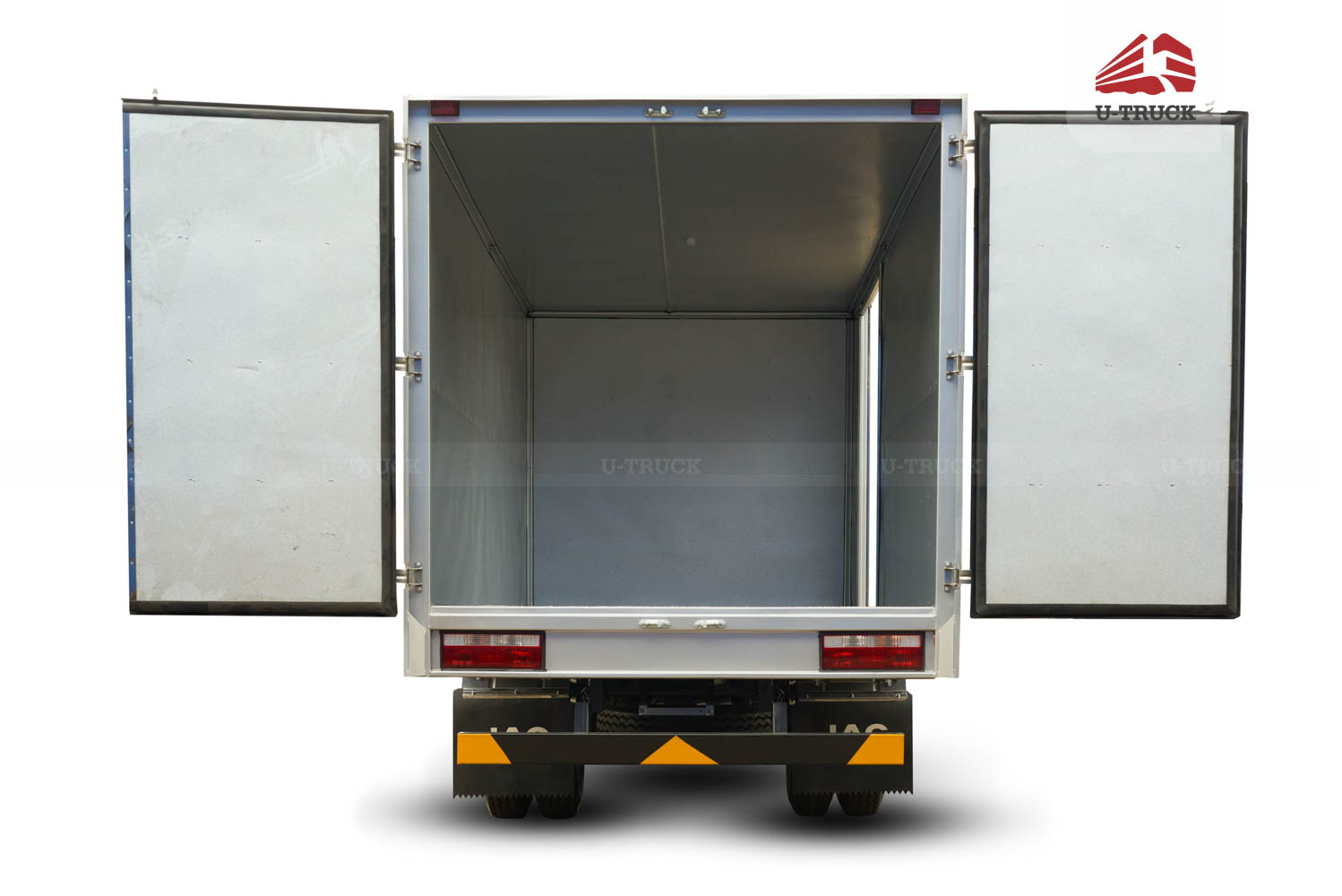

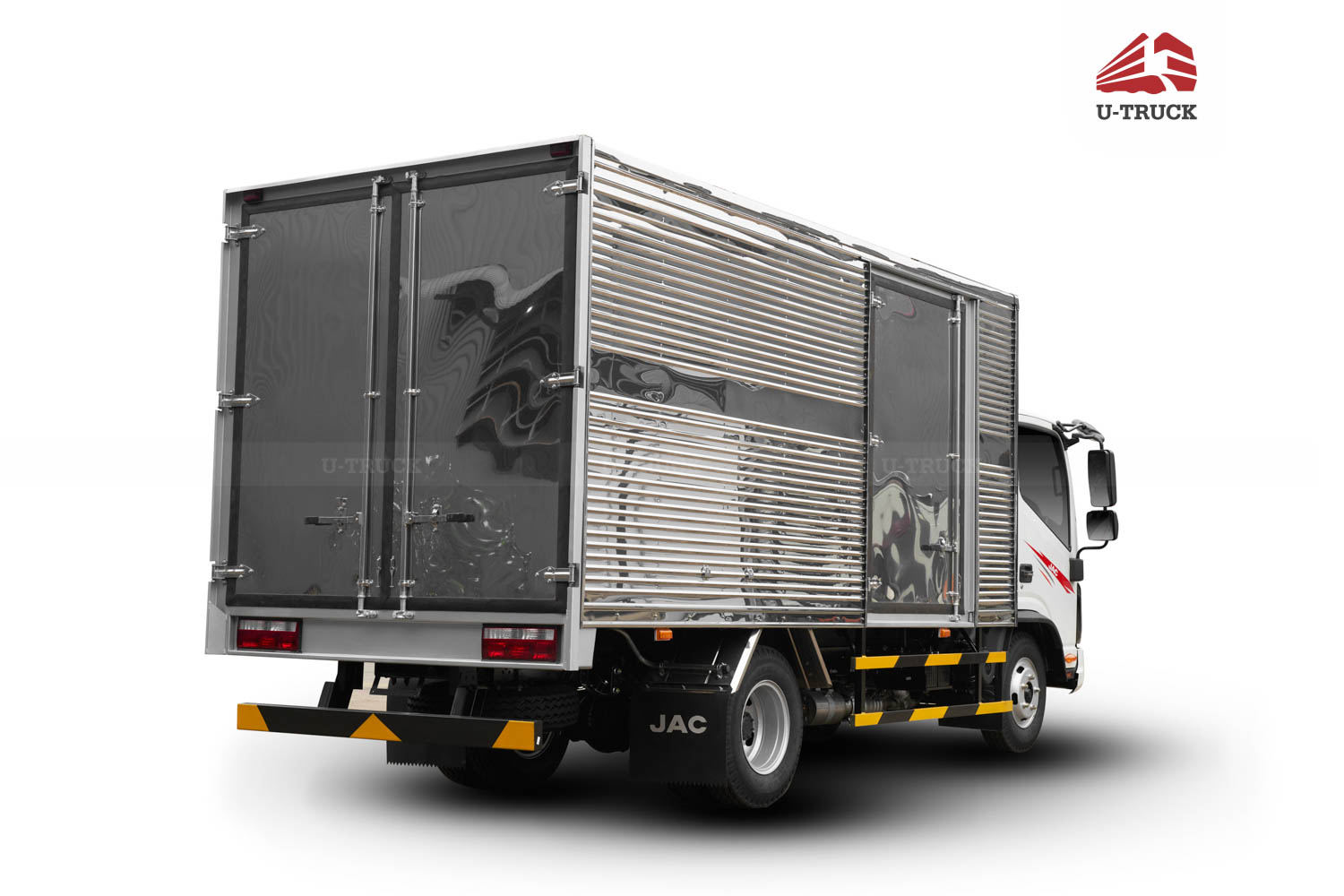

Cargo Body – Flexible and Practical

With a flexible payload range from 1.9 to 3.6 tons, the vehicle meets diverse transportation needs for both urban and interprovincial logistics.

Warranty Policy

• Warranty: 60 months or 150,000 km

The JAC N200S E5A box truck delivers durability, safety, and strong performance – helping optimize operating costs and ensuring long-term reliability.
