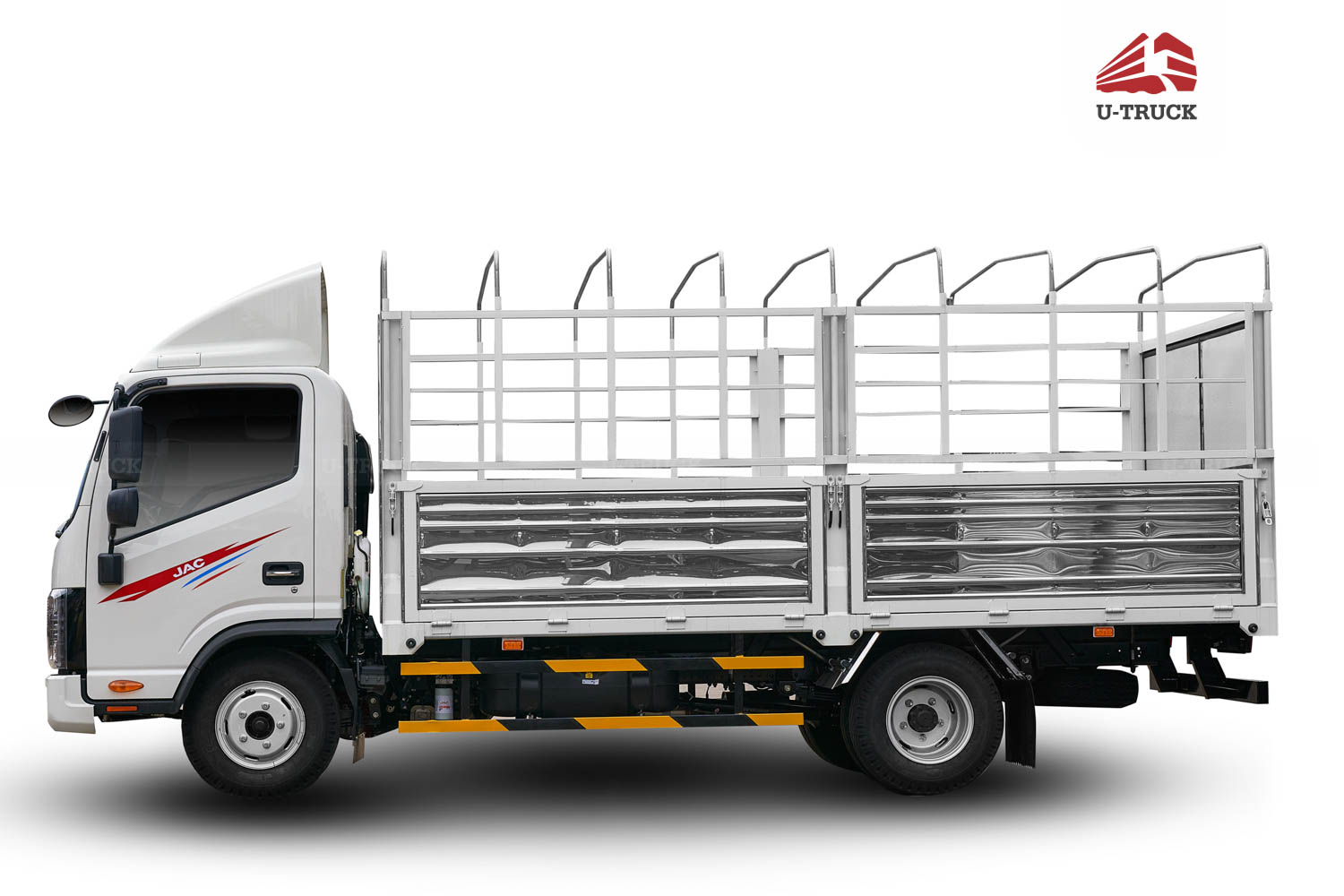

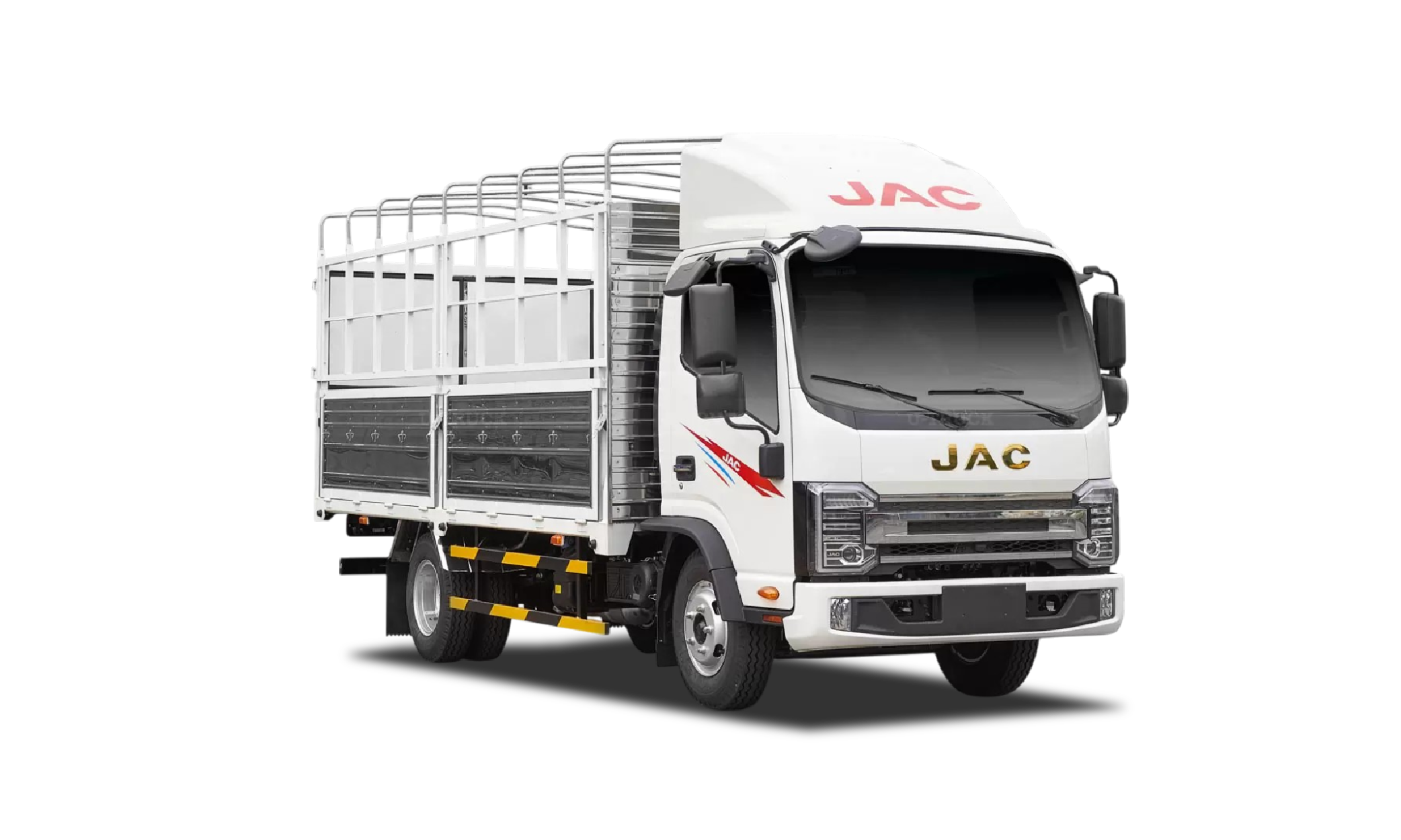

JAC N200S PRO E5 – Tarpaulin Cargo Truck

The JAC N200S PRO E5 tarpaulin truck is built for versatile transportation demands. With a powerful engine and fuel-efficient design, it is an ideal choice for logistics businesses and individual operators.

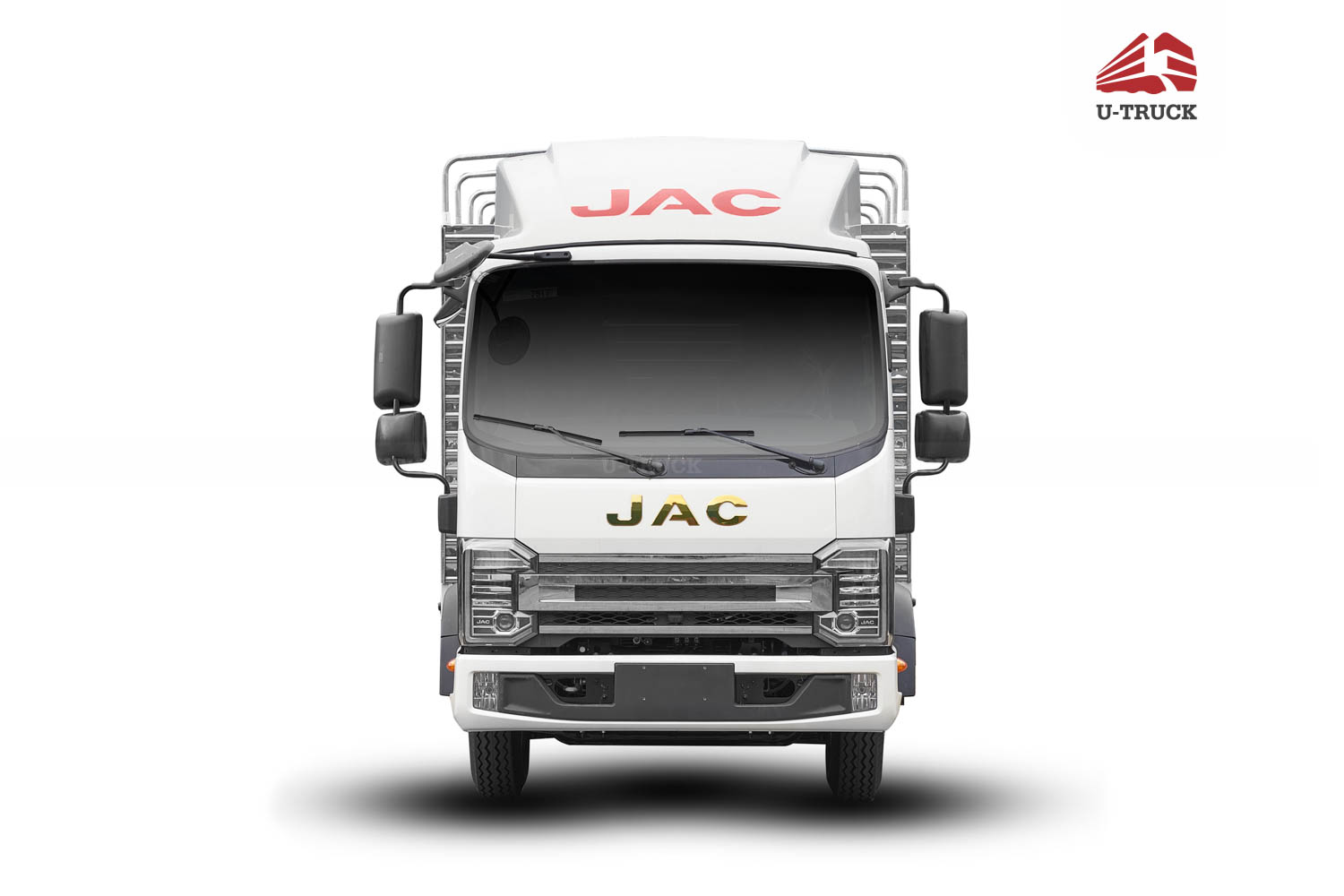

EXTERIOR – MODERN & PERFORMANCE-OPTIMIZED

The truck features a strong and modern design that enhances operational efficiency:

• Chrome-plated rectangular grille improves cooling efficiency and adds a premium look
• Rearview mirror system minimizes fogging, ensuring clear visibility in harsh conditions
• LED daytime running lights and fog lamps enhance visibility in low-light or foggy conditions
• Cabin doors open up to 68°, making entry and exit easier for drivers

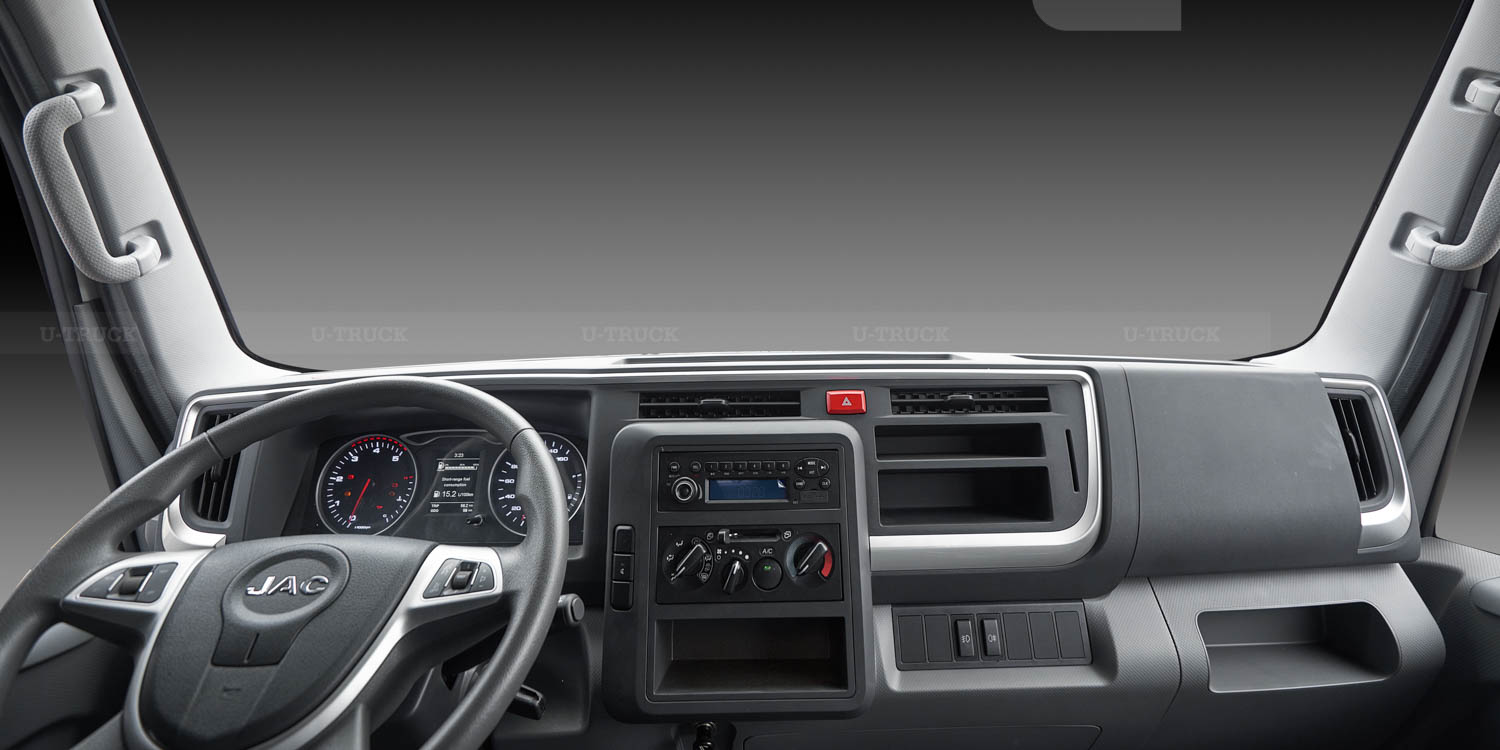

INTERIOR – SPACIOUS & COMFORTABLE

The cabin is designed for maximum driver comfort:

• Comfortable seats reduce fatigue on long trips
• Multi-function steering wheel with audio control and cruise control for easier driving
• Standard air conditioning system maintains a pleasant cabin environment
• Digital instrument cluster displays key information clearly

ENGINE – POWERFUL, FUEL-EFFICIENT & ECO-FRIENDLY

• Engine: HFC4DE1-1D (2.7L)
• Output: 152 HP
• Max torque: 355 Nm at 1600–2000 rpm

This turbocharged 4-stroke, inline 4-cylinder diesel engine delivers strong, durable performance with excellent fuel efficiency.

• BOSCH high-pressure fuel injection ensures optimal combustion and reduced fuel consumption
• SCR emission system with DEF (Urea) meets Euro 5 standards, reducing harmful emissions while maintaining performance

TRANSMISSION – SMOOTH & DURABLE

• LC gearbox with 5 forward gears and 1 reverse
• Aluminum alloy housing reduces weight, improves durability, and enhances heat dissipation

AXLE SYSTEM – HIGH LOAD CAPACITY & STABILITY

• Front axle: I-beam design, load capacity up to 2,500 kg
• Rear axle: AAM (USA), load capacity up to 4,500 kg, final drive ratio 5.375 for strong traction and stability

OTHER SYSTEMS – SAFETY & CONVENIENCE

• Leaf spring suspension with hydraulic shock absorbers for smoother operation on rough roads
• Drum brakes (front & rear), hydraulic system with ABS for enhanced safety
• Exhaust brake (Cuppo) improves braking performance on downhill routes
• 100L fuel tank supports long-distance travel without frequent refueling

TARPAULIN FRAME BODY – FLEXIBLE & PRACTICAL

• Cargo dimensions: 4,460 x 1,960 x 1,880 mm
• Flexible tarpaulin cover design allows side panels to open or tarp to be rolled up

This setup makes loading and unloading easier while still protecting goods from rain, sun, and dust – ideal for cargo requiring ventilation.

WARRANTY POLICY – PROFESSIONAL AFTER-SALES SUPPORT

• Official warranty: 5 years or 150,000 km
• Free maintenance at 3,000 km, 10,000 km, 25,000 km, and 40,000 km intervals
• Nationwide service network with over 22 service stations

CONCLUSION

The JAC N200S PRO E5 tarpaulin frame truck is not only a durable, flexible, and fuel-efficient transport vehicle, but also an optimal solution for businesses handling diverse cargo types. With its modern design, powerful engine, spacious cargo body, and reliable after-sales support, it’s a dependable partner for improving operational efficiency.

Contact U-TRUCK via Hotline 081 680 8899 for consultation and a free test drive.
