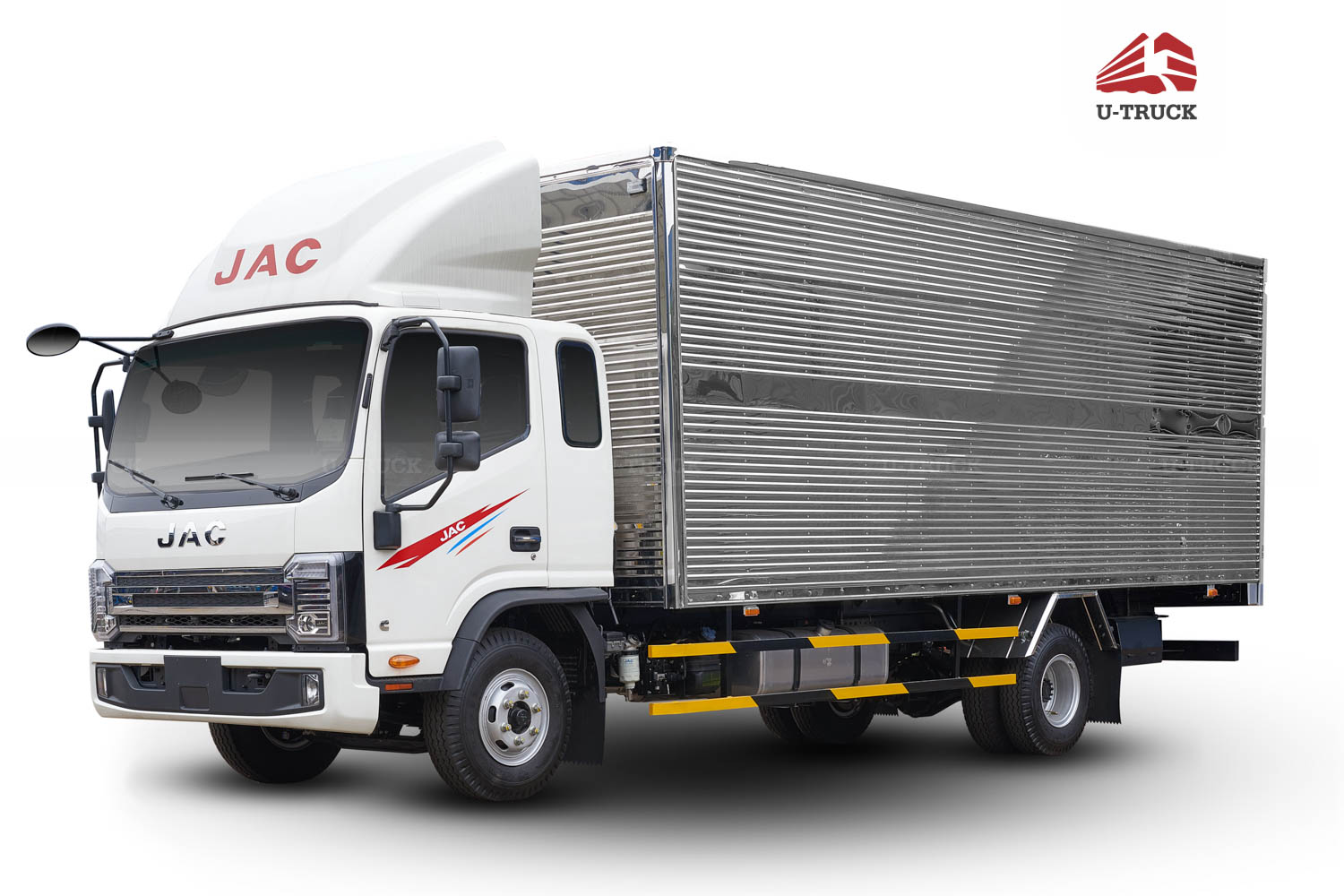

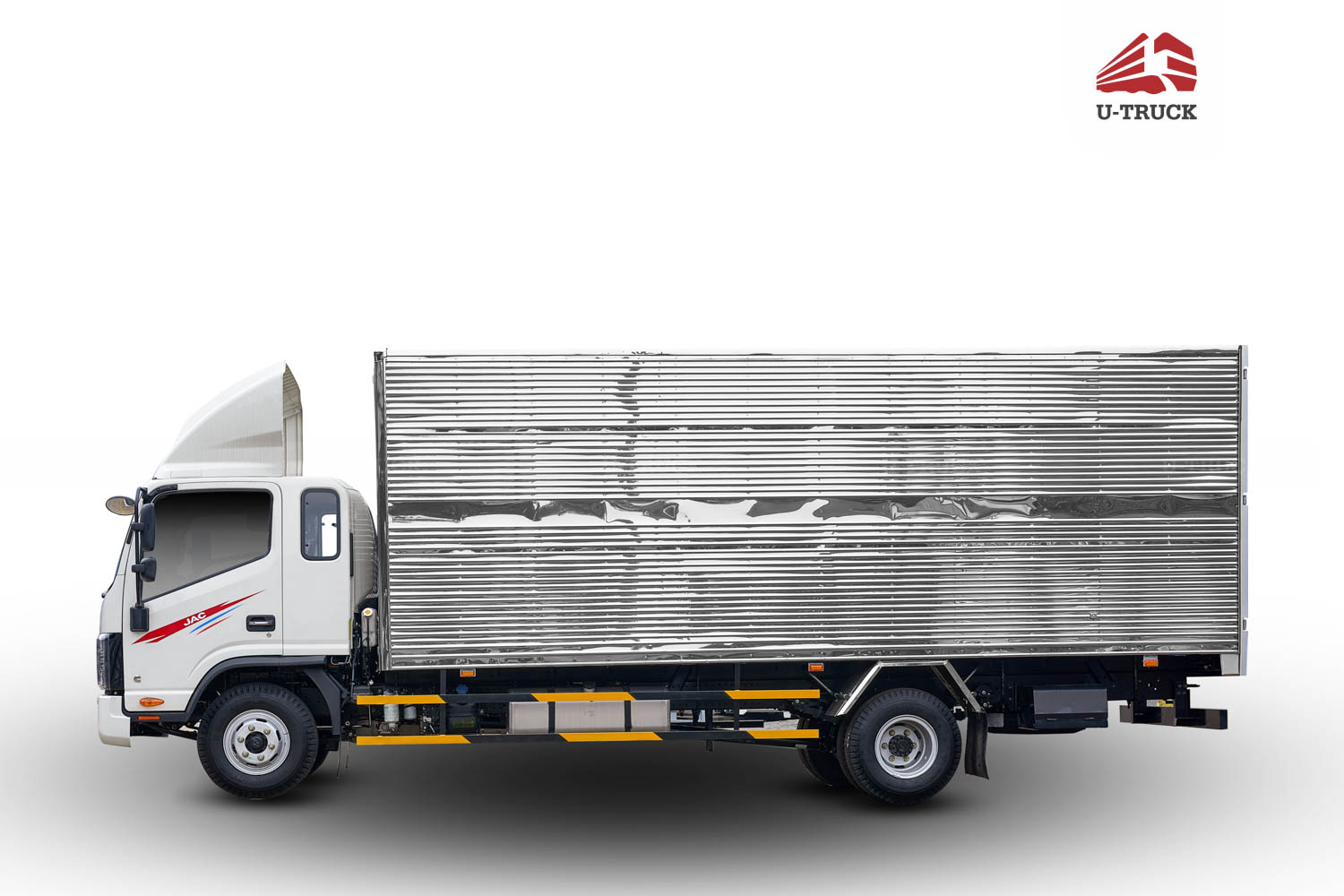

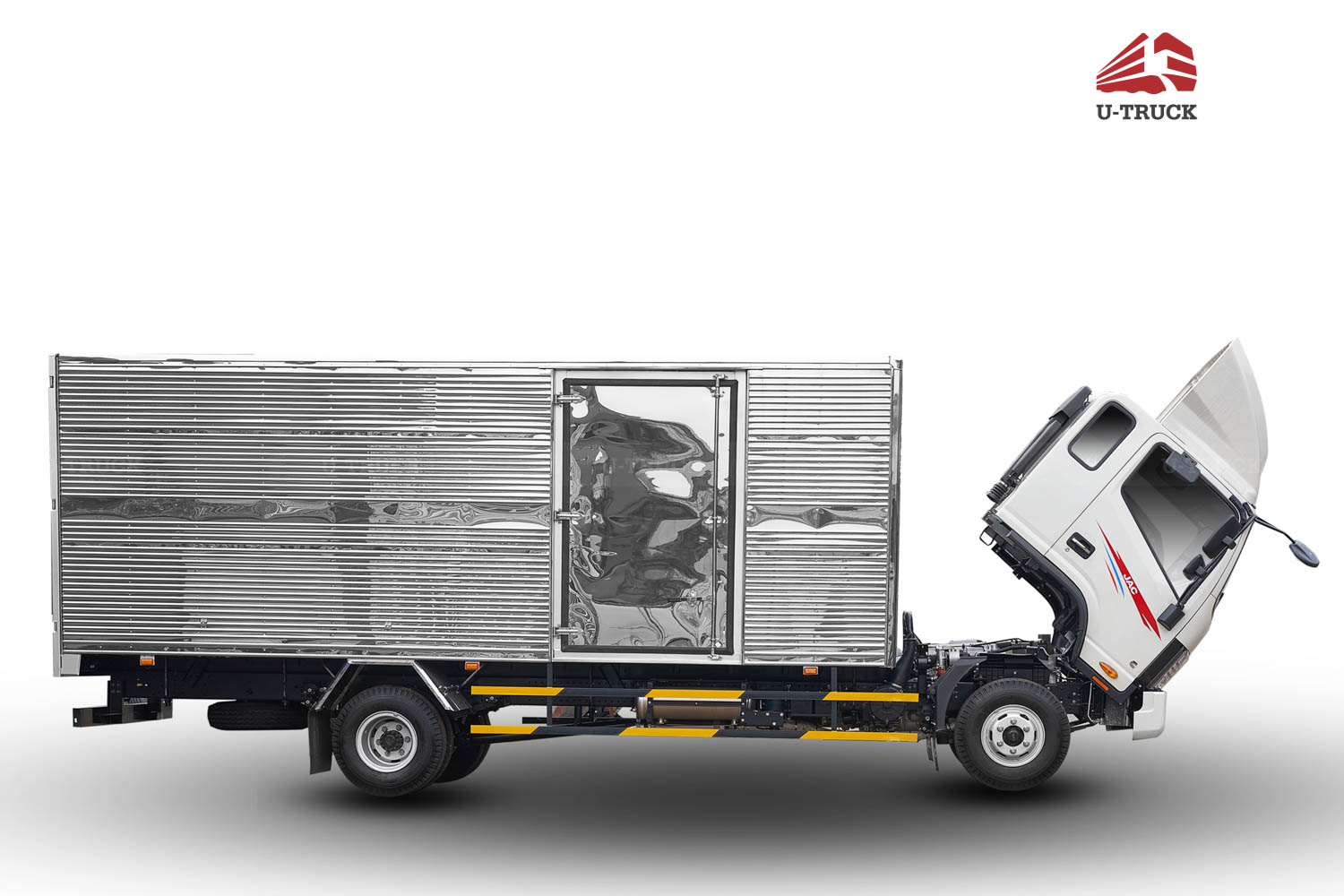

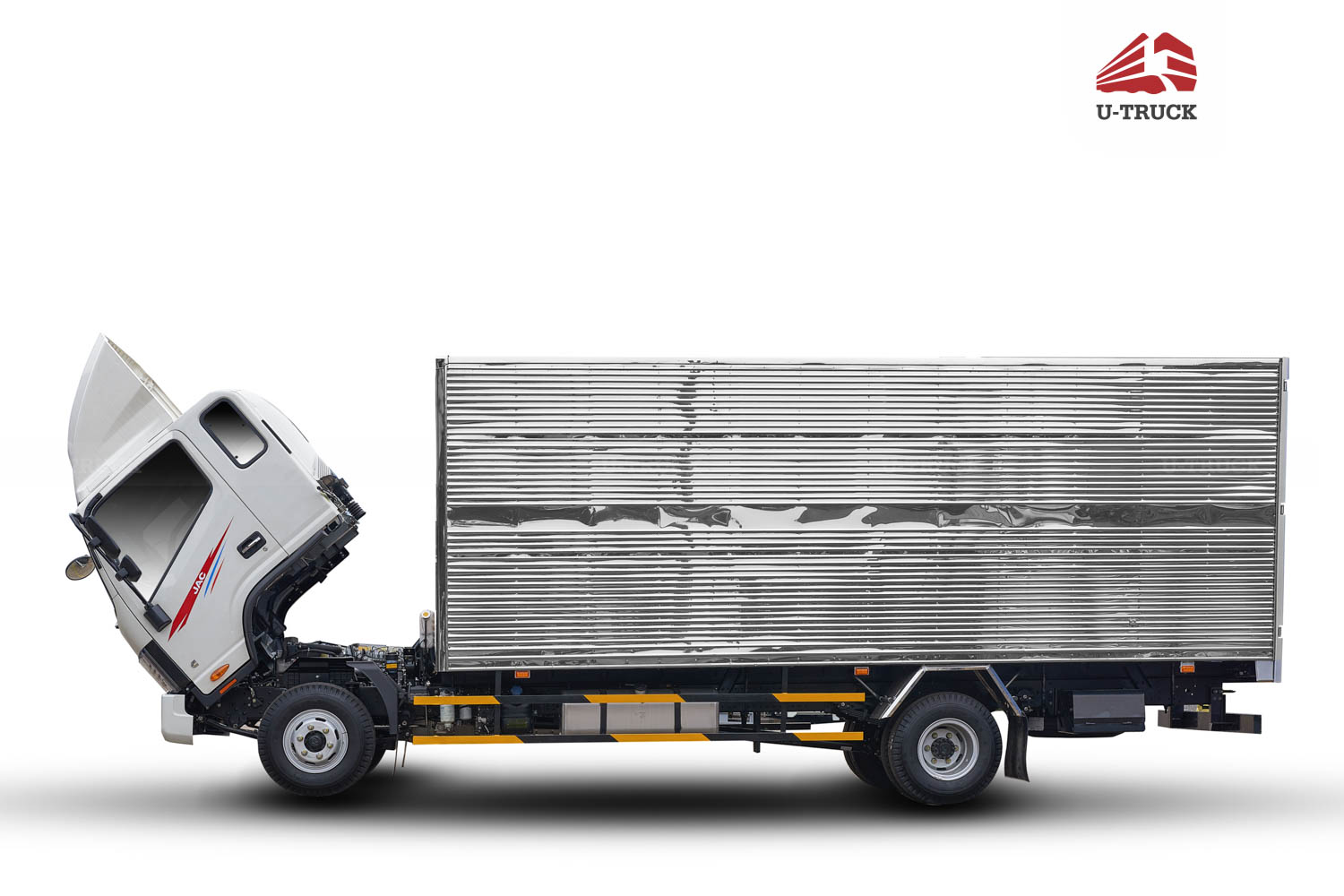

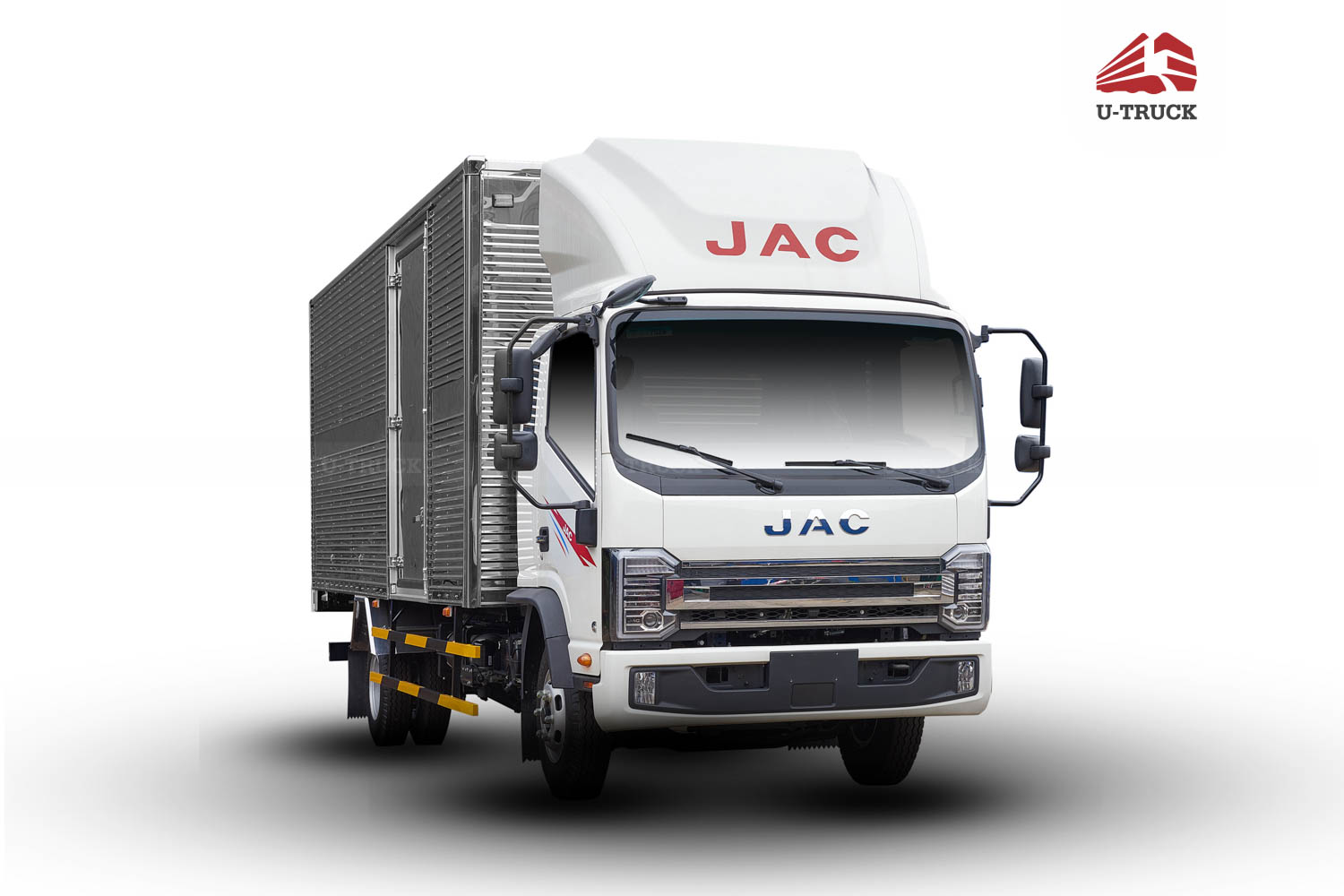

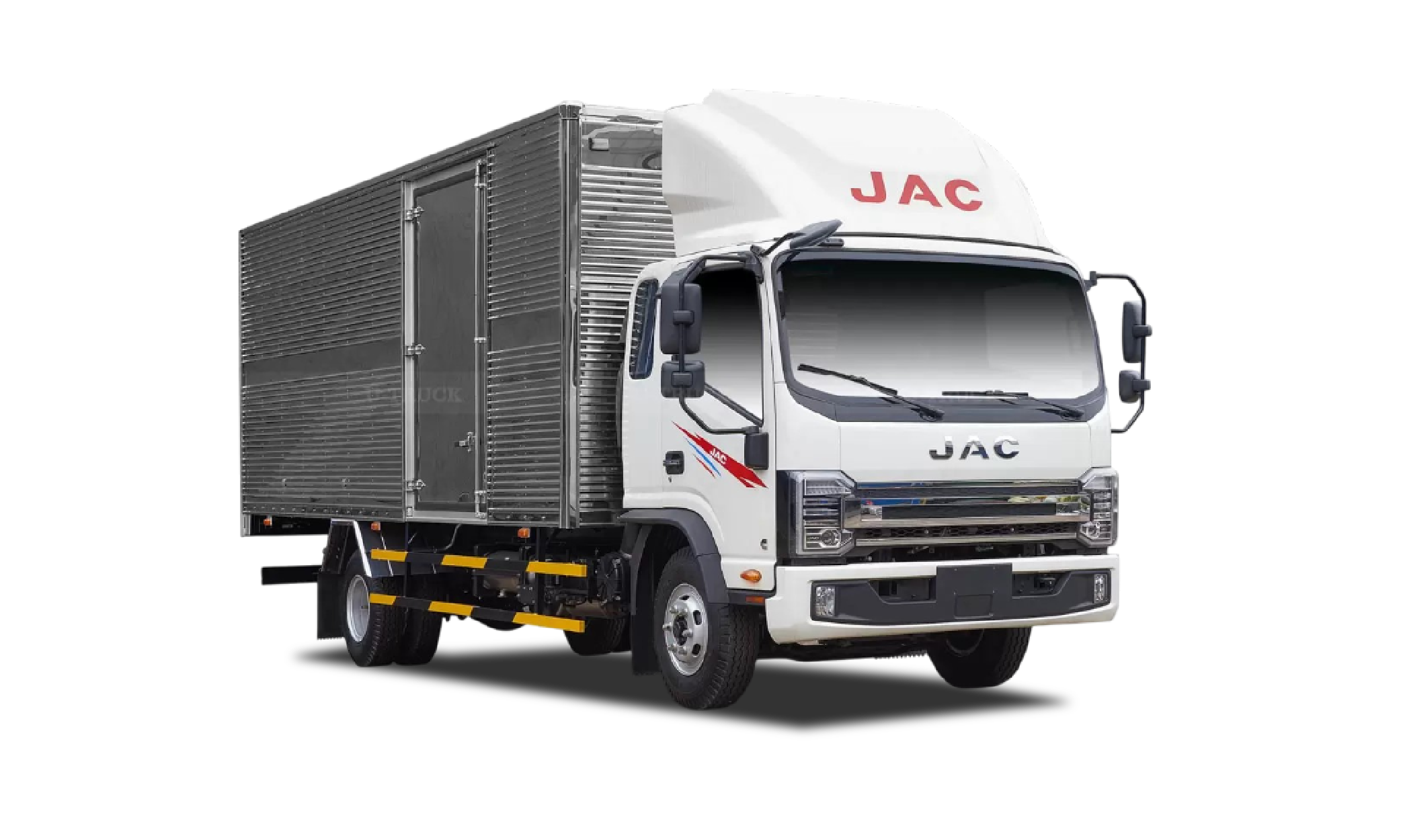

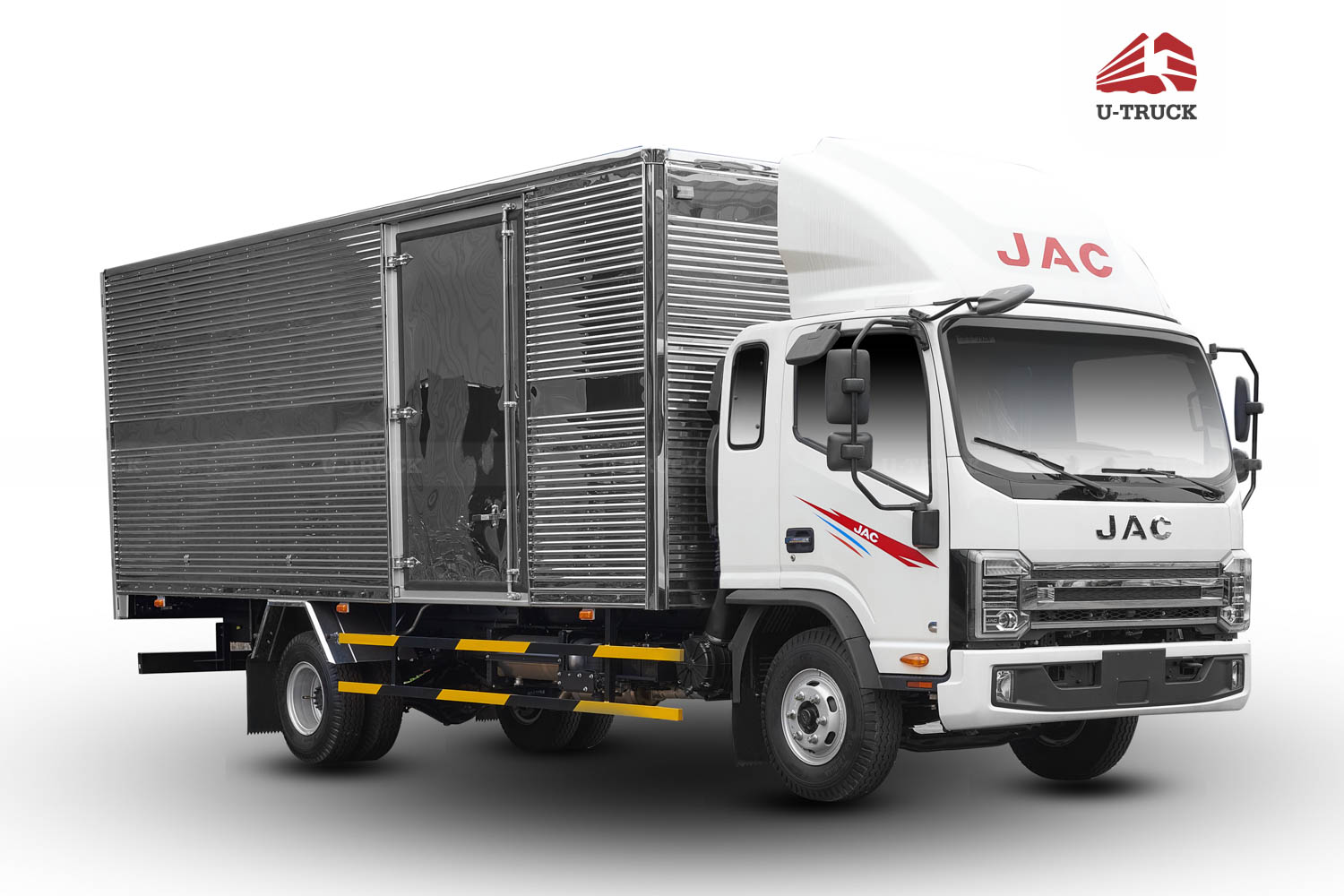

JAC N750 Plus E5A – Box Cargo Truck

The 7-ton JAC N750 PLUS E5 box truck is a new-generation light-duty truck with modern design, a powerful engine, and excellent fuel-saving capability. It delivers an optimal logistics solution, helping businesses maximize operational efficiency.

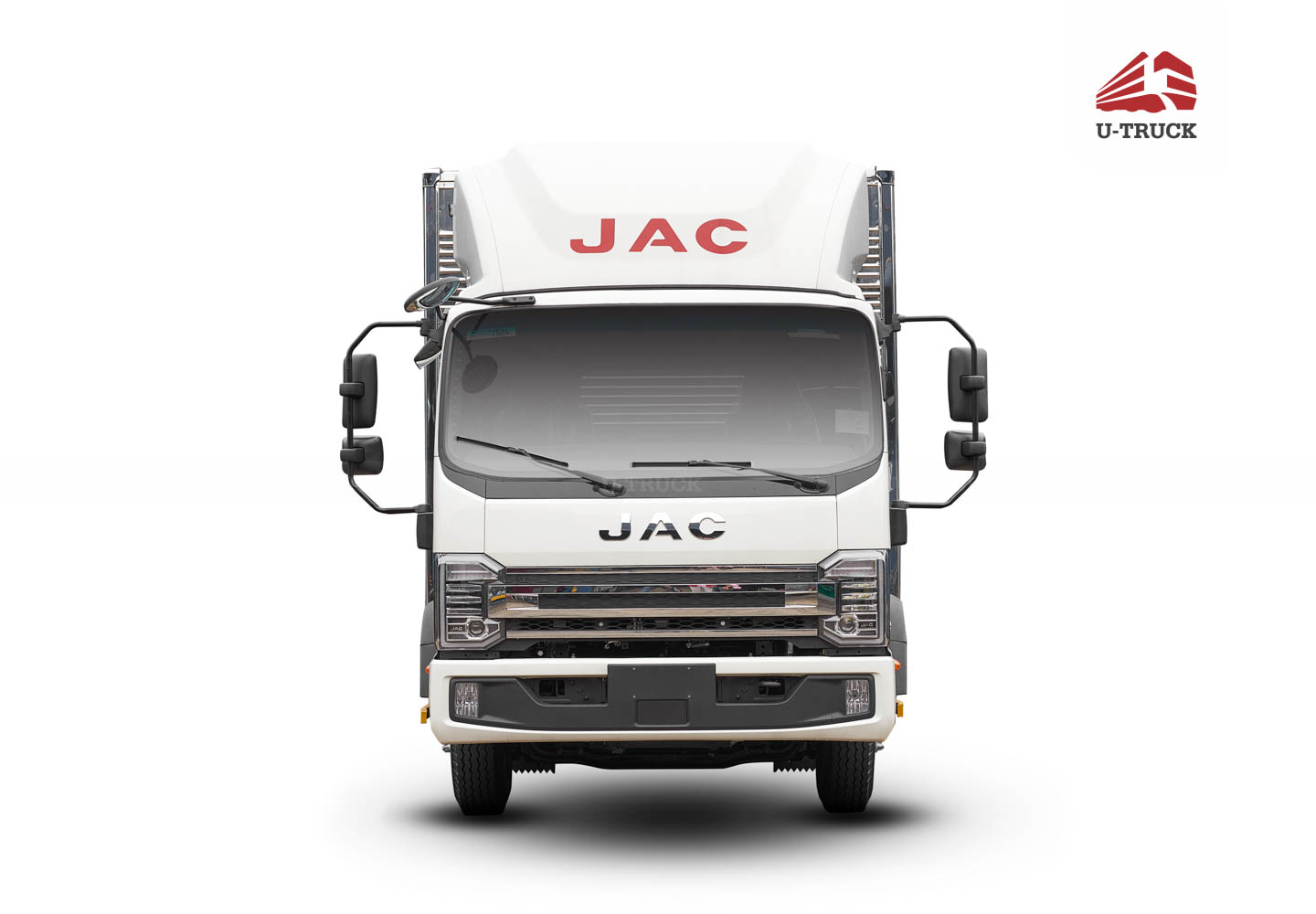

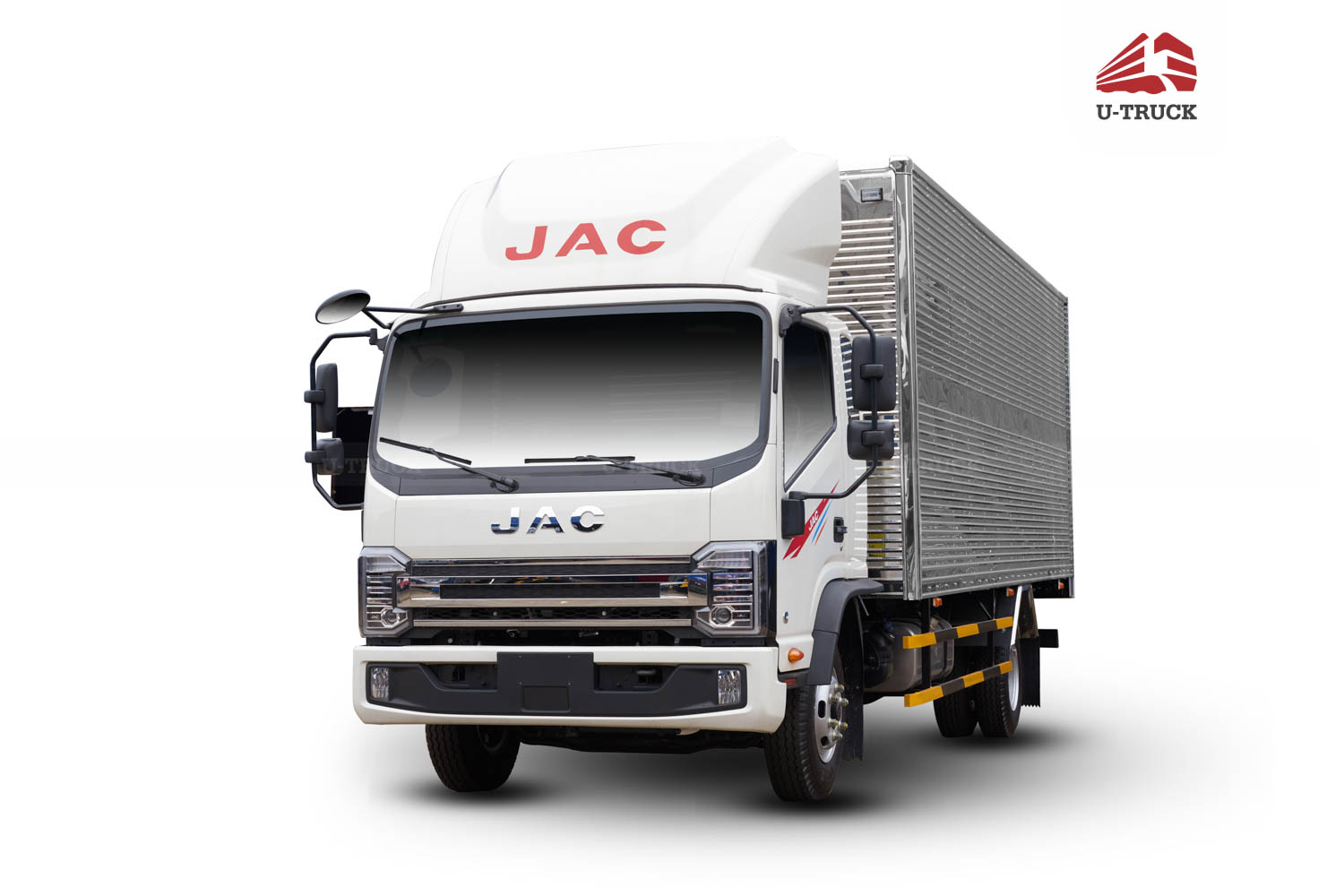

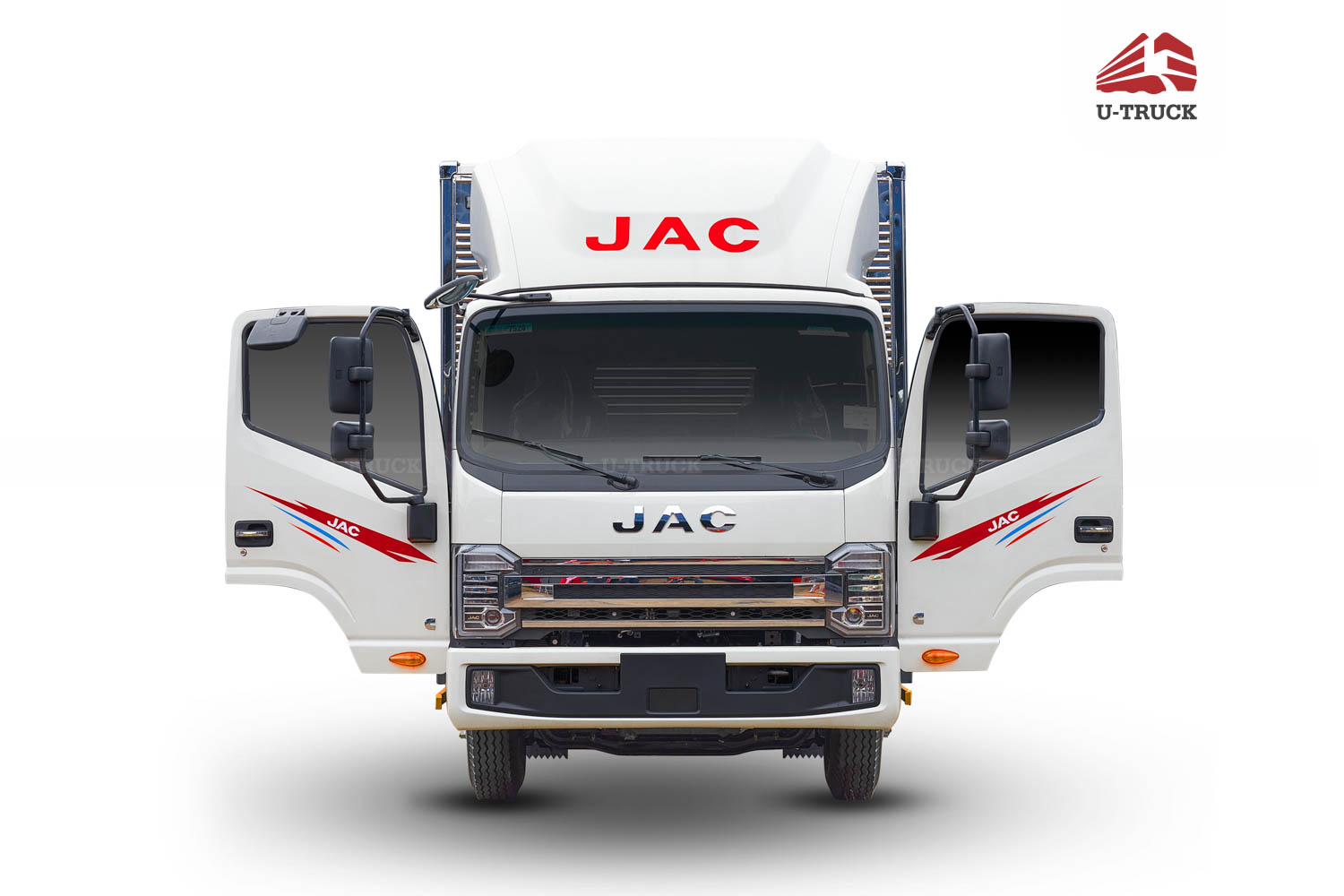

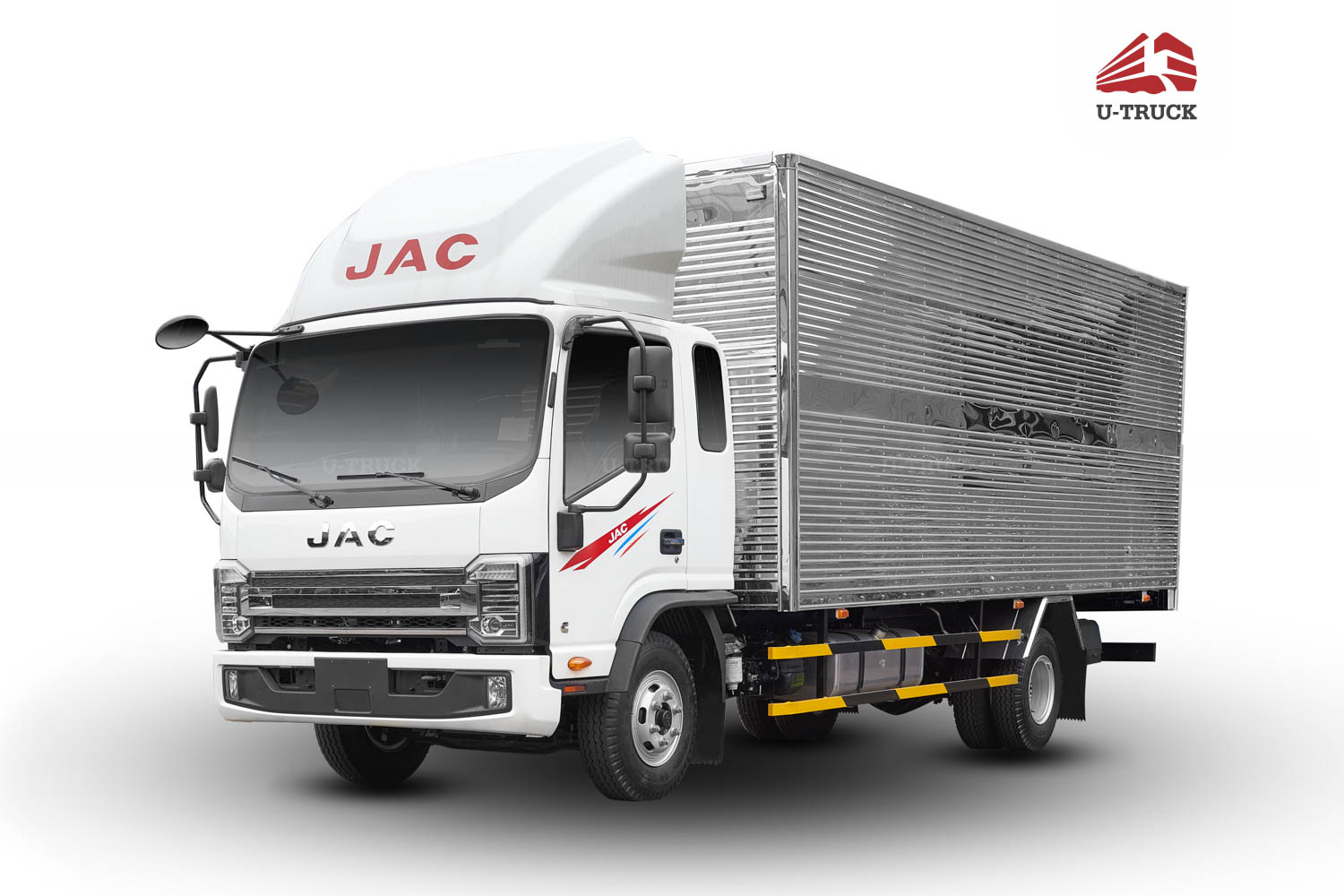

Exterior – Modern and Sophisticated Design

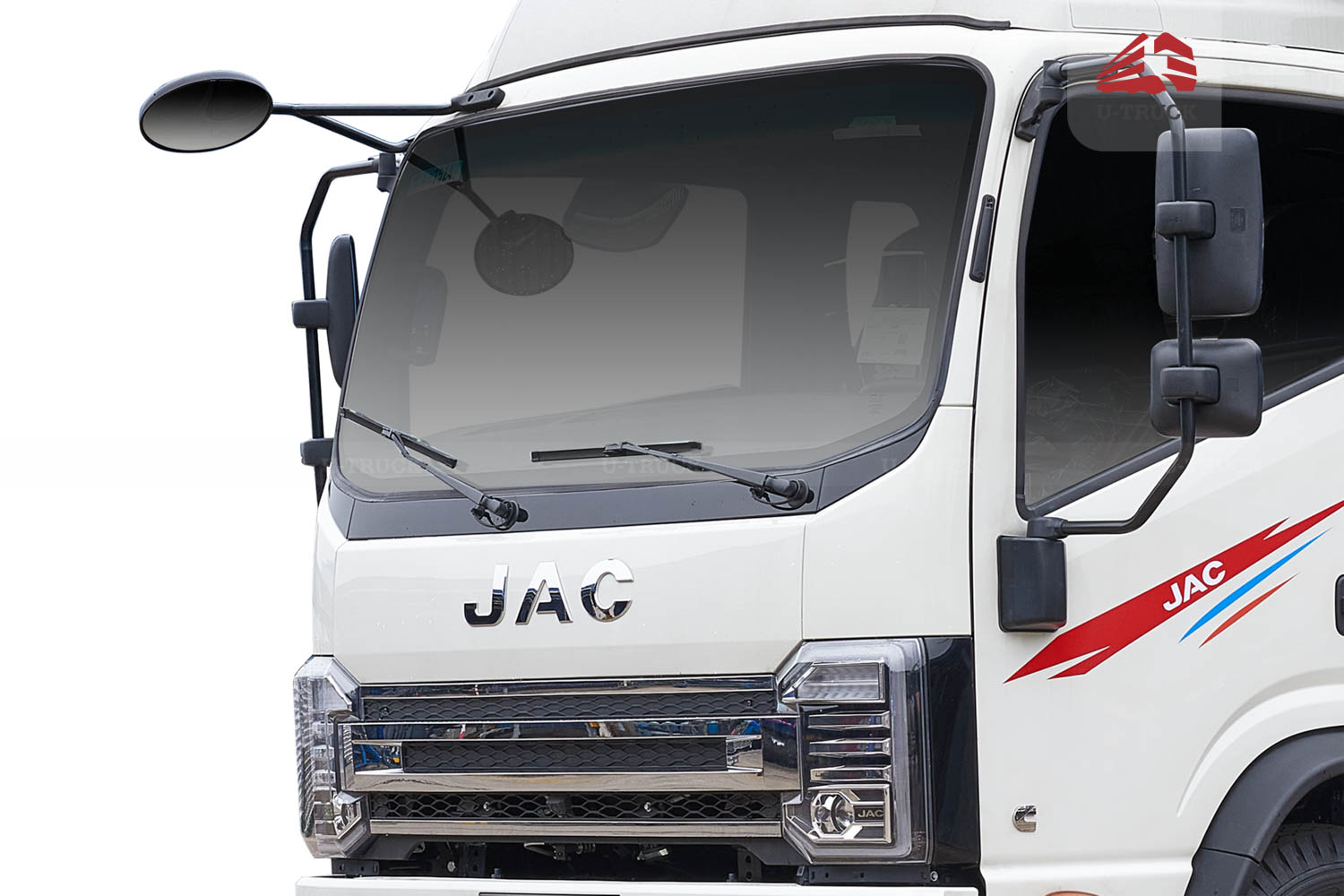

The JAC N750 PLUS E5 features a completely new cabin with a modern “shark mouth” design, combined with a chrome-plated rectangular grille to enhance airflow and cooling efficiency.

• Distinctive “shark mouth” front design improves aerodynamics and visual appeal

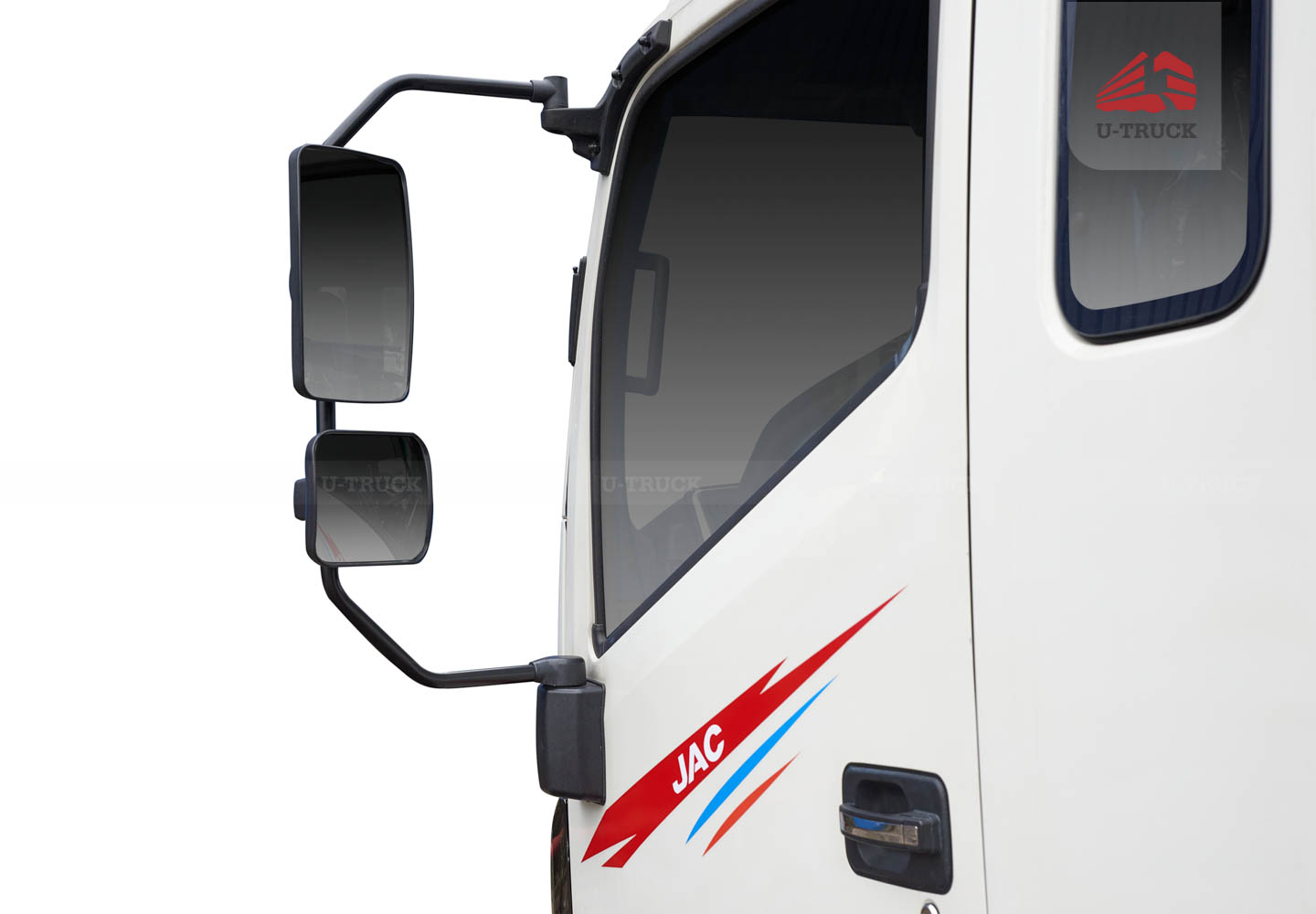

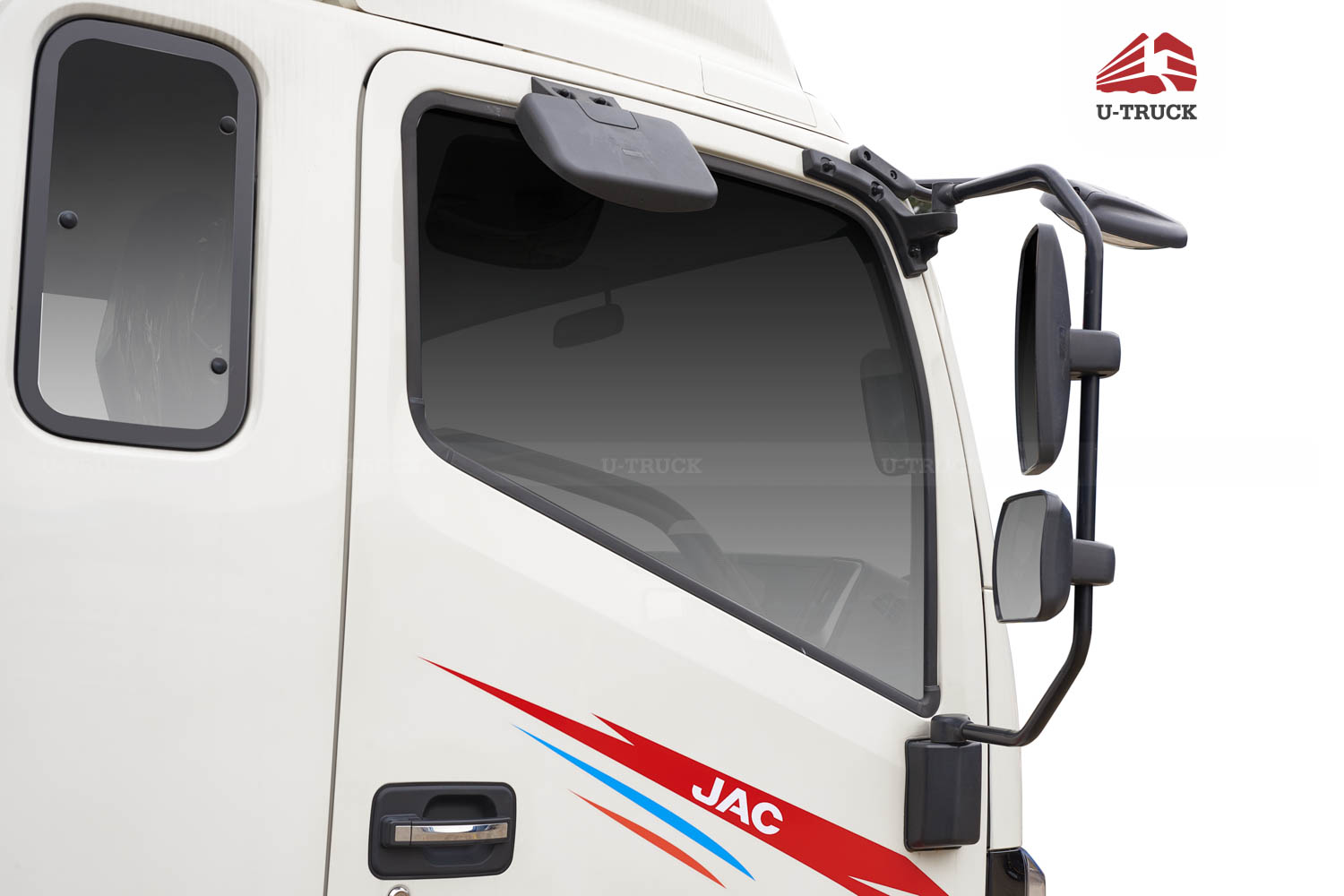

• Dual-layer rearview mirrors provide a wide viewing angle, minimizing blind spots for safer driving

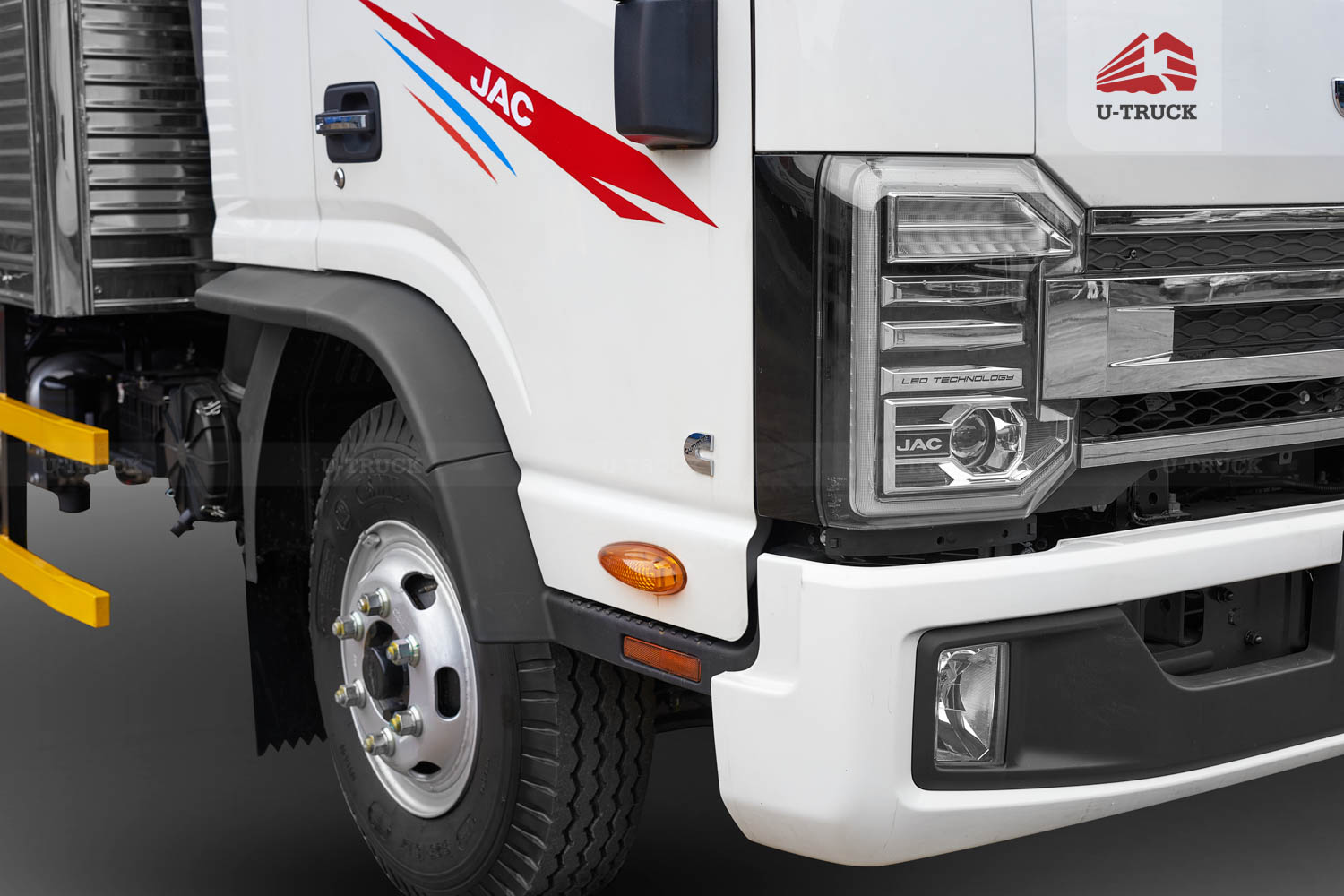

• Signature C-shaped LED lighting system with daytime running lights and fog lamps ensures optimal visibility in all weather conditions
• Aerodynamic roof spoiler reduces air resistance, improves driving smoothness, and enhances fuel efficiency

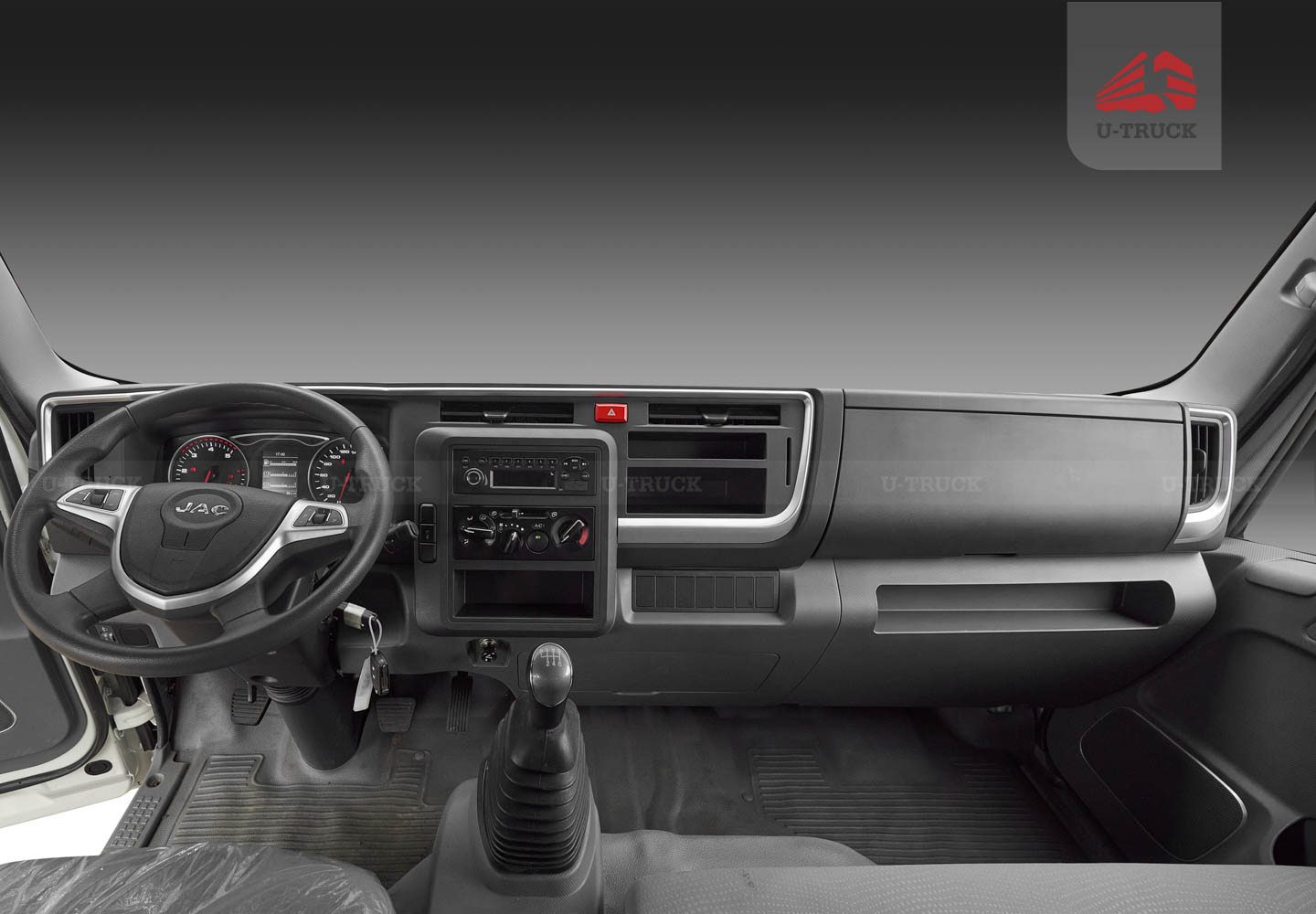

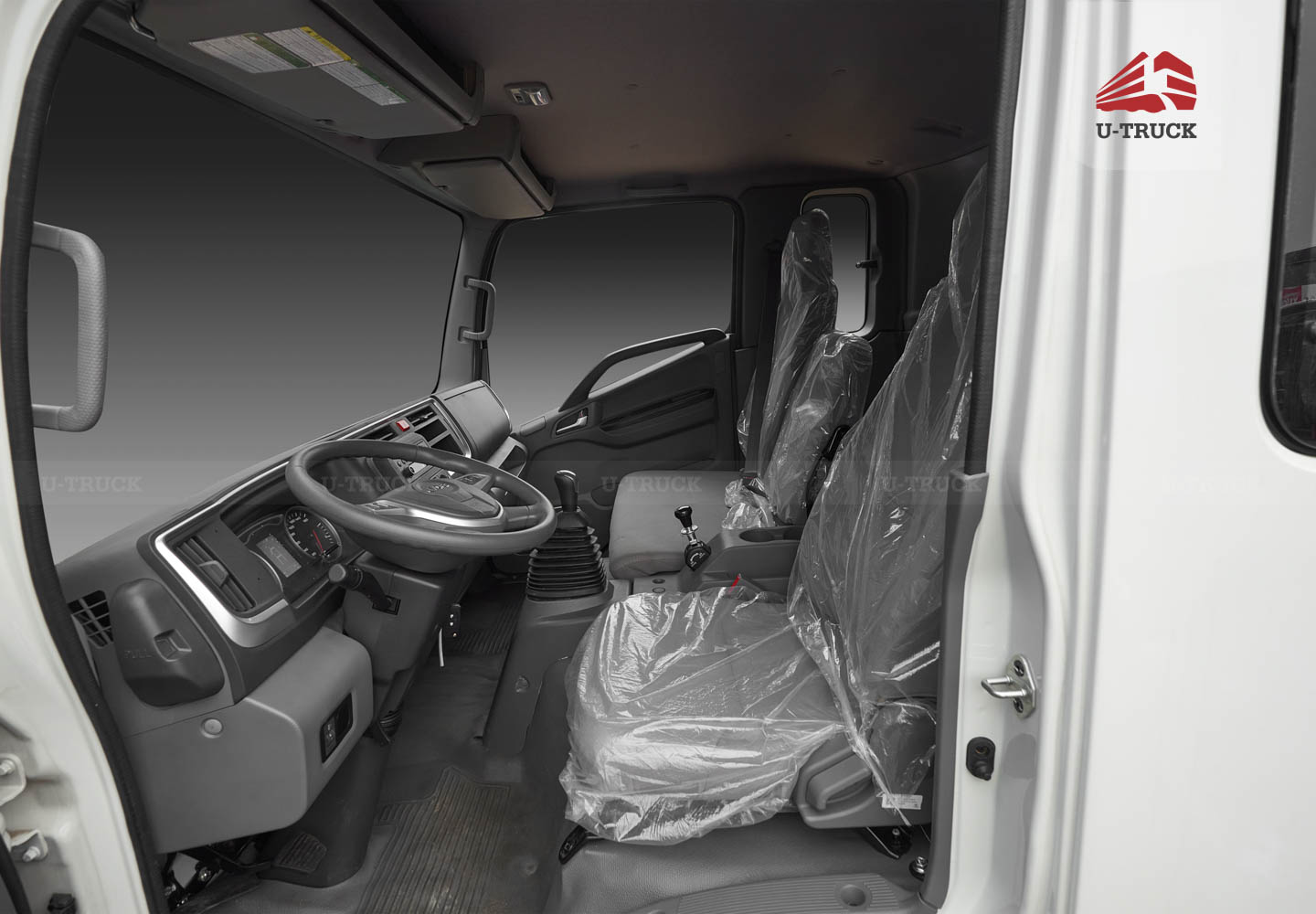

Interior – Comfortable and Fully Equipped

The cabin is equipped with modern amenities to ensure driver comfort:

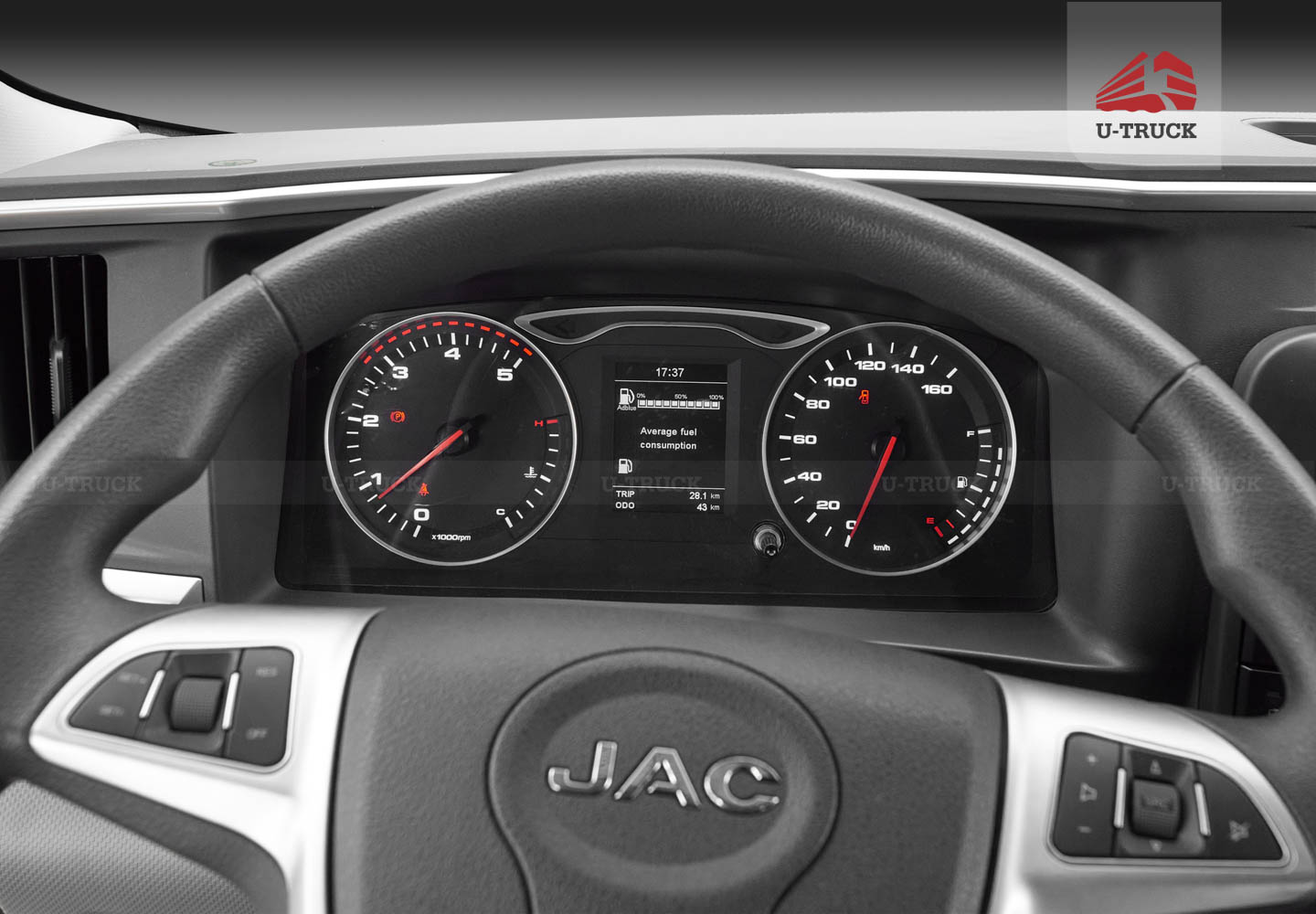

• Multifunction steering wheel with integrated audio controls

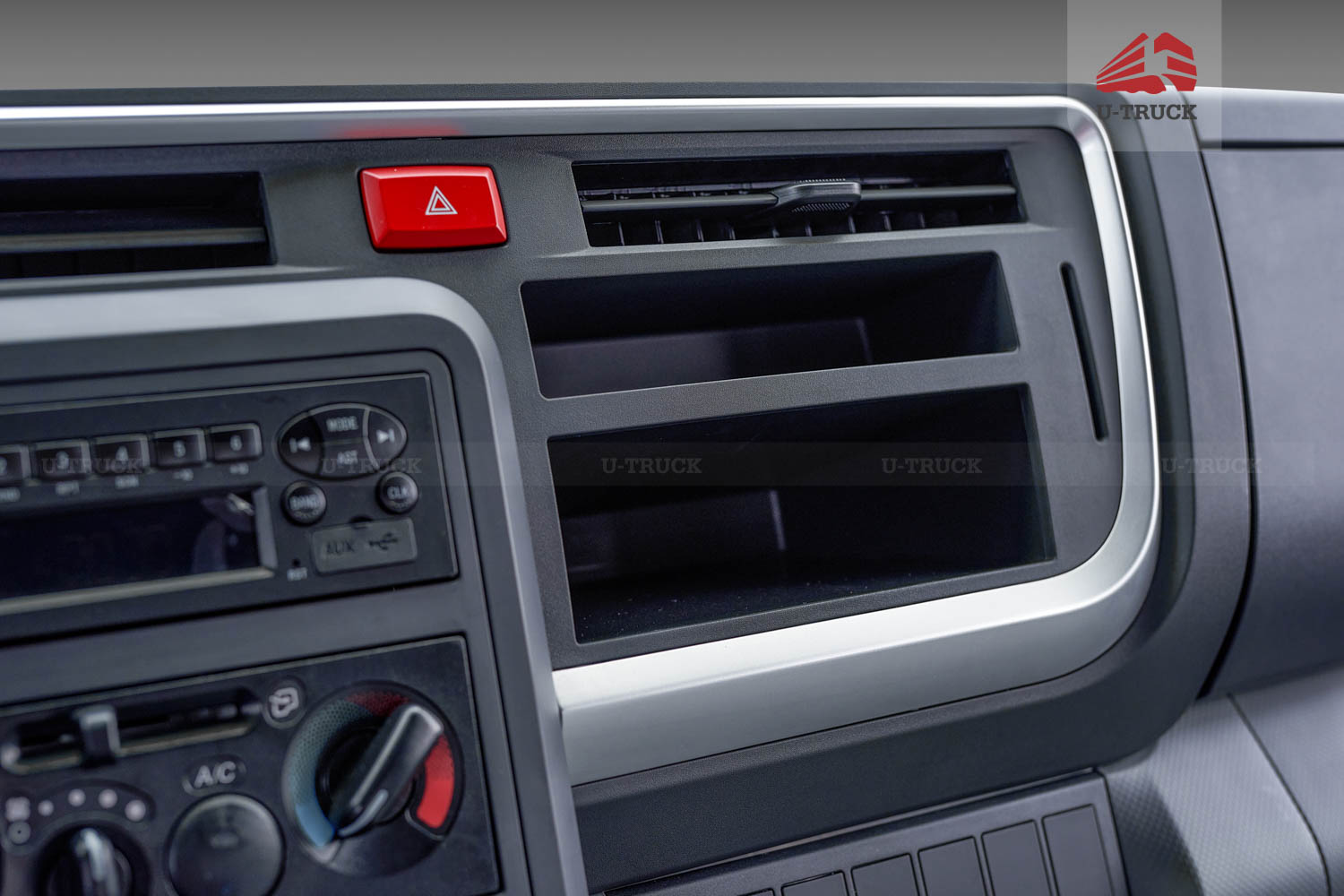

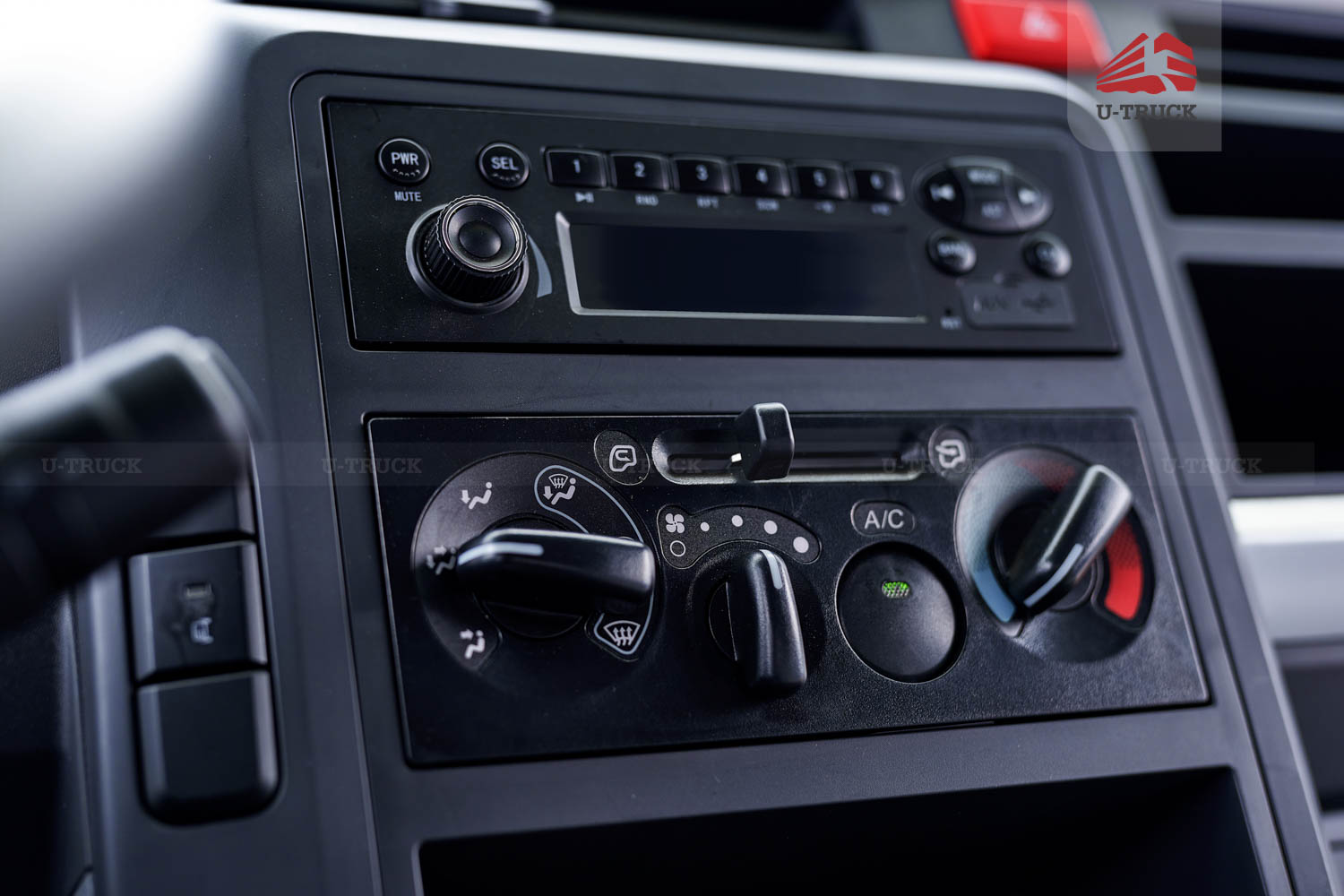

• High-capacity dual-mode air conditioning system for fast and stable cooling

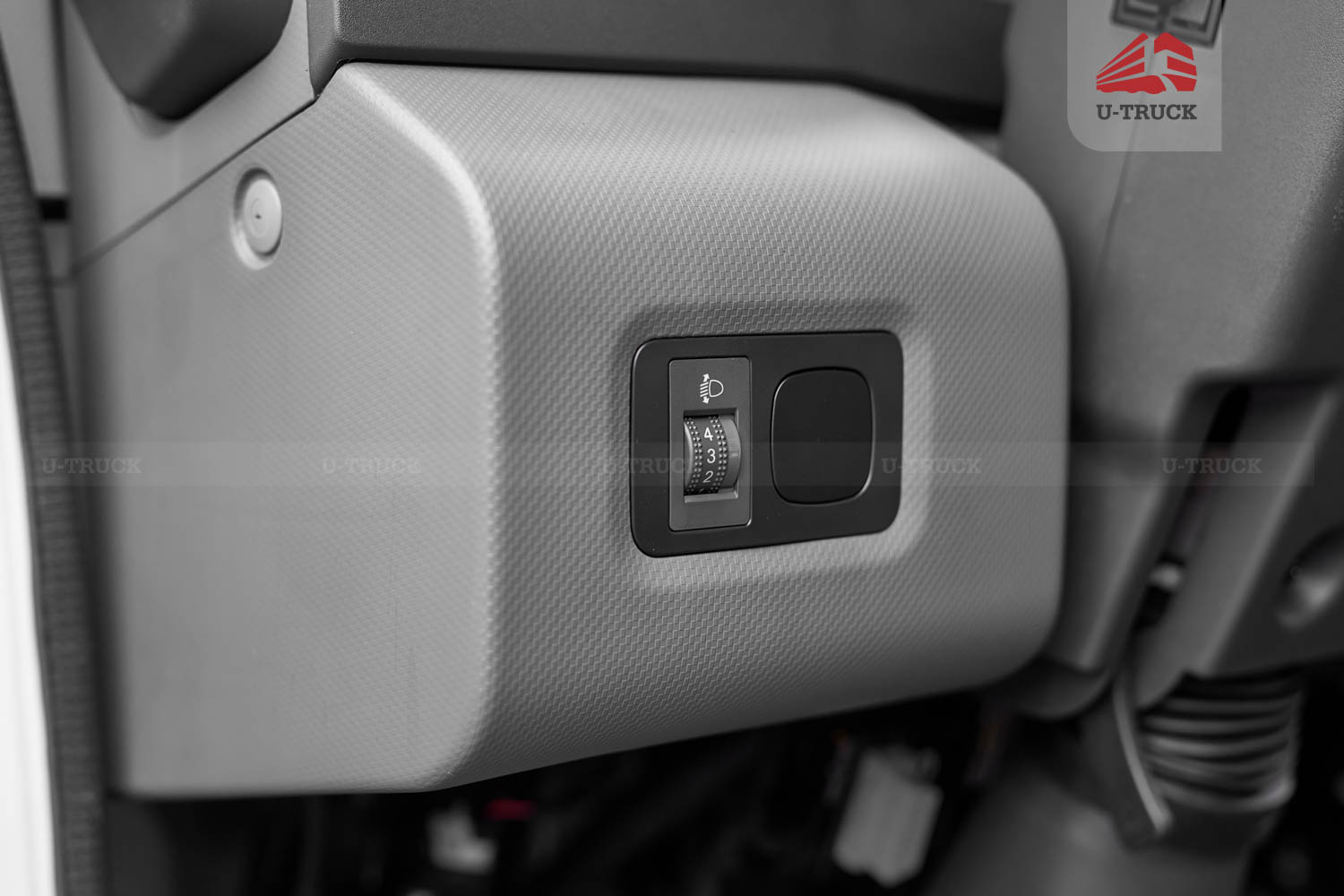

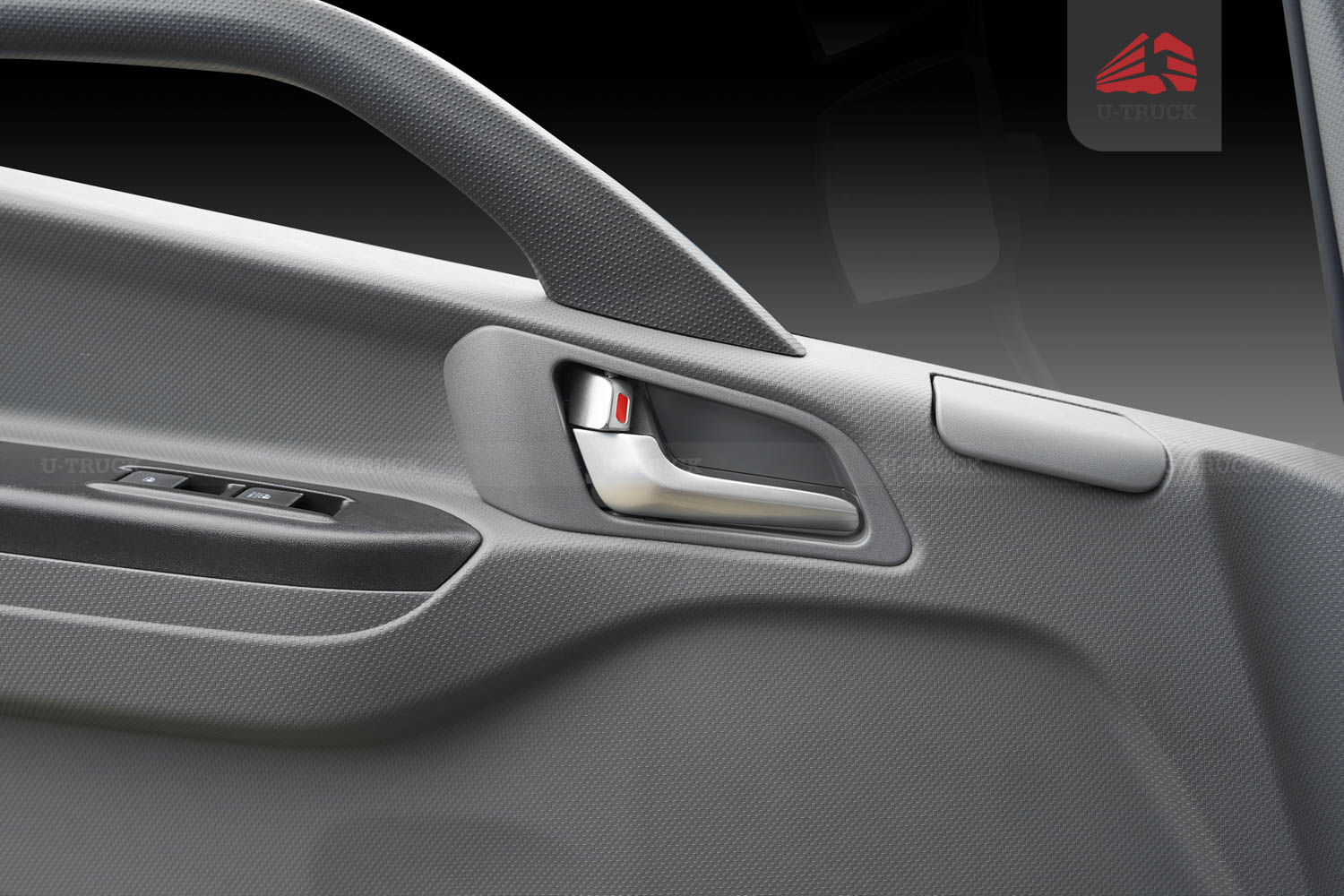

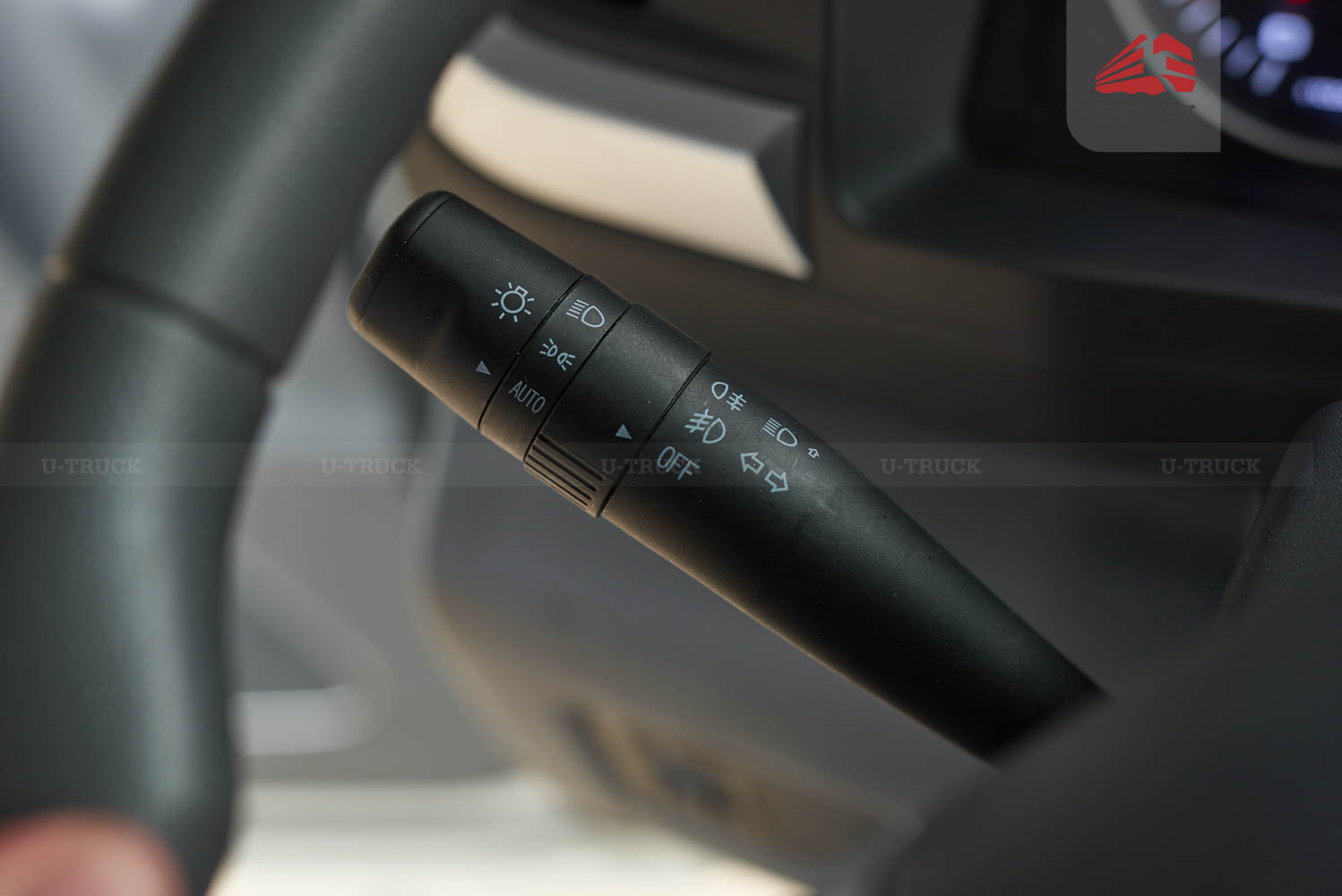

• Power windows and automatic headlight sensor

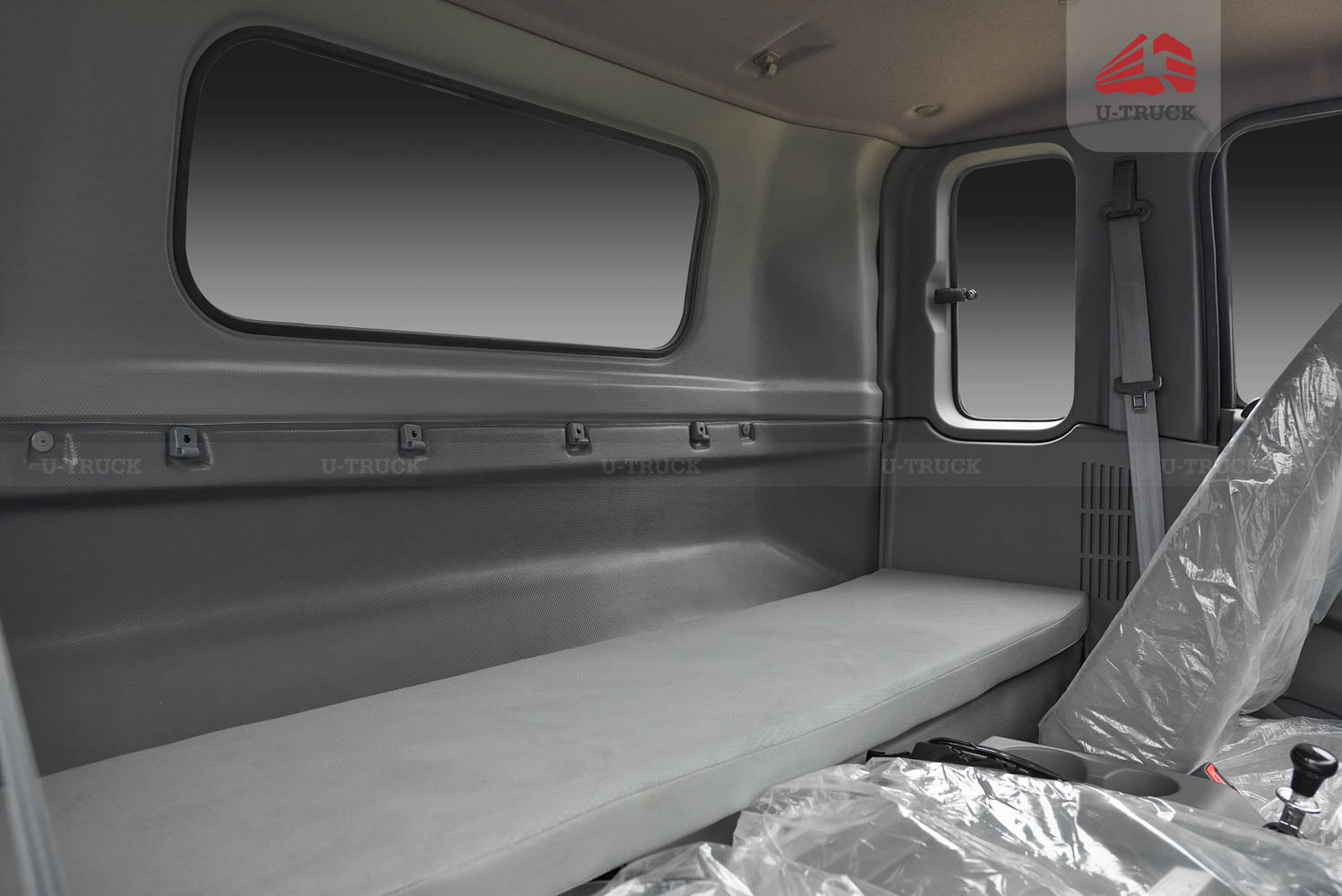

• Spacious sleeper bed for driver rest during long journeys

Engine – Powerful and Fuel Efficient

The 7-ton JAC N750 PLUS E5 box truck is powered by the YUCHAI YC4S170-50 engine:

• Output: 125 kW at 2,600 rpm
• Maximum torque: 585 Nm at 1,300–1,800 rpm
• BOSCH high-pressure fuel injection system (1,700 bar) for optimized combustion and fuel efficiency

The emission system meets Euro V standards using Selective Catalytic Reduction (SCR) technology with DEF (urea), reducing NOx emissions and protecting the environment.

Performance – Smooth and Safe Operation

• Leaf spring suspension combined with hydraulic shock absorbers (front & rear) ensures smooth driving on all terrains
• Modern ABS braking system combined with exhaust brake (cuppo) enhances braking performance, especially on downhill roads
• Reinforced single-layer chassis with large cross-section, coated with electrostatic anti-rust paint for durability and high load capacity

Additional Specifications

• Payload: 7,100 kg
• Overall dimensions (L × W × H): 8400 × 2420 × 3380 mm
• Cargo box dimensions (L × W × H): 6200 × 2310 × 2110 mm

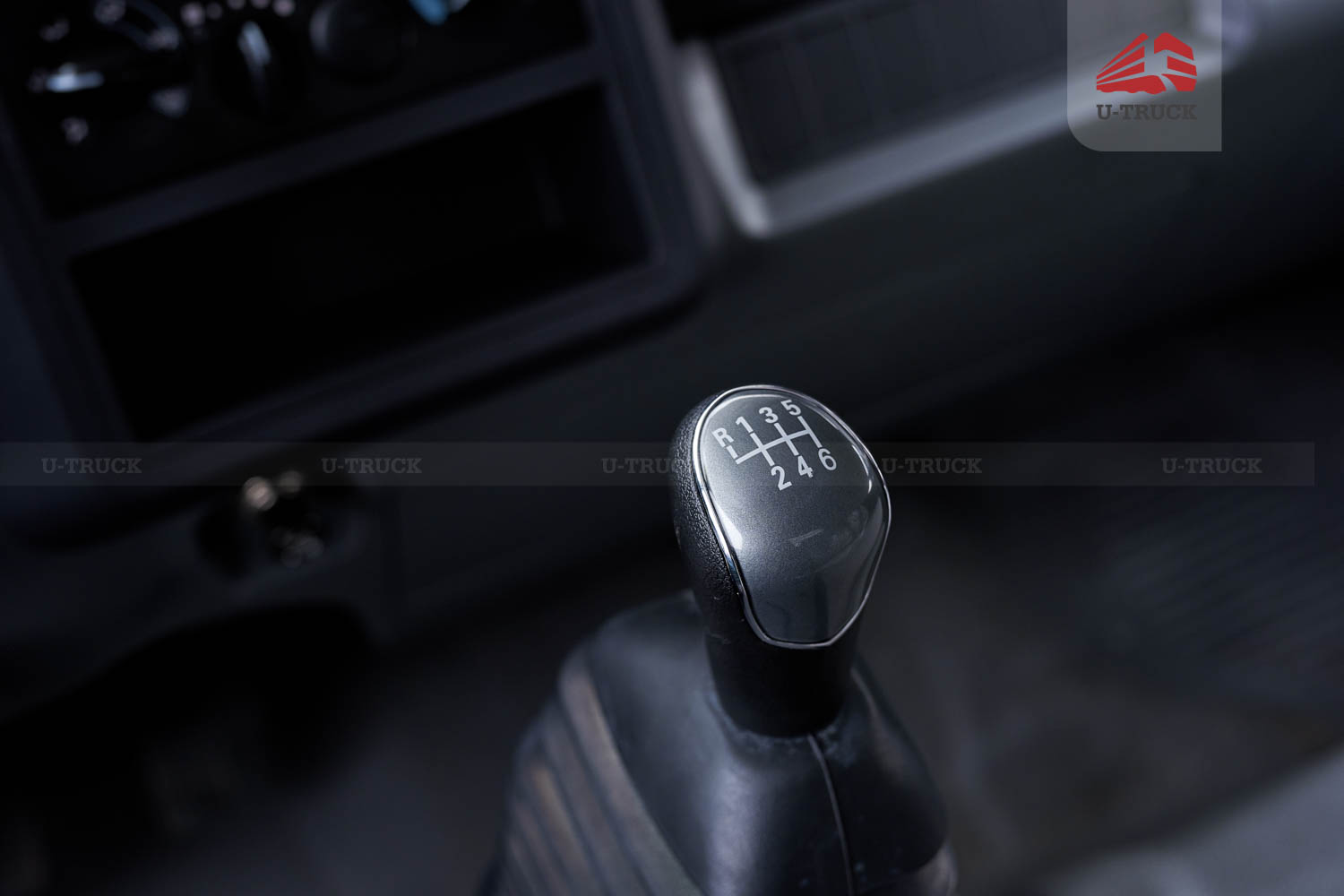

• FAST gearbox (6DSX60T): 6 forward gears + 1 reverse gear, optimized for speed and fuel efficiency
• Aluminum alloy gearbox housing: lightweight, durable, and efficient heat dissipation
• Smooth gear shifting with counterweight mechanism

Axles:

• Front axle: I-beam design, load capacity 4,000 kg
• Rear axle: load capacity 9,000 kg, final drive ratio 4.875

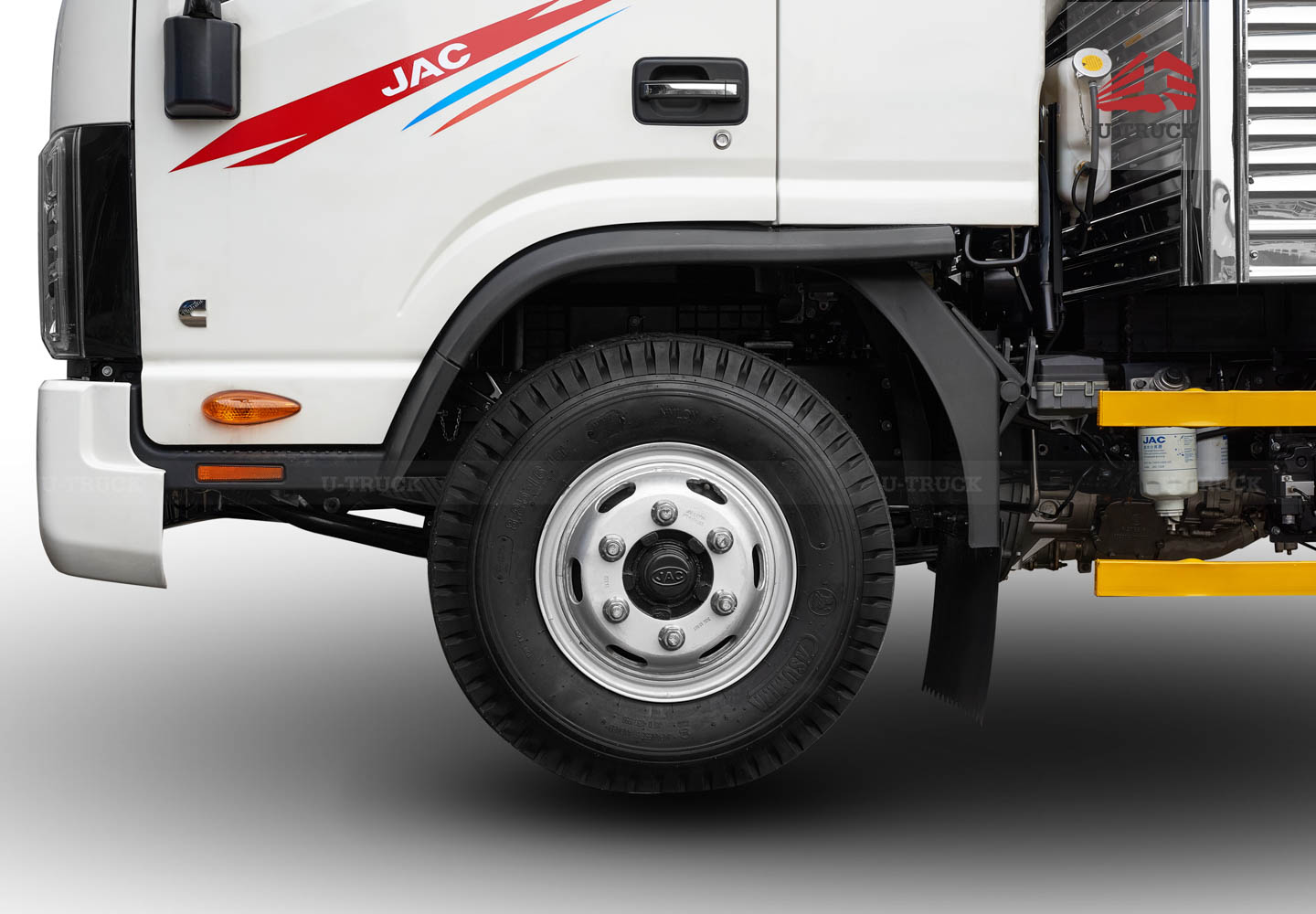

• Casumina tires (8.25-R16, nylon) with high load capacity and stable quality
• Aluminum fuel tank: 210L capacity

Maintenance & Warranty Policy

• Warranty: 60 months or 150,000 km (whichever comes first)
• Periodic maintenance carried out by professional technicians, ensuring stable and efficient operation

Conclusion

With its modern design, powerful engine, excellent fuel efficiency, and high safety standards, the JAC N750 PLUS E5 box truck is an ideal choice for transport businesses.
