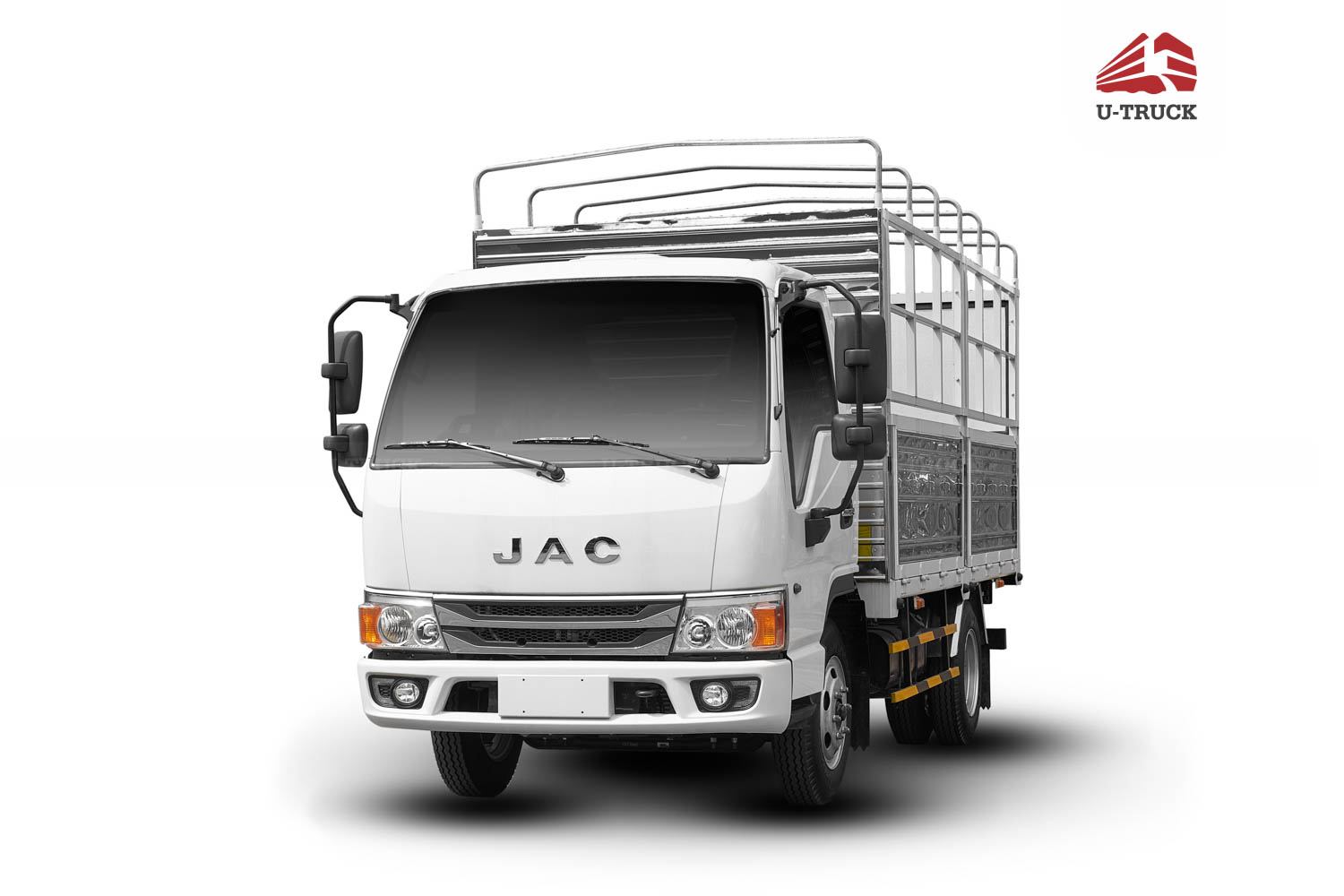

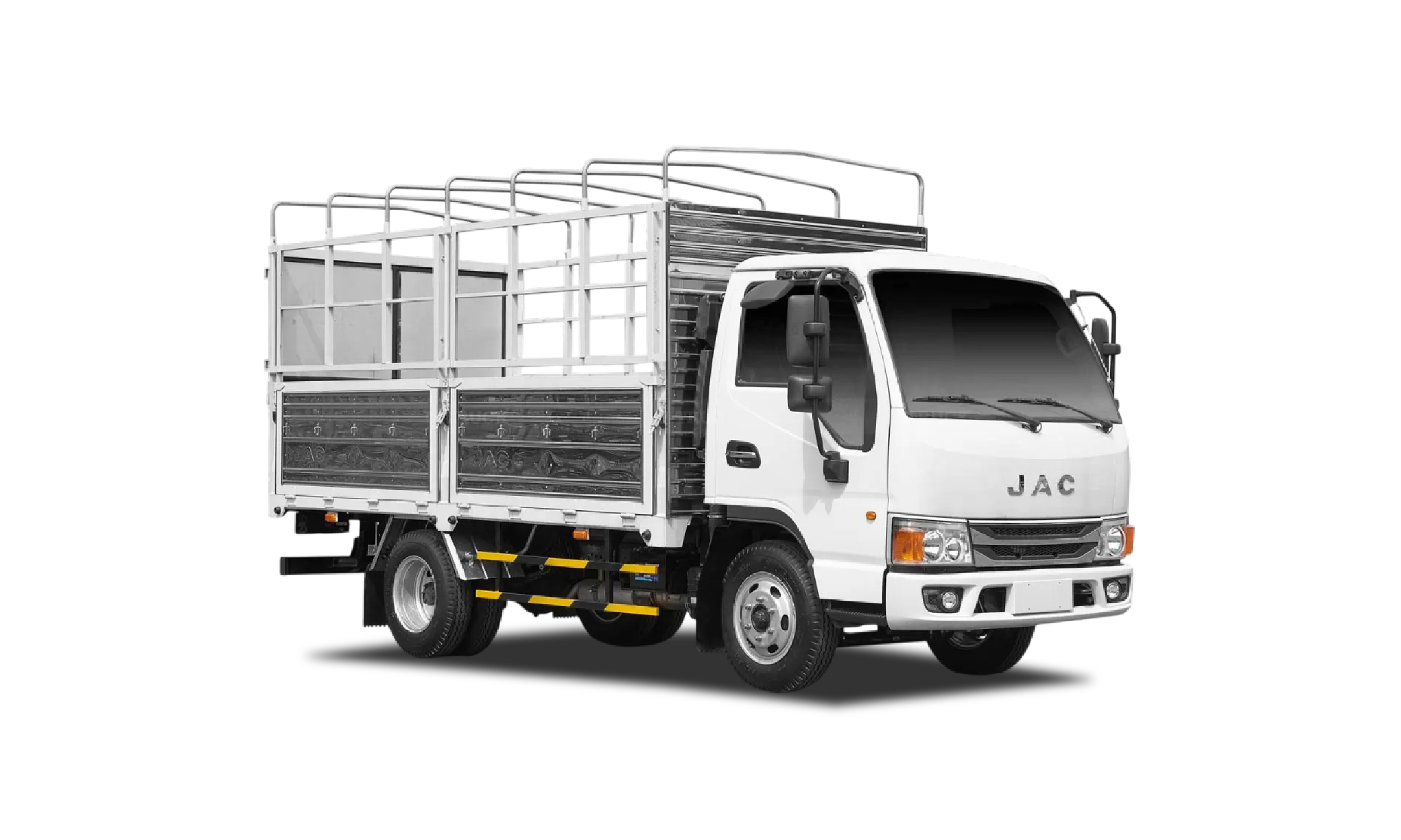

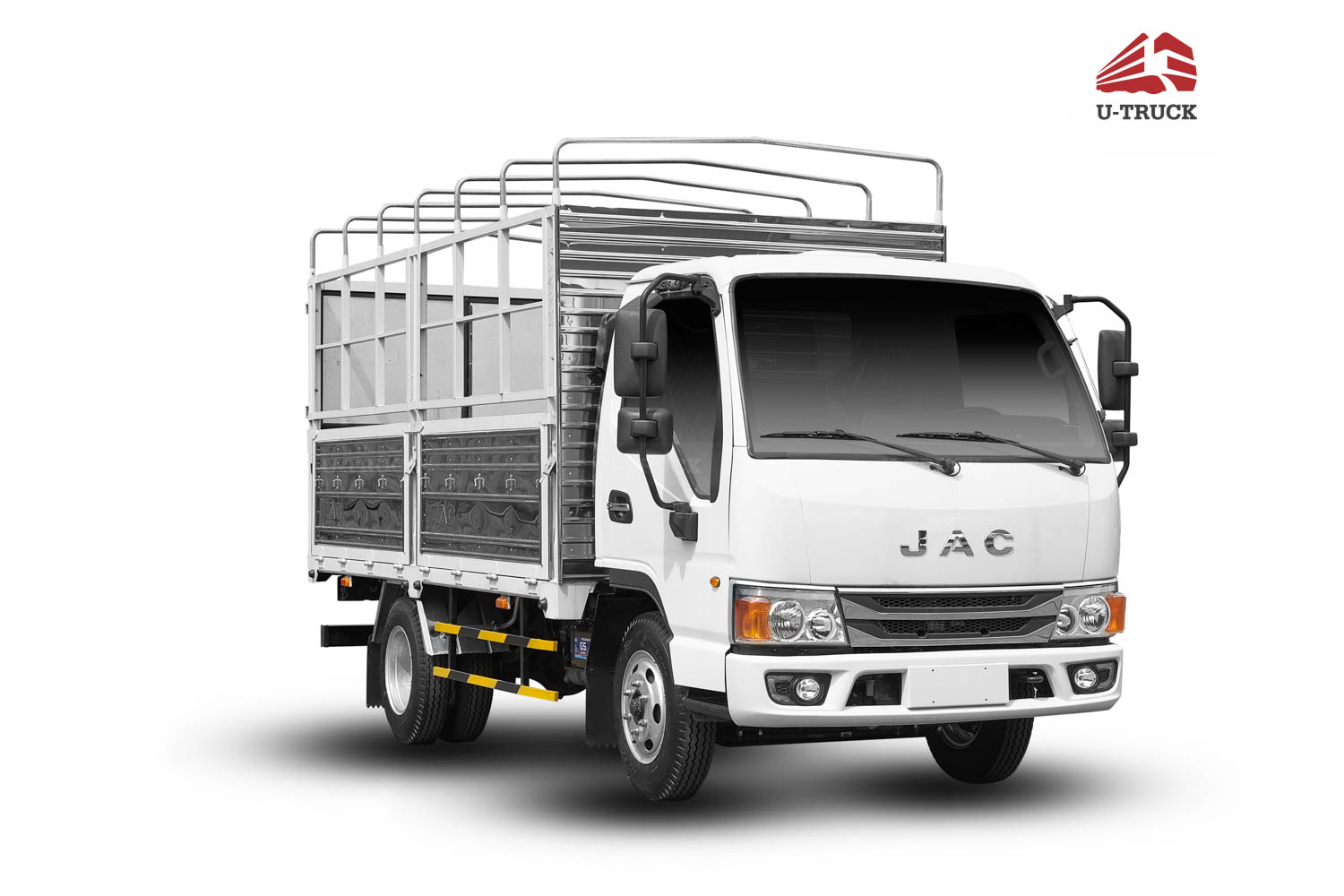

JAC H250 E5 – Tarpaulin Cargo Truck

The JAC H250 E5 tarpaulin truck is a versatile light truck suitable for transporting various types of goods including agricultural produce, construction materials, consumer goods, and food. With its modern design, powerful engine, comfortable interior, and durable chassis, it ensures stable performance across all routes.

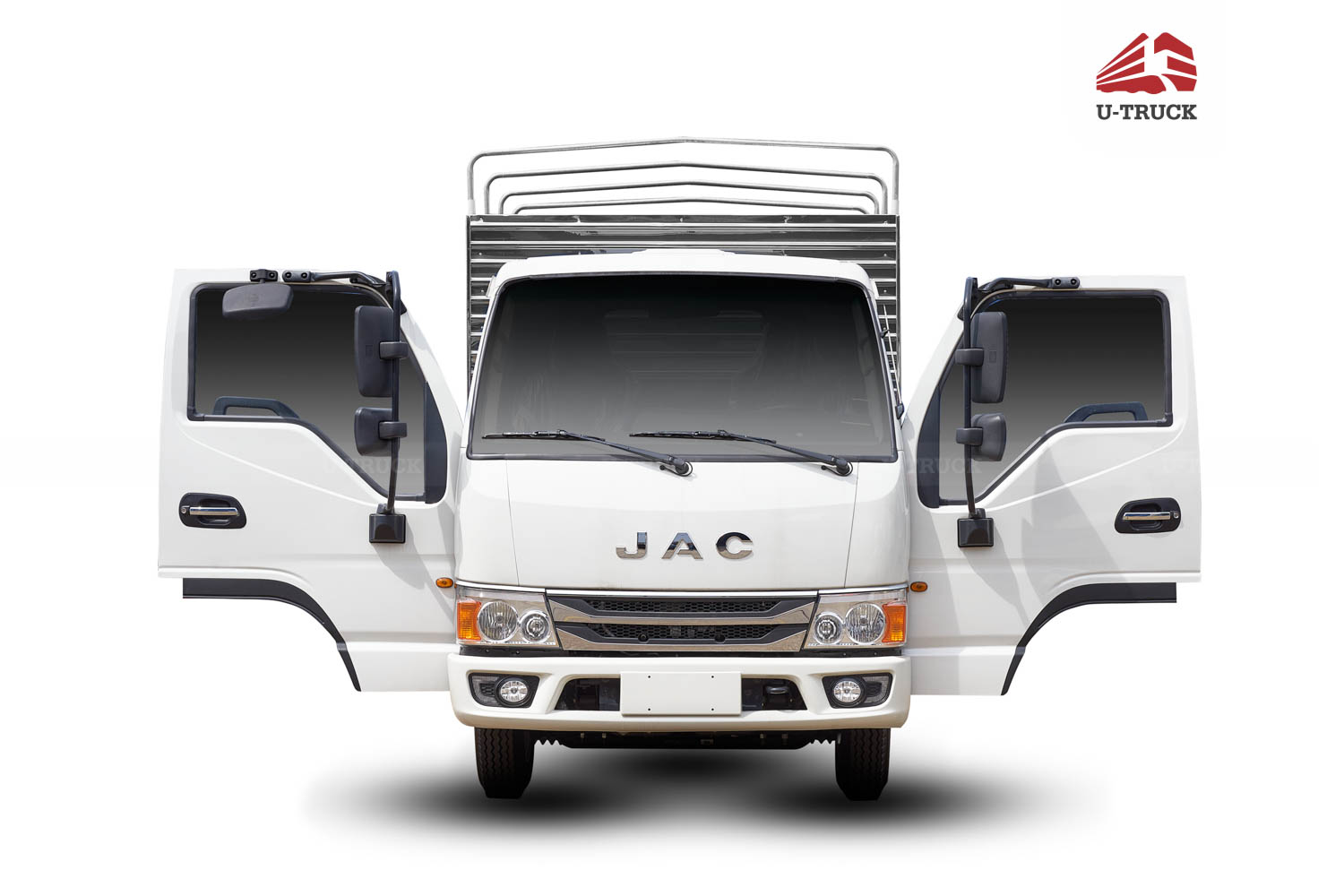

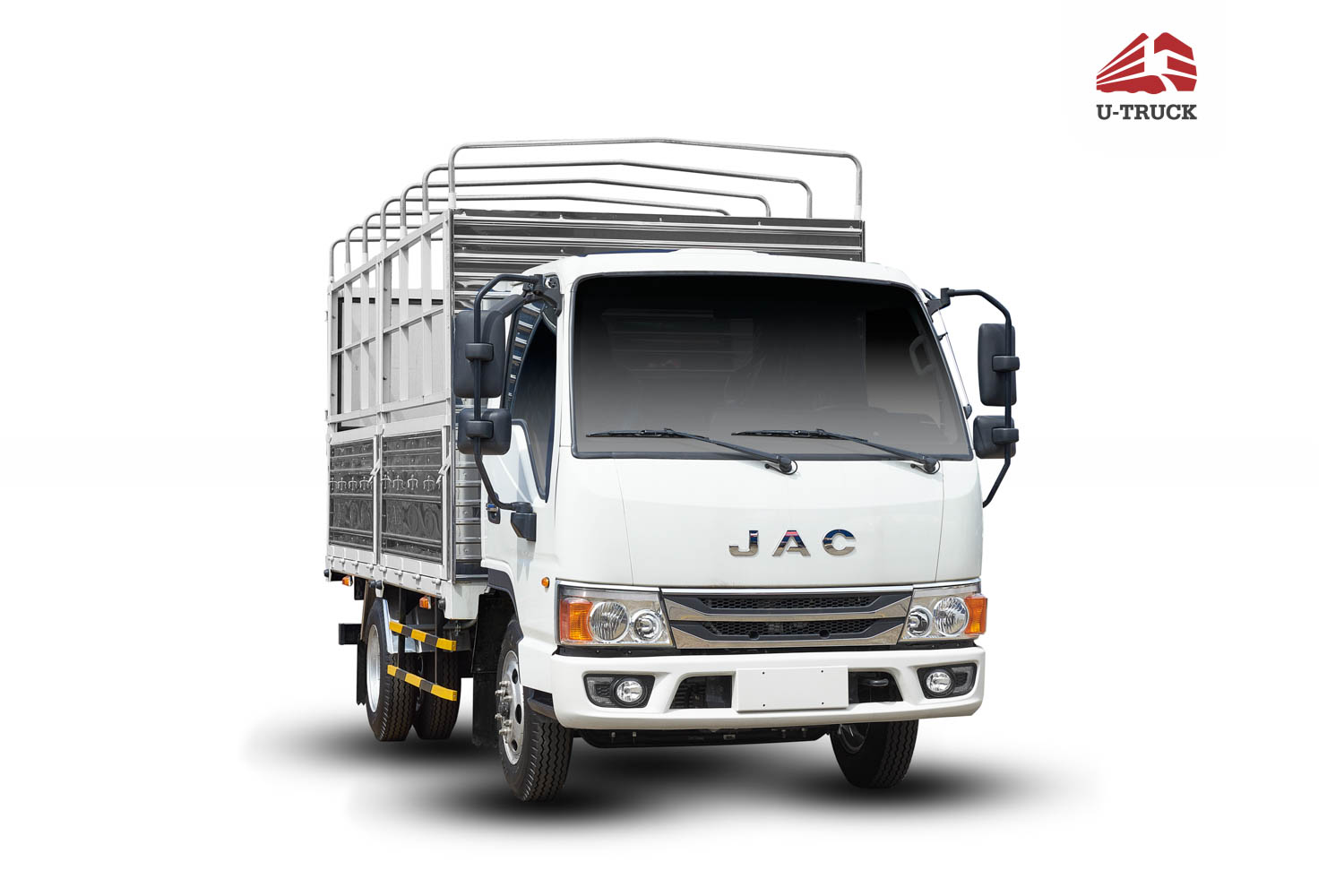

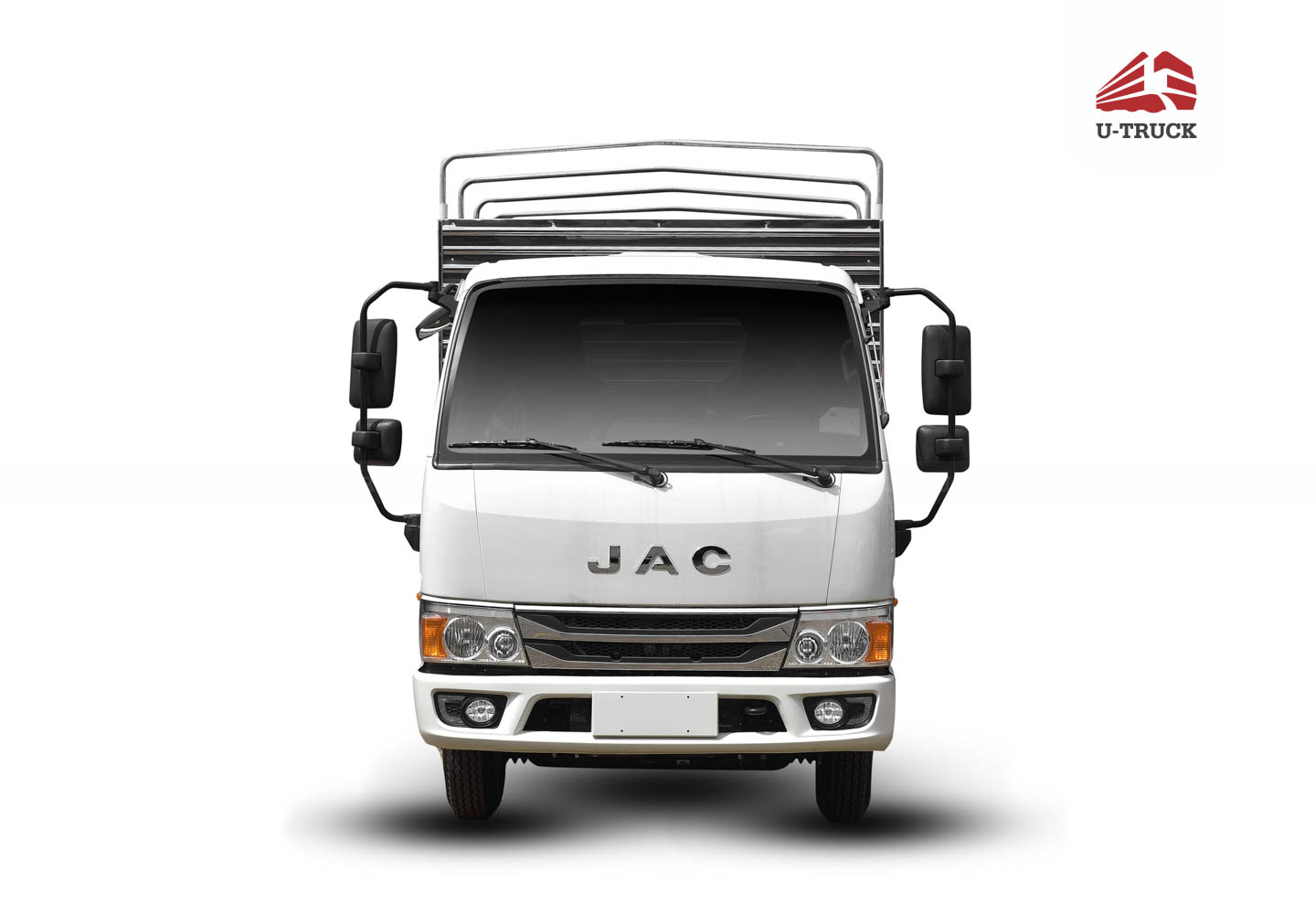

Exterior – Modern & Durable

The JAC H250 E5 features a reliable and aerodynamic cabin design that enhances fuel efficiency and ensures stable performance:

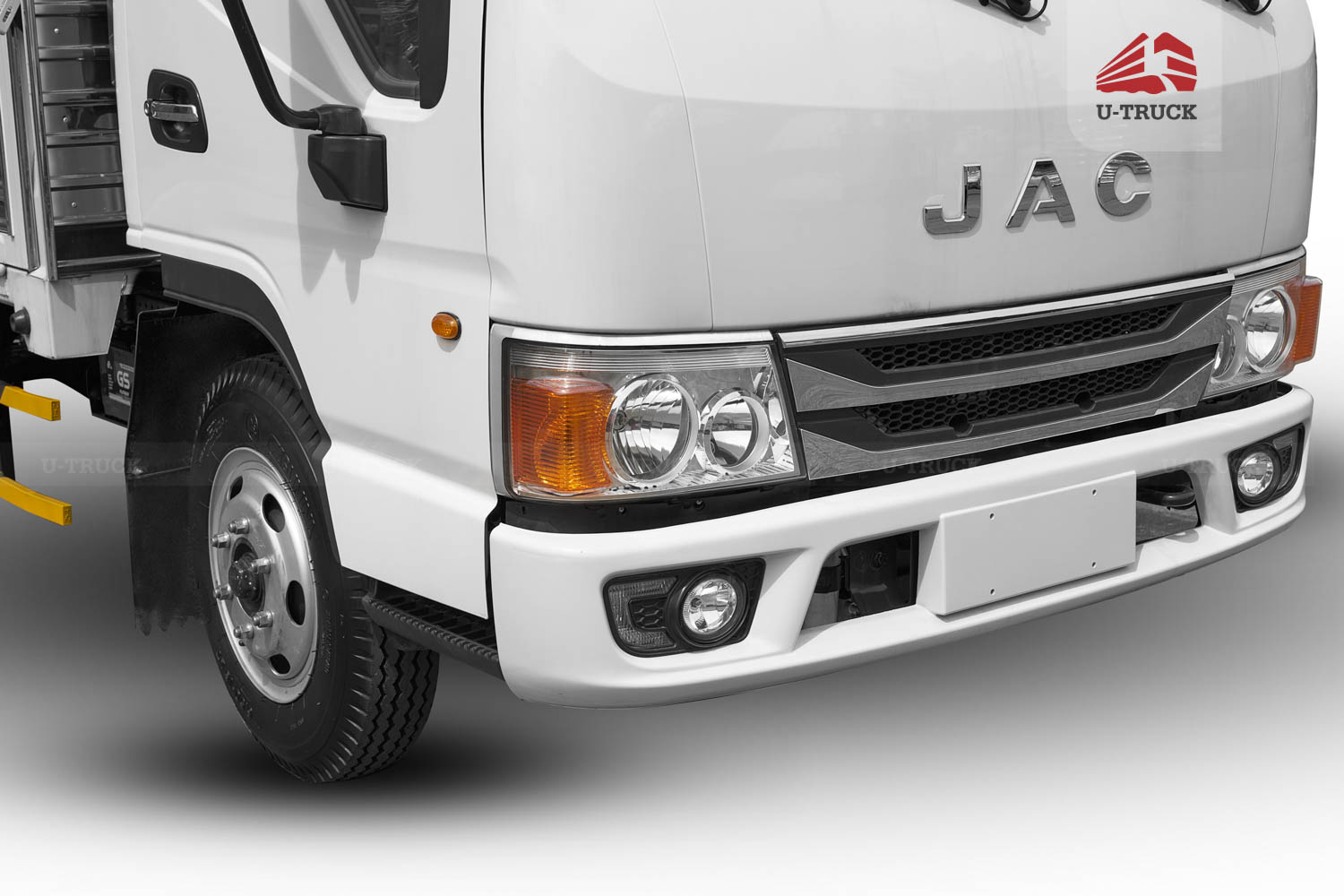

• Chrome-plated grille enhances cooling efficiency and maintains stable operation over long periods.
• Daytime LED lights combined with fog lamps ensure clear visibility even in poor weather conditions.

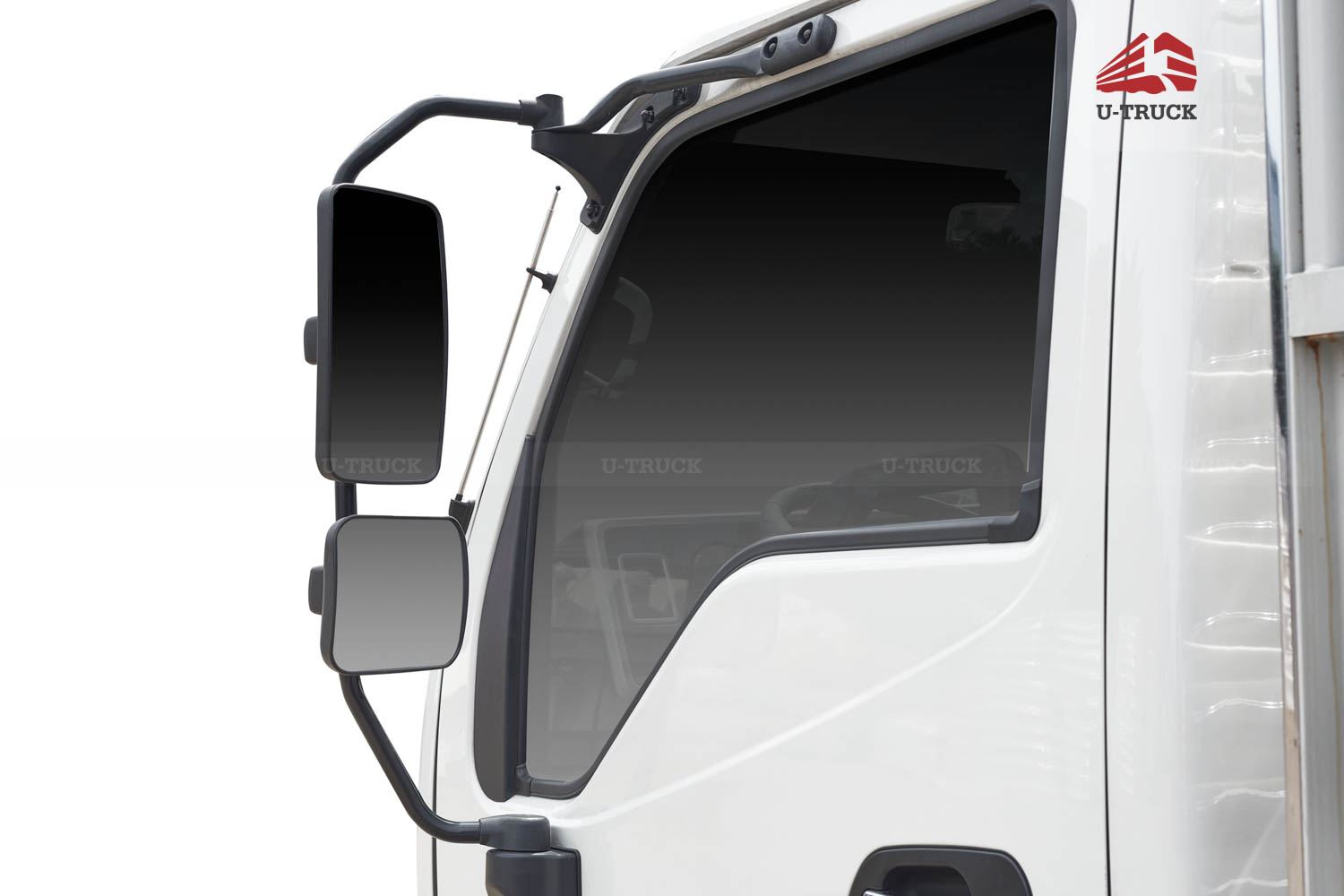

• Wide viewing angle helps drivers better control road situations, minimizing blind spots and improving safety.

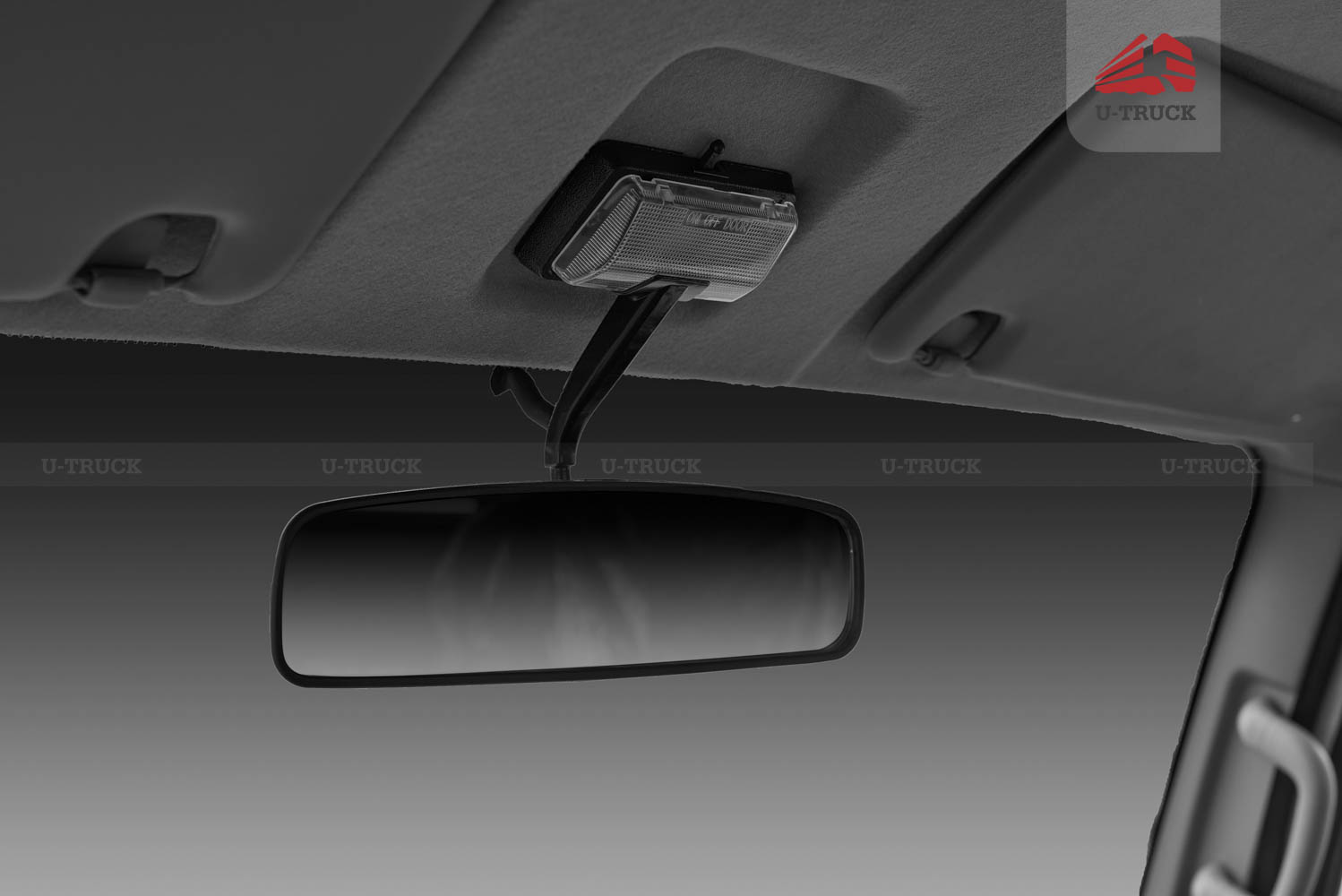

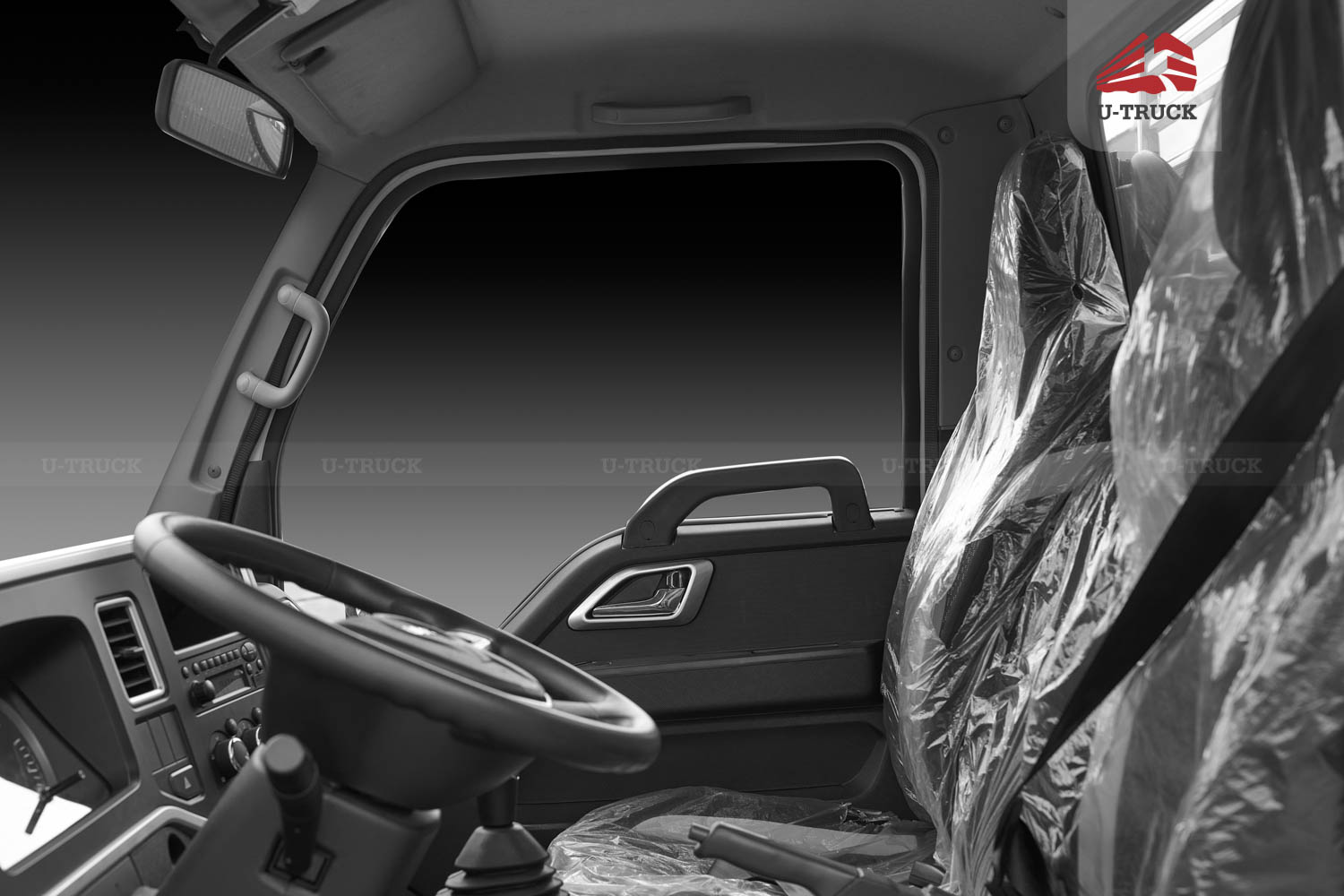

Interior – Functional & Comfortable

The cabin is spacious and equipped with modern features to deliver a comfortable driving experience:

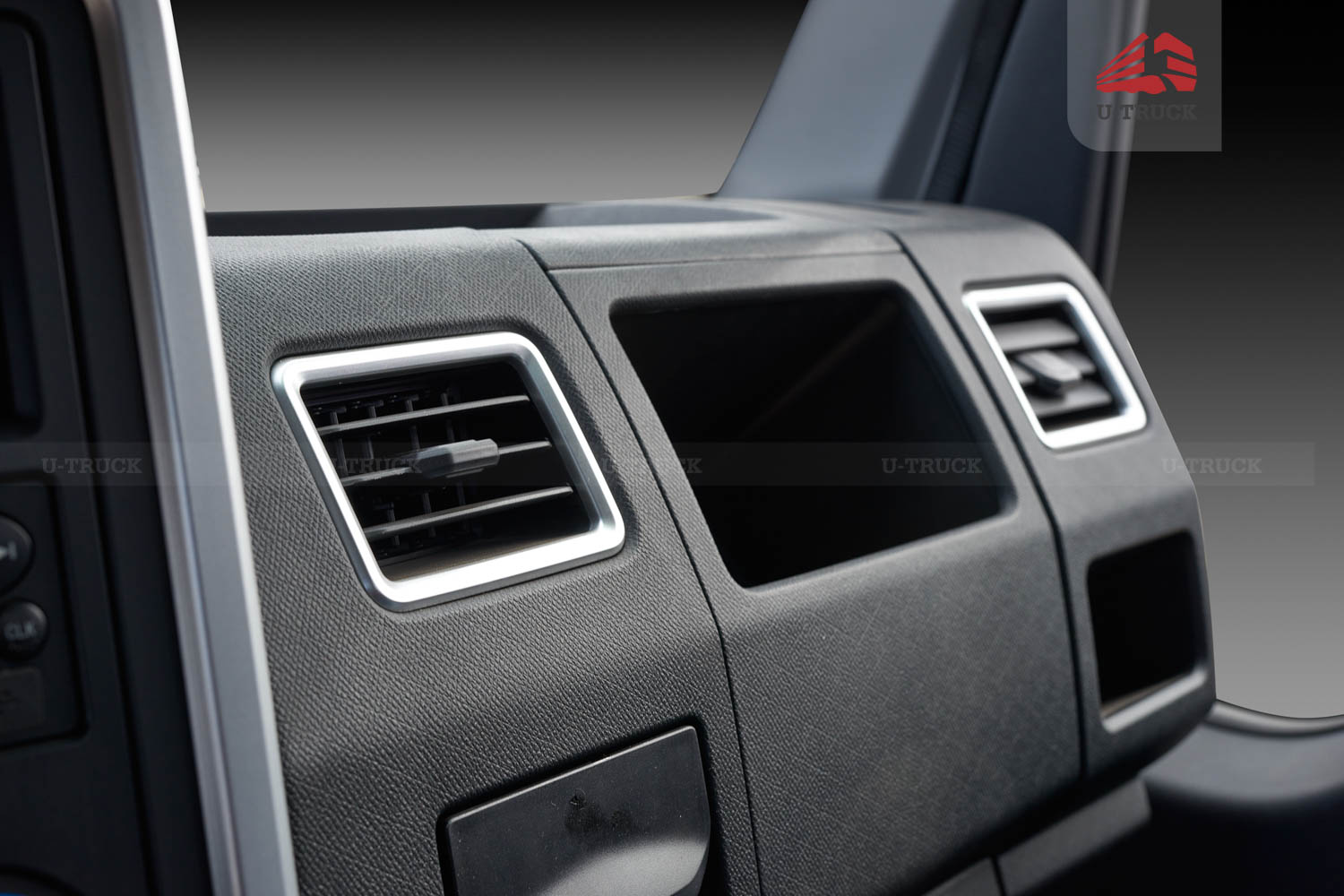

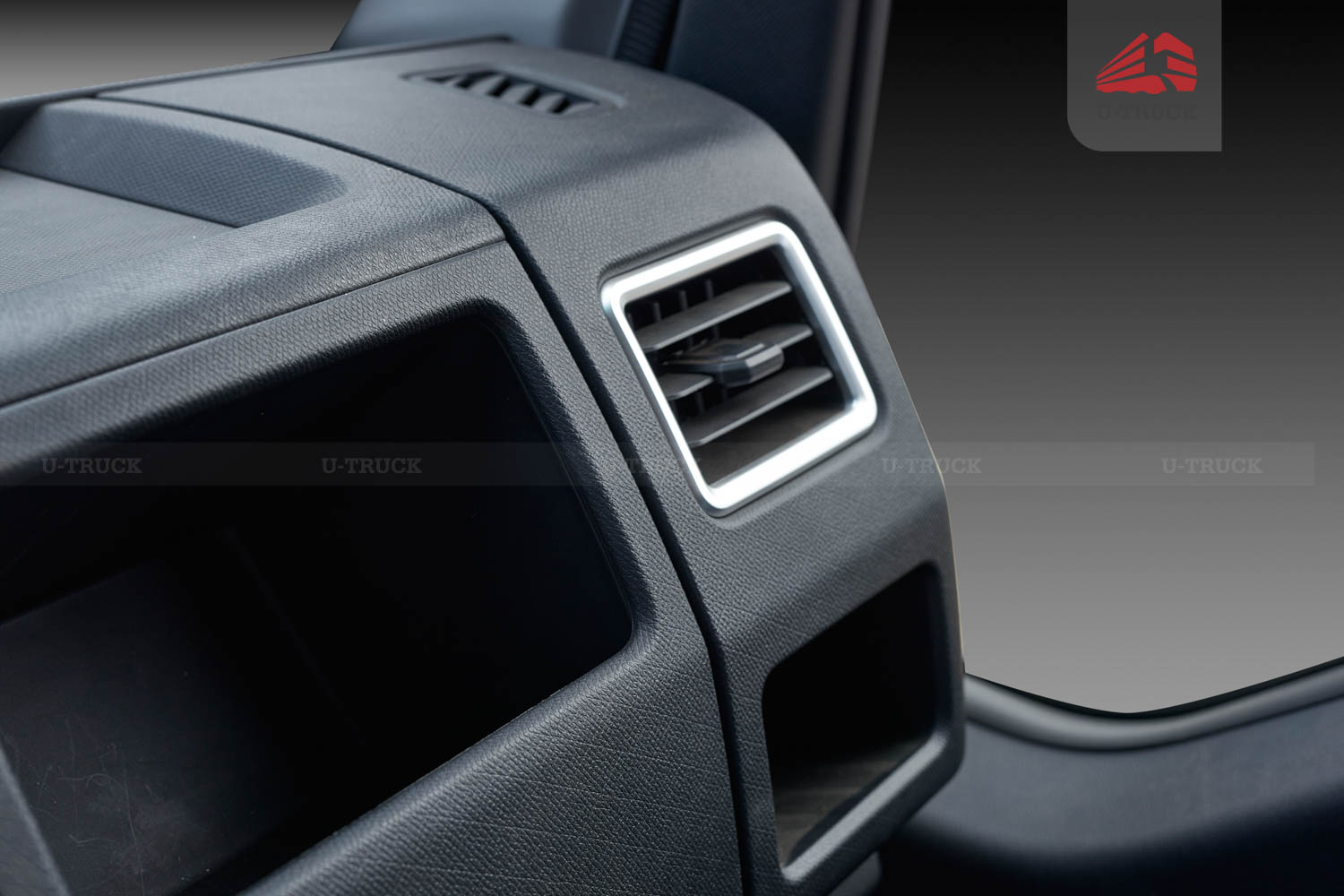

• High-capacity dual-mode air conditioning ensures quick cooling and a pleasant cabin environment.

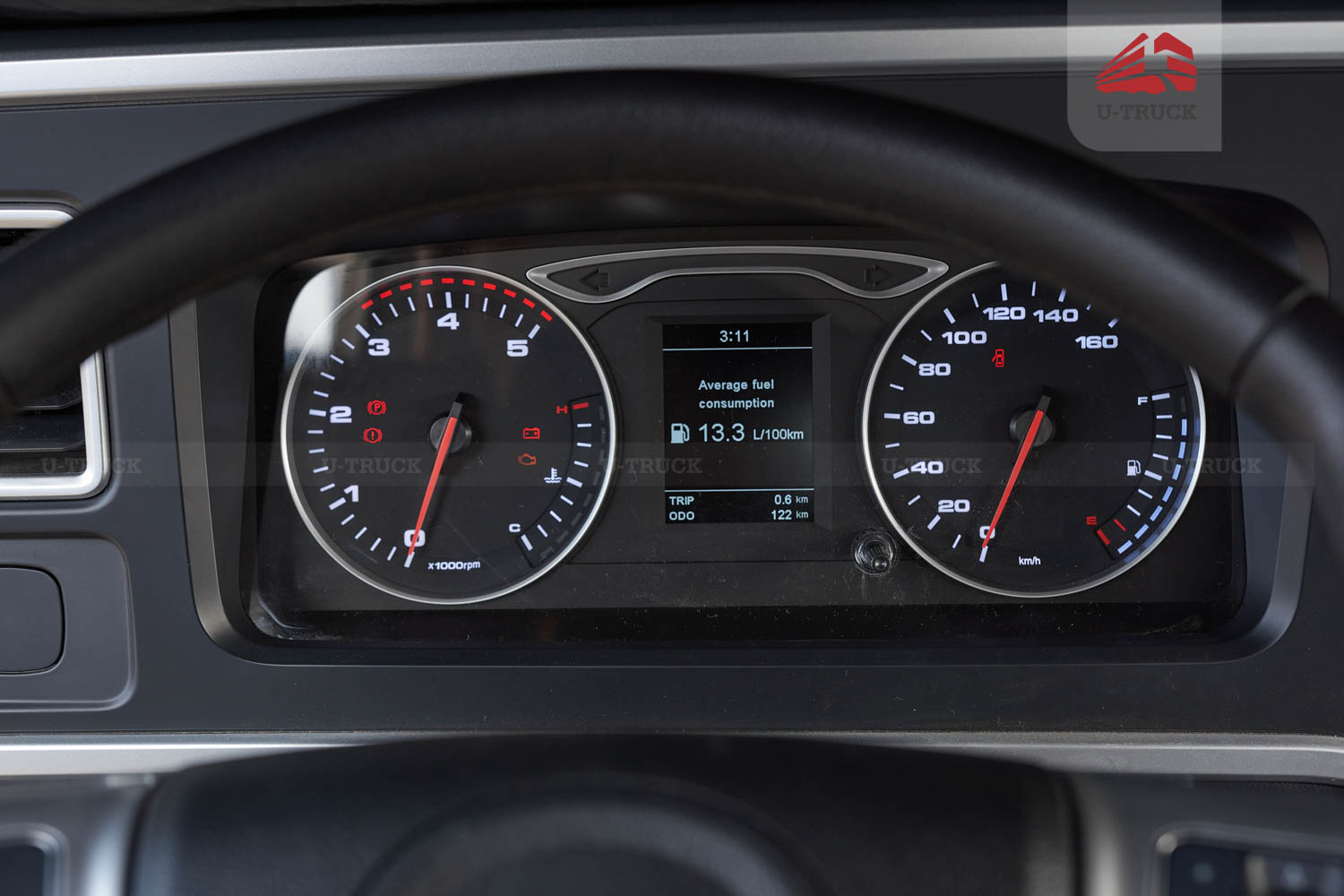

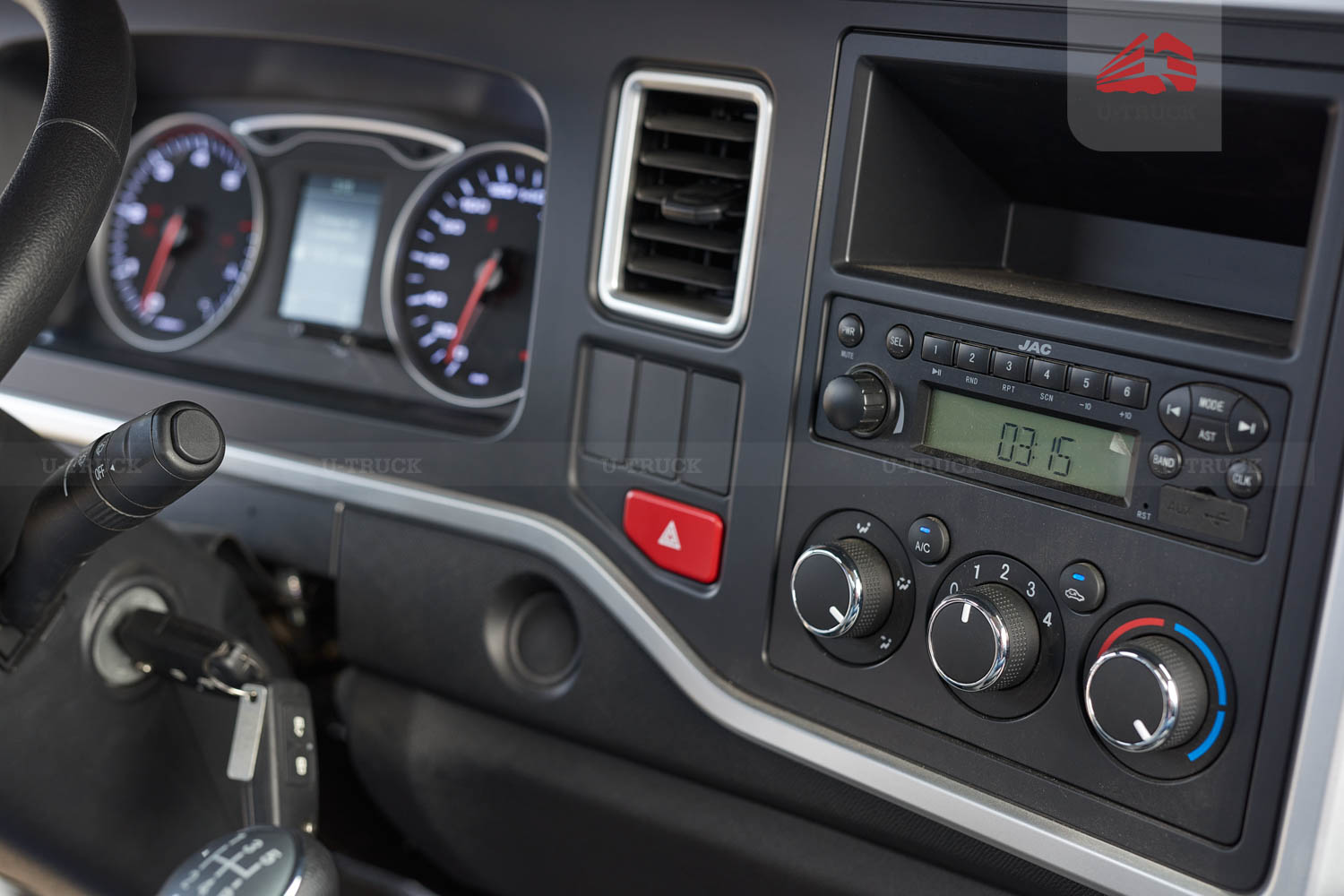

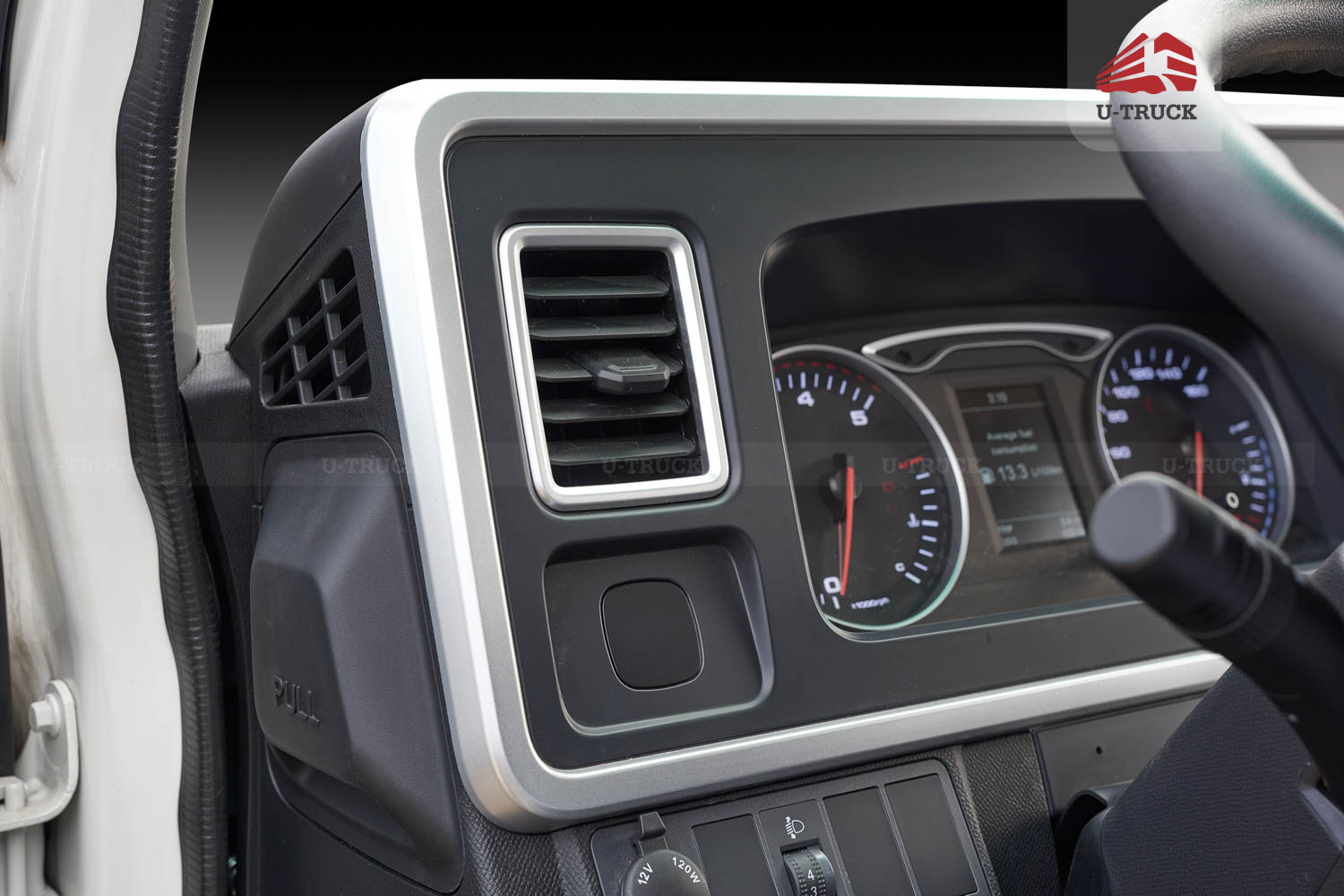

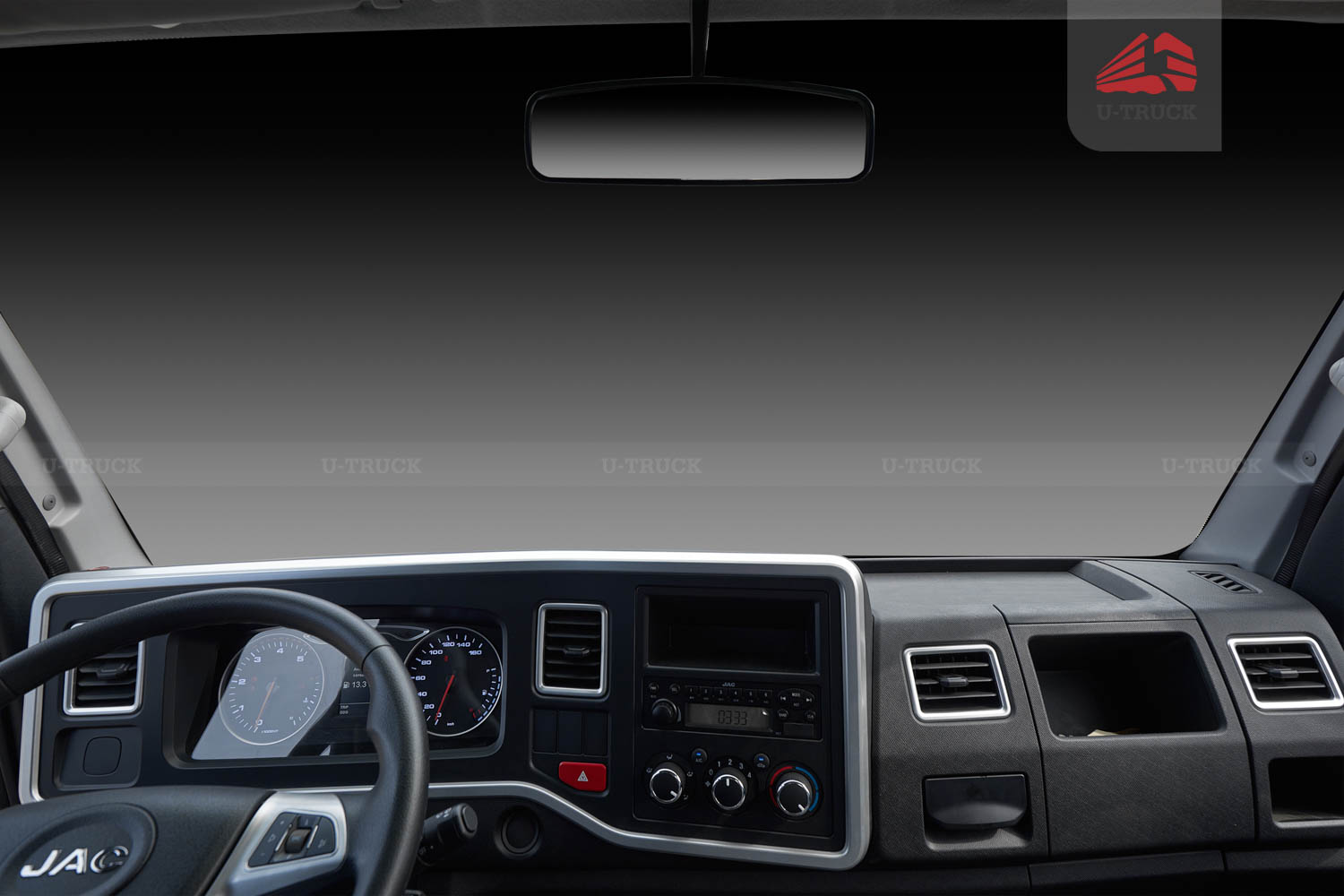

• Intuitive dashboard displaying full information on speed, fuel, and engine temperature.
• Ergonomically designed seats reduce fatigue during long journeys.

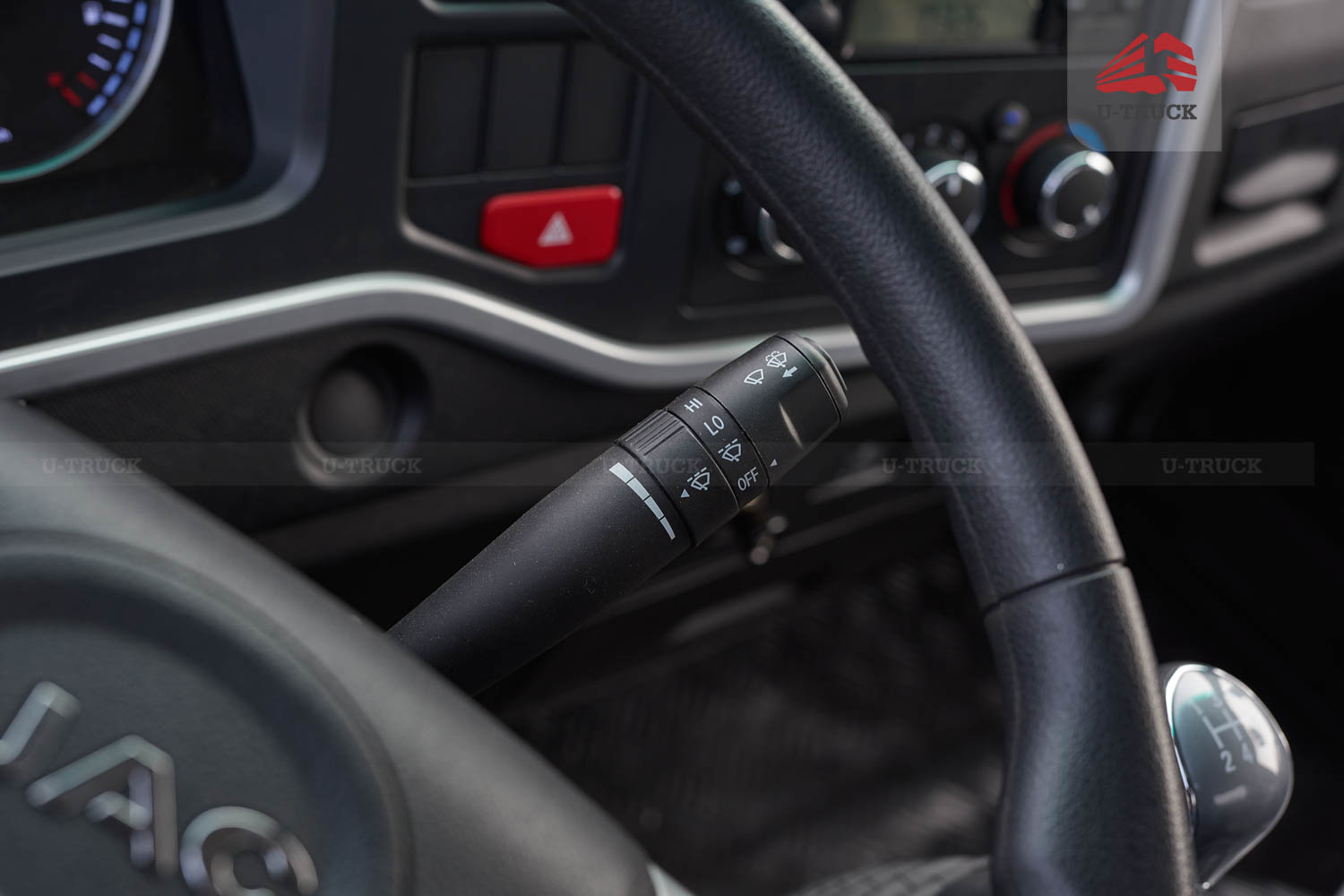

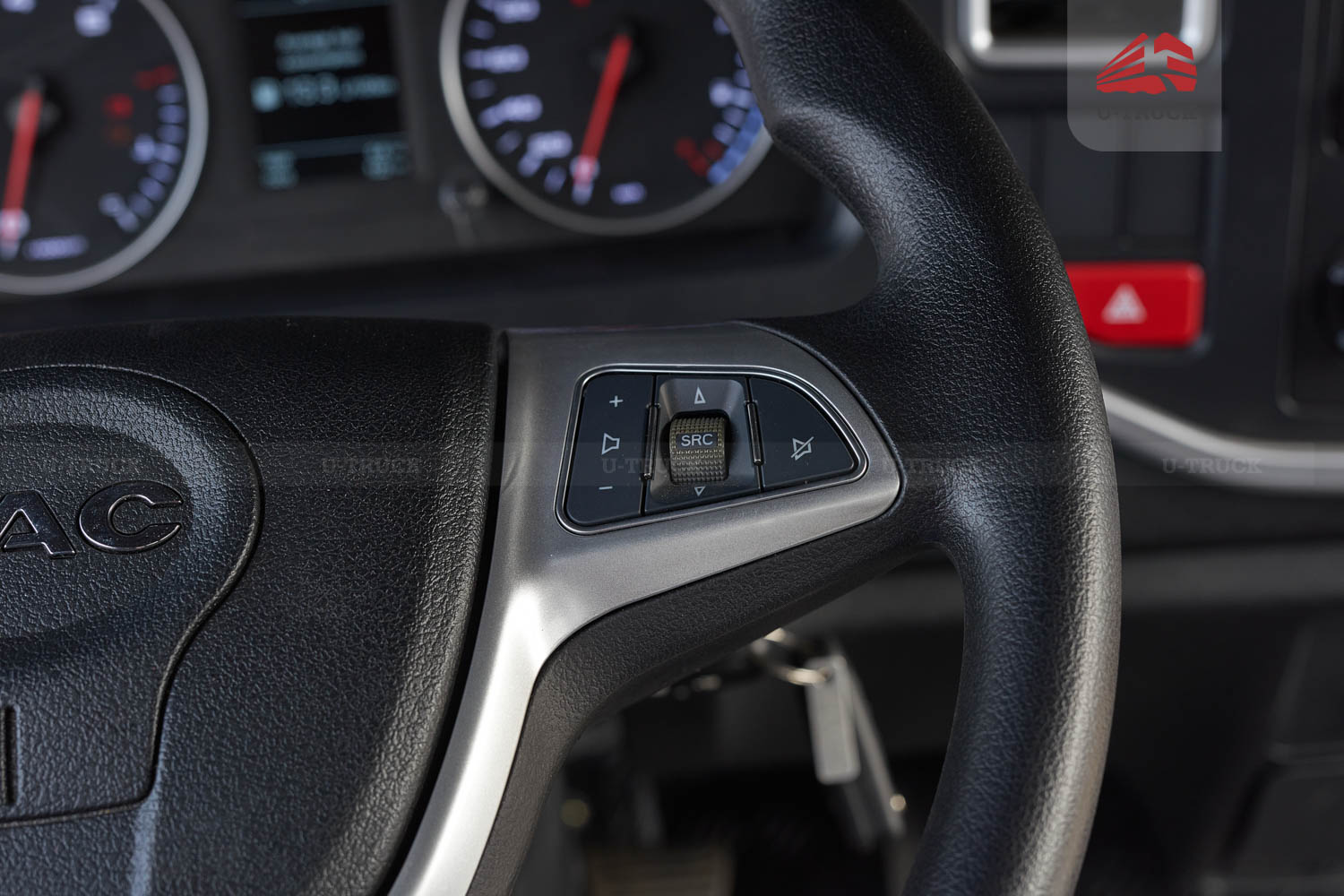

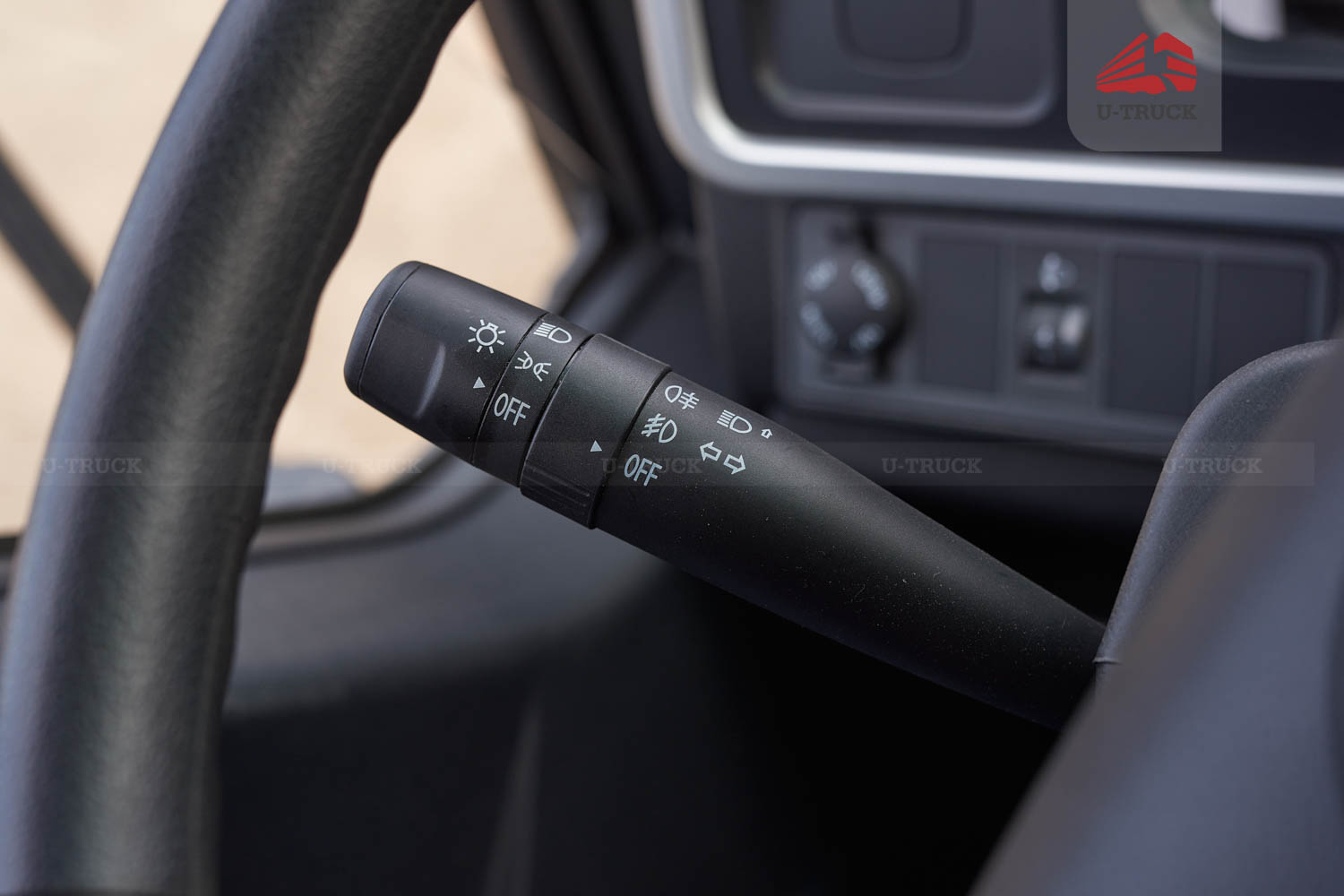

• Power-assisted steering wheel with integrated controls for easy operation without taking hands off the wheel.

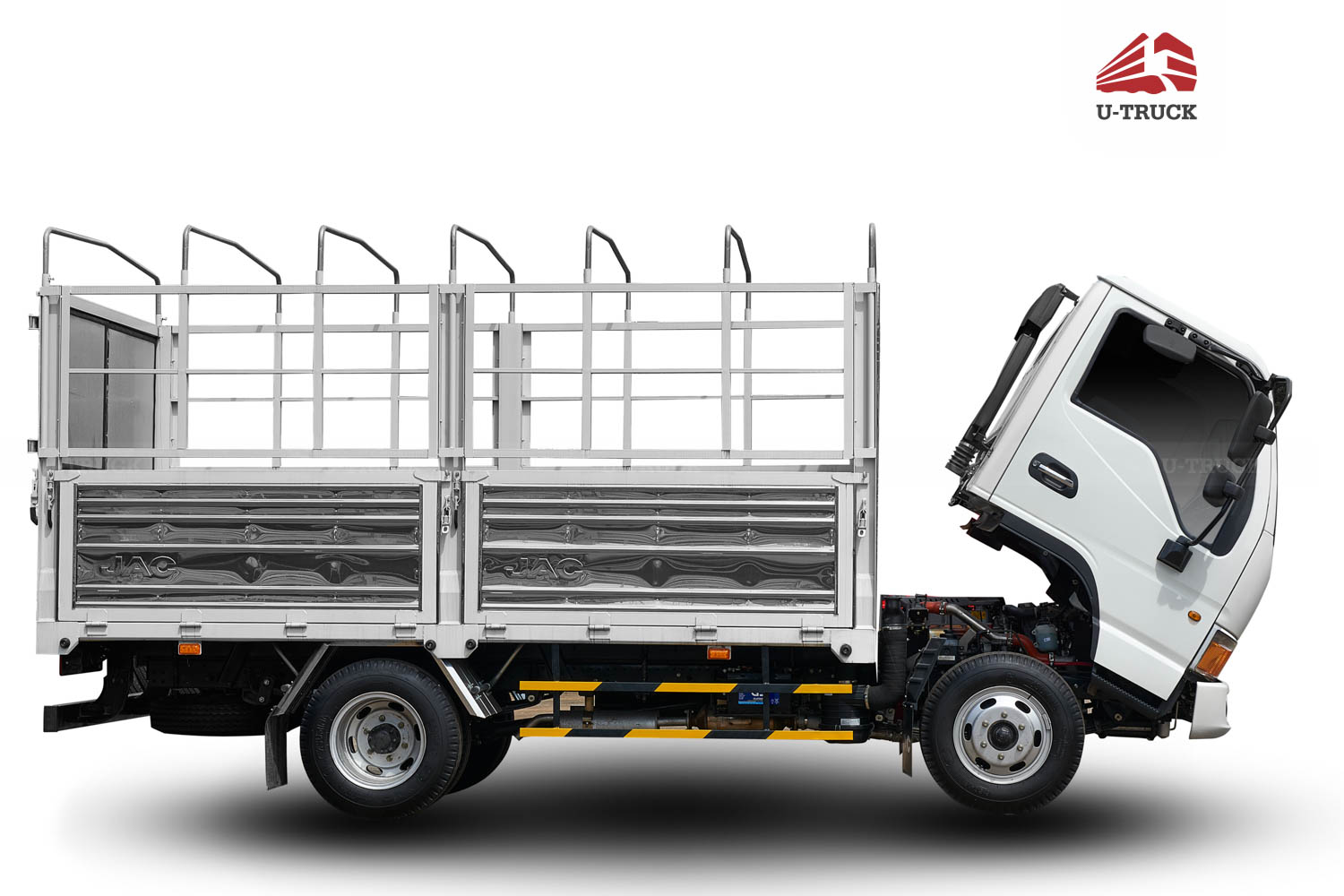

Engine – Powerful & Durable Performance

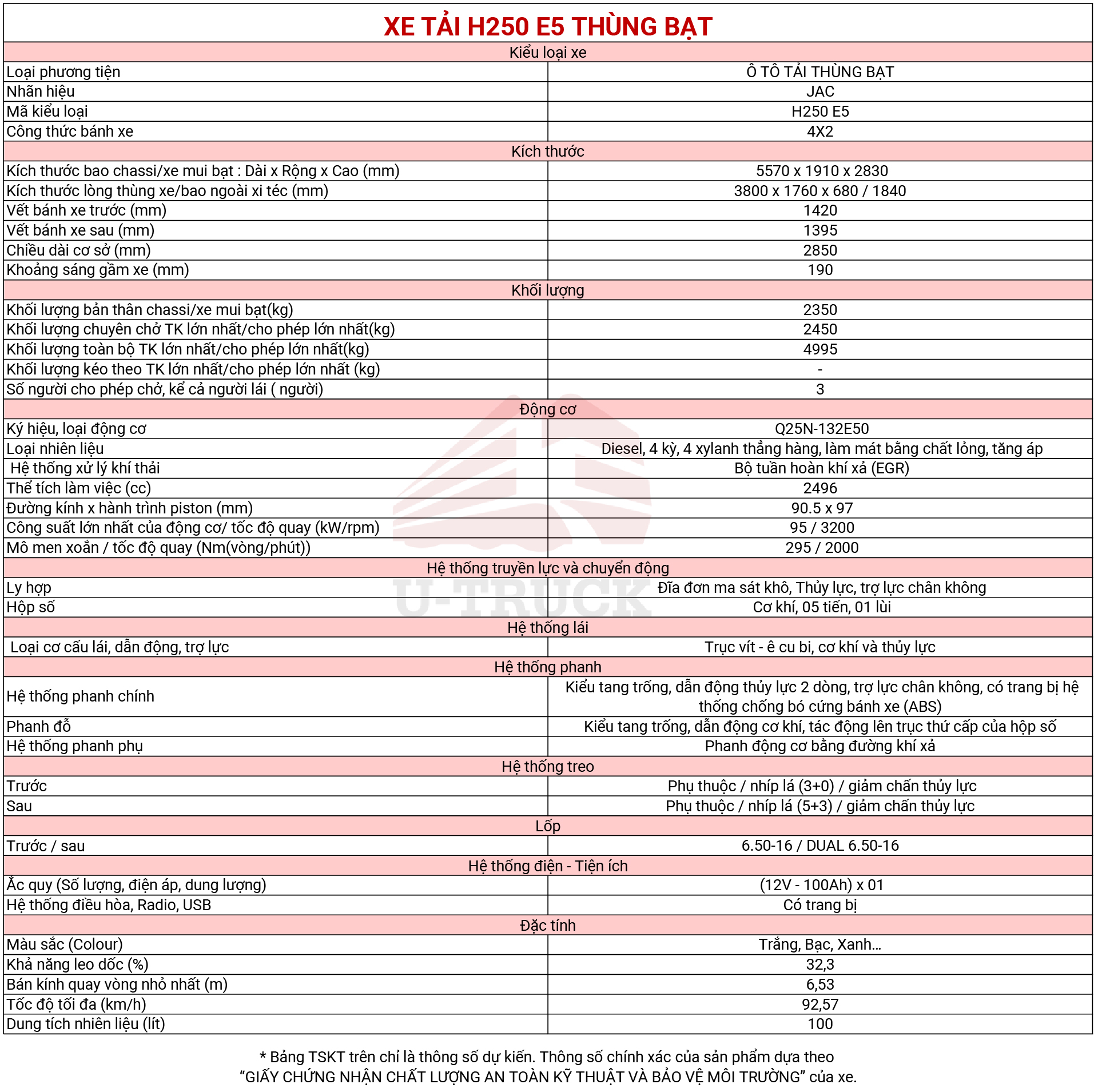

The JAC H250 E5 tarpaulin truck is equipped with the Q25N-132E50 engine, optimized for performance and fuel efficiency:

• Engine type: Diesel, 4-stroke, 4-cylinder inline
• Displacement: 2,496 cc
• Maximum power: 95 kW at 3,200 rpm
• Maximum torque: 295 Nm at 2,000 rpm, enabling smooth operation even under heavy loads
• High-pressure BOSCH fuel injection system (1,800 bar) improves fuel efficiency
• Engine lifespan (B10) up to 800,000 km, ensuring long-term durability

Transmission & Optimization

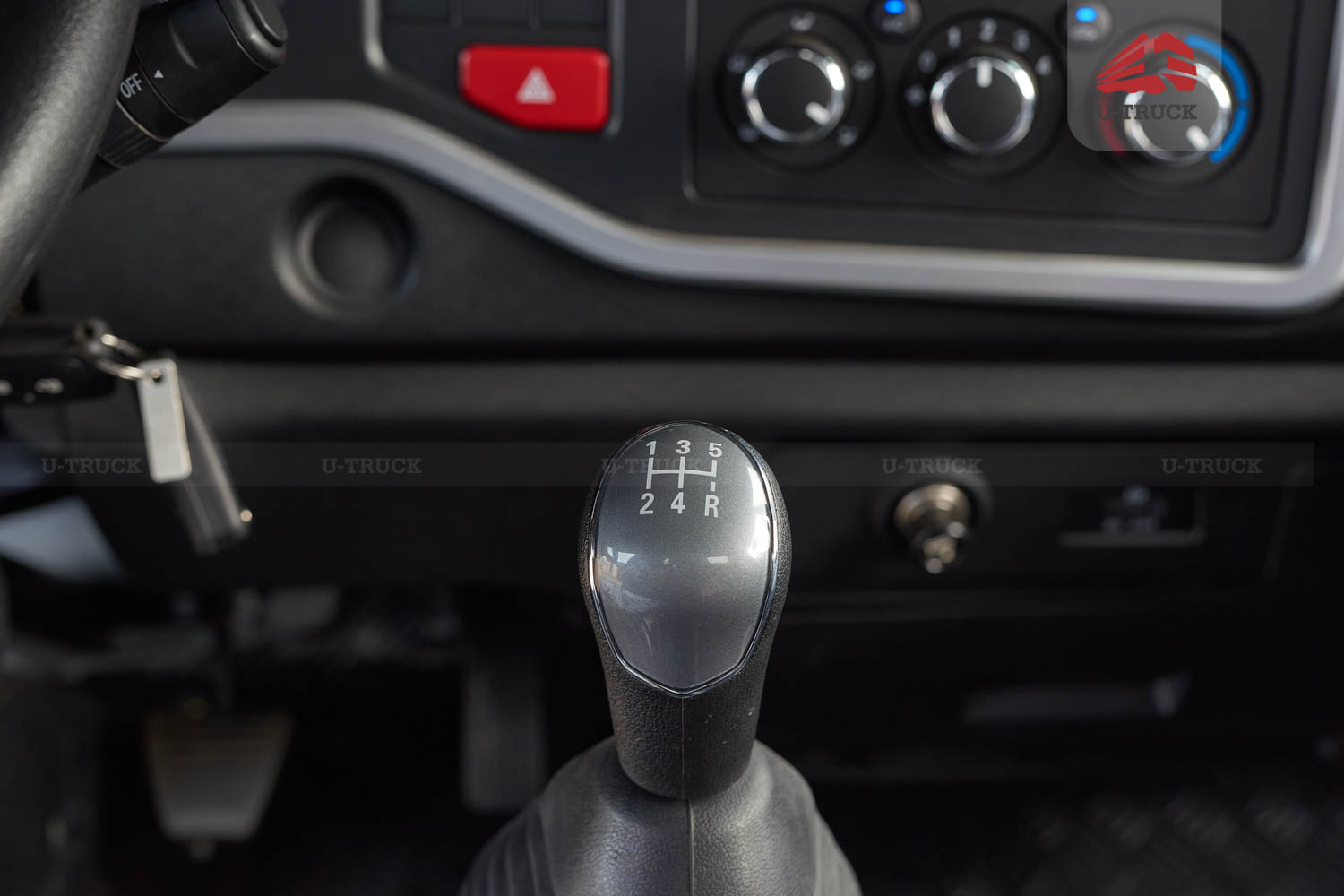

• Equipped with LC5T28 gearbox: 5 forward gears, 1 reverse
• Smooth gear shifting mechanism reduces jerking
• Single-plate clutch with vacuum assist for lighter pedal operation
• Optimized gear ratios for better fuel economy and performance

Chassis – Strong & High Load Capacity

• Front axle: I-beam type, load capacity up to 2,000 kg
• Rear axle: load capacity up to 4,400 kg, gear ratio 4.875 for stable operation even under heavy loads
• Leaf spring suspension with hydraulic shock absorbers ensures smooth driving and reduced vibration on rough roads

Safety Systems

• ABS braking system prevents wheel lock during sudden braking
• Hydraulic drum brakes ensure stable braking performance
• Mechanical parking brake for secure stopping on slopes
• DOC + POC emission system (no urea required), more environmentally friendly

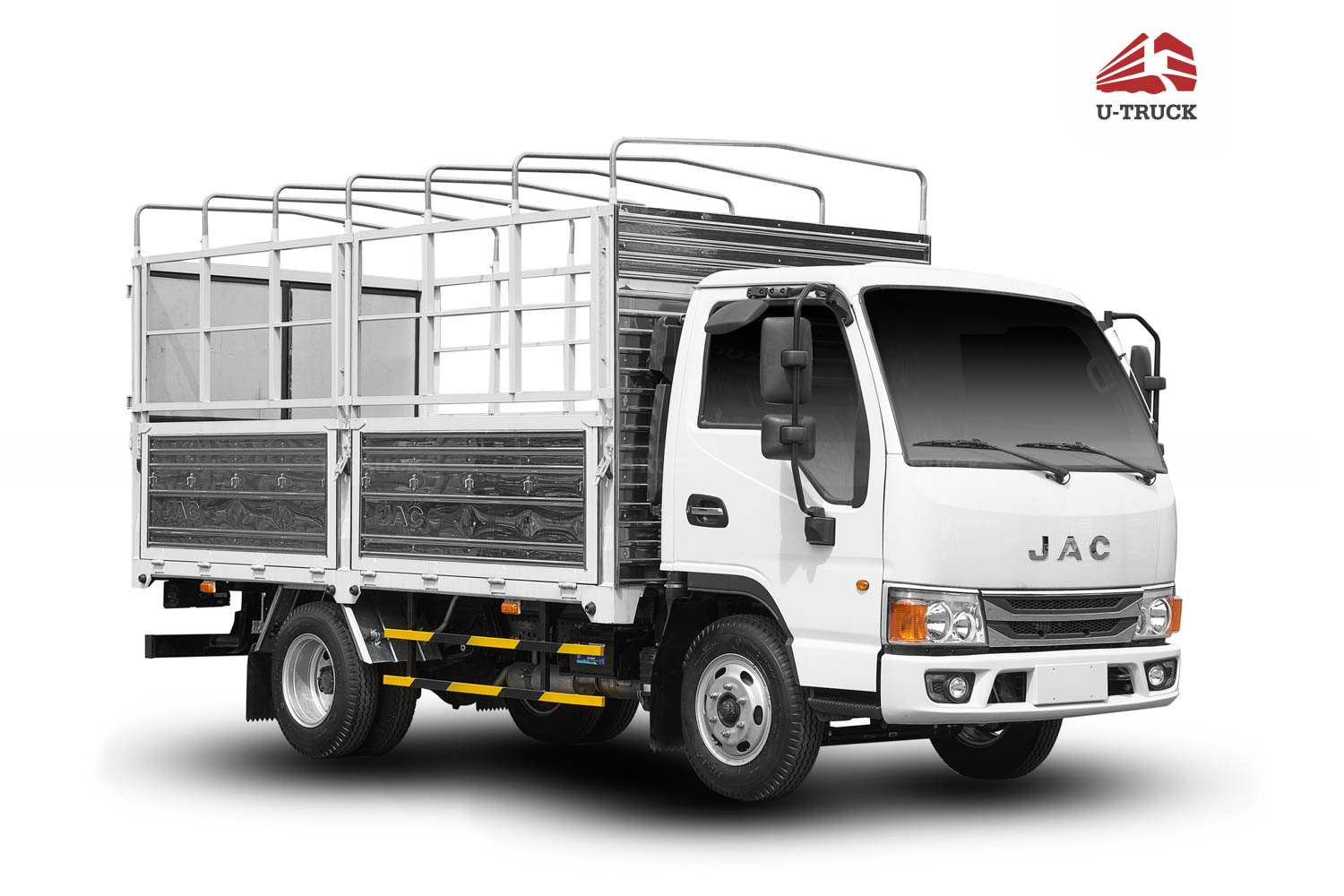

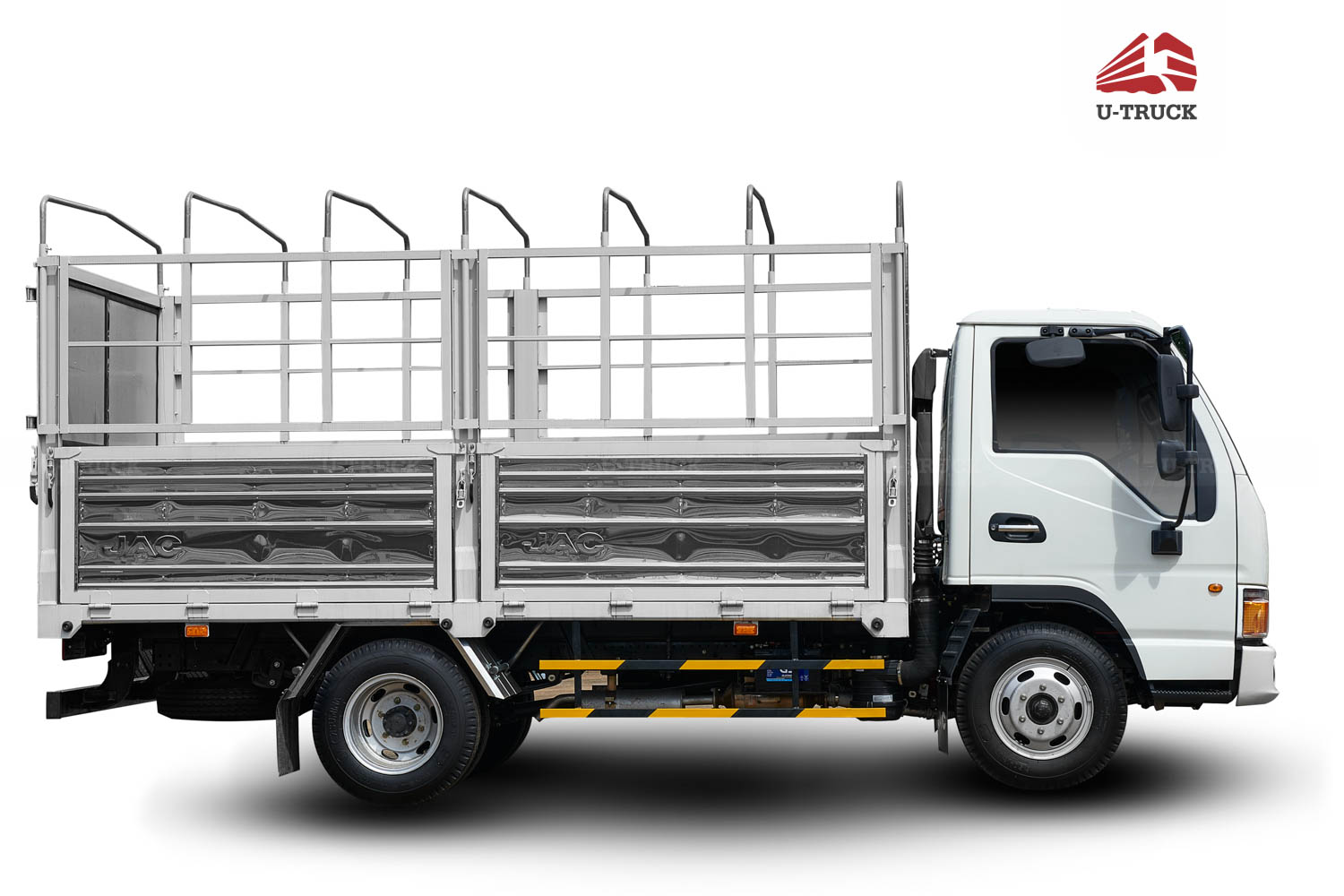

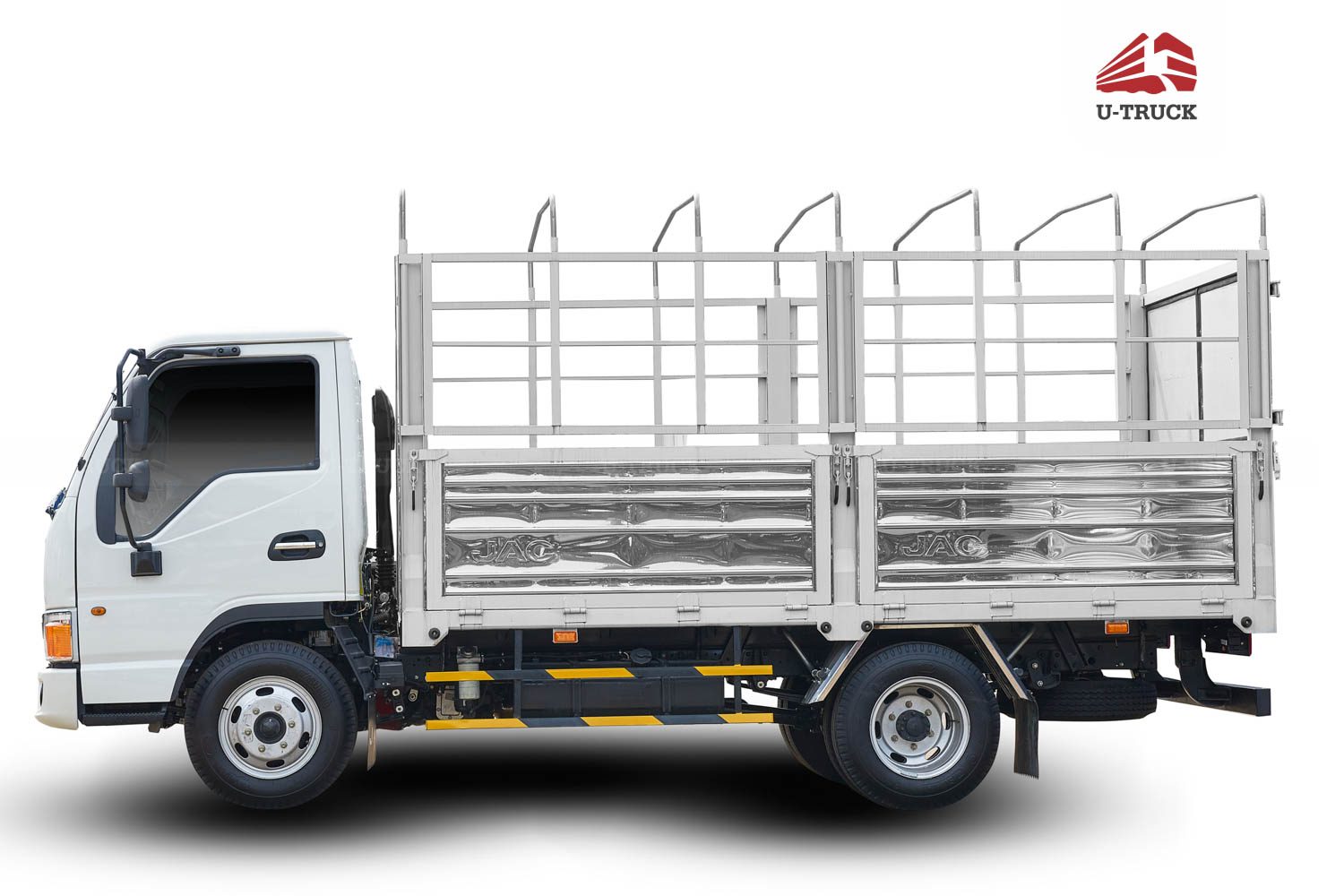

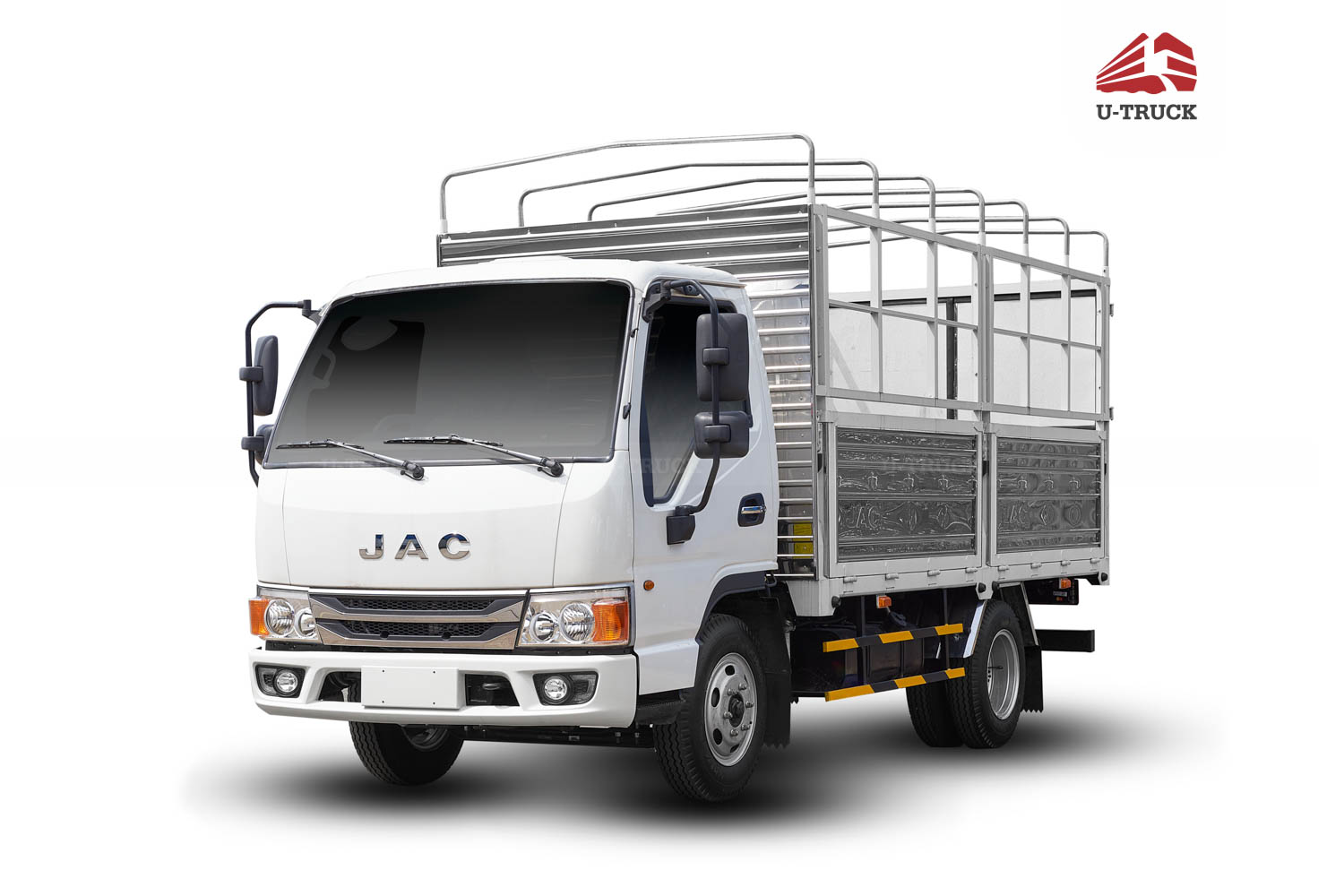

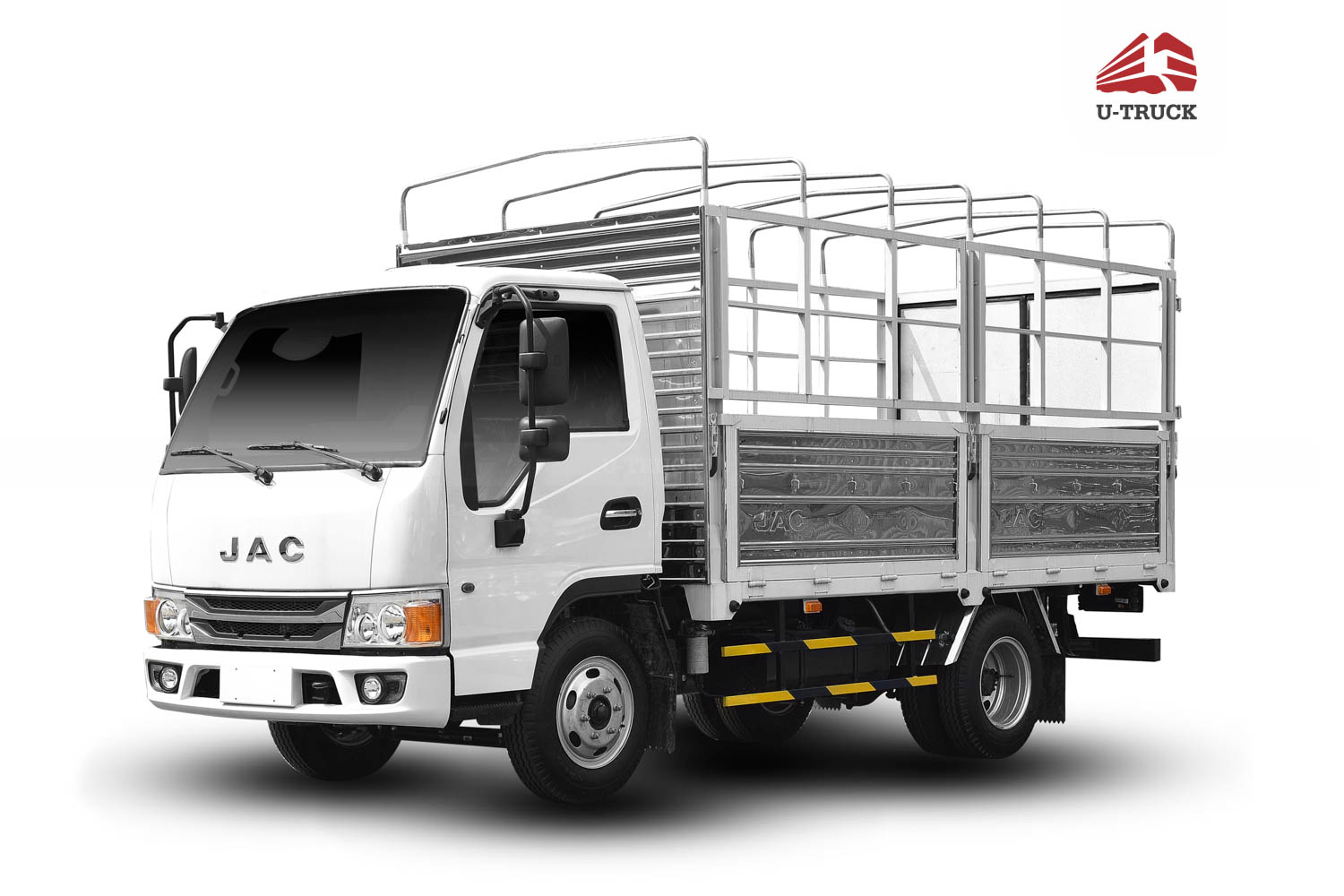

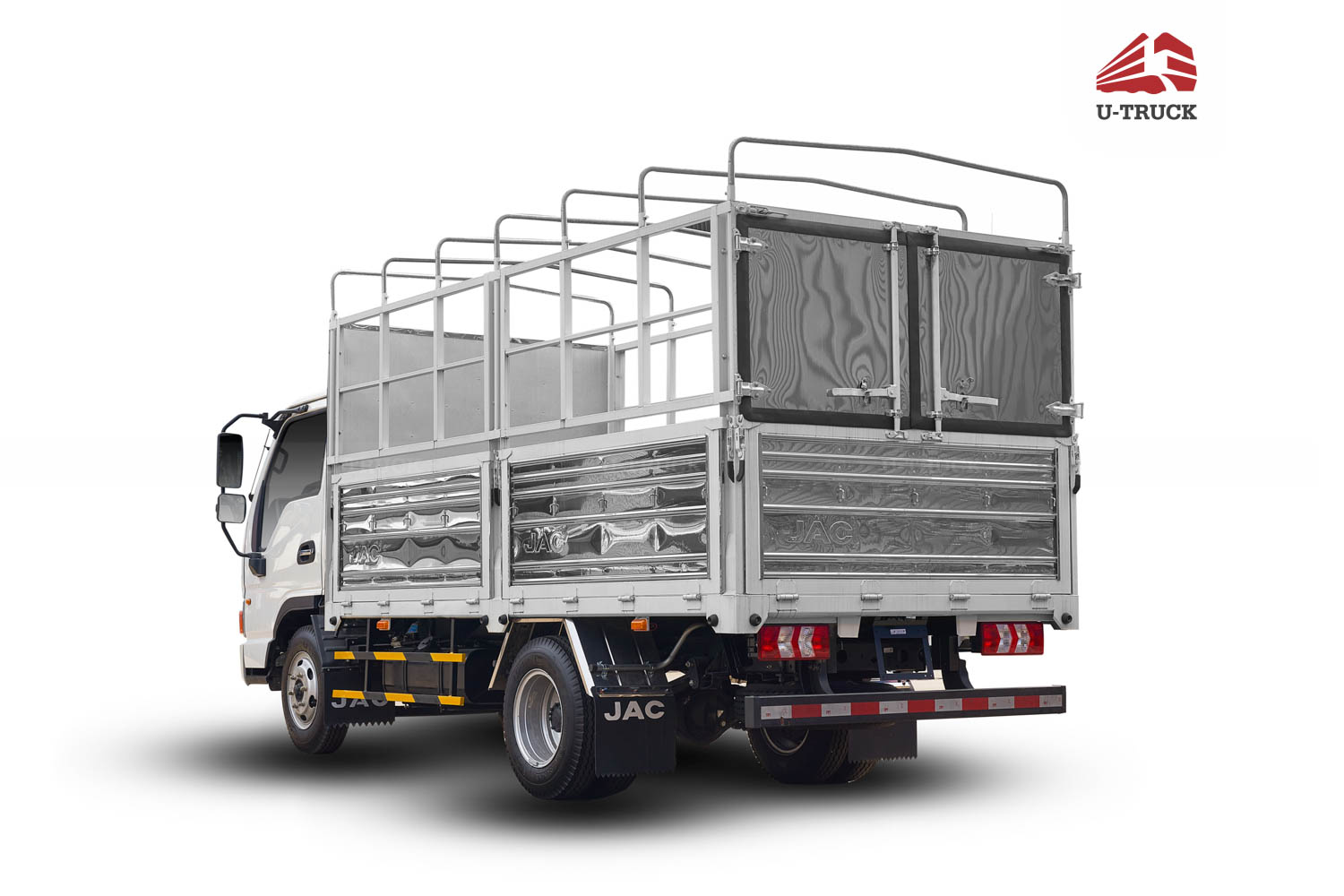

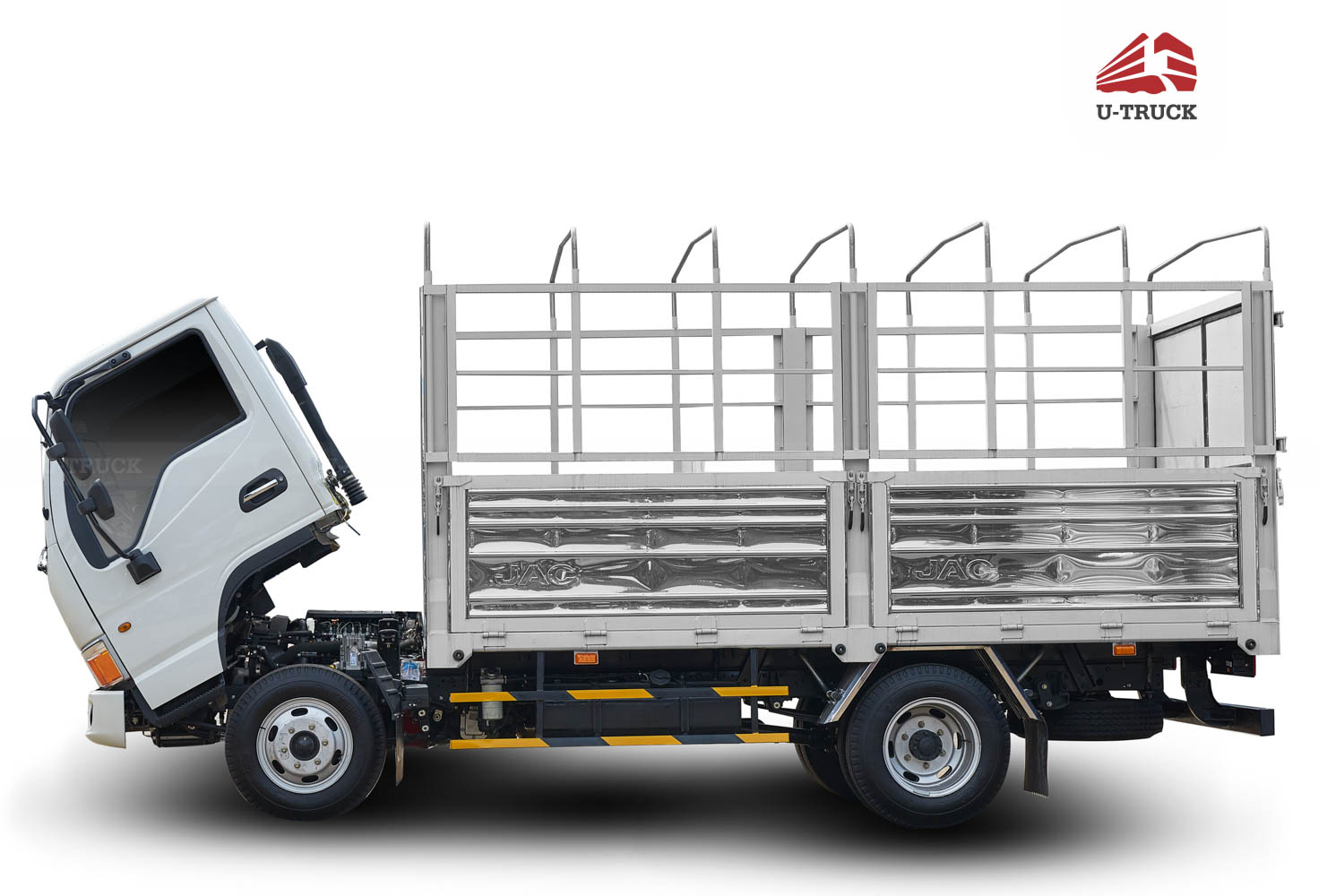

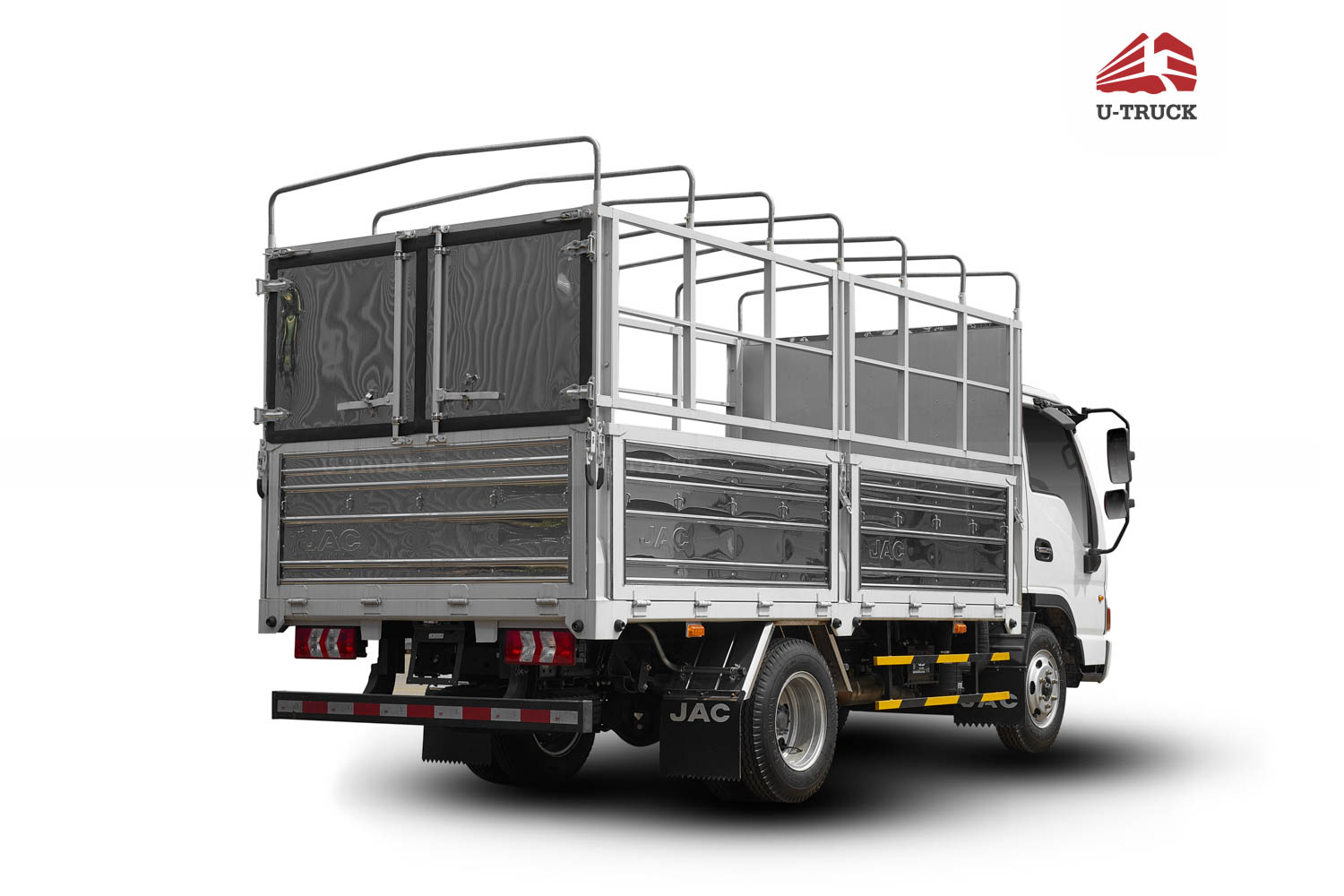

Tarpaulin Cargo Body – Flexible for Multiple Goods

• Cargo dimensions: 3,800 × 1,760 × 1,840 mm
• Strong frame, easy to dismantle for flexible loading
• Reinforced cargo floor with anti-slip design for safety
• Thick waterproof tarpaulin protects goods from sun, rain, and dust

Conclusion

The JAC H250 E5 tarpaulin truck is an ideal choice for those seeking a durable, fuel-efficient, and stable light-duty truck. With a 3-year or 100,000 km warranty, professional after-sales service, and flexible financing support, U-TRUCK is committed to delivering optimal transport solutions.
